MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-151

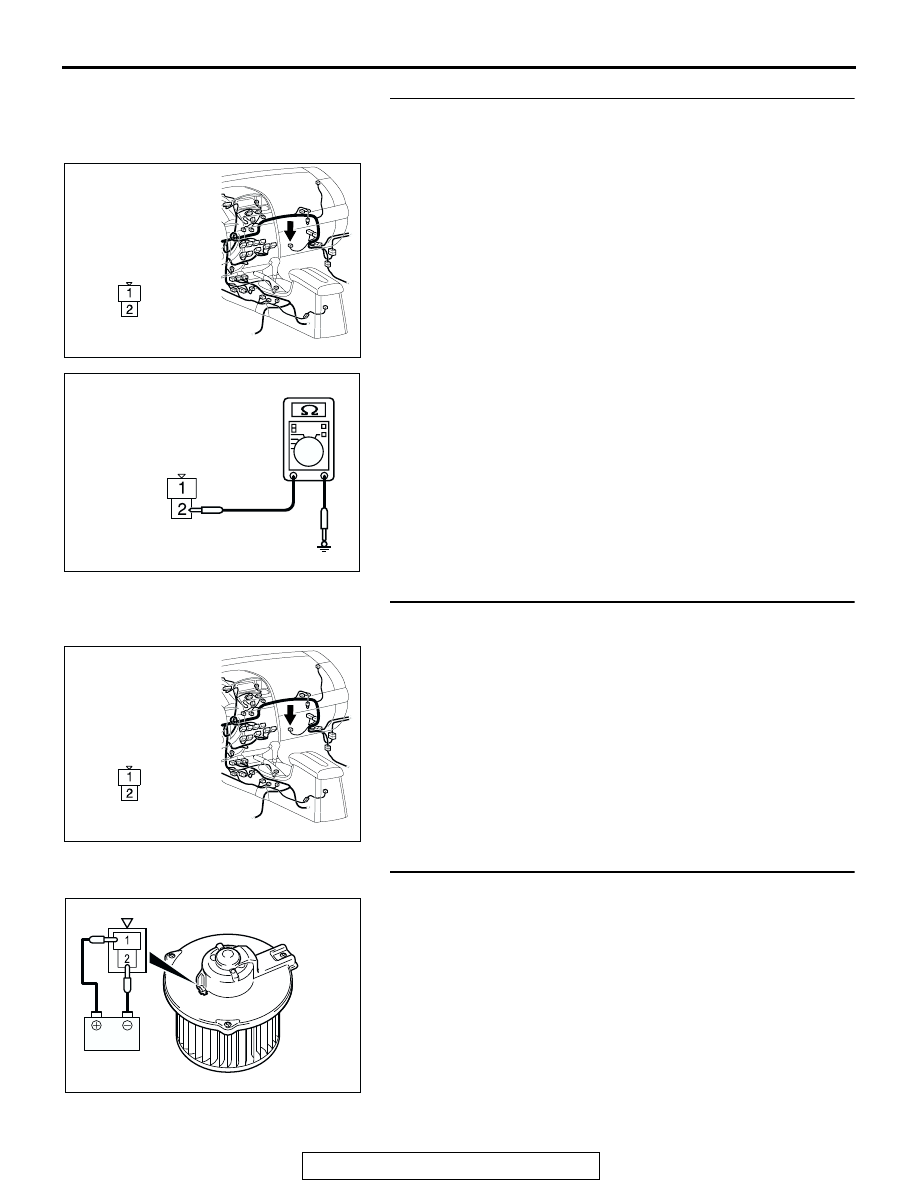

STEP 15. Measure the resistance at blower motor
connector C-115 in order to the ground circuit to the
blower motor.

(1) Disconnect blower motor connector C-115, and measure

the resistance at the wiring harness side.

(2) Measure the resistance value between terminal 2 and

ground.

• The measured value should be 2 ohms or less.

Q: Does the measured resistance value correspond with

this range?
YES :  Go to Step 17.
NO :   Go to Step 16.

STEP 16. Check the wiring harness between blower motor
connector C-115 (terminal 2) and ground.

Q: Is the wiring harness between blower motor connector

C-115 (terminal 2) and ground in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Repair the wiring harness. The blower motor should

operate normally.

STEP 17. Check the blower fan and motor operation.

When battery voltage is applied between the terminals, check
that the motor operates. Also, check that there is no abnormal
noise.
Q: Is there any abnormal noise?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the blower relay. The blower motor should

operate normally.

AC305233BN

CONNECTOR: C-115

HARNESS SIDE

AC209364

CONNECTOR C-115
(HARNESS SIDE)

IT

AC305233BN

CONNECTOR: C-115

HARNESS SIDE

AC209862

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-152

INSPECTION PROCEDURE 6: Blower Air Amount cannot be Changed.

.

CIRCUIT OPERATION
If the blower motor speed cannot be changed, the
power transistor circuit is suspected.

.

TROUBLESHOOTING HINTS

• Malfunction of the power transistor

• Malfunction of the front A/C-ECU

• Damaged harness wires or connectors

BLOWER RELAY

BLOWER
SWITCH

RESISTOR

BLOWER
MOTOR

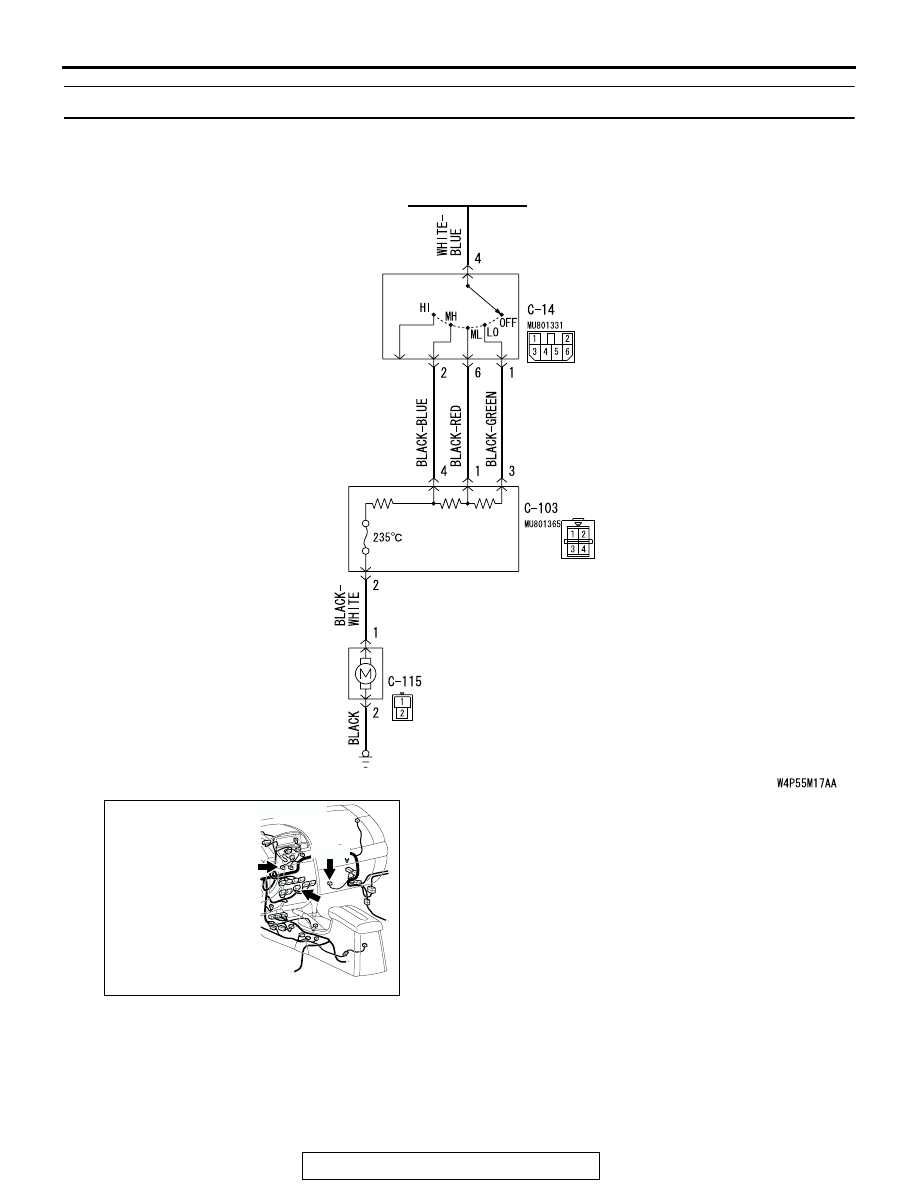

Blower Switch and Resistor Circuit

AC305233BR

CONNECTORS: C-14, C-103, C-115

C-103

C-115

C-14

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-153

DIAGNOSIS

Required Special Tool:

• MB991223: Test Harness Set

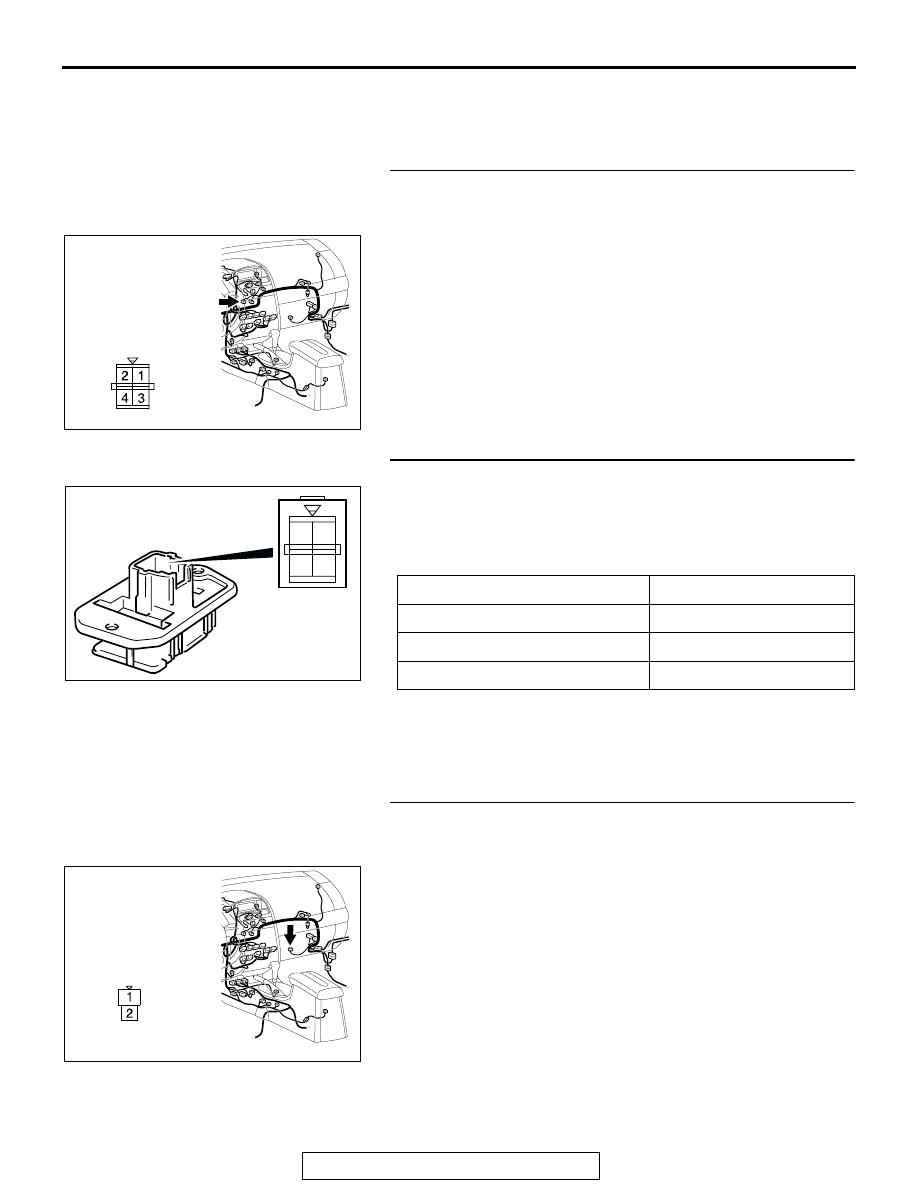

STEP 1. Check resistor connector C-103 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:  Is resistor connector C-103 in good condition?

YES : Go to Step 2.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

STEP 2. Check the resistor resistance value.

Use an ohmmeter to measure the resistance between the ter-
minals. Check that the measured value is at the standard
value.

Standard value:

Q: Is the measured value at the standard value?

YES : Go to Step 3.
NO :  Replace the resistor. The blower motor should

operate normally.

STEP 3. Check blower motor connector C-115 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:  Is blower motor connector C-115 in good condition?

YES : Go to Step 4.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305233

HARNESS SIDE

BQ

CONNECTOR: C-103

MEASUREMENT TERMINAL

STANDARD VALUE

Ω

Between terminals 2 and 3 (LO)

2.79

Between terminals 1 and 2 (ML) 1.49

Between terminals 2 and 4 (MH) 0.39

AC307313

1 2

3 4

AC305233BN

CONNECTOR: C-115

HARNESS SIDE

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-154

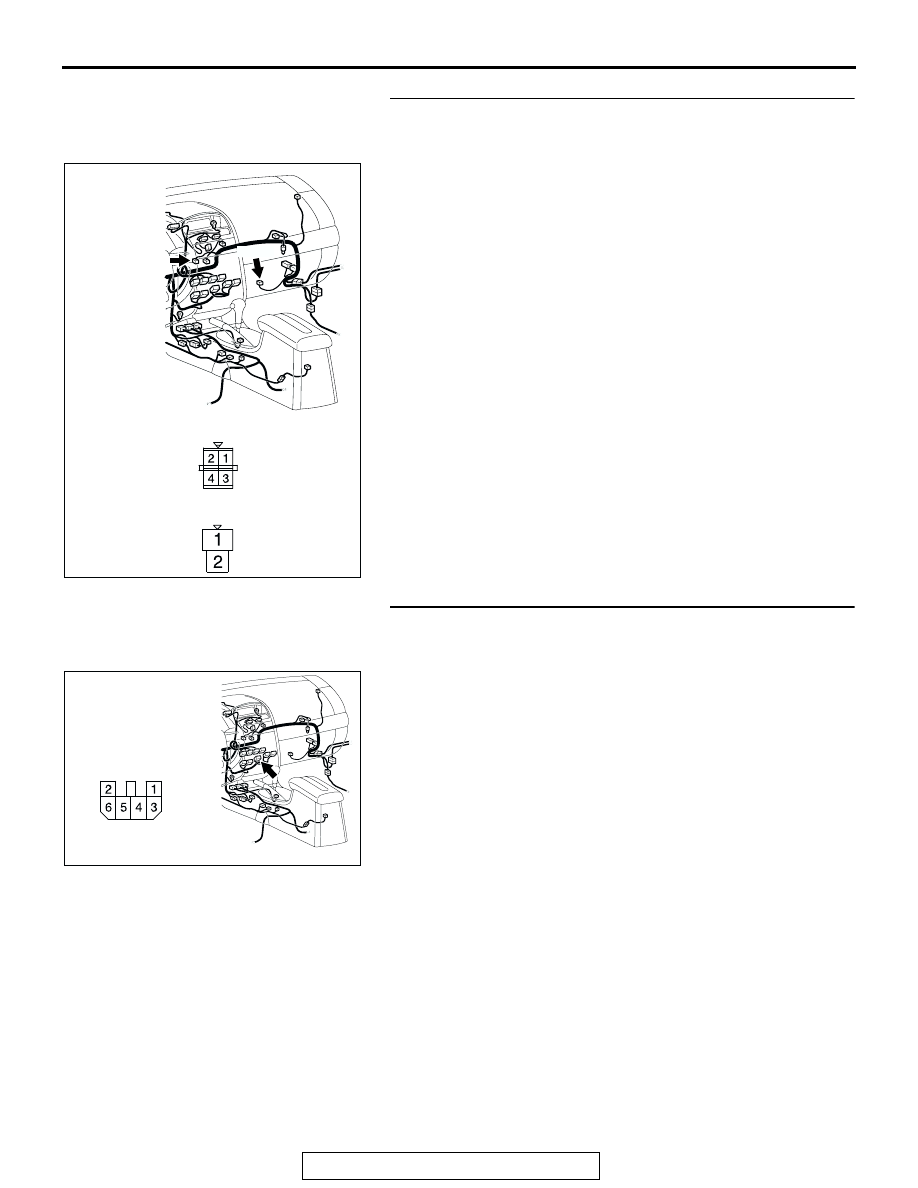

STEP 4. Check the wiring harness blower switch
connector C-115 (terminal 1) and resistor connector C-103
(terminal 2).

Q: Is the wiring harness between blower switch connector

C-115 (terminal 1) and resistor connector C-103
(terminal 2) in good condition?
YES : Go to Step 5.
NO :  Repair the wiring harness. The blower motor should

operate normally.

STEP 5. Check blower switch connector C-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:  Is blower switch connector C-14 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305234

CONNECTORS: C-103, C-115

C-103

C-115

HARNESS SIDE

C-103

HARNESS SIDE

C-115

AK

AC305233

HARNESS SIDE

BO

CONNECTOR: C-14
