Mitsubishi Galant (2004+). Manual - part 714





TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-407

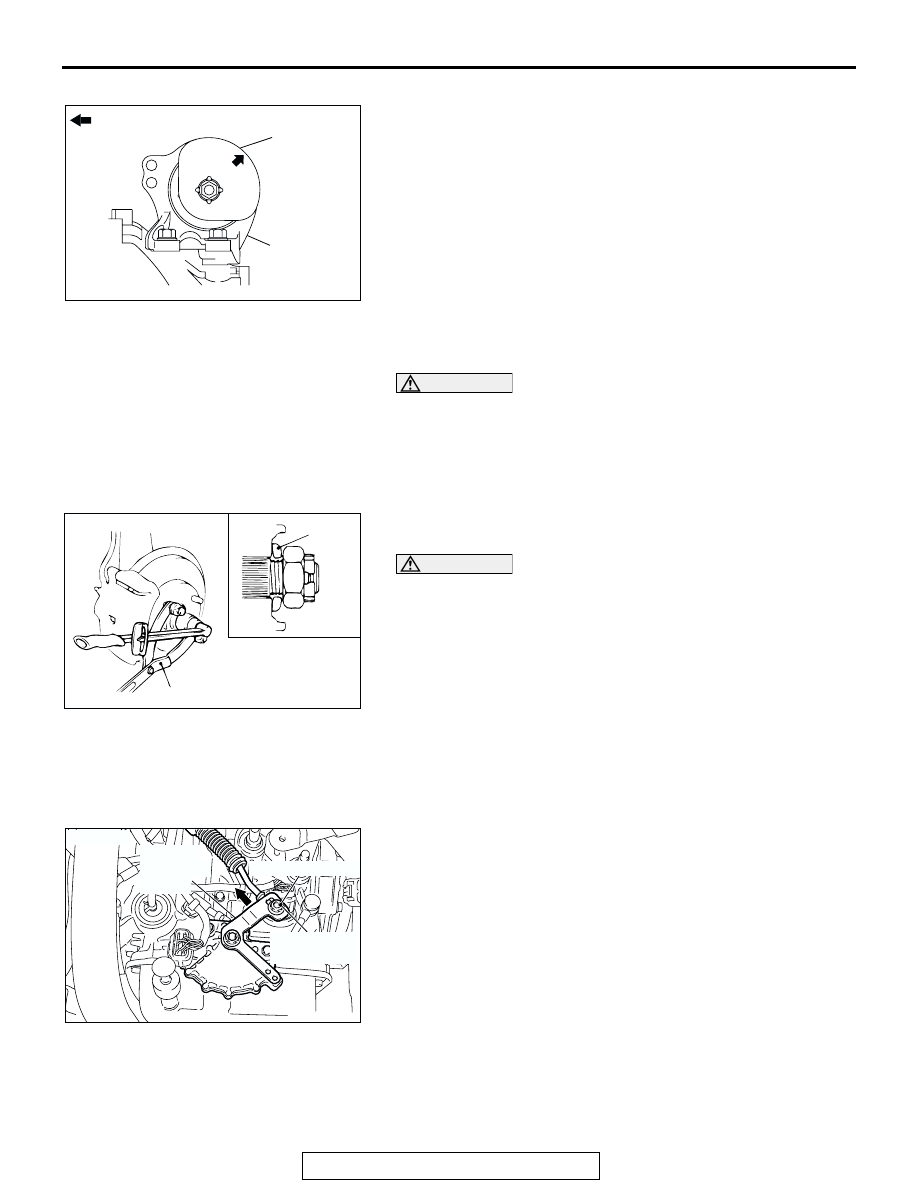

>>B<< TRANSAXLE MOUNT STOPPER INSTALLATION
Install the transaxle mount stopper so that its arrow points
upward.

.

>>C<< DRIVE SHAFT/DRIVE SHAFT AND INNER SHAFT
ASSEMBLY INSTALLATION

CAUTION

When installing the drive shaft or the drive shaft and inner
shaft assembly, be careful that the spline part of the drive
shaft or the drive shaft and inner shaft assembly do not
damage the oil seal.

.

>>D<< DRIVE SHAFT NUT INSTALLATION
1. Be sure to install the drive shaft washer in the specified

direction.

CAUTION

Before securely tightening the drive shaft nuts, make sure
there is no load on the wheel bearings. Otherwise the
wheel bearing will be damaged.
2. Using special tool MB990767, tighten the drive shaft nut to

the specified torque.

Tightening torque: 226

± 29 Nm (167 ± 21 ft-lb)

.

>>E<< ADJUSTING NUT/TRANSAXLE CONTROL CABLE
(TRANSAXLE SIDE) INSTALLATION
1. Place the selector lever and manual control lever in the “N”

position.

2. Place the cable stud into the manual control lever slot and

install the nut loosely. Gently push the transaxle control
cable into the manual control lever slot until the cable is taut.
Tighten the nut to the specified torque.

Tightening torque: 12

± 2 Nm (107 ± 17 in-lb)

AC205424

ENGINE SIDE

TRANSAXLE
MOUNT
STOPPER

TRANSAXLE
MOUNT

AB

AC210244AB

MB990767

WASHER

AC305881AD

12 ± 2 N·m
107 ± 17 in-lb

ADJUSTING NUT

MANUAL
CONTROL
LEVER

<F4A5A>

TRANSMISSION FLUID COOLER, HOSE AND PIPE

TSB Revision

AUTOMATIC TRANSAXLE

23A-408

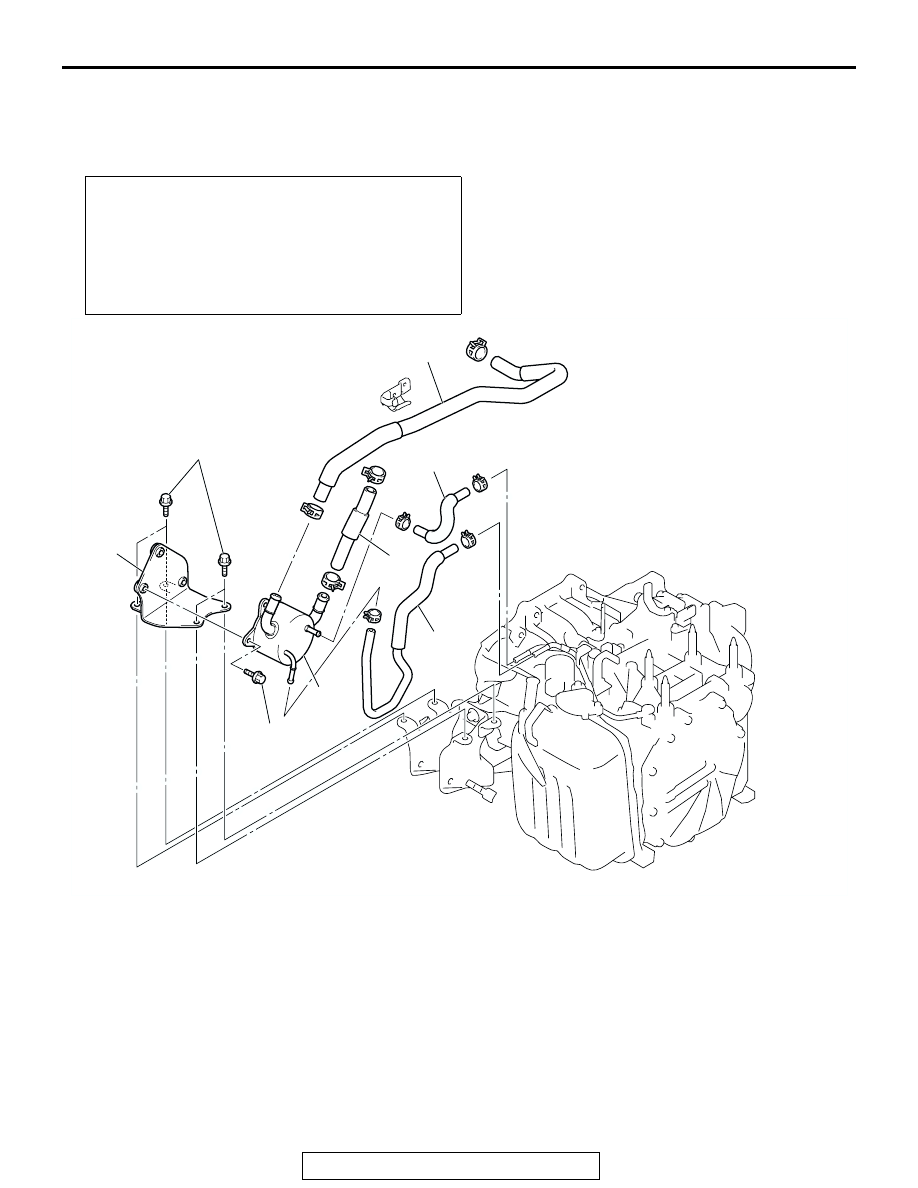

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION

M1231021900044

<F4A4B>

Pre-removal and Post-installation Operation
• Engine Coolant Draining and Supplying (Refer to GROUP

00

− Maintenance Service

P.00-53

.)

• Transmission Fluid Draining and Supplying (Refer to

GROUP 00, Maintenance Service

− Automatic Transmis-

sion Fluid

P.00-50

.)

• Air Cleaner Intake Duct Removal and Installation (Refer to

GROUP 15, Air Cleaner

P.15-4

.)

AC306185AB

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

1

2

3

4

6

5

REMOVAL STEPS

<<A>>

1.

TRANSMISSION FLUID COOLER
RETURN HOSE

<<A>>

2.

TRANSMISSION FLUID COOLER
FEED HOSE

<<A>>

3.

WATER COOLER FEED HOSE

<<A>>

4.

WATER COOLER RETURN HOSE

ATF WARMER (TRANSMISSION
FLUID COOLER) AND ATF
WARMER (TRANSMISSION
FLUID COOLER) BRACKET

5.

ATF WARMER (TRANSMISSION
FLUID COOLER) BRACKET

<<A>>

6.

ATF WARMER (TRANSMISSION
FLUID COOLER)

REMOVAL STEPS (Continued)

TRANSMISSION FLUID COOLER, HOSE AND PIPE

TSB Revision

AUTOMATIC TRANSAXLE

23A-409

REMOVAL SERVICE POINTS

.

<<A>> RETURN HOSE/FEED HOSE/WATER COOLER FEED
HOSE/WATER COOLER RETURN HOSE/ATF WARMER
(TRANSMISSION FLUID COOLER) REMOVAL
Drain the transmission fluid and engine coolant, which still
remained in the hoses and the ATF warmer (transmission fluid
cooler).

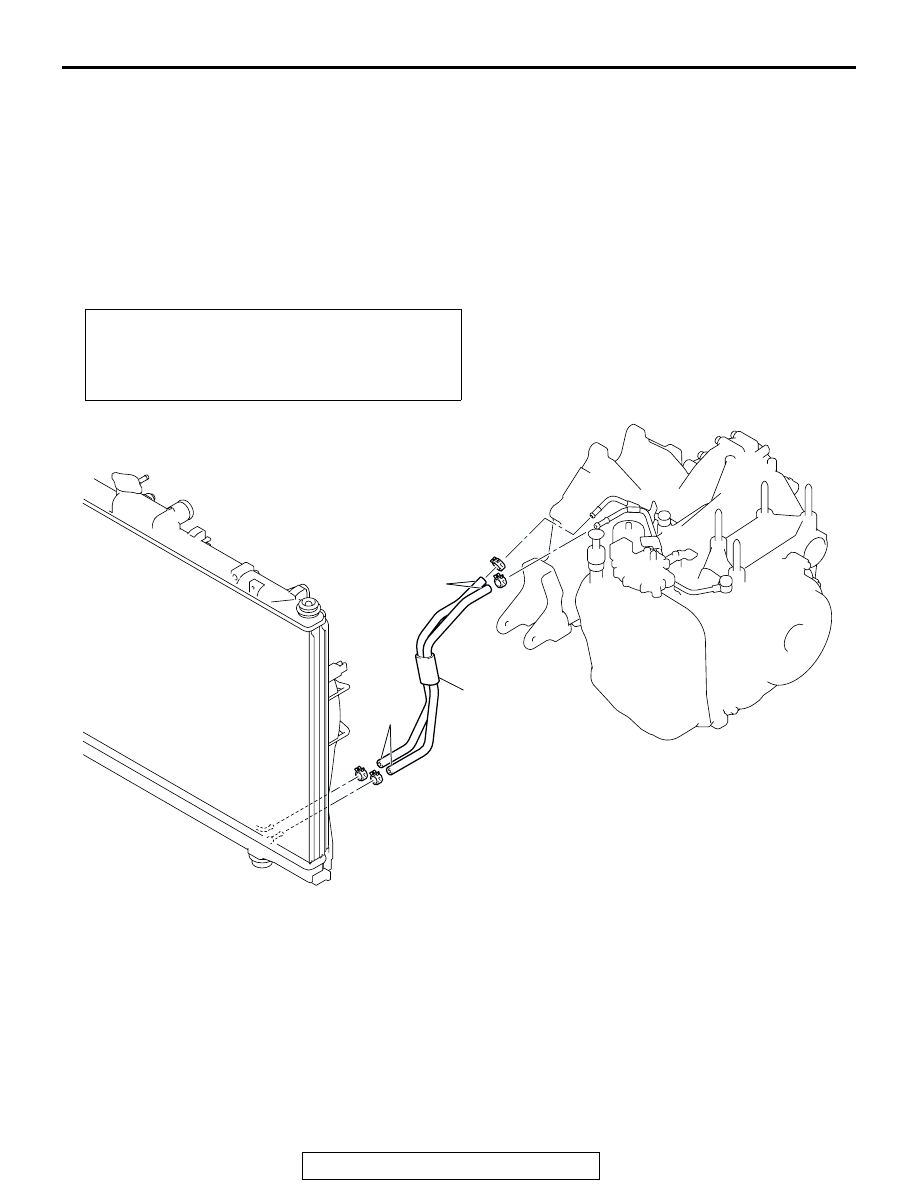

REMOVAL AND INSTALLATION

M1231021900033

<F4A5A>

Pre-removal and Post-installation Operation
• Transmission Fluid Draining and Supplying (Refer to

GROUP 00, Maintenance Service

− Automatic Transmis-

sion Fluid

P.00-50

.)

• Front Under Cover <LH> Removal and Installation

AC306186

1

2

3

AB

TRANSMISSION FLUID COOLER
LINE ASSEMBLY REMOVAL
STEPS

<<A>>

1.

HOSE ASSEMBLY CONNECTION
<RADIATOR SIDE>

AIR CLEANER ASSEMBLY
(REFER TO GROUP 15

P.15-4

).

<<A>>

2.

HOSE ASSEMBLY CONNECTION
<TRANSAXLE SIDE>

3.

HOSE ASSEMBLY

TRANSMISSION FLUID COOLER
LINE ASSEMBLY REMOVAL
STEPS (Continued)

TRANSMISSION FLUID COOLER, HOSE AND PIPE

TSB Revision

AUTOMATIC TRANSAXLE

23A-410

REMOVAL SERVICE POINTS

.

<<A>> HOSE ASSEMBLY <RADIATOR SIDE>/HOSE
ASSEMBLY <TRANSAXLE SIDE> REMOVAL
Drain the transmission fluid, which still remained in the hose
assembly and the transmission fluid cooler.
