AUTOMATIC TRANSAXLE DIAGNOSIS
TSB Revision
AUTOMATIC TRANSAXLE
23A-175

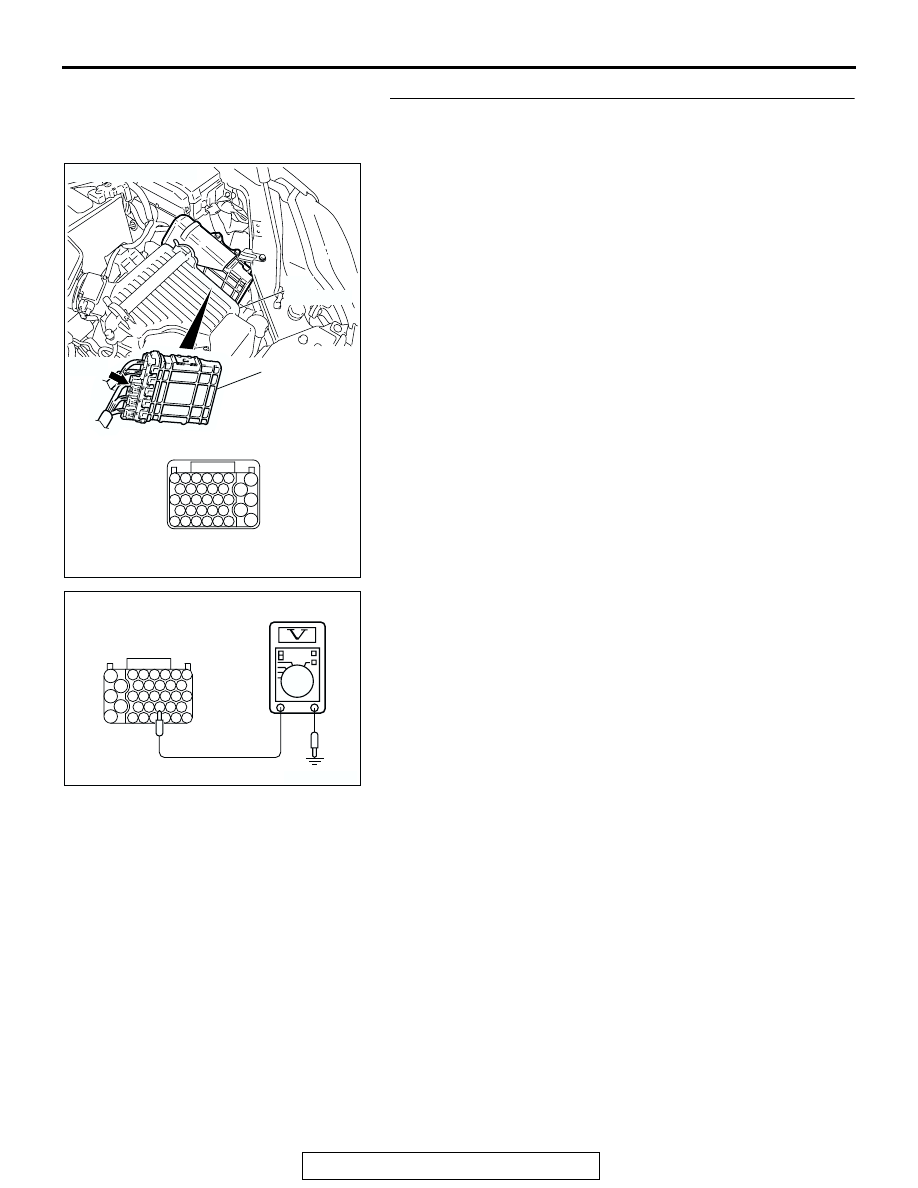

STEP 8. Measure the transmission range switch output
voltage at PCM connector B-21 by using check harness
special tool MB991923. ("N" position)
Measure the voltage between terminal 77 and ground.
• When transmission range is "P," voltage should measure
0.5 volt or less.
• When transmission range is "R," voltage should measure
0.5 volt or less.
• When transmission range is "N," voltage should equal bat-
tery positive voltage.
• When transmission range is "D," voltage should measure
0.5 volt or less.
• When transmission range is "3," voltage should measure
0.5 volt or less. <Vehicles without sport mode>
• When transmission range is "2," voltage should measure
0.5 volt or less. <Vehicles without sport mode>
• When transmission range is "L," voltage should measure
0.5 volt or less. <Vehicles without sport mode>
• When transmission range is sport mode, voltage should
measure 0.5 volt or less. <Vehicles with sport mode>
Q: Is the measured voltage within the specified range?
YES : Go to Step 10.
NO : Turn the ignition switch to the "LOCK" (OFF) position.
Go to Step 9.

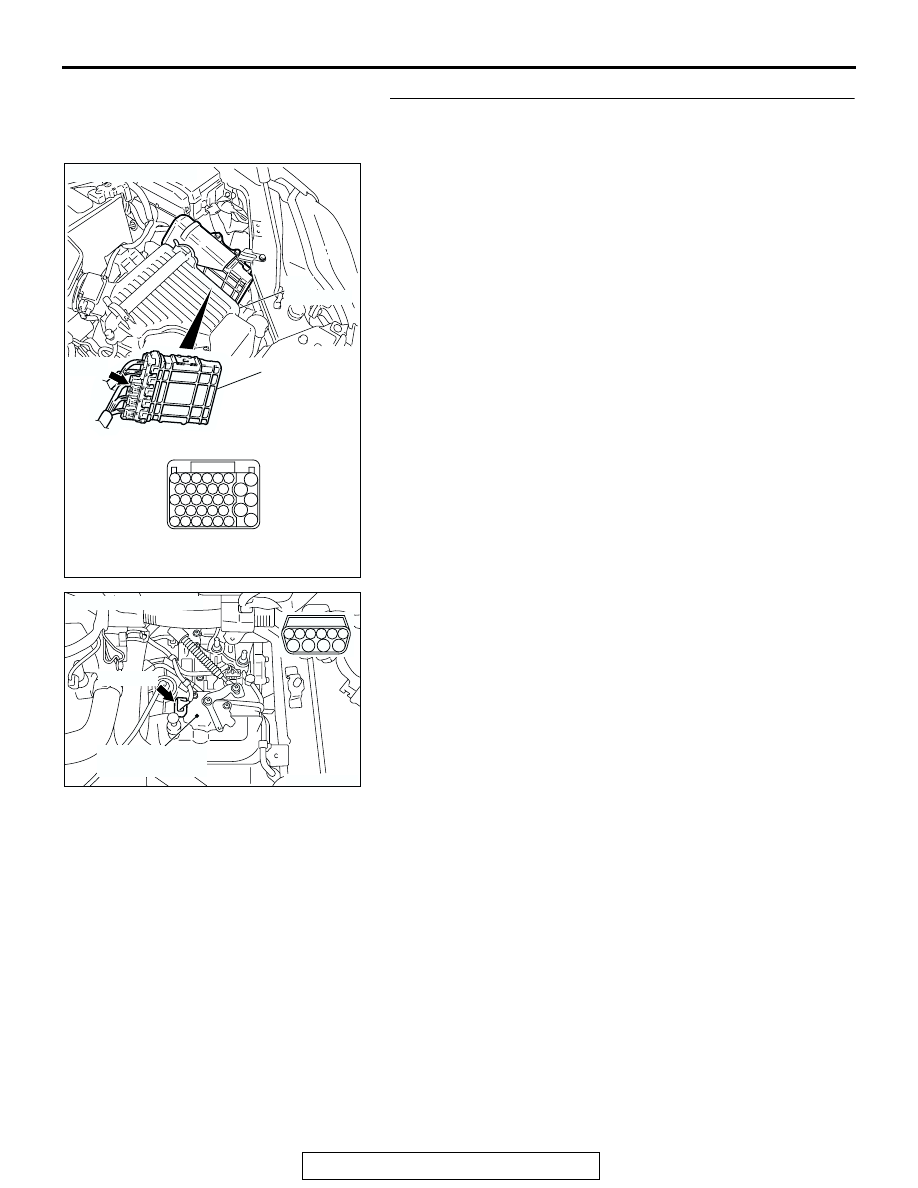

AC306248AC
B-21
(B)
CONNECTOR: B-21
PCM
AIR
CLEANER
73
80
54
67
60
71 72
77 78 79
64
51
59
58
65
52
66
53
75
74
76
81 82
83
63
JAE
62
68
61
55
69
56
70
57
AC210404
51
58
71
64
77
76
83
70
63
57
73 72
75 74
80
82 81
79 78
54
67
JAE
62
69
56
61
68
55
59
66
60
53
65
52
AC
B-21 HARNESS
CONNECTOR:
COMPONENT SIDE
