AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-167

DTC SET CONDITIONS

Check Conditions, Judgement Criteria

• Transmission range switch: multiple signal. (30

seconds)

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, keep the vehicle stopped in "P," "R,"
"N," "D," "3," "2" and "L" ranges respectively for more
than one minute, and turn "LOCK" (OFF) the ignition
switch. Then restart the engine, and stop the vehicle
in "P," "R," "N," "D," "3," "2" and "L" ranges respec-
tively for more than one minute.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the transmission range switch cir-

cuit

• Damaged harness or connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main harness A

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-168

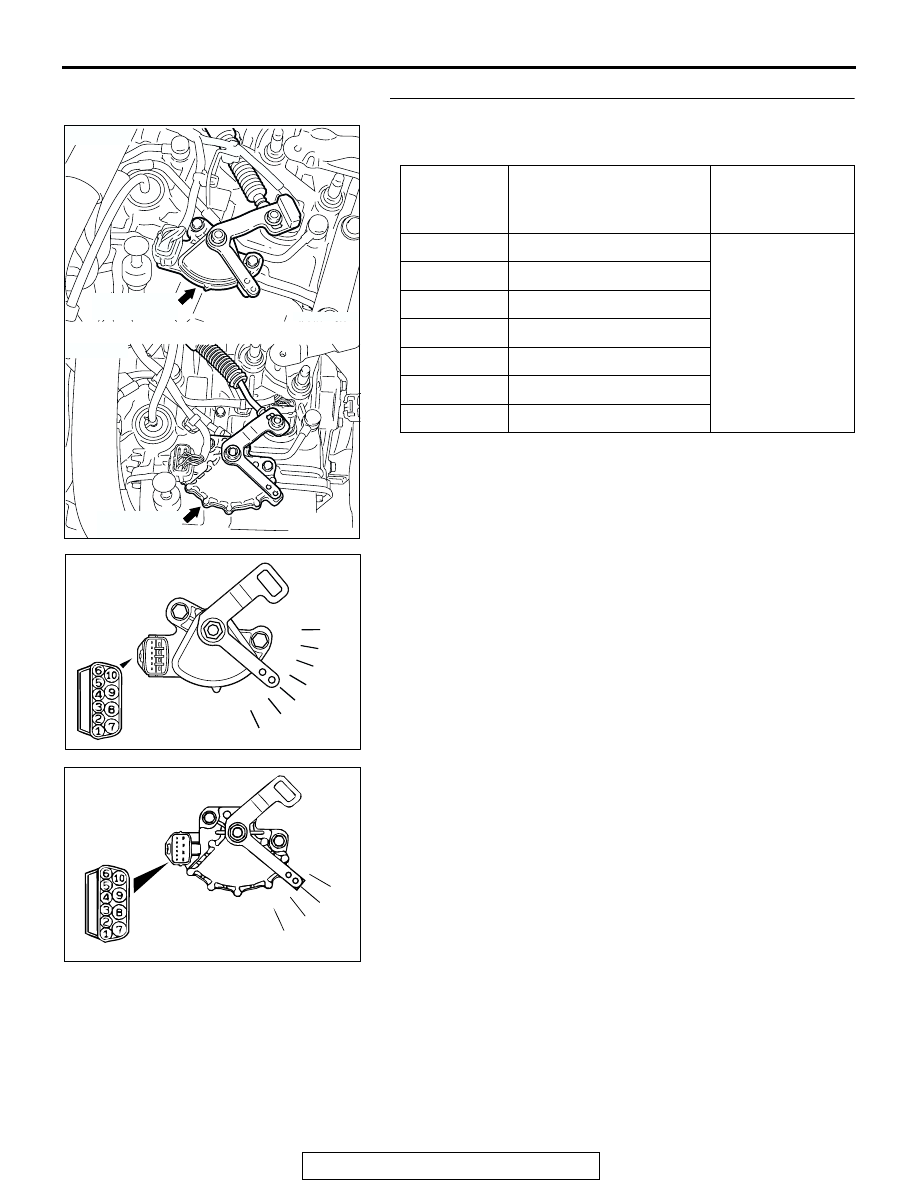

STEP 1. Check the transmission range switch.

Measure the resistance between the terminals for each trans-
mission range as indicated in the table below.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.
Q: Does the resistance measure less than 2 ohms for each

selector position?
YES : Go to Step 2.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transaxle

P.23B-10

.

TRANS
MISSION
RANGE

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

3

− 8, 9 − 10

Less than 2 ohms.

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

3

5

− 8

2

2

− 8

L

6

− 8

AC305881

AC305532

AC305679

<F4A4B>

<F4A5A>

AC

TRANSMISSION
RANGE SWITCH

TRANSMISSION
RANGE SWITCH

AC304078

P

R

N

D

<F4A4B>

AC

3

2

L

AC210182AC

P

R

N

D

<F4A5A>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-169

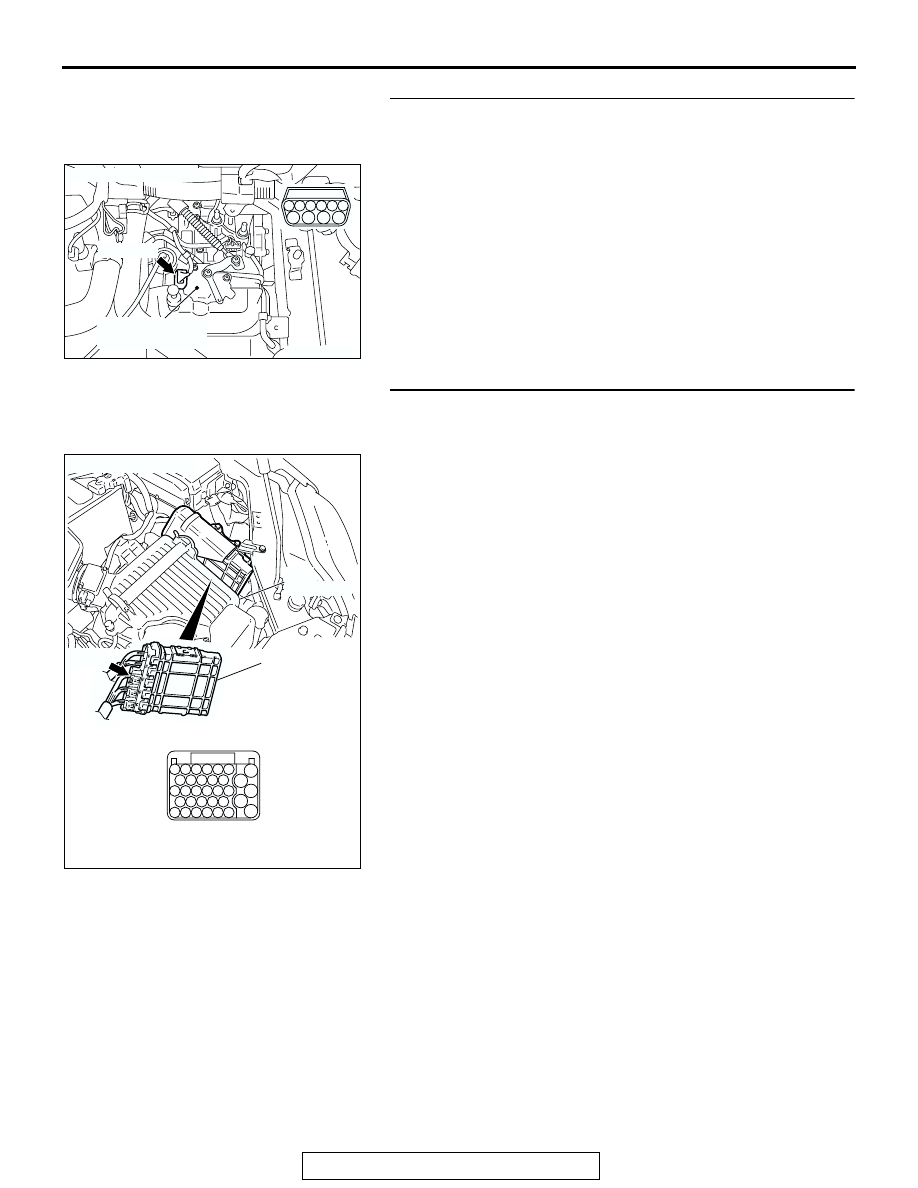

STEP 2. Check transmission range switch connector B-110
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 3. Check PCM connector B-21 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-170

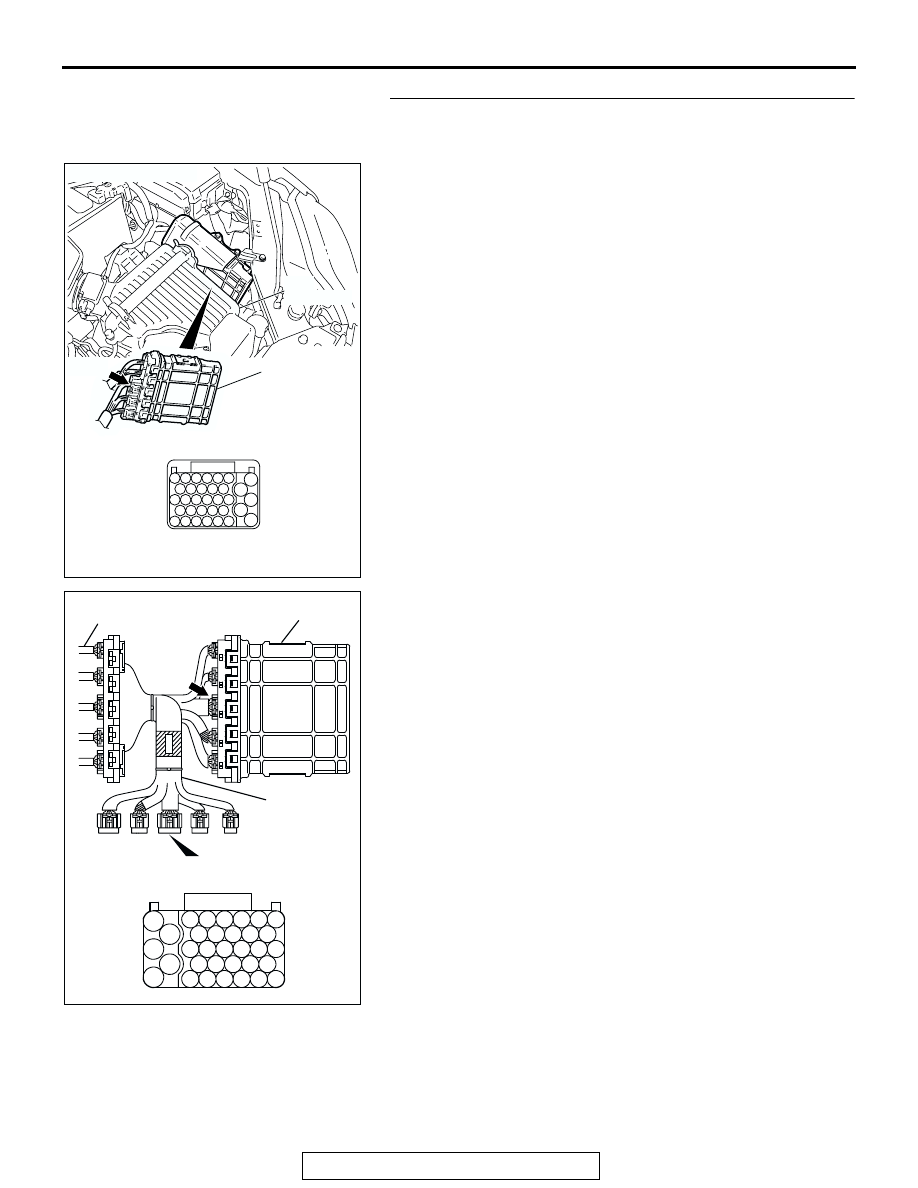

STEP 4. Measure the transmission range switch output
voltage at PCM connector B-21 by using check harness
special tool MB991923. ("P" position)

(1) Disconnect all the connectors from the PCM.

(2) Connect special tool MB991923 (check harness) between

the PCM and the body-side harness connector.

(3) Turn the ignition switch to the "ON" position.

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AC209793AG

SPECIAL TOOL 33-PIN CONNECTOR
(PCM CONNECTOR B-21)

B-21
(GR)

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

PCM

MB991923

BODY SIDE
HARNESS
