AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-123

AC306223

A-13 (GR)

AB

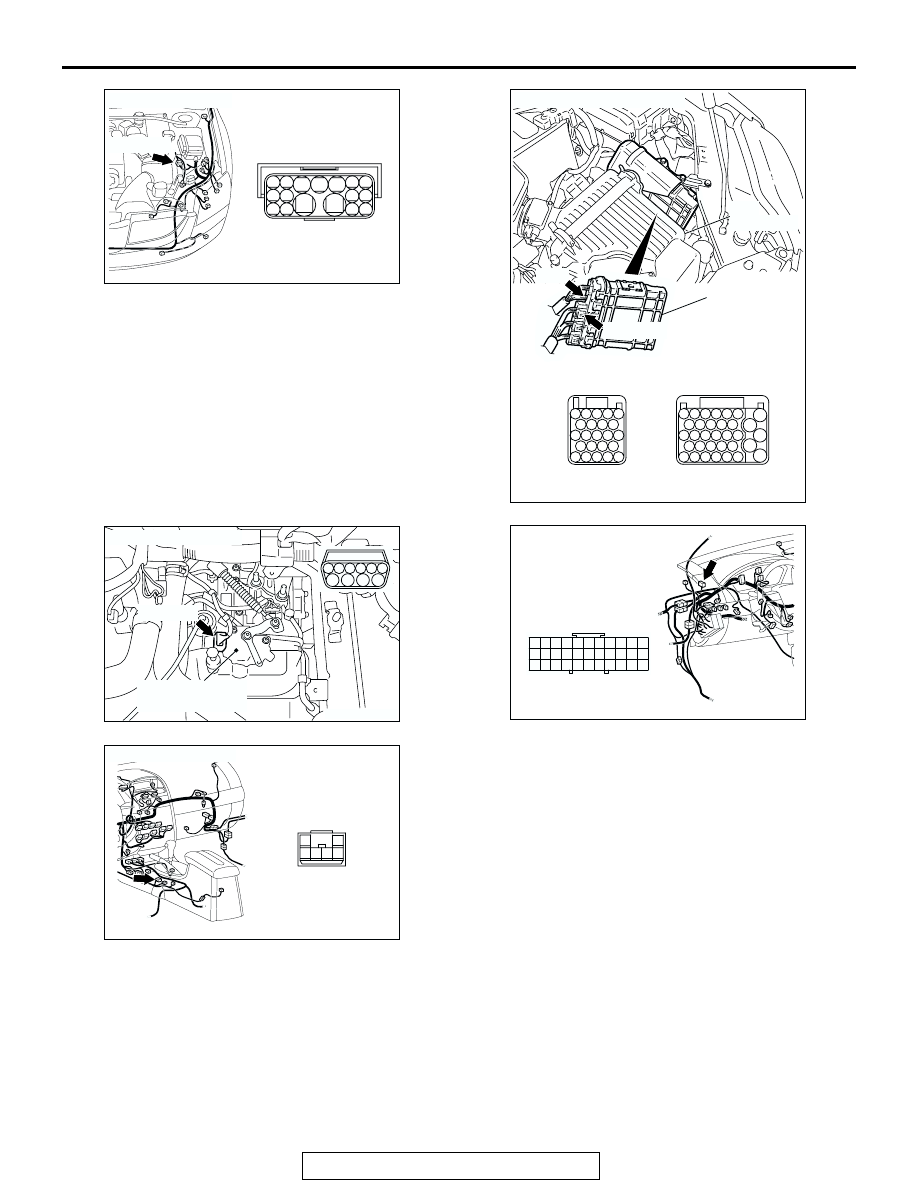

CONNECTOR: A-13

1

4

7

8

2 3

5

13

14

17

15

12

16

11

10

9

6

AC306248AG

CONNECTORS: B-20, B-21

PCM

AIR
CLEANER

B-21 (GR)

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

JAE

41

37

32

40

39

23

21 22

35

31

30

26

36

27

43

42

25

24

38

34

29

33

28

B-20

B-21

B-20

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6

AC305231

CONNECTOR: C-01

AS

33

22

11

28

17

16

15

14

13

12

25

2324

2627

3

1 2

4 5

21

20

19

18

29 30

32

31

7

6

8

10

9

AC306349AB

CONNECTOR: C-20

4

3

1

5 6

2

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-124

.

CIRCUIT OPERATION

• Battery positive voltage is applied to the transmis-

sion range switch (terminal 8) when the ignition
switch is turned "ON."

• Battery positive voltage is applied to the PCM

(terminal 67) when the transmission range is in
the "P" range. The PCM judges that the transmis-
sion range is in the "P" range when the battery
positive voltage is applied.

• Battery positive voltage is applied to the PCM ter-

minal 61 (77, 73, 62, 75 or 72) when the selector
lever is in the "R" range ("N," "D," "3," "2" or "L"
range). The PCM judges that the selector lever is
in the "R" range ("N," "D," "3," "2" or "L" range)
when the battery positive voltage is applied.

.

DESCRIPTIONS OF MONITOR METHODS

• If no signal is input from transmission range

switch for more than 30 seconds, PCM judges
that transmission range switch has a failure.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AC207134

C-214

C-215

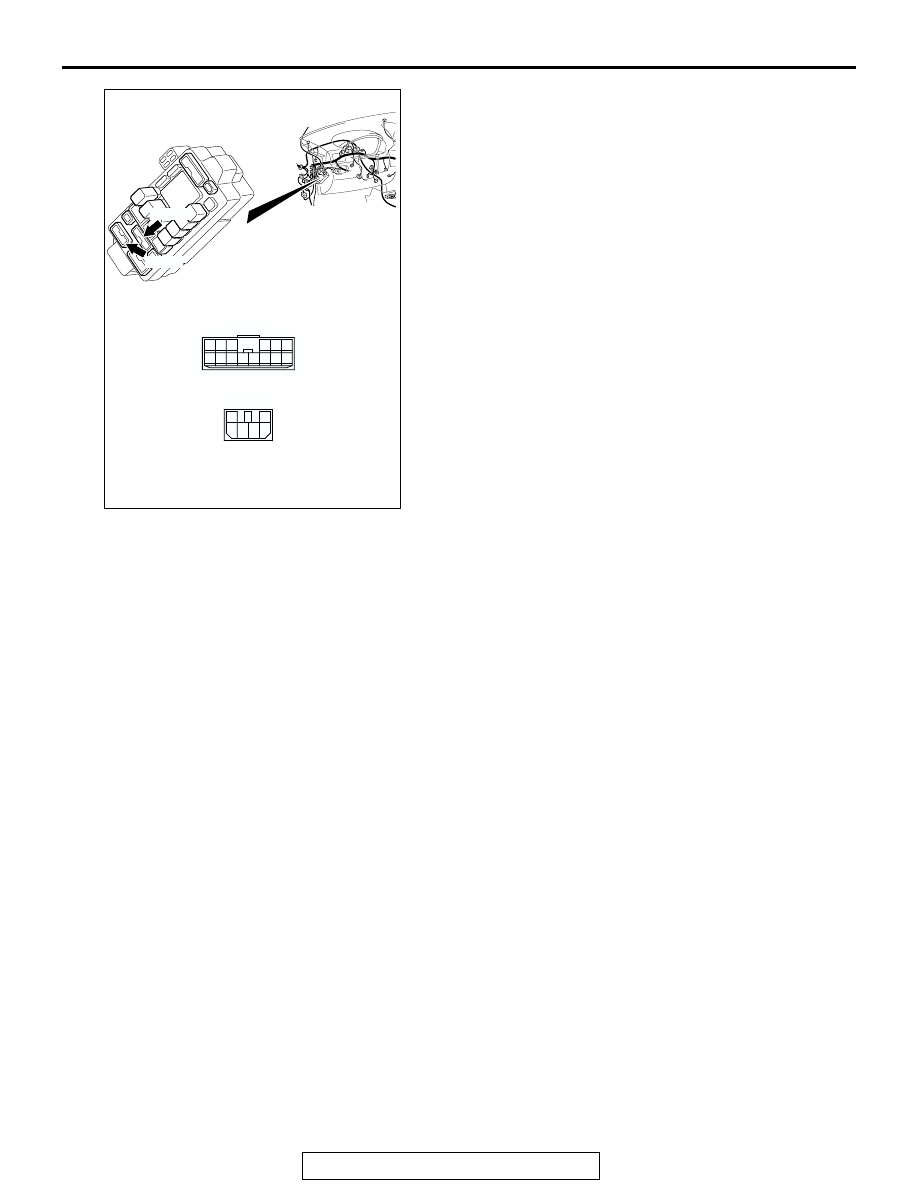

CONNECTORS: C-214, 215

AO

1

3 4

2

6

5

C-214

C-215

6

1

7

2

9

8

10

3

5

12

11

4

1314

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-125

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions, Judgement Criteria

• Transmission range switch: no signal detected.

(30 seconds)

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, keep the vehicle stopped in "P," "R,"
"N," "D," "3," "2" and "L" ranges respectively for more
than one minute, and turn "LOCK" (OFF) the ignition
switch. Then restart the engine, and stop the vehicle
in "P," "R," "N," "D," "3," "2" and "L" ranges respec-
tively for more than one minute.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the transmission range switch

• Malfunction of the ignition switch

• Damaged harness or connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

AC205064

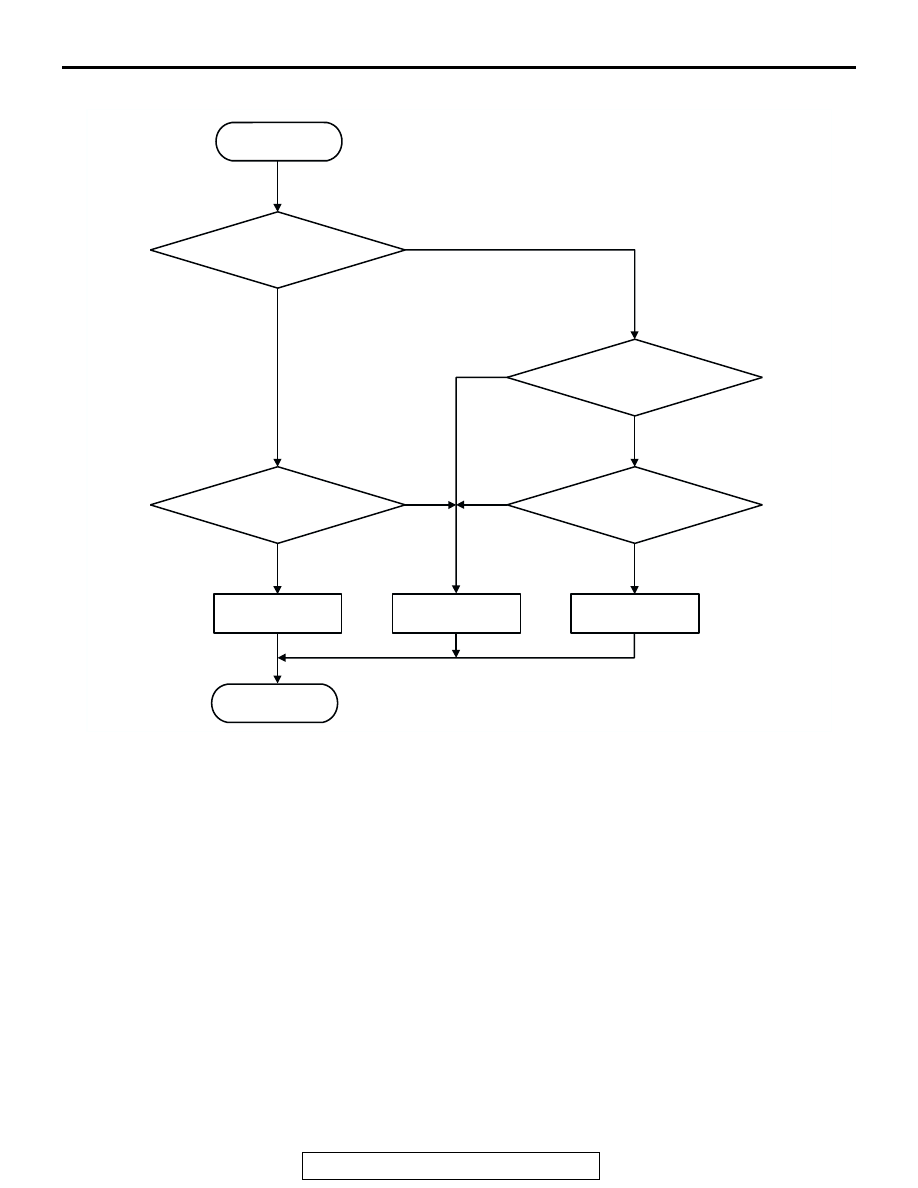

START

Is there no
input signal?

Yes

No

Continuous failure
for 30 secs.

Yes

Yes

Yes

No

No

No

Continuous failure
for 30 secs.

Is there more than
one input signal?

Malfunction

Good

Malfunction

END

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-126

STEP 1. Using scan tool MB991958, check data list item 61:
Transmission Range Switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.

(3) Set scan tool MB991958 to the data reading mode.

• Item 61: Transmission Range Switch.

• Move the selector lever to "P," "R," "N," "D," "3," "2,"

"L" and sport mode positions and confirm that the
selected transmission range match the positions
shown on scan tool MB991958. (Vehicles with sport
mode is indicated as "D" on the scan tool).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the scan tool indication correspond to the actual

transmission range?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO (no correct transmission range is displayed) :  Go to

Step 2.

NO (Only "P" position is not displayed correctly) :  Go

to Step 6.

NO (Only "R" position is not displayed correctly) :  Go

to Step 12.

NO (Only "N" position is not displayed correctly) :  Go

to Step 17.

NO (Only "D" position is not displayed correctly) :  Go

to Step 22.

NO (Only "3" position is not displayed correctly)
<Vehicles without sport mode> : Go to Step 29.
NO (Only "2" position is not displayed correctly)
<Vehicles without sport mode> : Go to Step 34.
NO (Only "L" position is not displayed correctly)
<Vehicles without sport mode> : Go to Step 39.
NO [Only sport mode position is not displayed correctly
("D" is not displayed.)] <Vehicles with sport mode> : Go

to Step 44.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
