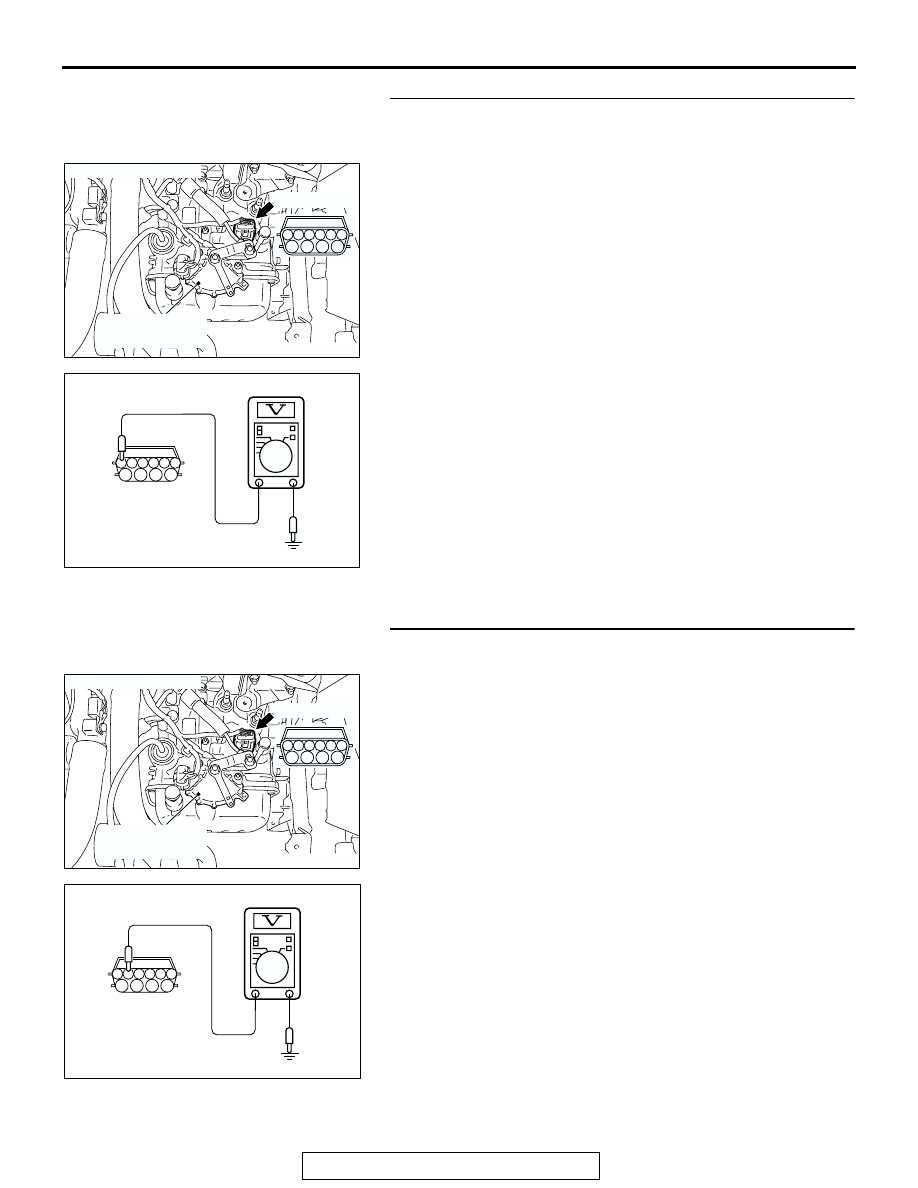

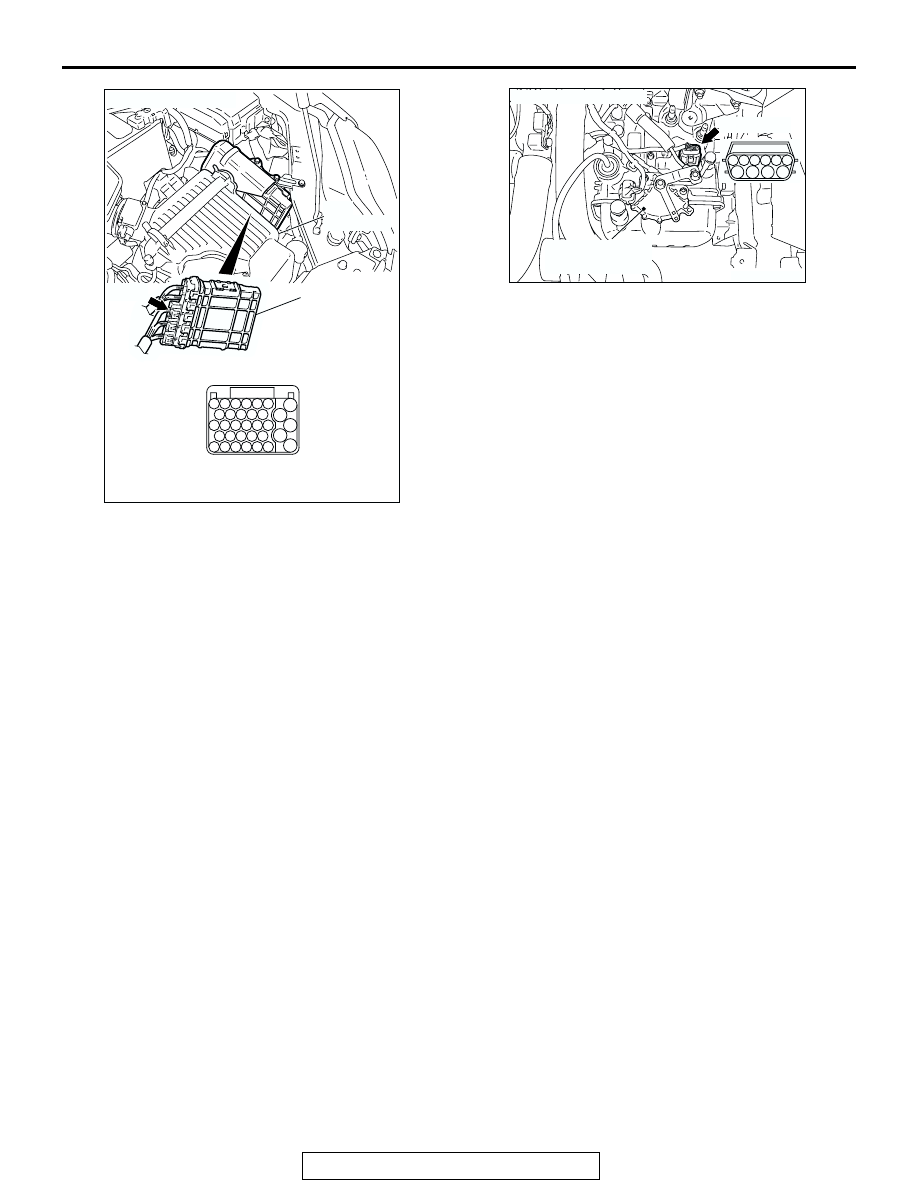

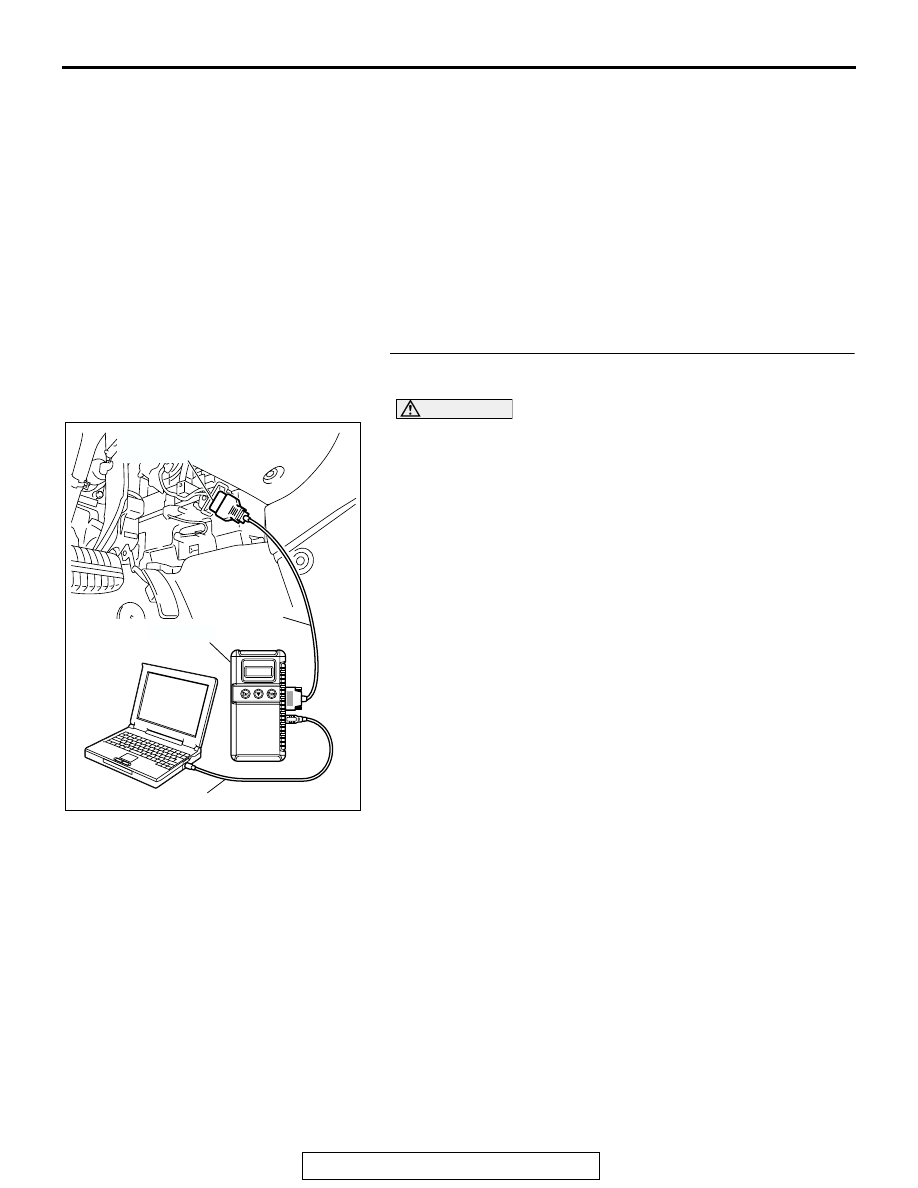

AUTOMATIC TRANSAXLE DIAGNOSIS TSB Revision AUTOMATIC TRANSAXLE 23A-47 . CIRCUIT OPERATION • The PCM (terminal 74) applies 5 volts to the transmission fluid temperature sensor output ter- • The transmission fluid temperature sensor circuit is grounded to the PCM (terminal 69). • When the transmission fluid temperature is cold, the transmission fluid temperature sensor resis- . DESCRIPTIONS OF MONITOR METHODS • If transmission fluid temperature is below speci- fied value even after driving test for more than . MONITOR EXECUTION • Continuous . MONITOR EXECUTION CONDITIONS (Other Other Monitor (There is no temporary DTC stored in memory for the item monitored below) • DTC 23 (P0720): Output shaft speed sensor mal- function Sensor (The sensor below is determined to be normal) • Output shaft speed sensor . AC306248AC B-21 CONNECTOR: B-21 PCM AIR 73 80 54 67 60 71 72 77 78 79 64 51 59 58 65 52 66 53 75 74 76 81 82 83 63 JAE 62 68 61 55 69 56 70 57 AC306322 CONNECTOR: B-108 B-108 (GR) AC TRANSMISSION 2 7 1 8 3 9 4 6 10 5 |
