ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-29

ROCKER ARMS AND CAMSHAFT

REMOVAL AND INSTALLATION

M1113005400615

CAUTION

Much higher accuracy is required in the rocker arm installation (at the intake side). Therefore, mis-
takes in the rocker arm installation procedure might cause the operation failure. At the overhaul,
surely tag the set of Rocker arm "A", T-lever and Rocker arm "B" and then remove the set. At the
assembly, install Rocker arm "A", T-lever and Rocker arm "B" to Rocker shaft in accordance with the
tag made during removal.

AK304212AB

1

2

3

4

5

6

7

9

10

11

12

13

14

15

16

17

18 19

20

23

24
25

26

27

8

30

11

12

11

12

11

12

3.5 ± 0.5 N·m
31 ± 4 in-lb

44 ± 5 N·m
33 ± 3 ft-lb

13 ± 1 N·m
115 ± 8 in-lb

31 ± 3 N·m
23 ± 2 ft-lb

11

12

13

14

15

11

12

11

12

13

14

15

11

12

11

12

13

14

15

11

12

17

18 19

11

12

11

12

17

18 19

11

12

11

12

17

18 19

11

12

11

12

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

10 ± 2 N·m
89 ± 17 in-lb

28

29

47 ± 7 N·m
35 ± 4 ft-lb

21

11 ± 1 N·m

22

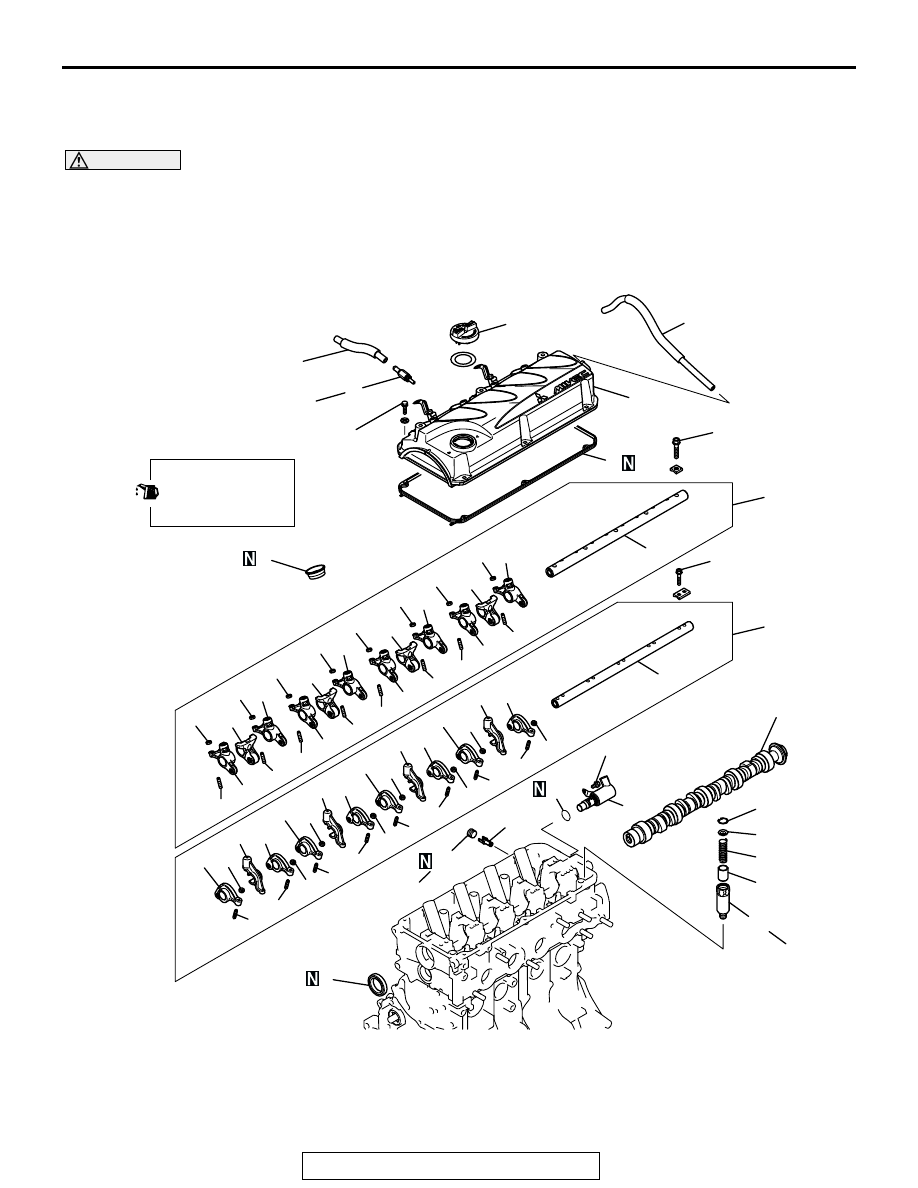

REMOVAL STEPS

1. BREATHER HOSE
2. POSITIVE CRANKCASE

VENTILATION HOSE

3. POSITIVE CRANKCASE

VENTILATION VALVE

4. OIL FILLER CAP
5. ROCKER COVER

REMOVAL STEPS (Continued)

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-30

Required Special Tools:

• MD998713: Camshaft Oil Seal Installer

REMOVAL SERVICE POINT

.

<<A>> ROCKER ARMS AND ROCKER ARM SHAFT
REMOVAL
When the rocker arm is removed from the rocker shaft, tag
them to show the installation location for the reinstallation of the
rocker arm, the T-lever, the piston arm assembly and so on.

6. ROCKER COVER GASKET
7. OIL SEAL

>>D<<

8. OIL SEAL

<<A>> >>C<<

9. ROCKER ARMS AND ROCKER

ARM SHAFT (INTAKE SIDE)

<<A>> >>C<<

10.ROCKER ARMS AND ROCKER

ARM SHAFT (EXHAUST SIDE)

11.NUT

>>B<<

12.ADJUSTING SCREW
13.ROCKER ARM "A"
14.T-LEVER
15.ROCKER ARM "B"
16.ROCKER ARM SHAFT (INTAKE

SIDE)

17.ROCKER ARM "C"
18.PISTON ARM ASSEMBLY
19.ROCKER ARM "D"
20.ROCKER ARM SHAFT (EXHAUST

SIDE)

>>A<<

21.ENGINE OIL CONTROL VALVE

>>A<<

22.O-RING
23.SNAP RING
24.ACCUMULATOR SPRING SEAT
25.PLUNGER SPRING
26.ACCUMULATOR PLUNGER
27.ACCUMULATOR BODY
28.TAPER PLUG
29.ENGINE OIL CONTROL VALVE

FILTER

30.CAMSHAFT

REMOVAL STEPS (Continued)

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-31

INSTALLATION SERVICE POINTS

.

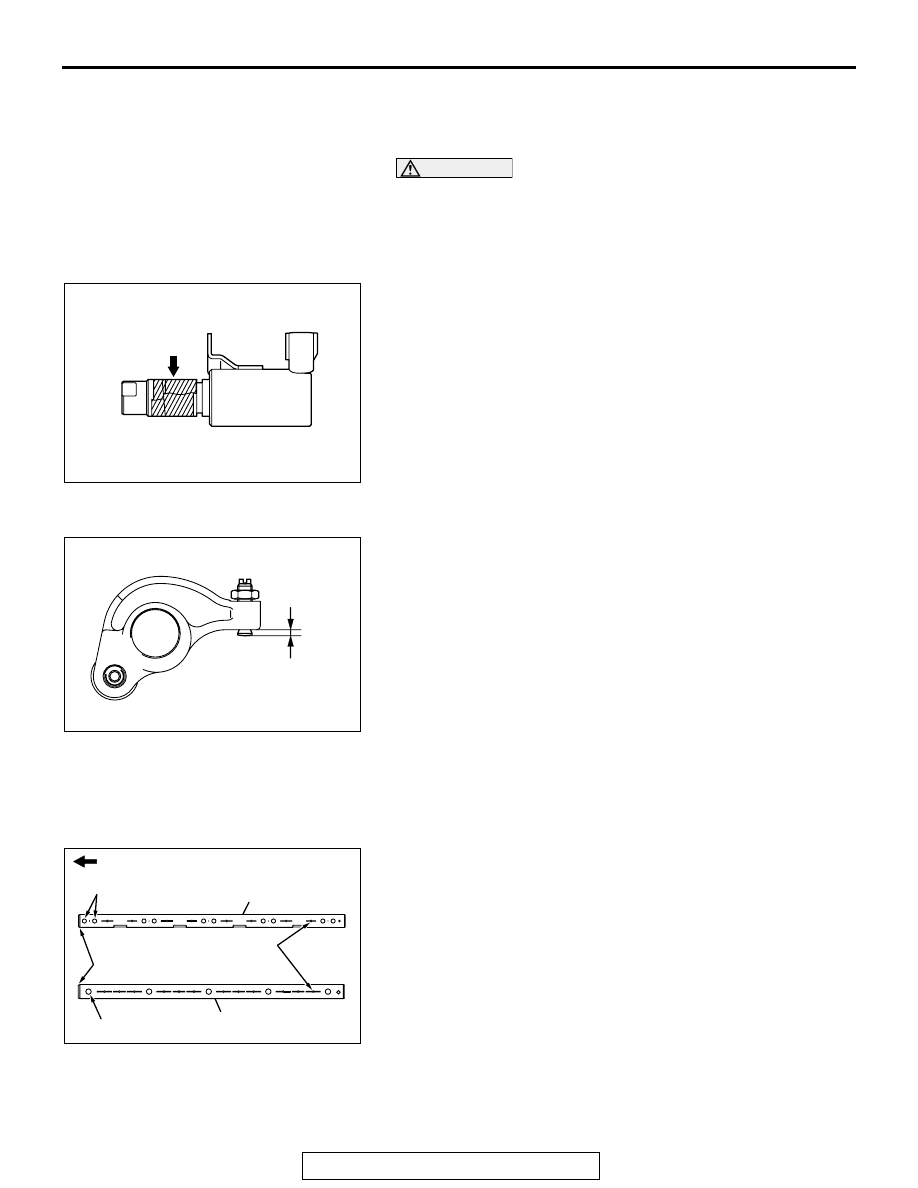

>>A<< ENGINE OIL CONTROL VALVE / O-RING INSTALLA-
TION

CAUTION

• Do not reuse O-ring.
• Install the O-ring after wrap a tape not having adhesion

(such as a tape) round the notch on the oil passage of
engine oil control valve to prevent it from damage. The
damaged O-ring may cause oil leakage.

1. Apply a little amount of engine oil to the O-ring of engine oil

control valve.

2. Install the engine oil control valve to the cylinder head.
3. Tighten the engine oil control valve to the specified torque of

11

± 1 N⋅m.

.

>>B<< ADJUSTING SCREW INSTALLATION
When installing provisionally the screw to rocker arm, project it
slightly 3mm (0.12 in) from the same face level of the rocker
arm end.

.

>>C<< ROCKER SHAFT SPRING/ROCKER ARMS AND
ROCKER ARM SHAFT INSTALLATION
1. In accordance with the tags made during removal, install the

rocker arm, and other parts to the rocker arm shaft.

2. Install the more chamfered rocker arm shaft to the timing

belt.

3. Install the rocker arm shaft with oil hole to the lower (cylinder

head) side.

AK303651AD

TAPE

AK301421

3 mm
(0.12 in)

AC

AK301420

BOLT HOLE

BIG CHAMFERED

OIL HOLE

ROCKER ARM SHAFT,
INTAKE

TIMING BELT SIDE

AC

BOLT HOLE

ROCKER ARM SHAFT,
EXHAUST

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-32

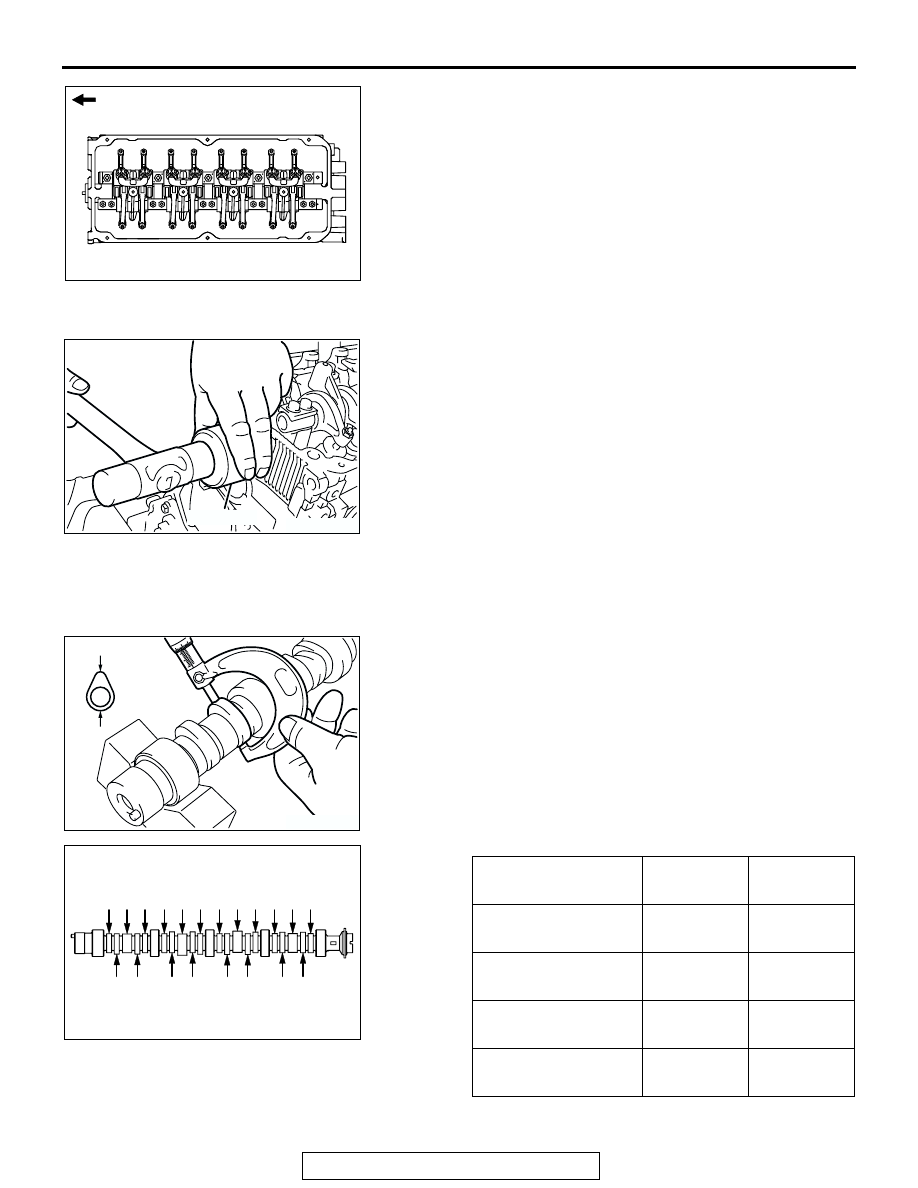

4. Temporarily install the rocker arm, rocker arm shaft

assembly and intake.

5. Temporarily install the rocker arm, rocker arm shaft

assembly and exhaust.

6. Confirm the each rocker arm and rocker arm shaft assembly

are in position and then tighten to the specified torque.

Tightening torque:

M6: 13

± 1 Nm

M8: 31

± 3 Nm

.

>>D<< CAMSHAFT OIL SEAL INSTALLATION
1. Apply engine oil to the lip area of the oil seal and the front

end outside diameter of camshaft.

2. Using special tool MD998713, install the camshaft oil seal.

INSPECTION

M1113005500441

.

CAMSHAFT
Measure the cam height. If it is below the limit, replace the
camshaft.

AK301422

TIMING BELT SIDE

AC

AK300160

MD998713

AC

STANDARD
VALUE

MINIMUM
LIMIT

A: Intake low speed
cam A

33.84 mm
(1.332 in)

33.34 mm
(1.313 in)

B: Intake low speed
cam B

37.35 mm
(1.471 in)

36.85 mm
(1.451 in)

C: Intake high speed
cam

37.21 mm
(1.465 in)

36.71 mm
(1.445 in)

D: Exhaust cam

37.86 mm
(1.491 in)

37.36 mm
(1.471 in)

AK300161

AK301488AC

A

B

C

D D

A

B

C

D D

A

B

C

D D

A

B

C

D D
