Mitsubishi Galant (2004+). Manual - part 542





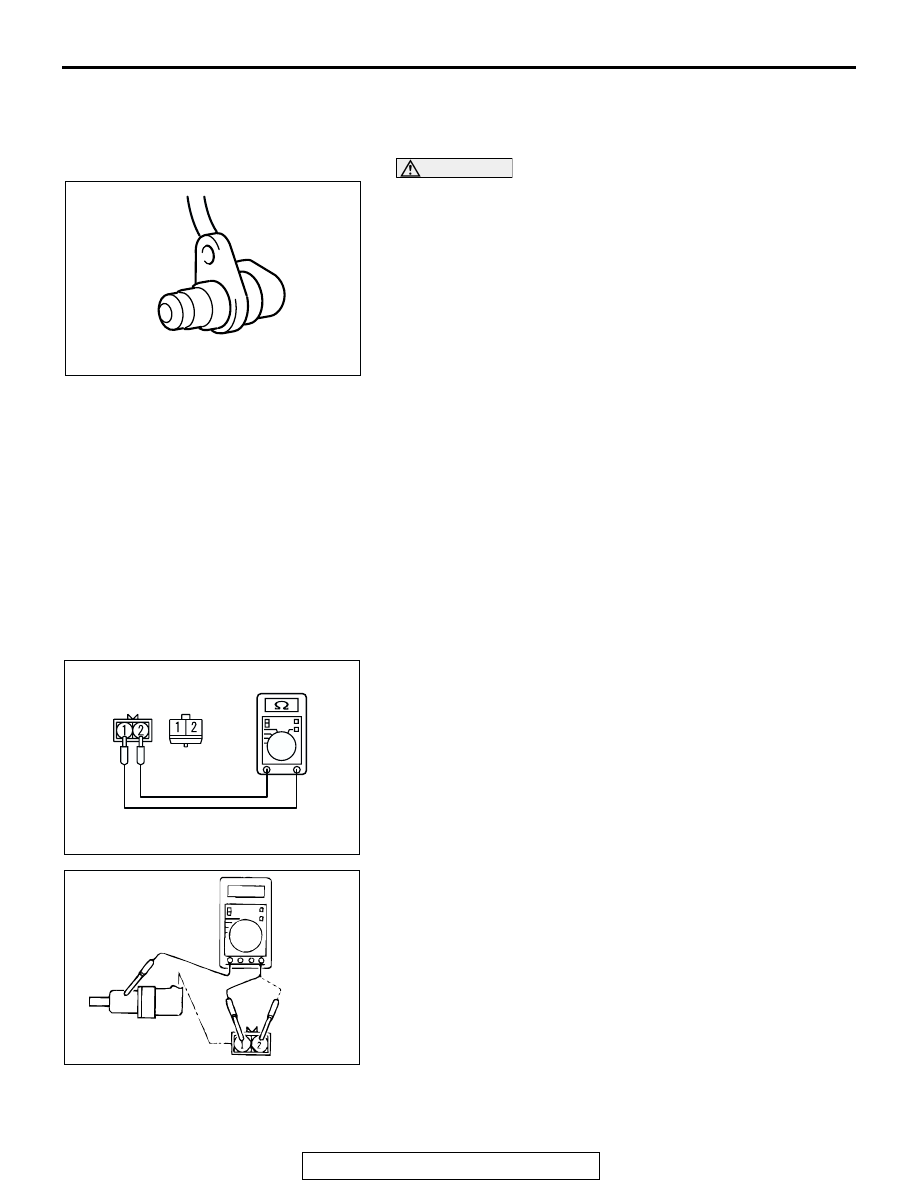

WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-113

REMOVAL SERVICE POINT

.

<<A>> FRONT WHEEL SPEED SENSOR/REAR WHEEL
SPEED SENSOR REMOVAL

CAUTION

Be careful when handling the projection at the tip of the
wheel speed sensor and the toothed edge of the wheel
speed rotor so as not to damage them by contacting other
parts.

INSPECTION

M1352008400459

WHEEL SPEED SENSOR CHECK

1. Check whether any metallic foreign material has adhered to

the projection at the speed sensor tip. Remove any foreign
material. Also check whether the pole piece is damaged.
Replace it with a new one if it is damaged.
NOTE: The projection can become magnetized due to the
magnet inside the wheel speed sensor, causing foreign
material to easily adhere to it. The projection may not be
able to correctly sense the wheel rotation speed if foreign
matter is on it or if it is damaged.

2. Measure the resistance between the wheel speed sensor

terminals.

Standard value: 1.24

 1.64 k

3. If the internal resistance of the wheel speed sensor is not

within the standard value, replace it with a new wheel speed
sensor.

4. Remove all connections from the wheel speed sensor. The

circuit should be open between terminals (1) and (2) and the
body of the wheel speed sensor. If the circuit is not open,
replace with a new wheel speed sensor.

5. Check the wheel speed sensor cable for breakage, damage

or disconnection. Replace with a new one if a problem is
found.
NOTE: When checking for cable damage, remove the cable
clamp part from the body and then gently bend and pull the
cable near the clamp.

AC211046AB

AC211047AB

<REAR>

<FRONT>

ACX01120 AB

SPECIFICATIONS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-114

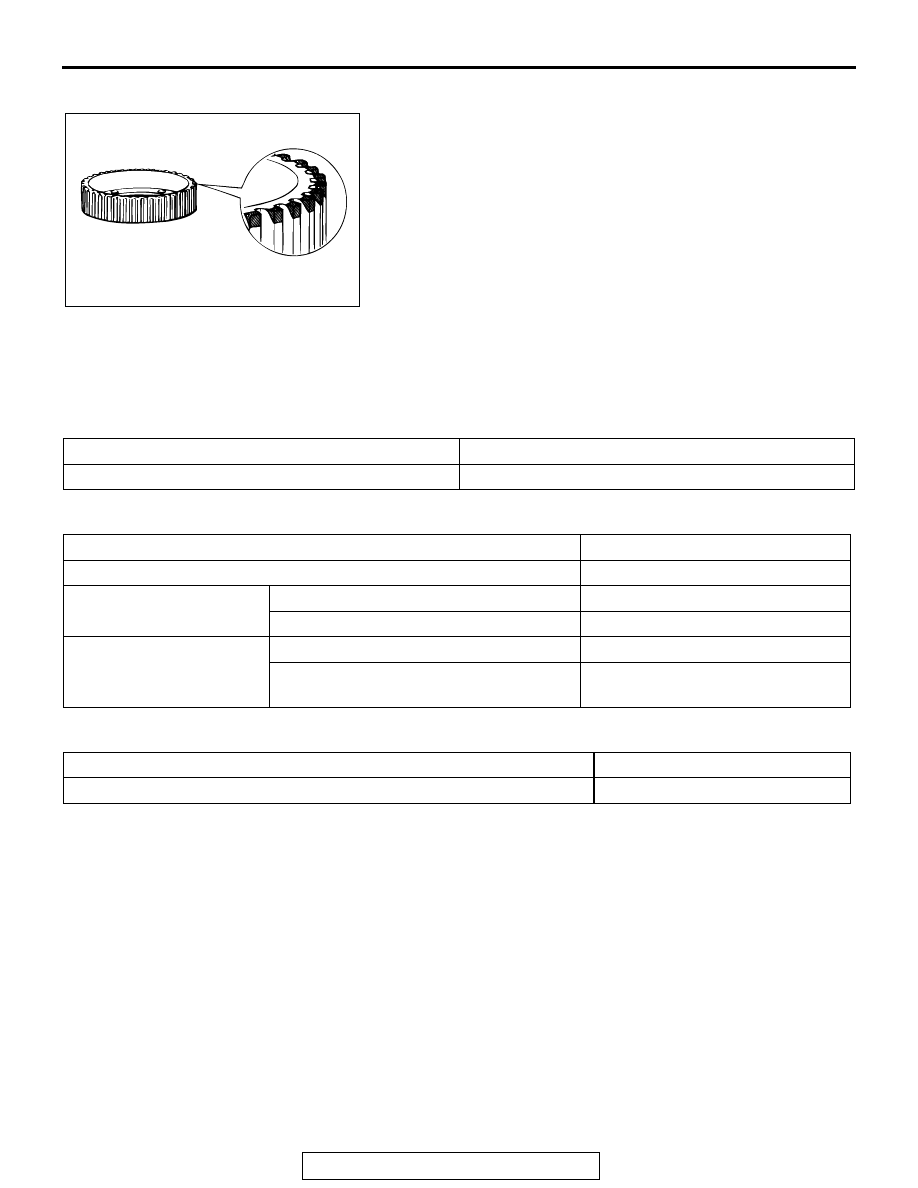

TOOTHED WHEEL SPEED ROTOR CHECK

Check whether the wheel speed rotor teeth are broken or
deformed. Replace the BJ assembly of the drive shaft, or the
rear hub assembly, respectively, if the teeth are damaged or
deformed.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATION

M1352012400377

GENERAL SPECIFICATIONS

M1352000200075

SERVICE SPECIFICATION

M1352000300599

AC000965

ITEM

SPECIFICATION

Brake tube flare nut

15

± 2 N⋅m (12 ± 1 ft-lb)

ITEM

SPECIFICATION

ABS control method

4-sensor, 4-channel

Numbers of wheel speed
rotor teeth

Front

43

Rear

43

Wheel speed sensor

Type

Magnet coil type

Gap between sensor and rotor mm (in)

0.2

− 0.5 (0.008 − 0.020)

<Non-adjustable type>

ITEM

STANDARD VALUE

Wheel speed sensor internal resistance k

1.24

− 1.64

GENERAL DESCRIPTION

TSB Revision

PARKING BRAKES

36-2

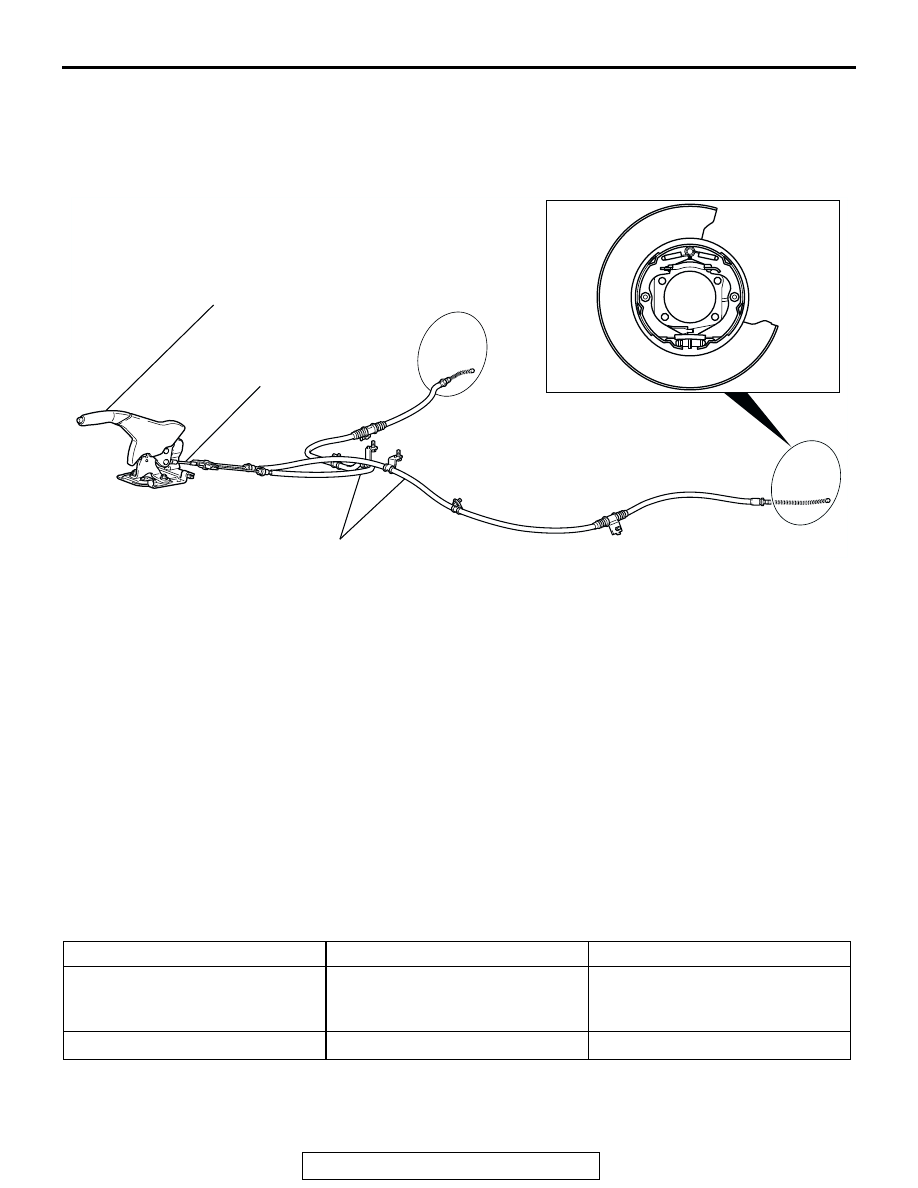

GENERAL DESCRIPTION

M1361000100344

The parking brakes are a mechanical rear wheel
brake design and controlled by a lever.

CONSTRUCTION DIAGRAM

PARKING BRAKE DIAGNOSIS

INTRODUCTION

M1361003700282

If the parking brake is faulty, parking brake effort will
become insufficient. The cause may be a malfunc-
tion of parking brake parts or the parking brake pedal
being out of adjustment.

TROUBLESHOOTING STRATEGY

M1361003800290

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
parking brakes fault.
1. Gather Information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1361004100302

AC306017

AC206222

AB

PARKING BRAKE LEVER

REAR PARKING BRAKE CABLE

FRONT PARKING BRAKE CABLE

SYMPTOM

INSPECTION PROCEDURE

REFERENCE PAGE

Brake drag

Refer to GROUP 35A, Basic Brake
System Diagnosis

− Symptom

Chart

P.35A-6

.

Insufficient parking brake function 1

P.36-3
