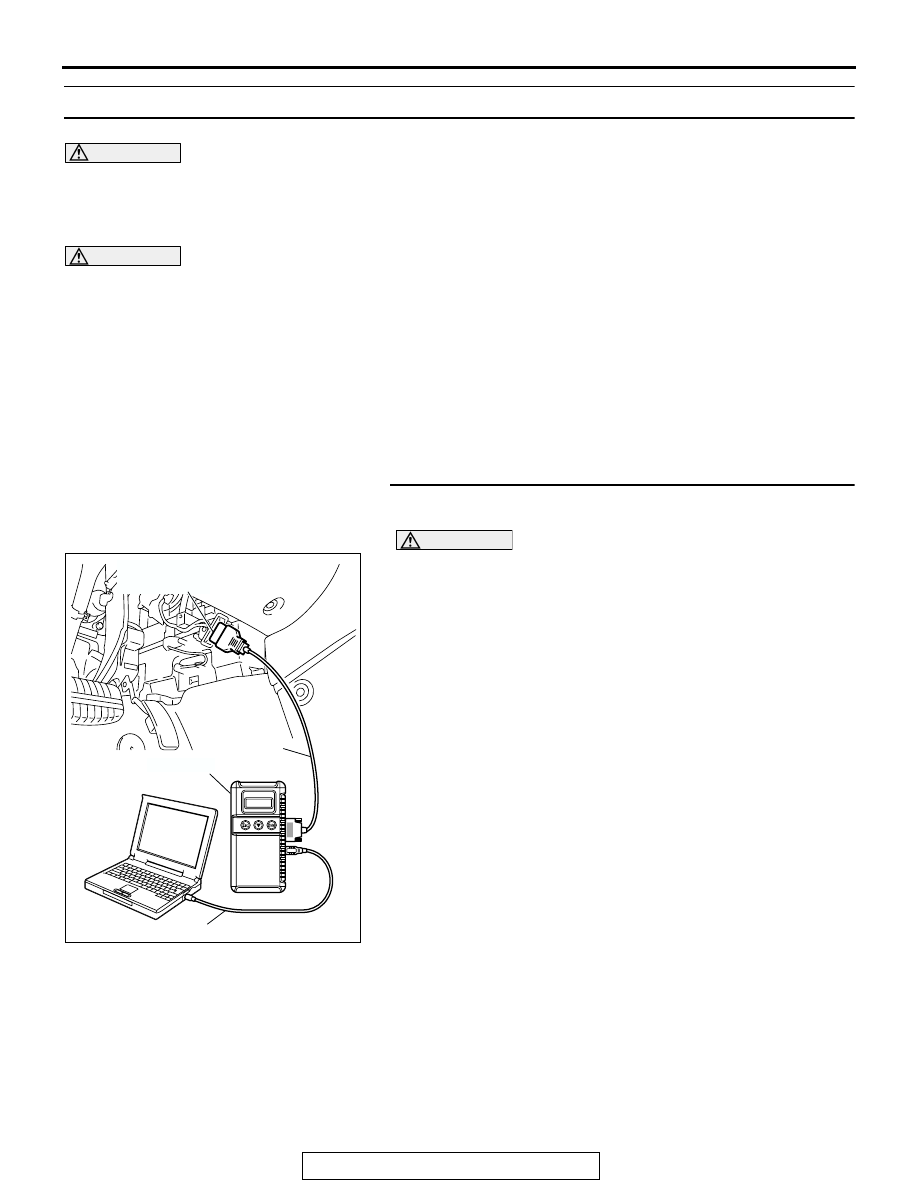

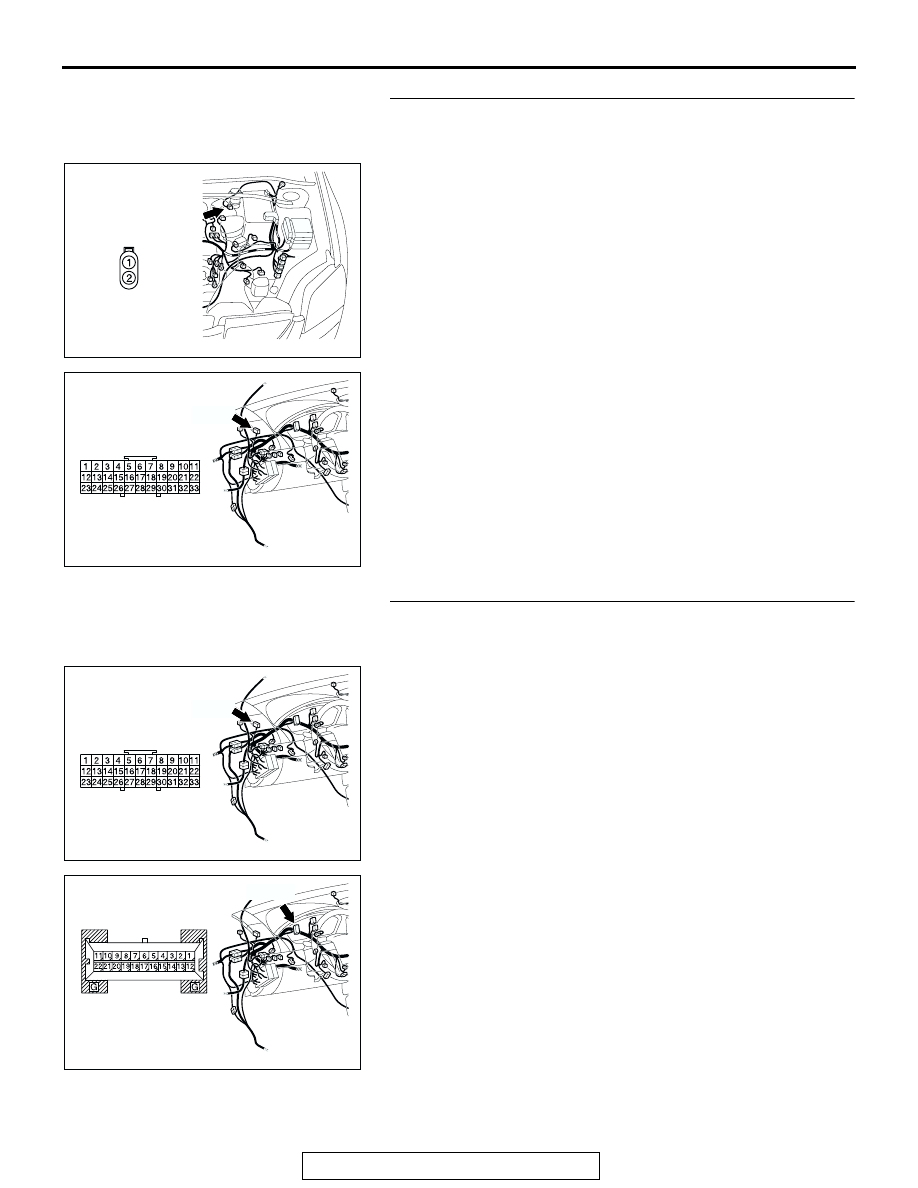

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-73

STEP 9. Check the harness wires between brake fluid level
switch connector B-07 (terminal 1) and joint connector
C-01 (terminal 27).

Q: Is the harness wires between brake fluid level switch

connector B-07 (terminal 1) and joint connector C-01
(terminal 27) damaged?
YES : Repair the wiring harness. Then go to Step 11.
NO :  Go to Step 10.

STEP 10. Check the harness wires between joint connector
C-01 (terminal 26) and combination meter connector C-101
(terminal 7).

Q: Is the harness wires between joint connector C-01

(terminal 26) and combination meter connector C-101
(terminal 7) damaged?
YES : Repair the wiring harness. Then go to Step 11.
NO :  Go to Step 11.

AC305229AI

B-07 (GR)

CONNECTOR: B-07

C-18 HARNESS
CONNECTOR
(HARNESS SIDE)

AC305231

CONNECTOR: C-01

DH

C-01

AC305231

CONNECTOR: C-01

DH

C-01

AC305231

CONNECTOR: C-101

DJ

C-101

C-101 HARNESS
CONNECTOR
(HARNESS SIDE)

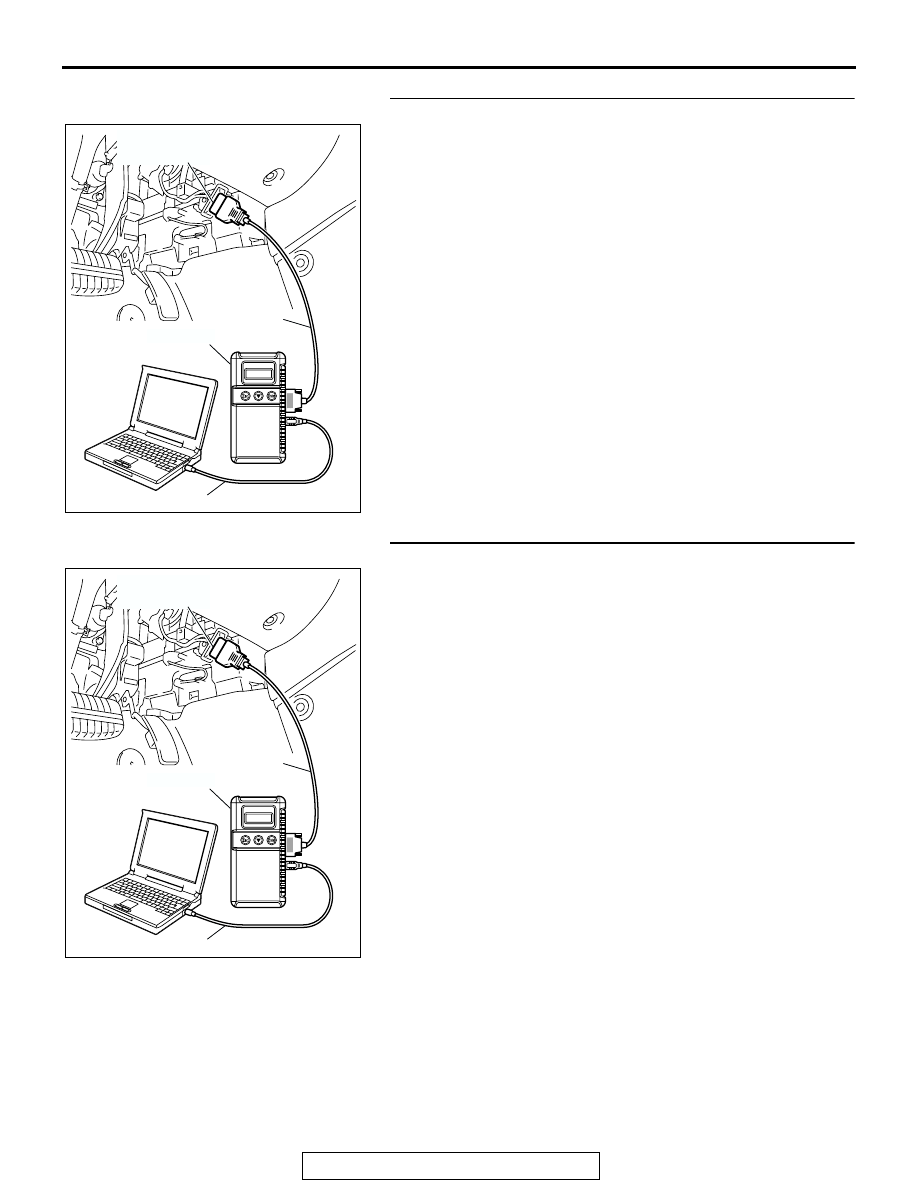

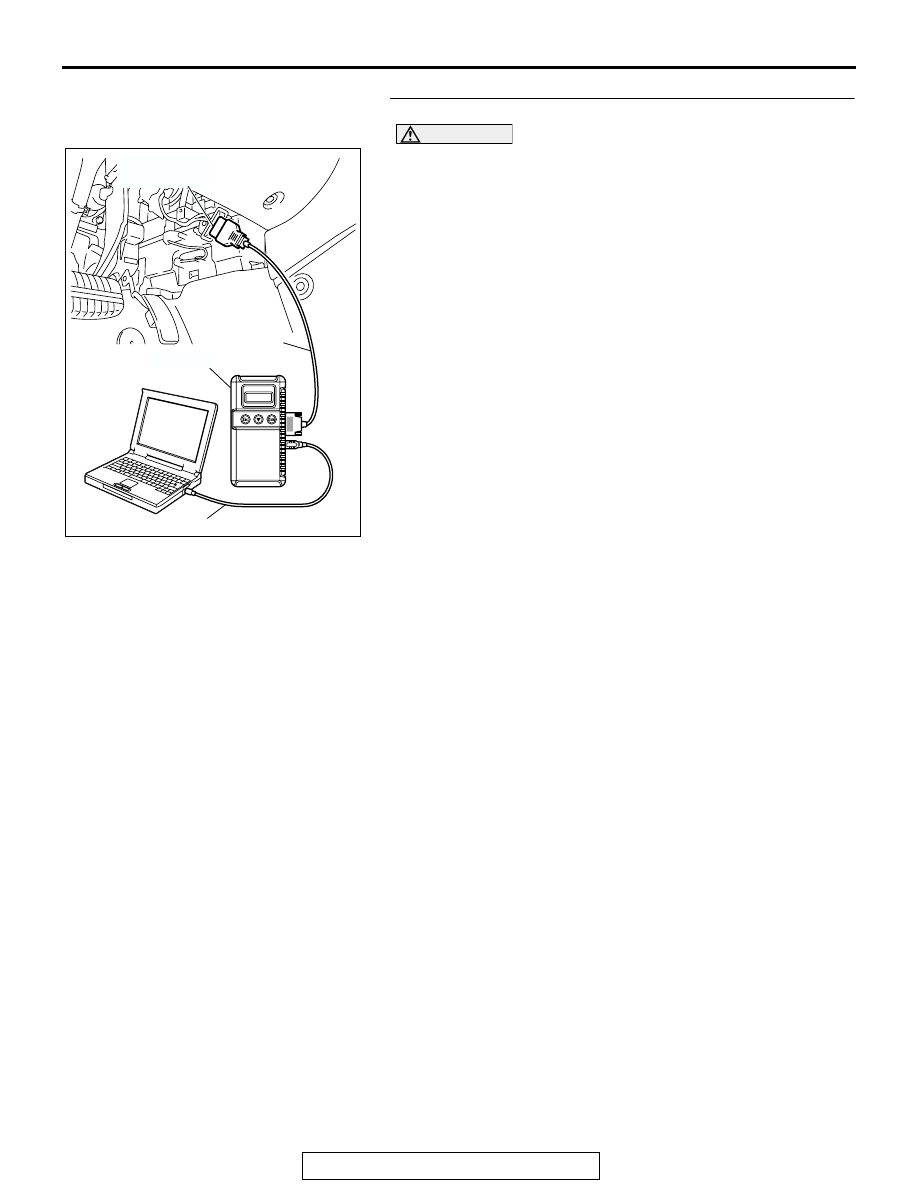

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-74

STEP 11. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1395 set?

YES : Replace the combination meter (integrated with meter

ECU). Then go to Step 12    .

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

STEP 12. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1395 set?

YES : Go to Step 1.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-75

DTC C1607: Trouble in ABS-ECU

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, diagnose the CAN bus
lines.

CAUTION

Whenever the ECU is replaced, ensure that the
CAN bus lines are normal.

.

ABS DTC SET CONDITIONS
The ABS-ECU always monitors itself while the sys-
tem is working. If the ECU detects any faults, it will
set this DTC.

.

TROUBLESHOOTING HINTS (The most likely
causes for these DTCs are to set are:)

• Malfunction of the hydraulic unit (integrated with

ABS-ECU)

.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).  Then go to Step 2.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-76

STEP 2. Recheck for diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1607 set?

YES : Replace the hydraulic unit (integrated with

ABS-ECU).

NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
