DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-31

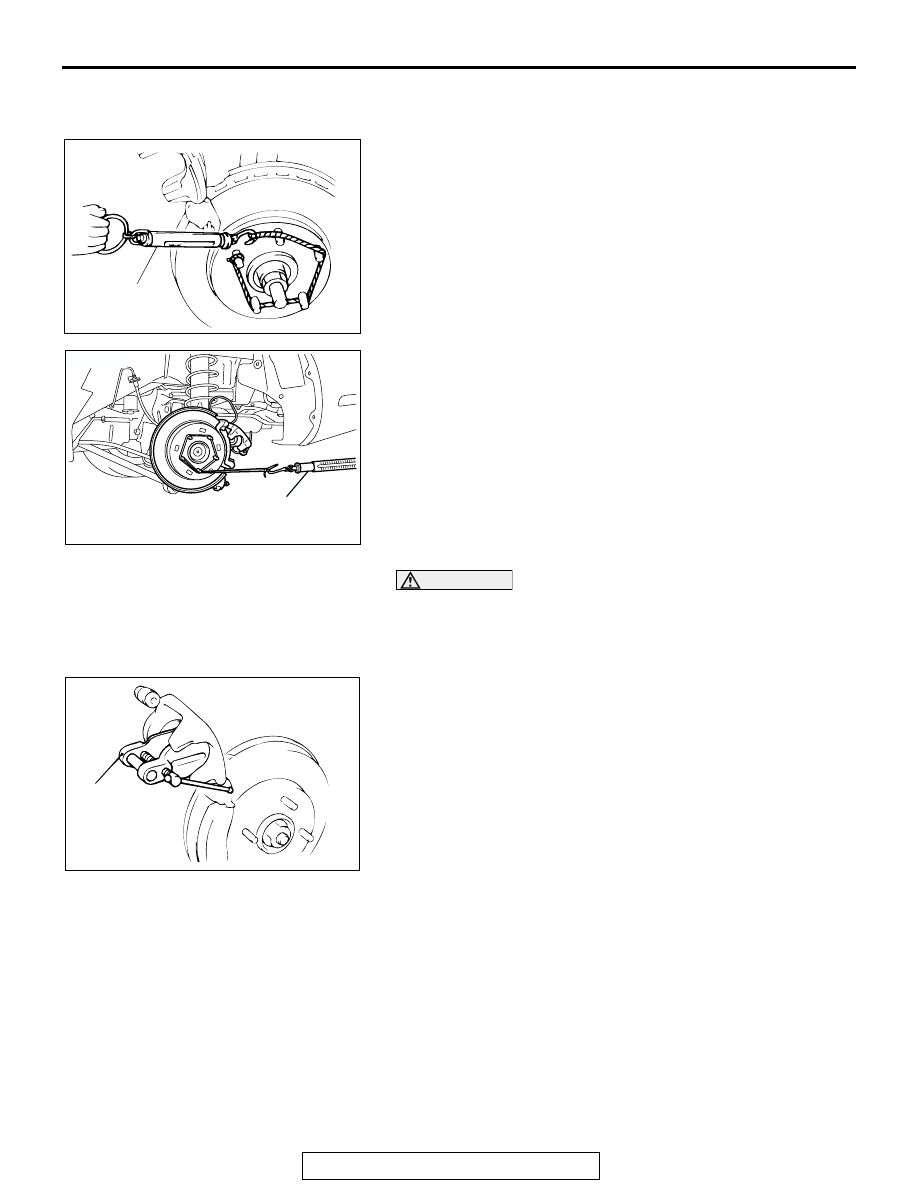

INSTALLATION SERVICE POINT

.

>>A<< BRAKE DRAG FORCE CHECK
1. In order to measure the brake drag force, measure the hub

torque with the pads removed by the following procedure.
Use a spring scale  to measure the hub torque in the forward
direction. Record hub torque with pads removed.

CAUTION

Do not let any oil, grease or other contamination get onto
the friction surfaces of the pads and brake discs.
2. After re-installing the caliper support to the knuckle, install

the pad clips and the pads to the caliper support.

3. Clean the piston and insert into cylinder with special tool

MB990520.

4. Be careful that the piston boot does not become caught,

when lowering the caliper assembly and installing the lock
pin bolt.

5. Check the brake drag force as follows.

(1) Start the engine and hold the brake pedal down for 5

seconds. [Pedal depression force: approximately 200 N
(45 pound)]

(2) Stop the engine.
(3) Turn the brake disc forward 10 times.

AC000906AG

SPRING SCALE

<FRONT>

AC305370

SPRING SCALE

AB

<REAR>

AC002027

MB990520

AB

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-32

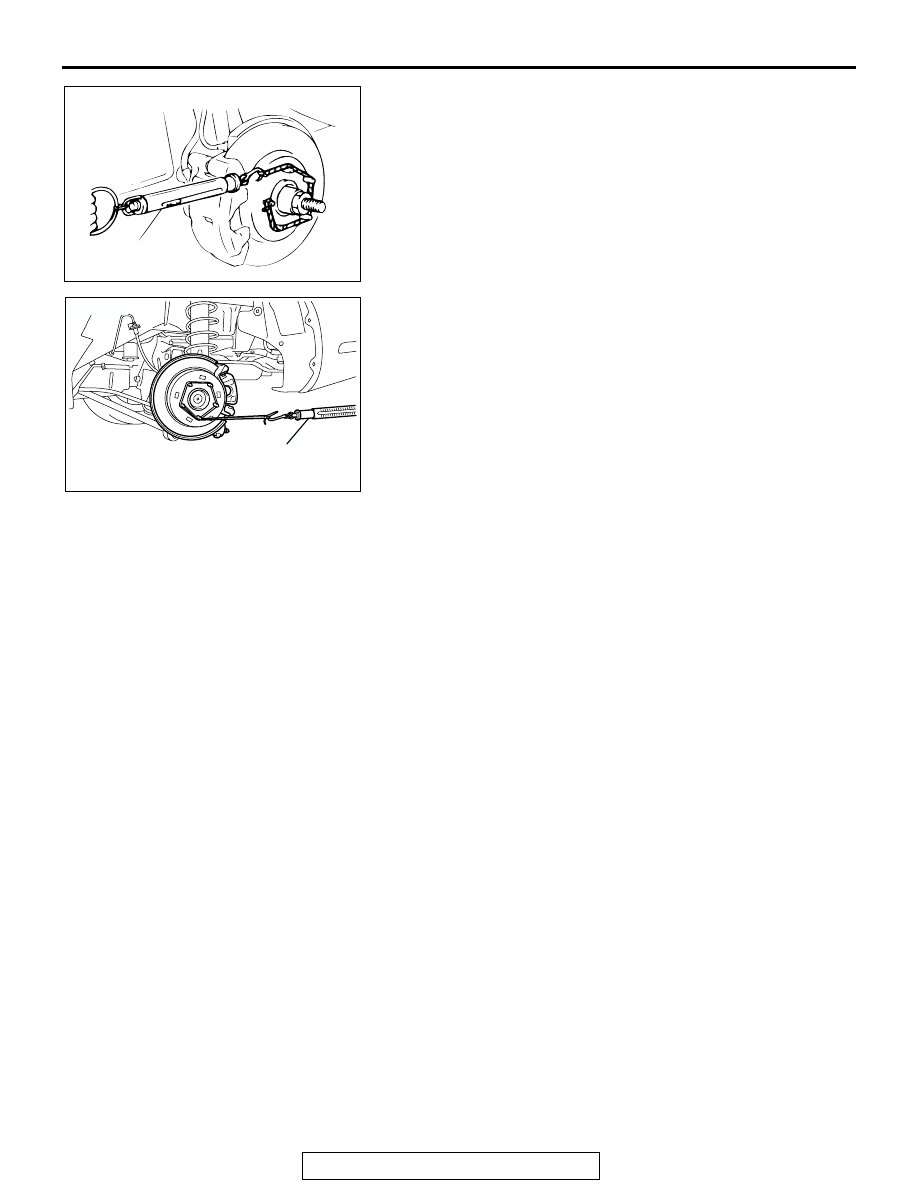

(4) Use a spring scale to measure the hub torque with pads

installed in the same direction as earlier.

(5) Calculate the drag force of the disc brake [difference

between hub torque with pads installed and hub torque
with pads removed].

Standard value:
<Front

−2.4L engine> 54 N (12 pounds) or less

<Front

−3.8L engine> 64 N (14 pounds) or less

<Rear> 54 N (12 pounds) or less

6. If the brake drag force exceeds the standard value,

disassemble and clean the piston. Check for corrosion or
worn piston seal, and check the sliding condition of the lock
pin and guide pin.

INSPECTION

M1351008100046

.

BRAKE DISC CHECK

• Disc wear (Refer to

P.35A-20

).

• Disc run-out (Refer to

P.35A-20

).

AC000908

SPRING SCALE

AF

<FRONT>

AC305369

SPRING SCALE

AB

<REAR>

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-33

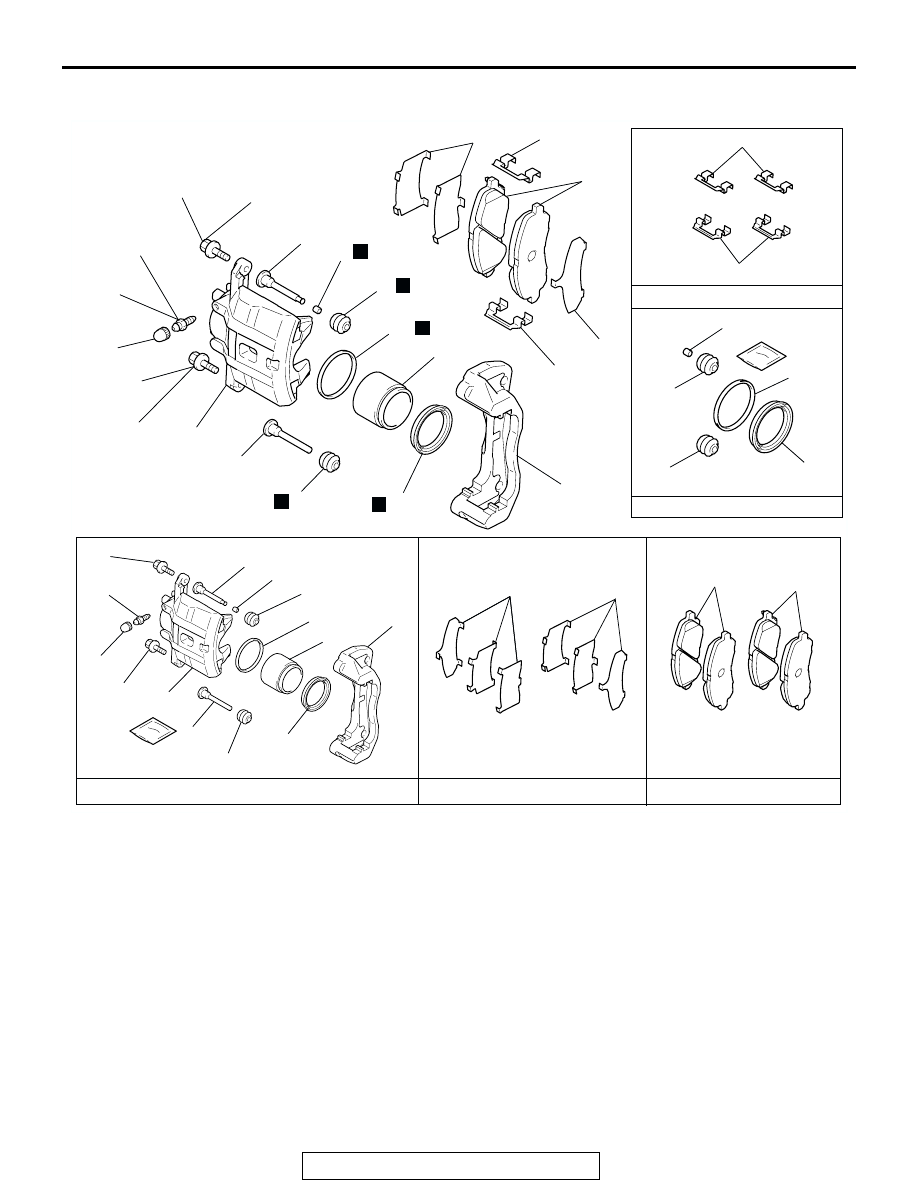

DISASSEMBLY AND ASSEMBLY <FRONT>

M1351008200065

AC307374

CLIP SET

CALIPER SEAL KIT

CALIPER KIT

SHIM SET

PAD SET

9

9

11

4

N

12

4

1

N

1

12

N

38 ± 4 N·m
28 ± 3 ft-lb

3

3

9

9

13

2

2

AB

10

8

5

6

7

12

9

4

13

4

11

9

13

N

6

7

N

8

5

38 ± 4 N·m
28 ± 3 ft-lb

15

14

7.9 ± 1.9 N·m
70 ± 16 in-lb

10

1

3

2

2

3

7

15

14

DISASSEMBLY STEPS

1. PAD (AND WEAR INDICATOR)

ASSEMBLY

2. CLIP
3. SHIM
4. FRONT BRAKE BOLT
5. CALIPER BODY
6. LOCK PIN
7. BUSH

8. GUIDE PIN
9. BOOT
10. CALIPER SUPPORT

<<A>>

11. CALIPER PISTON

<<A>>

12. PISTON BOOT

<<B>>

13. PISTON SEAL
14. CALIPER BLEEDER CAP
15. CALIPER BLEEDER

DISASSEMBLY STEPS (Continued)

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-34

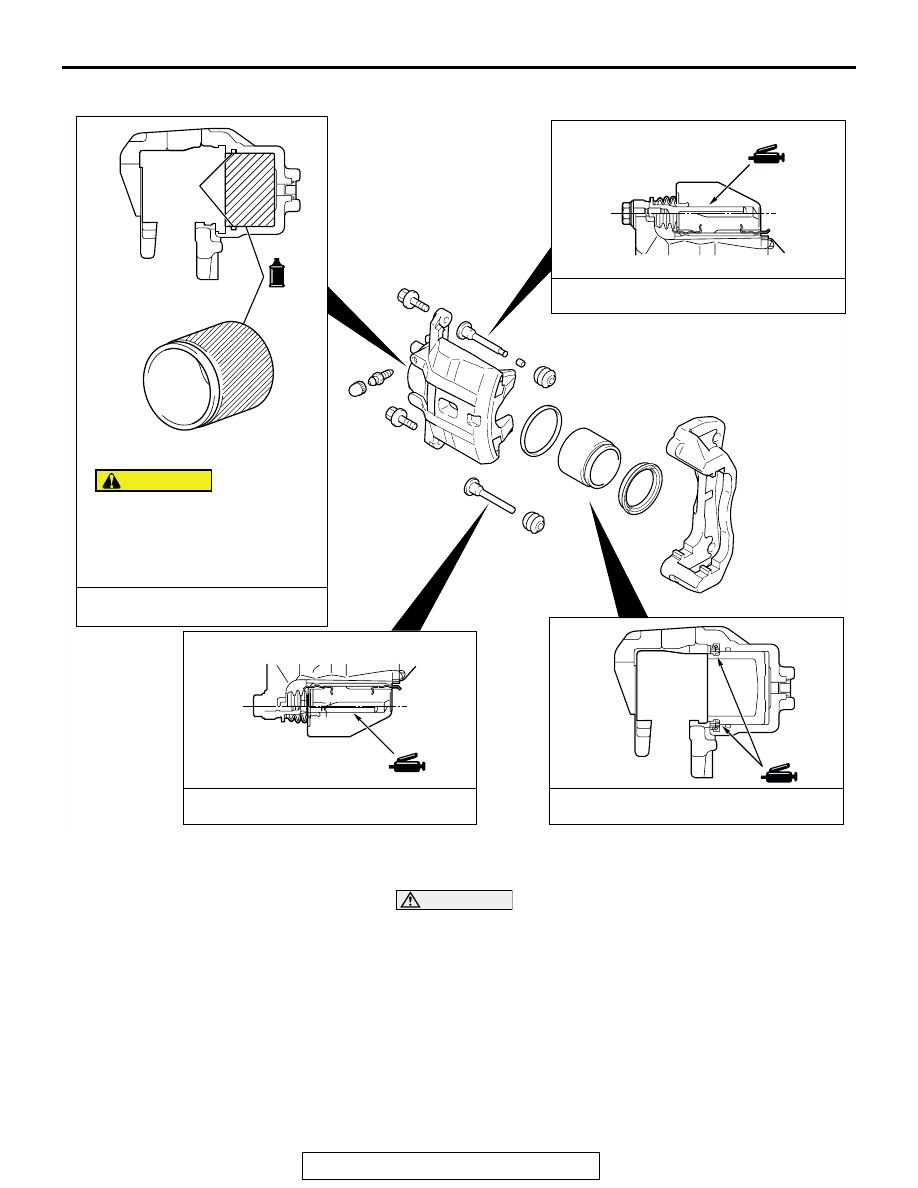

LUBRICATION POINTS

DISASSEMBLY SERVICE POINTS

CAUTION

When disassembling the front disc brakes, disassemble
both sides (left and right wheels) as a set.

.

AC307433

AB

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

BRAKE FLUID: DOT3 OR DOT4

THE PISTON SEAL INSIDE THE
CALIPER SEAL KIT IS COATED
WITH SPECIAL GREASE DO NOT
WIPE THIS GREASE OFF.

GREASE: REPAIR KIT GREASE

PISTON
SEAL

CAUTION
