DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-615

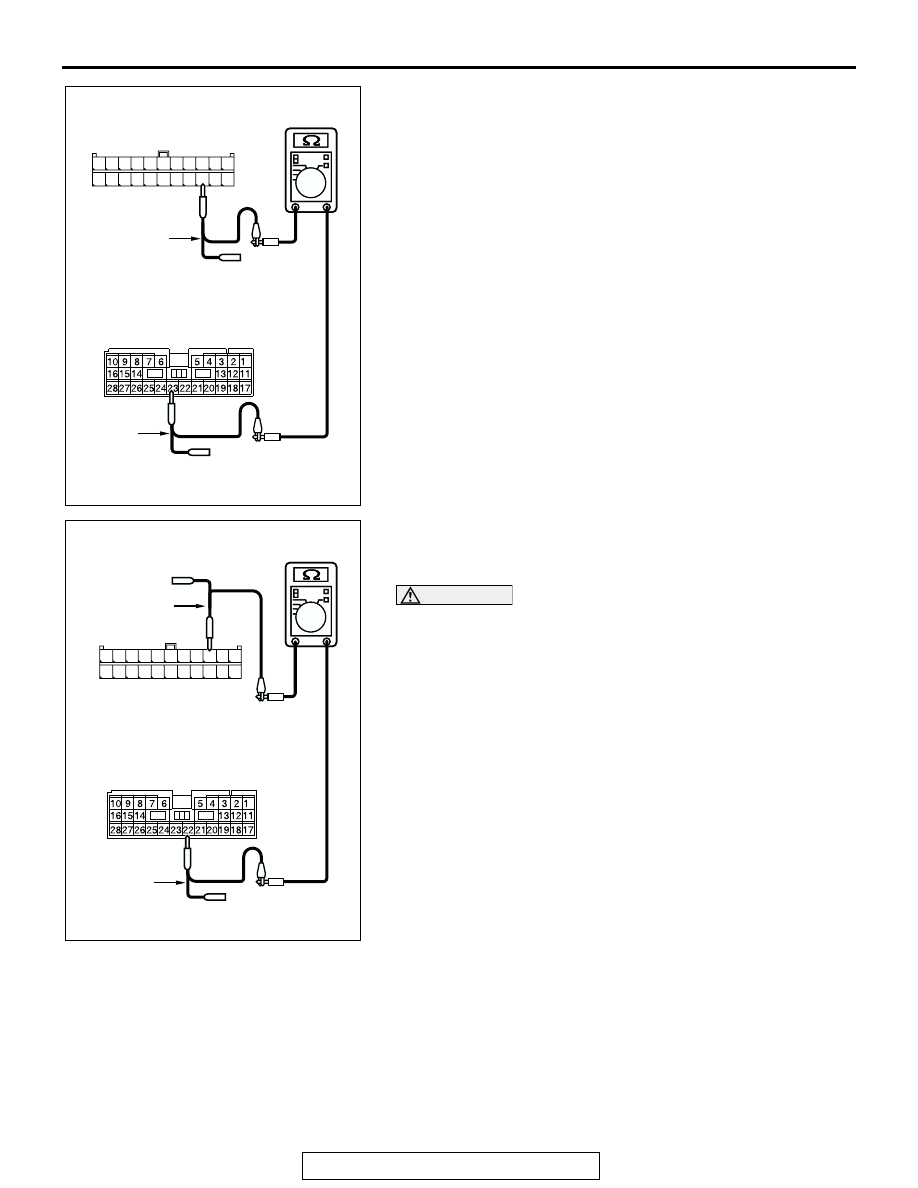

(4) Measure the resistance between joint connector (3)

terminal 14 and intermediate connector terminal 23.

OK: 2 ohms or less

(5) Measure the resistance between joint connector (3)

terminal 3 and intermediate connector terminal 22.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, power

supply to the SRS-ECU may be suspected. Diagnose
the supplemental restraint system. Refer to GROUP
52B, SRS air bag diagnosis

P.52B-30

.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms repair the wiring harness between joint
connector (3) and the SRS-ECU connector.

AC204582

AC204582

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

CD

TEST
HARNESS

HARNESS SIDE: C-02

FEMALE SIDE: C-22

AC204582

AC204582

HARNESS SIDE: C-02

TEST
HARNESS

CE

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

FEMALE SIDE: C-22

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-616

DIAGNOSTIC ITEM 24: Failure in the lines between CAN main bus line and the combination meter.

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

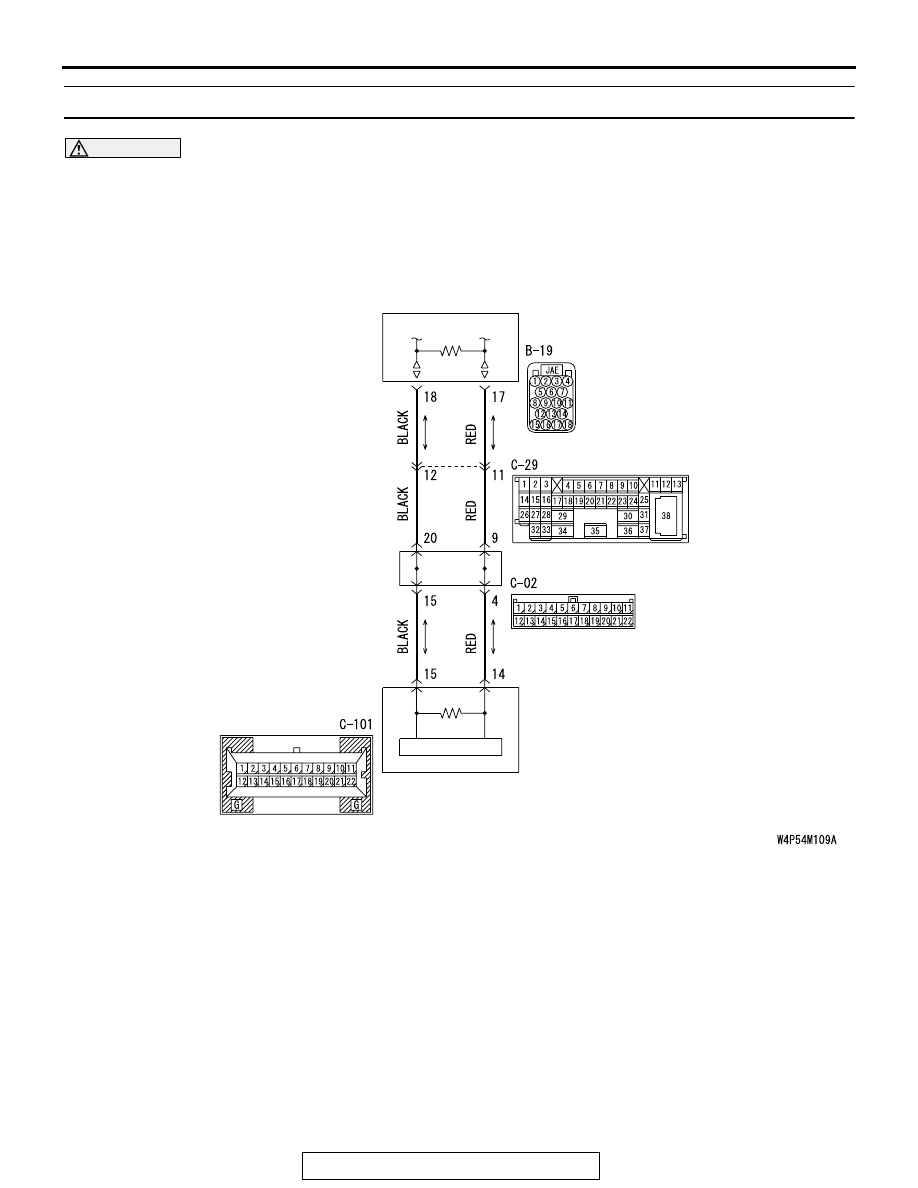

<WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)>

POWERTRAIN
CONTROL MODULE

JOINT
CONNECTOR (3)

COMBINATION
METER

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-617

.

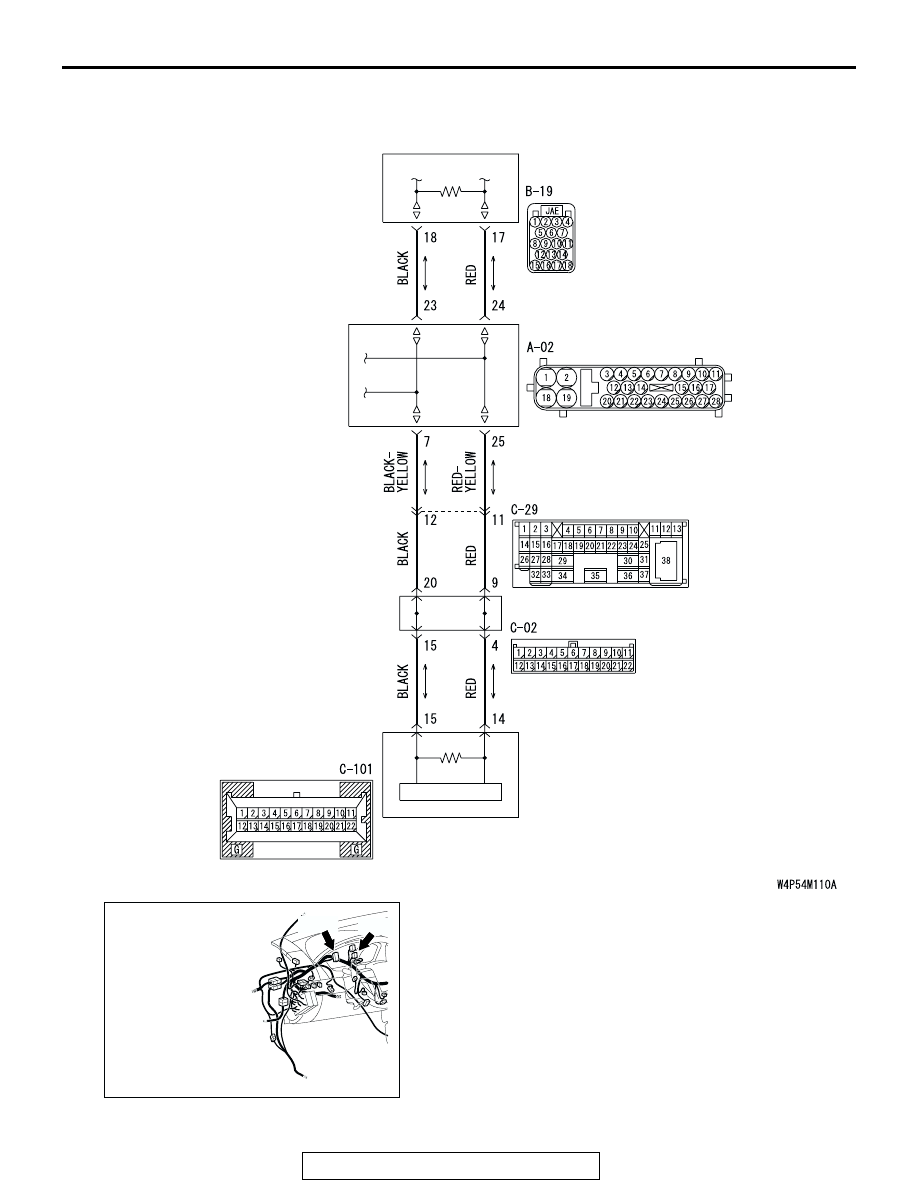

<WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)>

POWERTRAIN
CONTROL MODULE

ABS-ECU

JOINT
CONNECTOR (3)

COMBINATION
METER

AC305231AV

CONNECTORS: C-02, C-101

C-02

C-101

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-618

TROUBLE JUDGMENT
If the MUT-III cannot received signals from the com-
bination meter, CAN bus line connector(s) are bro-
ken or an open circuit has occurred.

.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or the combination
meter may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damage terminals, or termi-
nals pushed back in the connector

• The combination meter may be defective

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

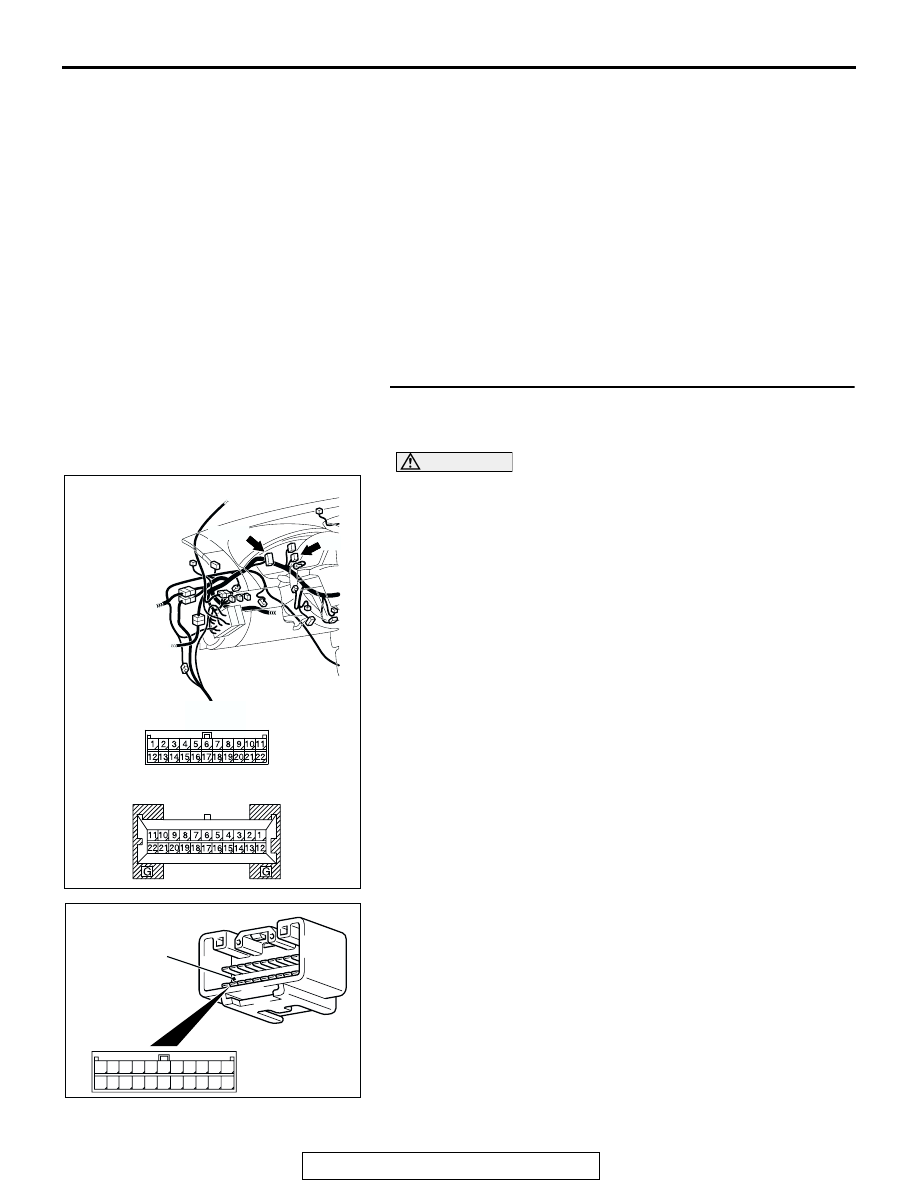

STEP 1. Check joint connector (3) C-02 and combination
meter connector C-101 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Are joint connector (3) C-02 and combination meter

connector C-101 in good condition?
YES : Go to Step 2.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC305232

HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

AE

C-02

C-02

C-101

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN
