DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-495

(4) Measure the resistance between intermediate connector

terminal 11 and powertrain control module connector

terminal 17.

OK: 2 ohms or less

(5) Measure the resistance between intermediate connector

terminal 12 and powertrain control module connector

terminal 18.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES  : If all the resistances measure 2 ohms or less, go to

Step 23.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between intermediate
connector C-29 and the powertrain control module
connector.

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204582

TEST
HARNESS

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

HARNESS SIDE: B-19

TEST
HARNESS

CY

MALE SIDE: C-29

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204582

TEST
HARNESS

HARNESS SIDE: B-19

TEST
HARNESS

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

CX

MALE SIDE: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-496

STEP 23. Check the CAN bus lines between intermediate
connector C-29 and the joint connector (3). Measure the
resistance between intermediate connector C-29 and joint

connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and intermediate

connector C-29, and measure the resistance between the
wiring harness side connector of joint connector (3) C-02
and the female side connector of intermediate connector
C-29 (instrument panel wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305232

CONNECTORS: C-02, C-29

AG

C-02

C-02

C-29

C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-497

(4) Measure the resistance between joint connector (3)

terminal 20 and intermediate connector terminal 12.

OK: 2 ohms or less

(5) Measure the resistance between joint connector (3)

terminal 9 and intermediate connector C-29 terminal 11.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES  : If all the resistances measure 2 ohms or less, power

supply to the powertrain control module may be
suspected. Diagnose the engine. Refer to GROUP
13A, MFI diagnasis

P.13A-944

 <2.4L engine> or

GROUP 13B, MFI diagnasis

P.13B-968

 <3.8L

engine>.

NO  :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between joint
connector (3) and the intermediate connector.

AC204582

35

34

36

30

38

29

17

13 12 11

37

31

33 32

26

27

28

16

14

15

3 2

4

18

6

7

21 20

5

19

9

10

24 23

25

8

22

1

TEST
HARNESS

FEMALE SIDE: C-29

HARNESS SIDE: C-02

TEST
HARNESS

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

CR

AC204582

35

34

36

30

38

29

17

13 12 11

37

31

33 32

26

27

28

16

14

15

3 2

4

18

6

7

21 20

5

19

9

10

24 23

25

8

22

1

TEST
HARNESS

FEMALE SIDE: C-29

HARNESS SIDE: C-02

TEST
HARNESS

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

CQ

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-498

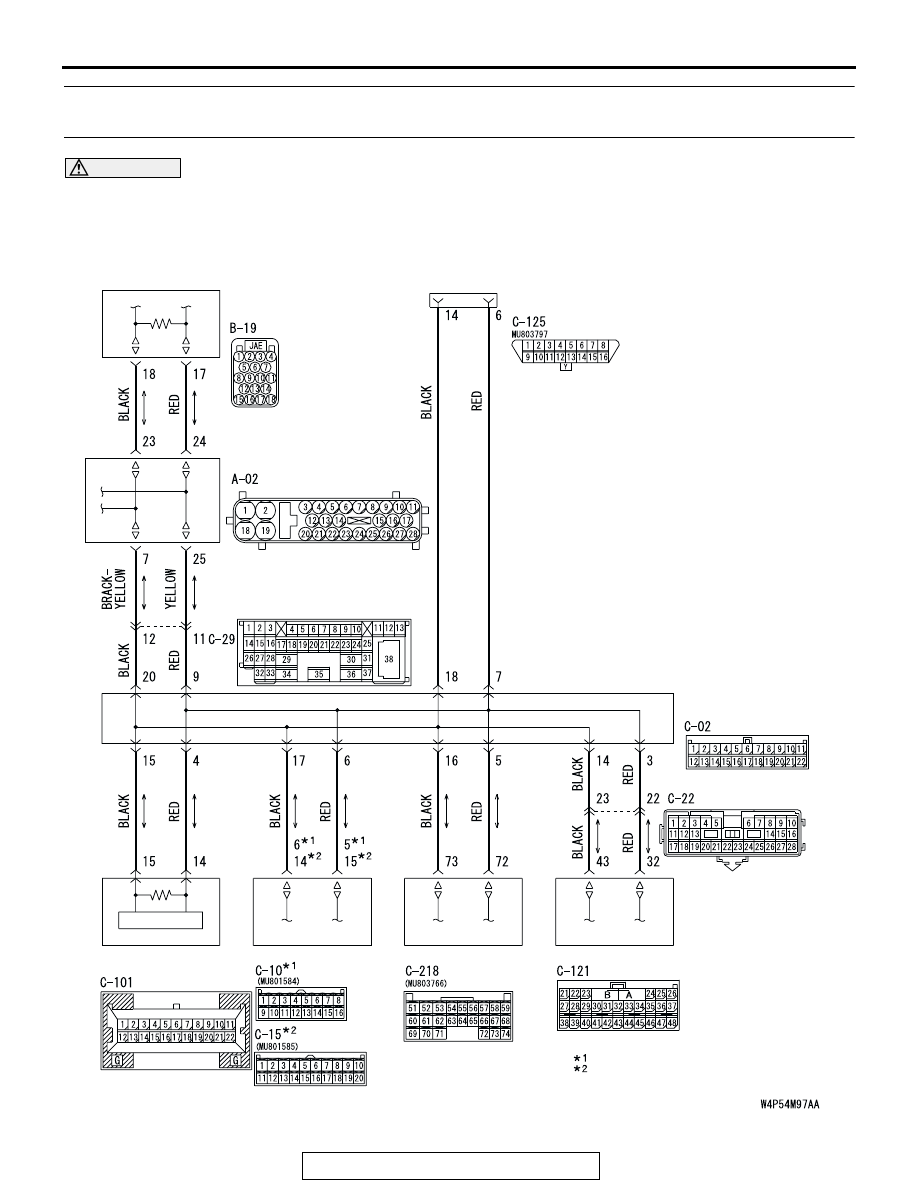

DIAGNOSTIC ITEM 15: Diagnose CAN bus lines thoroughly <Vehicles with ABS and vehicles without
multi-center display (middle-grade type)>

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

DATA LINK
CONNECTOR

ETACS-ECU

POWERTRAIN
CONTROL MODULE

JOINT
CONNECTOR (3)

COMBINATION
METER

A/C-ECU

SRS-ECU

NOTE

: MANUAL AIR CONDITIONING SYSTEM <LOW>
: MANUAL AIR CONDITIONING SYSTEM<MIDDLE>
  OR AUTOMATIC AIR CONDITIONING SYSTEM

ABS-ECU
