Mitsubishi Galant (2004+). Manual - part 449





DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-407

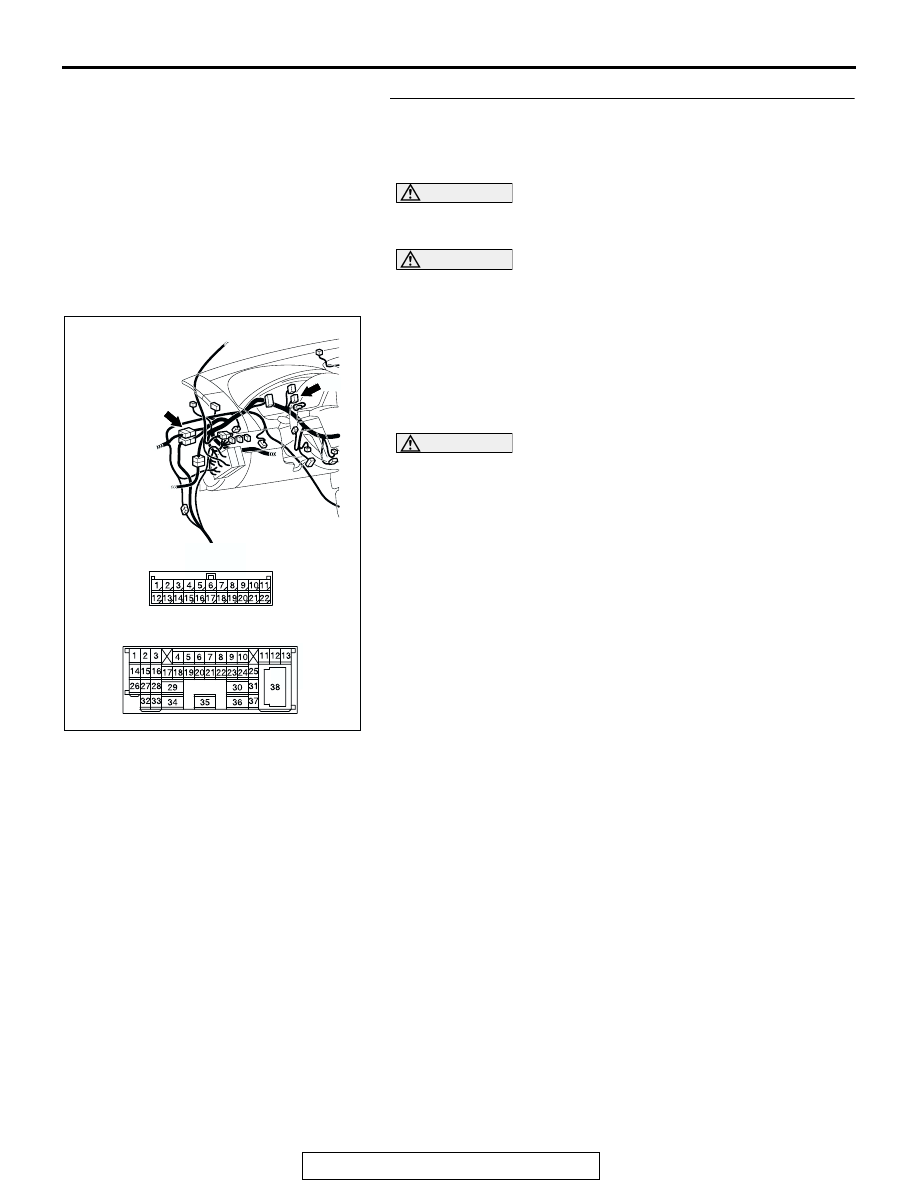

STEP 7. Check the CAN bus lines (communication line
only) between intermediate connector C-29 and joint
connector (3). Measure the resistance at intermediate

connector C-29 and joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and intermediate

connector C-29, and measure the resistance between the
wiring harness side connector of joint connector (3) C-02
and the female side connector of intermediate connector
C-29 (instrument panel wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305232

CONNECTORS: C-02, C-29

AG

C-02

C-02

C-29

C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-408

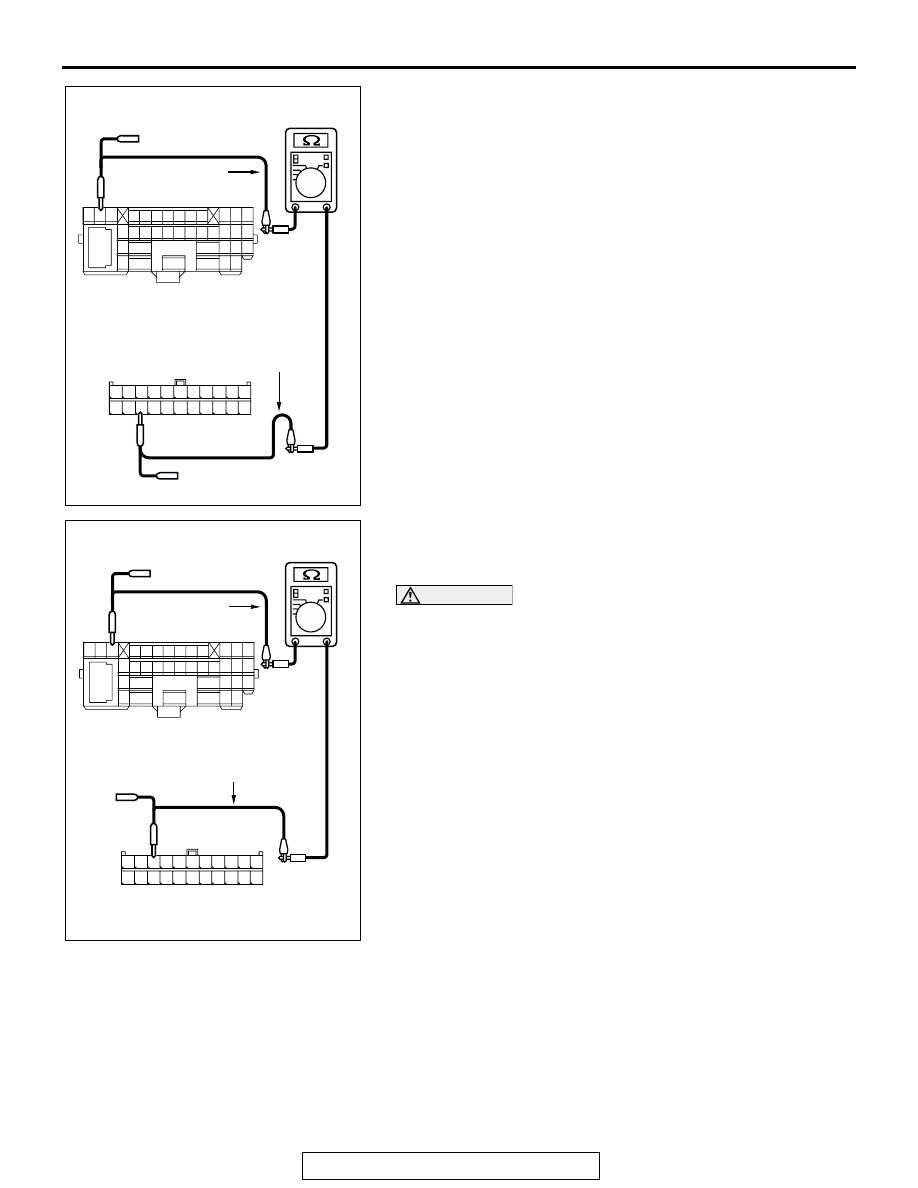

(4) Measure the resistance between intermediate connector

terminal 12 and joint connector (3) terminal 20.

OK: 2 ohms or less

(5) Measure the resistance between intermediate connector

terminal 11 and joint connector (3) terminal 9.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, go to

Step 2.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between joint
connector (3) and the intermediate connector, and
then go to Step 2.

AC204582

35

34

36

30

38

29

17

13 12 11

37

31

33 32

26

27

28

16

14

15

3 2

4

18

6

7

21 20

5

19

9

10

24 23

25

8

22

1

TEST
HARNESS

FEMALE SIDE: C-29

HARNESS SIDE: C-02

TEST
HARNESS

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

DF

AC204582

35

34

36

30

38

29

17

13 12 11

37

31

33 32

26

27

28

16

14

15

3 2

4

18

6

7

21 20

5

19

9

10

24 23

25

8

22

1

TEST
HARNESS

FEMALE SIDE: C-29

HARNESS SIDE: C-02

TEST HARNESS

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

DE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-409

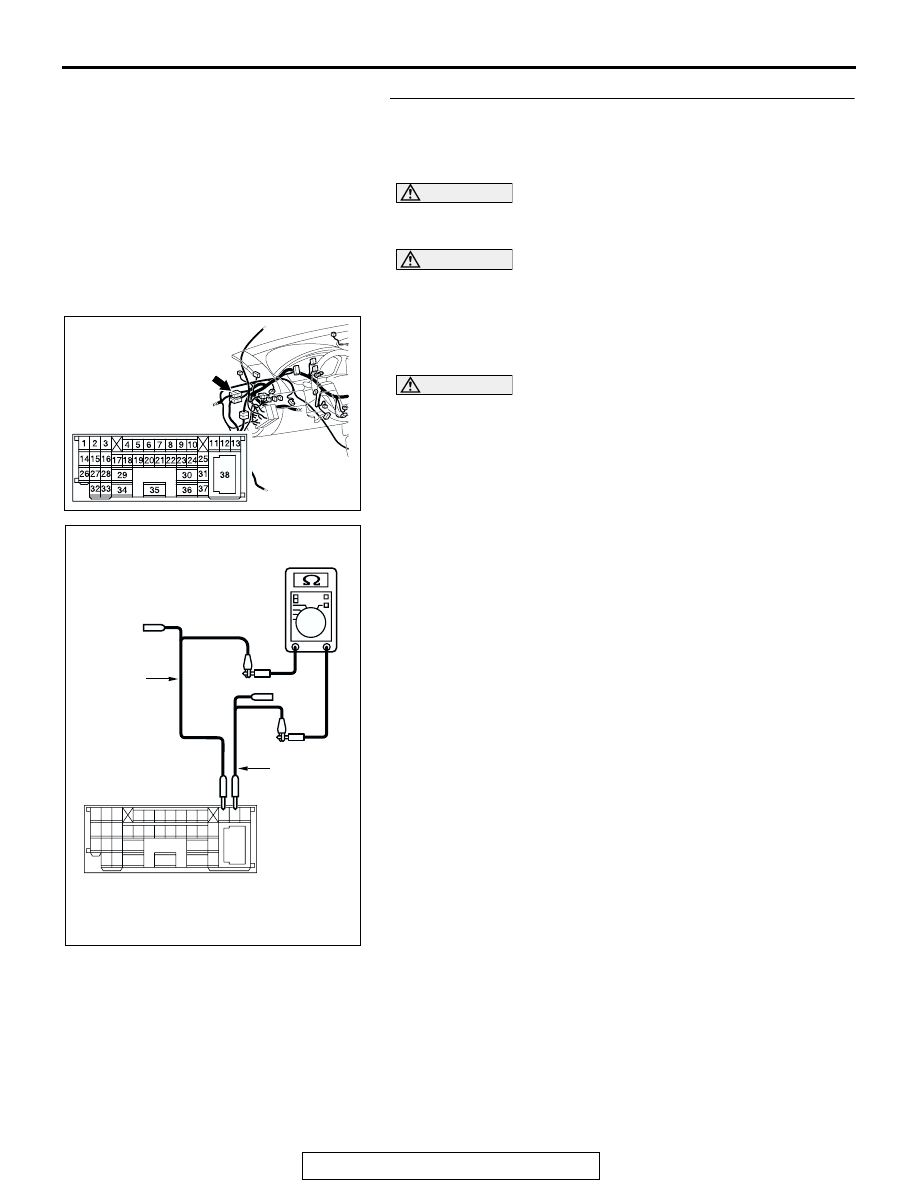

STEP 8. Check the front wiring harness side CAN bus lines
(communication line including the powertrain control
module). Measure the resistance at intermediate connector

C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at the male side (at front wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminals 11 and 12.

OK: 120

± 20

Q: Does the resistance measure 120

± 20 ?

YES : If the resistance measures 120

± 20 Ω, go to Step 12.

NO :  If the resistance does not measure 120

± 20 Ω, go to

Step 9 .

AC305231AI

CONNECTOR: C-29

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

BX

TEST
HARNESS

TEST
HARNESS

MALE SIDE: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-410

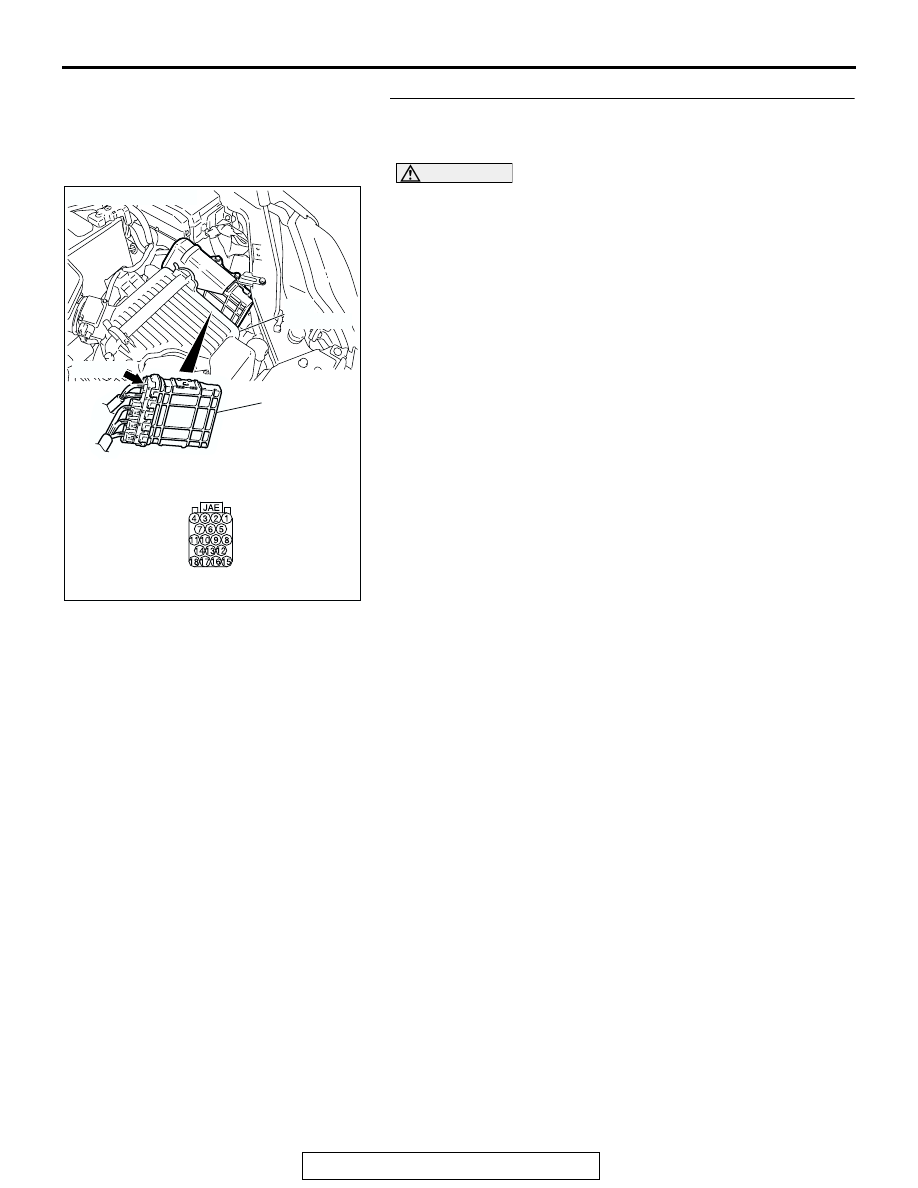

STEP 9. Check powertrain control module connector B-19
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is powertrain control module connector B-19 in good

condition?
YES :
Go to Step 10.
NO :  Repair the damaged parts, and then go to Step 8.

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE
