DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-163

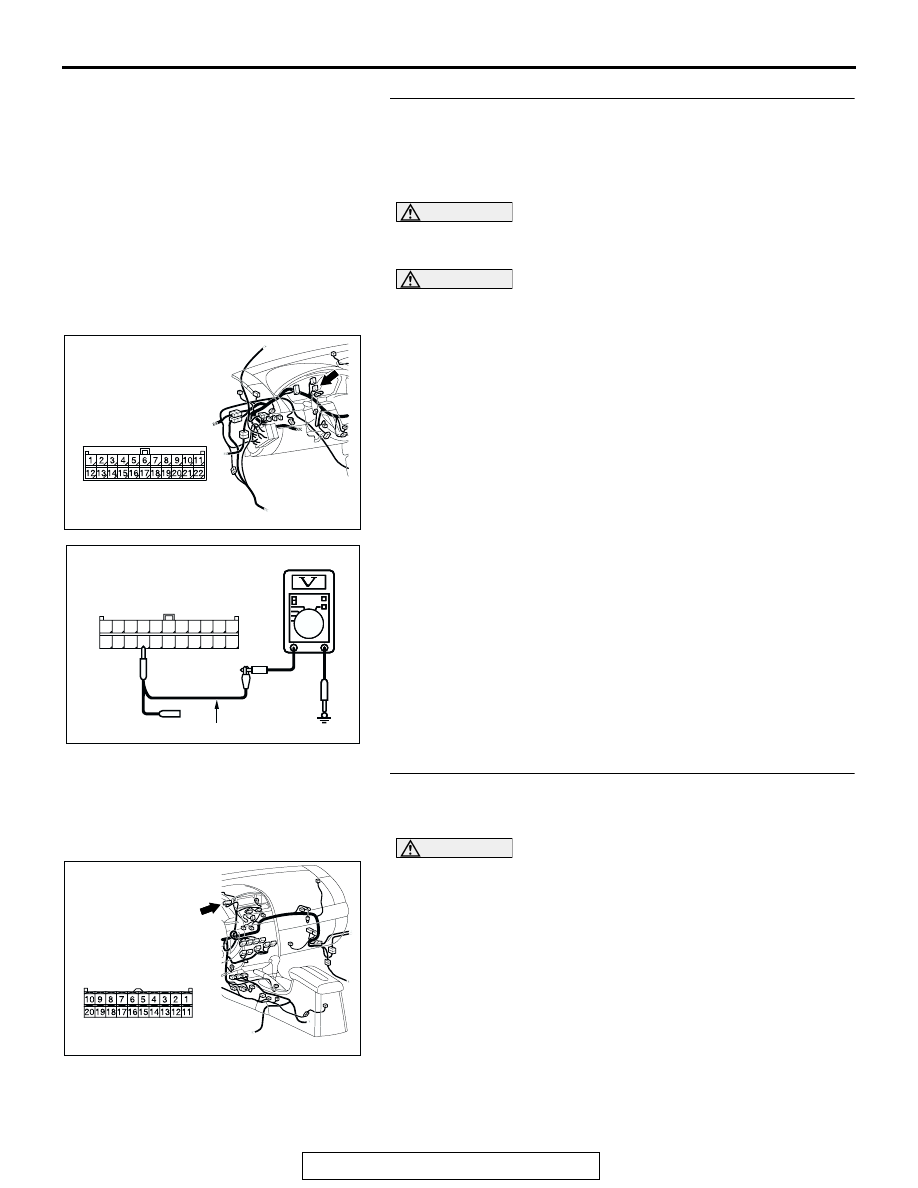

STEP 47. Check the CAN_L line (communication line
including the multi-center display unit (middle-grade type))
between joint connector (3) and middle-grade multi-center
display connector for a short to the power supply. Measure

the voltage at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

voltage at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal

19 and body ground.

OK: 4.0 V or less

Q: Does the voltage measure 4.0 V or less?

YES : If the voltage measures 4.0 V or less, go to Step 50.
NO :  If the voltage measures more than 4.0 V, go to Step

48.

STEP 48. Check multi-center display unit (middle-grade
type) connector C-05 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is multi-center display unit (middle-grade type)

connector C-05 in good condition?
YES :
Go to Step 49.
NO :  Repair the damaged parts.

AC305231AP

CONNECTOR: C-02

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365

AC209365FV

HARNESS SIDE: C-02

TEST HARNESS

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-164

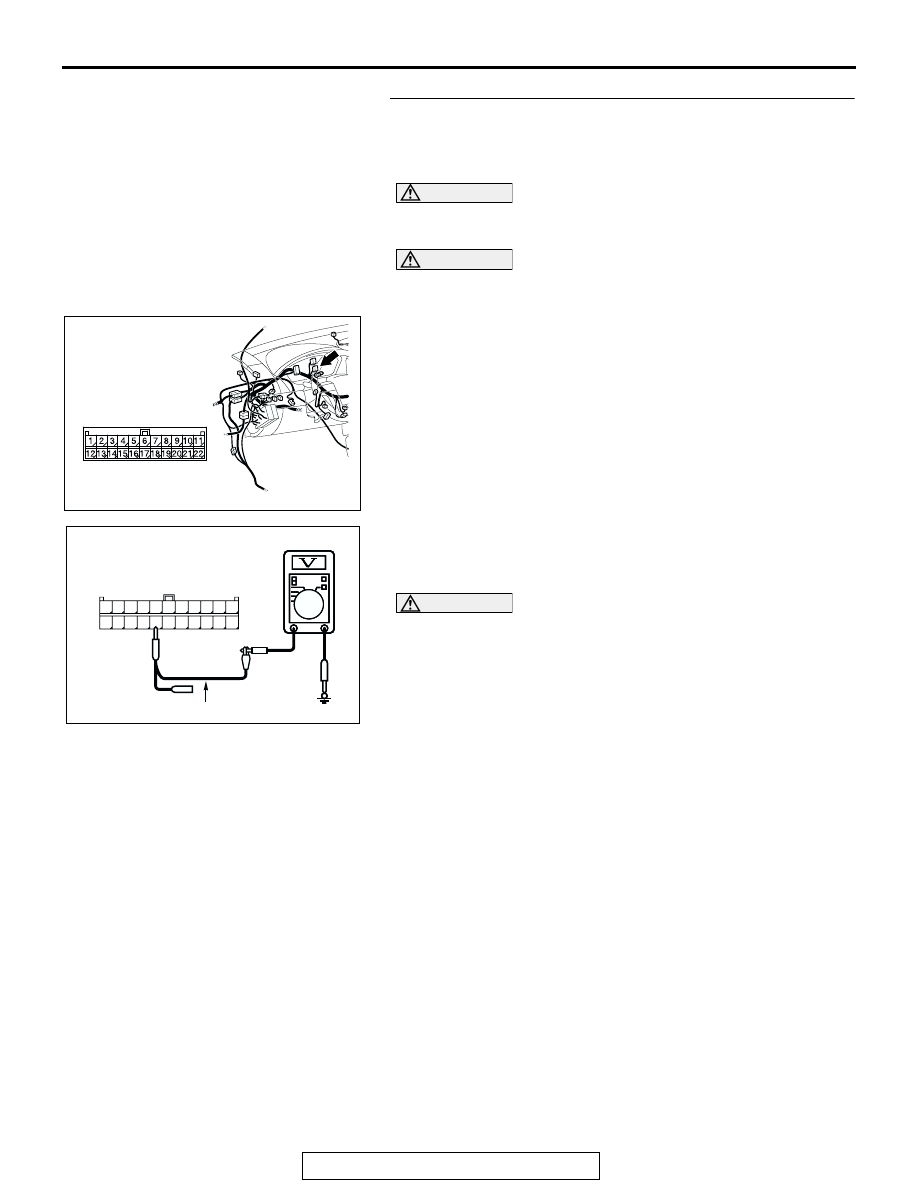

STEP 49. Check the CAN_L line (communication line only)
between joint connector (3) and multi-center display unit
(middle-grade type) connector for a short to the power

supply. Measure the voltage at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and multi-center display

unit (middle-grade type) connector C-05, and measure the

voltage at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal

19 and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, diagnose CAN

bus lines thoroughly by referring to

P.54C-534

.

NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between joint connector (3) and the
multi-center display unit (middle-grade type)
connector.

AC305231AP

CONNECTOR: C-02

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365

AC209365FV

HARNESS SIDE: C-02

TEST HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-165

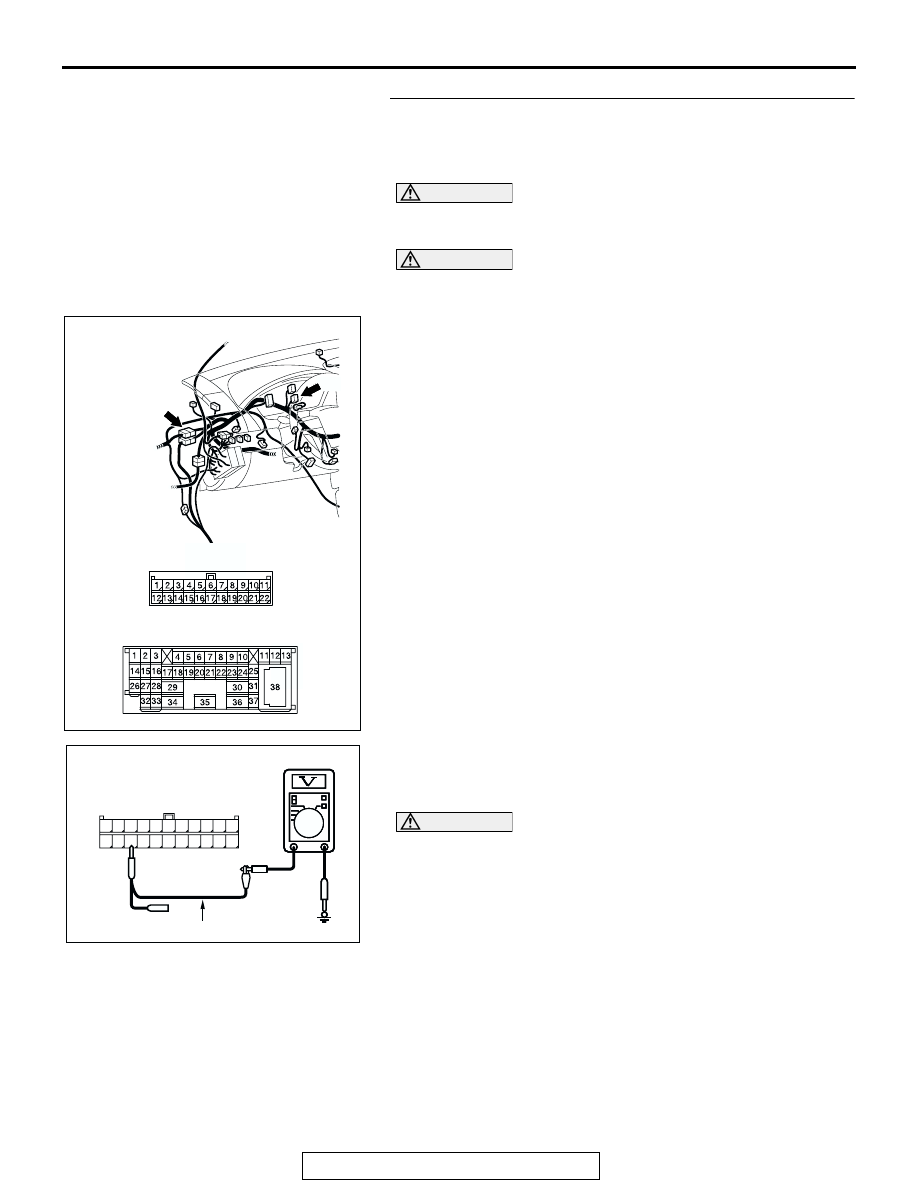

STEP 50. Check the CAN_L line (communication line only)
between joint connector (3) and the data link connector for
a short to the power supply. Measure the voltage at joint

connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

voltage at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal

18 and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, go to Step 51.
NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between joint connector (3) and the
data link connector.

AC305231AP

CONNECTOR: C-02

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365

AC209365GH

HARNESS SIDE: C-02

TEST HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-166

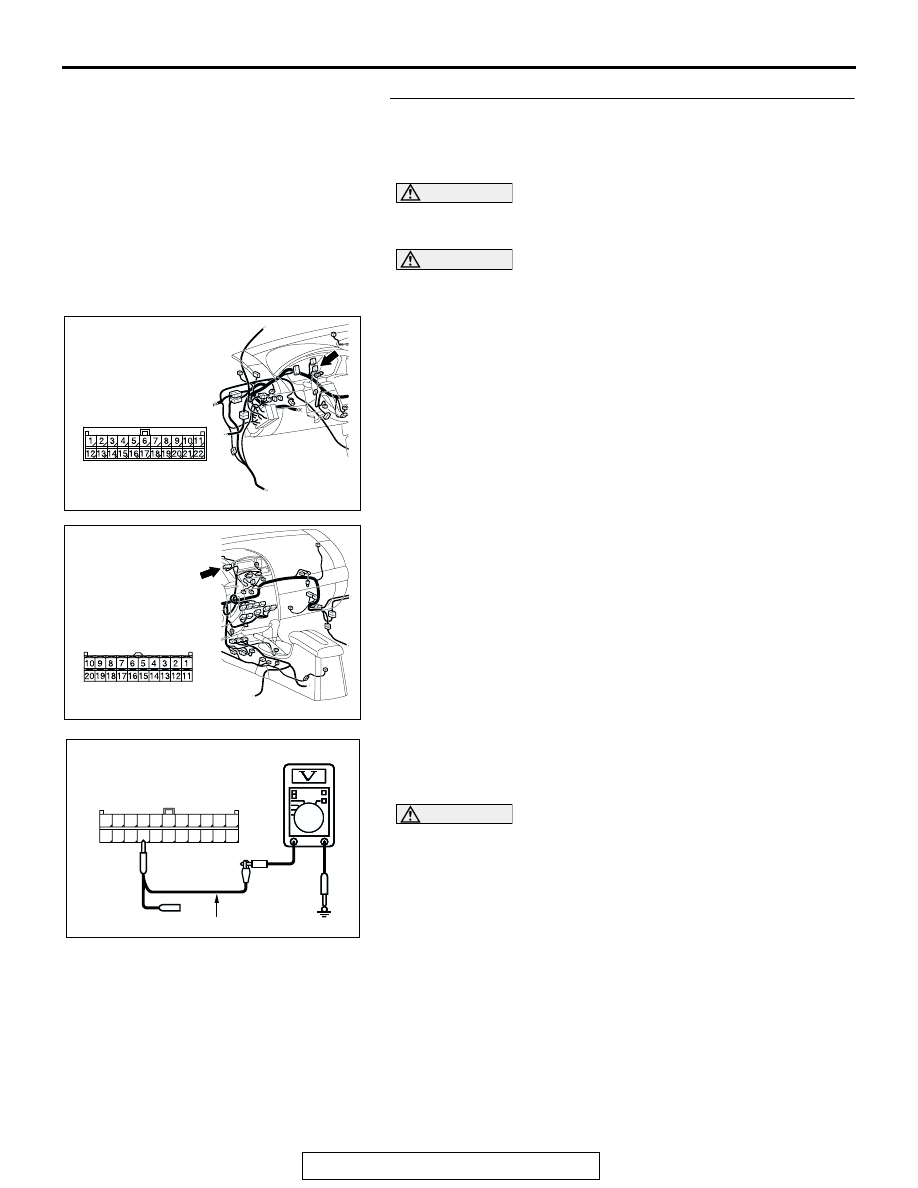

STEP 51. Check the CAN_L line (communication line only)
between intermediate connector C-29 and joint connector
(3) for a short to the power supply. Measure the voltage at

joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29 and joint

connector (3) C-02, and measure the voltage at the wiring
harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal

20 and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, diagnose CAN

bus lines thoroughly by referring to

P.54C-534

.

NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between intermediate connector C-29
and joint connector (3).

AC305232

CONNECTORS: C-02, C-29

AG

C-02

C-02

C-29

C-29

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365

AC209365GI

HARNESS SIDE: C-02

TEST HARNESS
