Mitsubishi Galant (2004+). Manual - part 350





EXPLANATION ABOUT THE SCAN TOOL (MUT-III) CAN BUS DIAGNOSTICS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-11

Time-out DTC
codes
associated with
ECUs C and D
are stored in
ECU A and
ECU B

Trouble in
CAN bus line
(d)

If time-out DTC codes associated
with ECUs C and D are stored in
ECUs A and B, or time-out codes
associated with ECUs A and B
are stored in ECUs C and D, CAN
bus line (d) is suspected. CAN
bus line (g) or (e) and power
supply systems to ECU C or D
are also suspected as second
cause.

Time-out DTC
codes
associated with
ECUs A and B
are stored in
ECU C and
ECU D

DTC CODE TO
BE SET

POSSIBLE
TROUBLE
SPOT

LOGIC FOR DETERMINING TROUBLE SPOT

AC204742BG

DATA LINK

CONNECTOR

ECU B

ECU C

ECU D

ECU A

(a)

(b)

(c)

(d)

(e)

(f)

(g)

DIAGNOSTIC TROUBLE CODE DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-12

DIAGNOSTIC TROUBLE CODE DIAGNOSIS

M1548304500025

ON-BOARD DIAGNOSTICS

The CAN is a communication method which the
ECUs use in order to communicate each other. The
CAN-related diagnostic trouble codes will be stored
in the following ECUs, which use the CAN communi-
cation.

• Powertrain control module

• ABS-ECU

• ETACS-ECU

• A/C-ECU

• SRS-ECU

• Combination meter

• Multi-center display (middle-grade type)

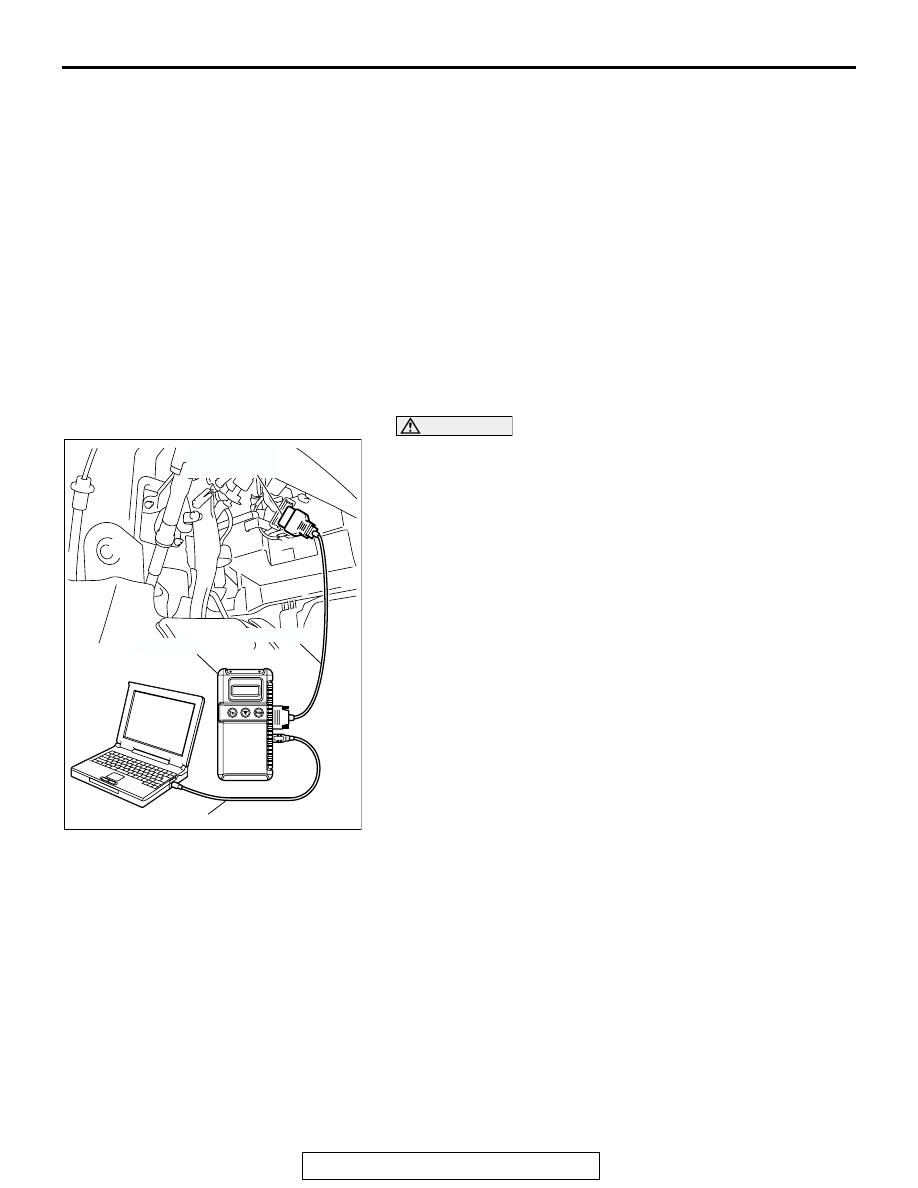

HOW TO CONNECT THE SCAN TOOL (MUT-III)

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the MUT-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

AC206894

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-13

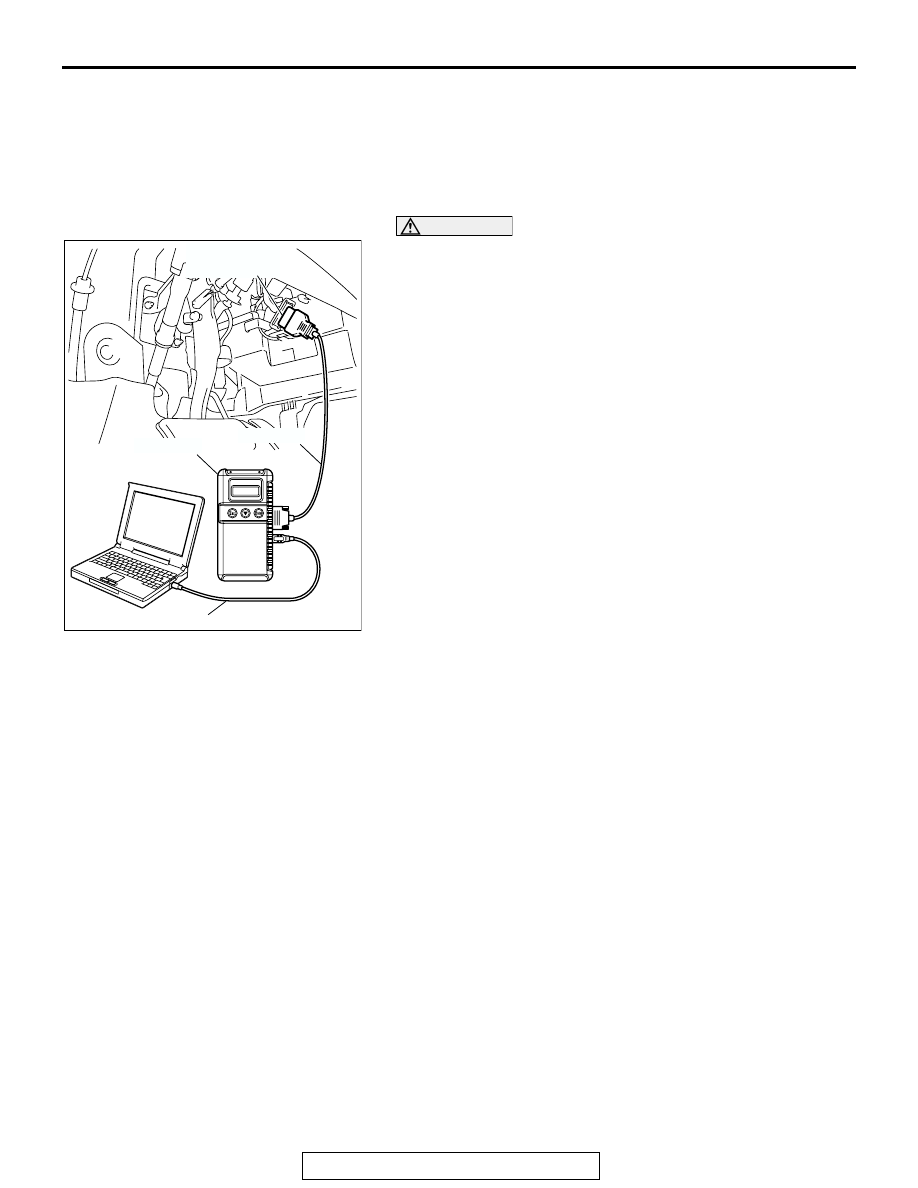

HOW TO DIAGNOSE THE CAN BUS LINE

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle whose CAN bus lines will be
diagnosed.

• If they match, go to step 8.

• If not, go to step 5.

5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again

that it matches the vehicle whose CAN bus lines will be
diagnosed.

• If they match, go to step 8.

• If not, go to step 5.

8. Select the "OK" button.
9. When the optional equipment screen is displayed, choose

the one which the vehicle is fitted with, and then select the
"OK" button.

AC206894

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-14

DIAGNOSIS

CAN BUS DIAGNOSTICS TABLE

M1548300200055

This diagnosis applies only to the CAN bus lines. If a
different system is defective, proceed to the applica-
ble diagnosis section for each system. Observe the
diagnosis procedure below only when the CAN bus
line is defective.

CAUTION

During diagnosis, a DTC code associated with
another system may be set when the ignition
switch is turned on with connector(s) discon-
nected. After completing the repair, confirm all
systems for DTC code(s). If DTC code(s) are set,
erase them all.

Vehicles without ABS and vehicles without multi-center display (middle-grade type)

MUT-III SCREEN

DIAGNOSIS DETAILS

REFERENCE
PAGE

<Comment>
Short circuit to battery in red displayed area is
estimated.

Diagnostic Item 1
Diagnose shorts in the power supply to
CAN bus line <Vehicles without ABS
and vehicles without multi-center display
(middle-grade type)>

P.54C-31

<Comment>
Grounding in red displayed area is
estimated.

Diagnostic Item 4
Diagnose shorts in the ground to CAN
bus line <Vehicles without ABS and
vehicles without multi-center display
(middle-grade type)>

P.54C-172

<Comment>
Short circuit between CAN_H and CAN_L in red
displayed area is
estimated.

Diagnostic Item 7
Diagnose shorts between CAN_L and H
lines <Vehicles without ABS and
vehicles without multi-center display
(middle-grade type)>

P.54C-313

AC305790

ETACS

-ECU

AC-ECU

: Red section on screen

PCM

SRS-ECU

METER

-ECU

AB

MUT

J/C

AC305790

ETACS

-ECU

AC-ECU

: Red section on screen

PCM

SRS-ECU

METER

-ECU

AB

MUT

J/C

AC305790

ETACS

-ECU

AC-ECU

: Red section on screen

PCM

SRS-ECU

METER

-ECU

AB

MUT

J/C
