INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-531

STEP 6. Check the wiring harness between rear door
switch (LH) connector D-16 (terminal 1) and ETACS-ECU
connector C-219 (terminal 7).

NOTE: Also check junction block connector C-204 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-204 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear door switch (LH)

connector D-16 (terminal 1) and ETACS-ECU connector
C-219 (terminal 7) in good condition?
YES : Replace the ETACS-ECU. If the functions described

in "CIRCUIT OPERATION" work normally, the input
signal from the rear door switch (LH) should be
normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the rear door switch
(LH) should be normal.

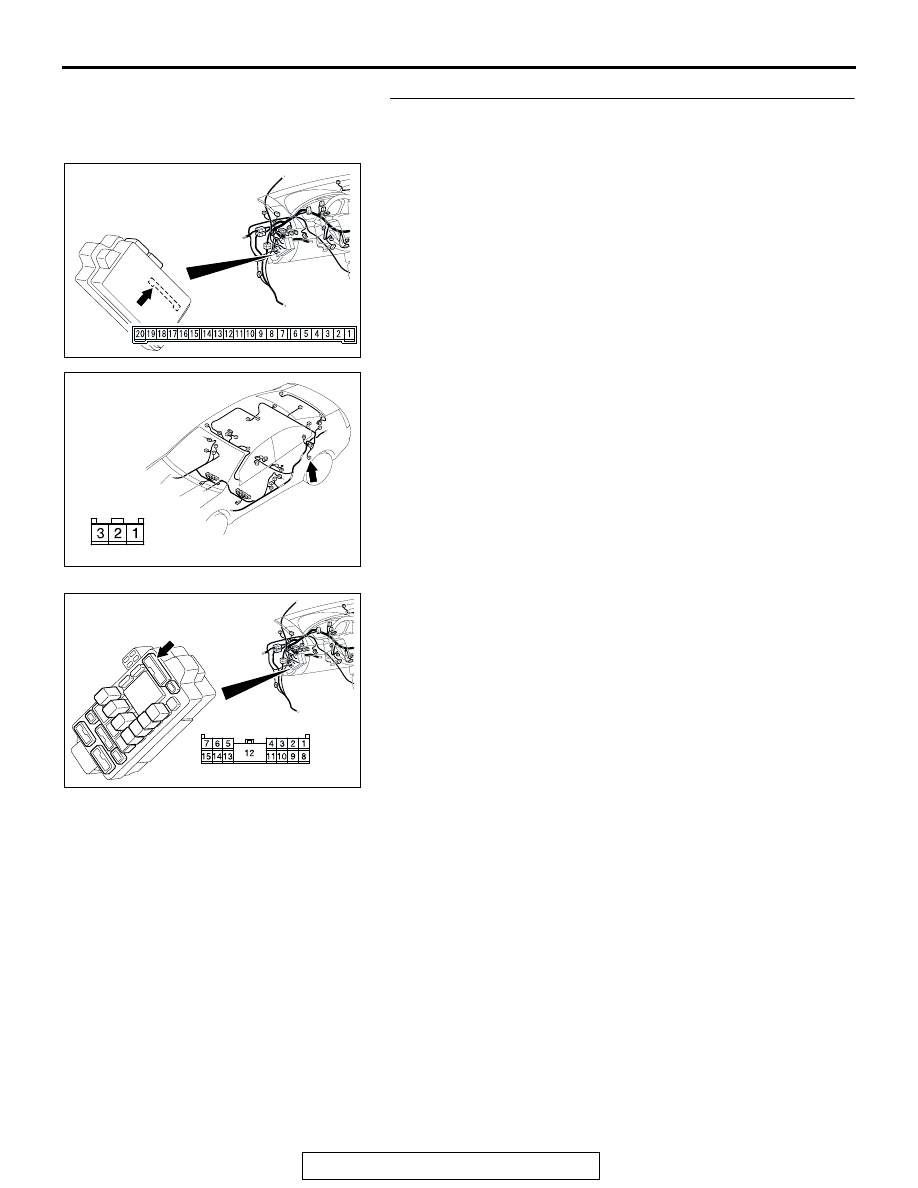

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305268

AH

CONNECTOR: D-16

HARNESS SIDE

AC305415AJ

CONNECTOR: C-204

HARNESS SIDE

JUNCTION BLOCK

(FRONT VIEW)

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-532

STEP 7. Check rear door switch (RH) connector D-06 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is rear door switch (RH) connector D-06 in good

condition?
YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions described in "CIRCUIT

OPERATION" work normally, the input signal from the
rear door switch (RH) should be normal.

STEP 8. Check the rear door switch (RH).

Remove the rear door switch (RH). Refer to GROUP 42, Door,
Door Assembly

P.42-37

. Then check continuity between the

switch terminals and the body ground.

Q: Is the rear door switch (RH) in good condition?

YES : Go to Step 9.
NO :  Replace the rear door switch (RH). If the functions

described in "CIRCUIT OPERATION" work normally,
the input signal from the rear door switch (RH) should
be normal.

STEP 9. Measure resistance at the lower metal part of the
rear door switch (RH) in order to check the ground circuit
to the rear door switch (RH).
NOTE: Check that the rear door switch (RH) is grounded to the
vehicle body via its mounting screw.
Remove the cap, and measure the resistance value between
the lower metal part and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 10.
NO :  Check the installation of the switch, and repair if

necessary. If the functions described in "CIRCUIT
OPERATION" work normally, the input signal from the
rear door switch (RH) should be normal.

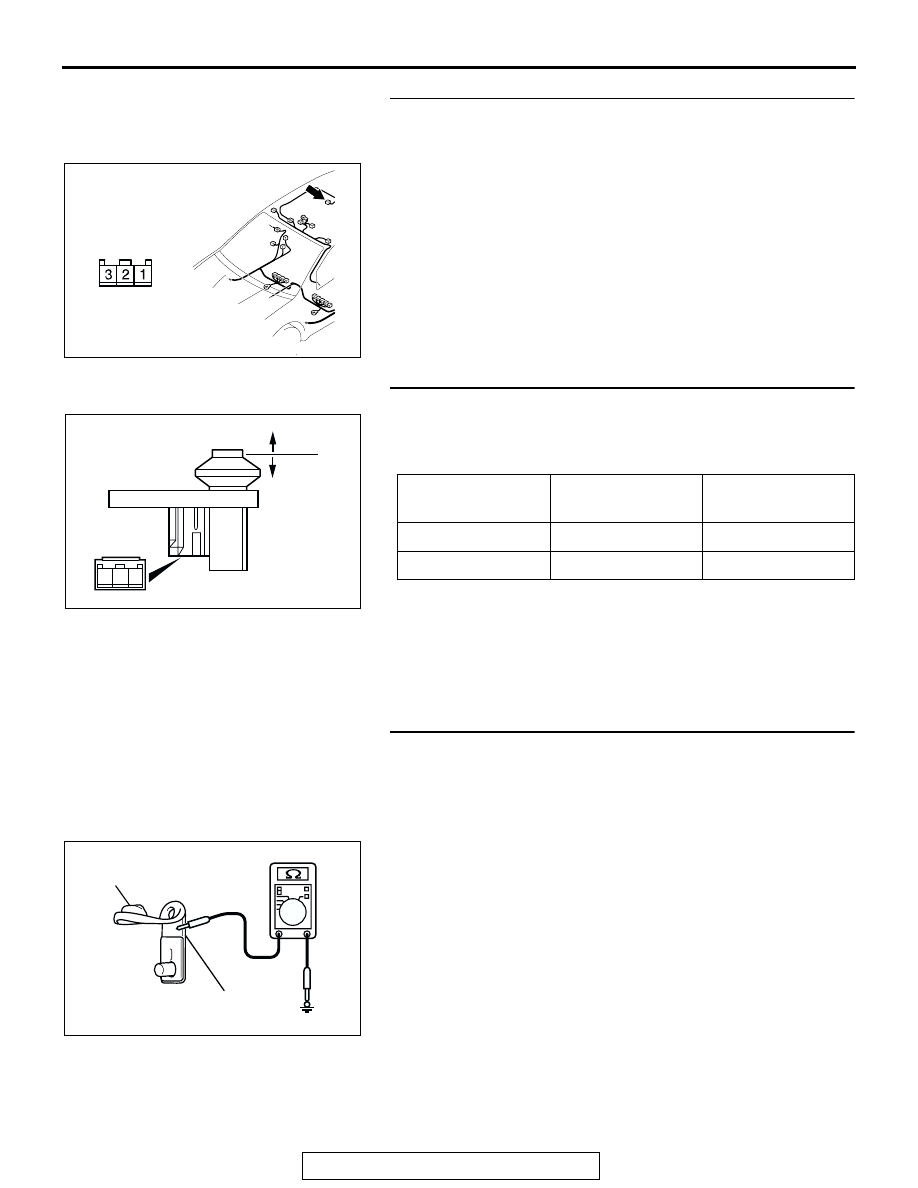

AC305264

AI

CONNECTOR: D-06

HARNESS SIDE

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− body ground

Less than 2 ohms

Pressed (OFF)

1

− body ground

Open circuit

1 2 3

ACX01865 AC

ON

OFF

AC210276AB

METAL PART

CUP

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-533

STEP 10. Check ETACS-ECU connector C-217 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is ETACS-ECU connector C-217 in good condition?

YES : Go to Step 11.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions described in "CIRCUIT

OPERATION" work normally, the input signal from the
rear door switch (RH) should be normal.

STEP 11. Check the wiring harness between rear door
switch (RH) connector D-06 (terminal 1) and ETACS-ECU

connector C-217 (terminal 35).

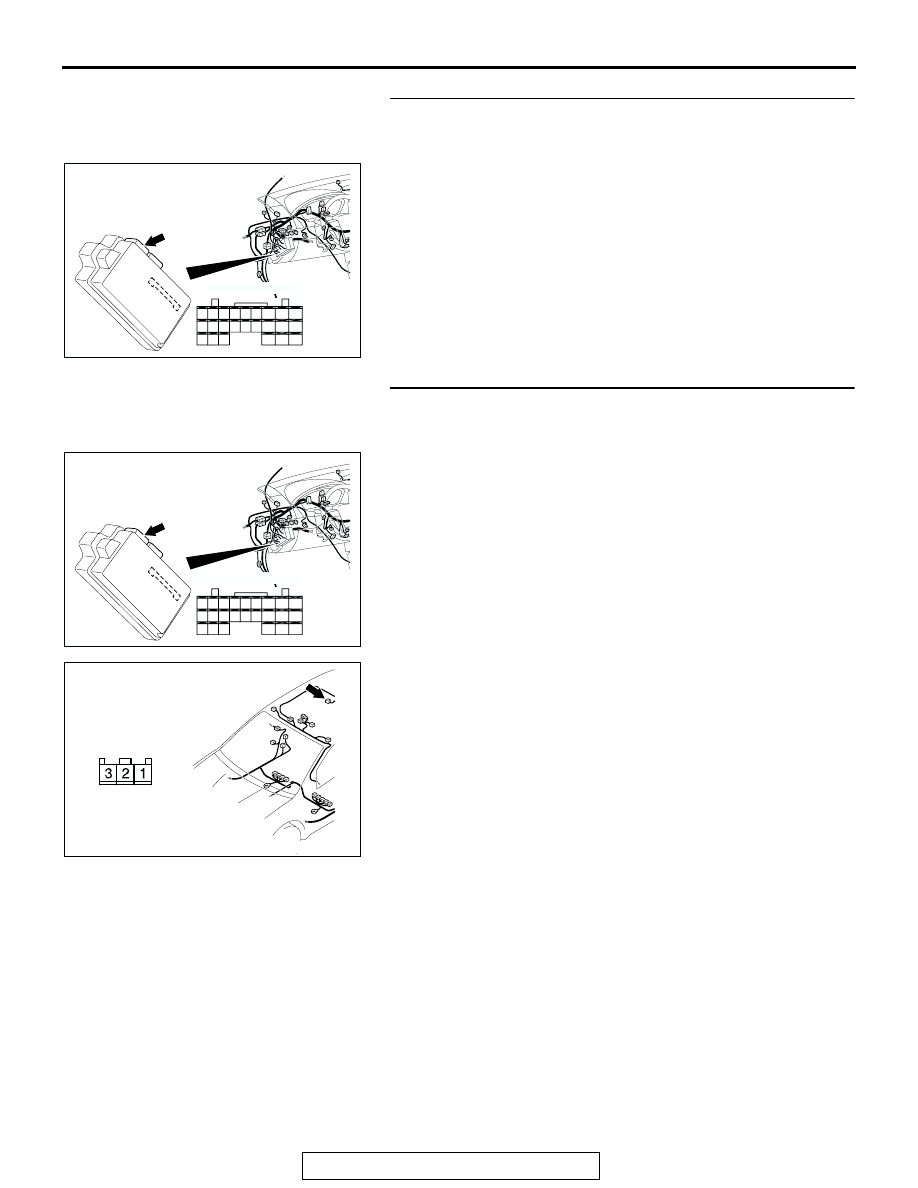

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305264

AI

CONNECTOR: D-06

HARNESS SIDE

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-534

NOTE: Also check intermediate connector C-13 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-13 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear door switch (RH)

connector D-06 (terminal 1) and ETACS-ECU connector
C-217 (terminal 35) in good condition?
YES : Replace the ETACS-ECU. If the functions described

in "CIRCUIT OPERATION" work normally, the input
signal from the rear door switch (RH) should be
normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the rear door switch
(RH) should be normal.

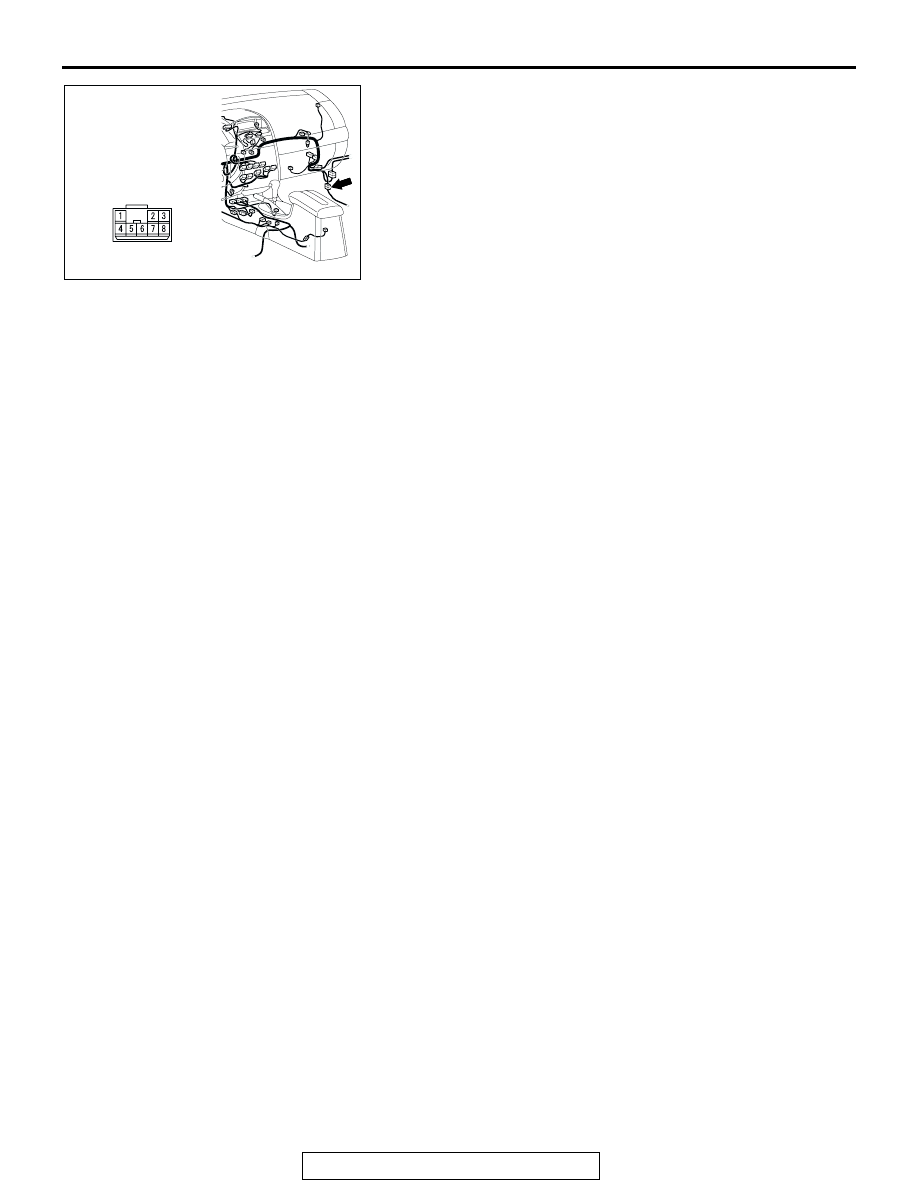

AC305233 AC

CONNECTOR: C-13
