INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-515

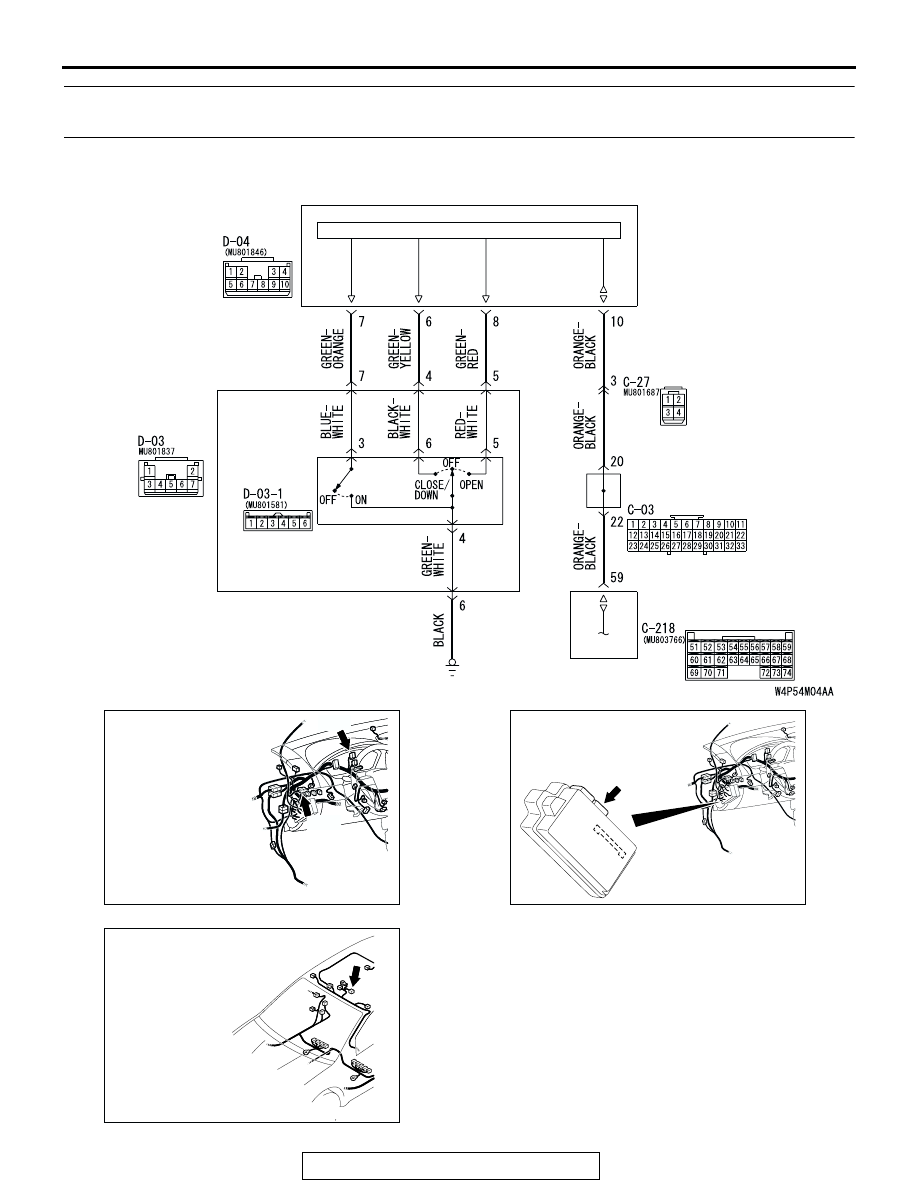

INSPECTION PROCEDURE M-8: Sunroof Switch: ETACS-ECU does not receive any signal from the
up, open, or close/down switch.

SUNROOF MOTOR
ASSEMBLY

OVERHEAD
CONSOLE
ASSEMBLY

SUNROOF-ECU

SUNROOF
SWITCH

JOINT
CONNECTOR (3)

ETACS-
ECU

Sunroof Switch Input Circuit

AC305231

AC305231BV

CONNECTORS: C-03, C-27

C-03

C-27

AC305413AL

CONNECTOR: C-218

C-218 (GR)

AC305264

AC305264

AN

CONNECTOR: D-04

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-516

.

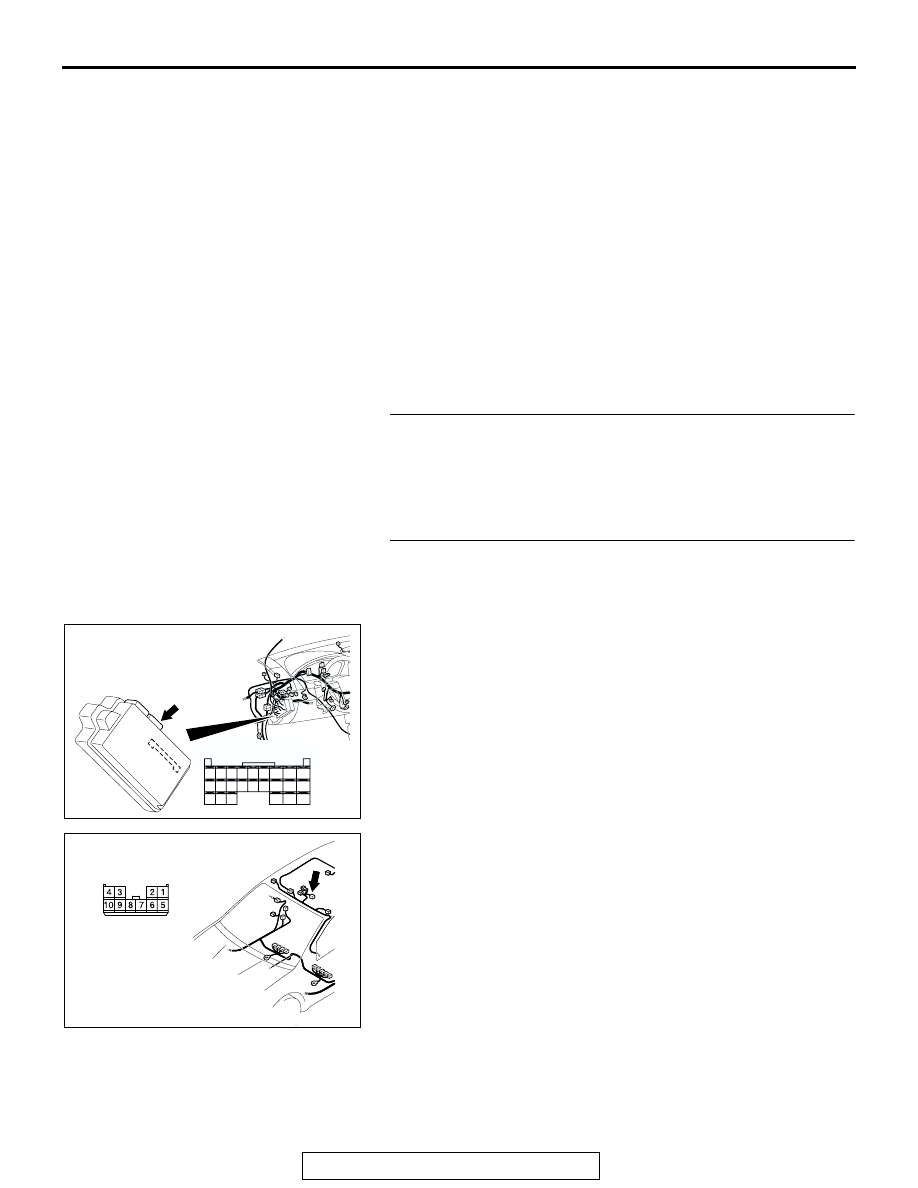

CIRCUIT OPERATION
The ETACS-ECU receives a signal through the sun-
roof motor assembly via the SWS communication
line from the sunroof switch, and sends a signal to
the data link connector.

.

TECHNICAL DESCRIPTION (COMMENT)
If the SWS communication line between the sunroof
motor assembly and the ETACS-ECU is defective,
the ETACS-ECU cannot identify the input signal from
the sunroof switch even if the sunroof is normal.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The sunroof motor assembly may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tool:

• MB991223: Test Harness Set

STEP 1. Check the sunroof operation.
Q: Does the sunroof work normally?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure F-1 "Sunroof does not

operate

P.54B-247

."

STEP 2. Check sunroof motor assembly connector D-04
and ETACS-ECU connector C-218 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are sunroof motor assembly connector D-04 and

ETACS-ECU connector C-218 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the sunroof operates normally, a correct

signal is sent from the sunroof switch.

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

AC305264

AC305264

AM

CONNECTOR: D-04

HARNESS SIDE

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-517

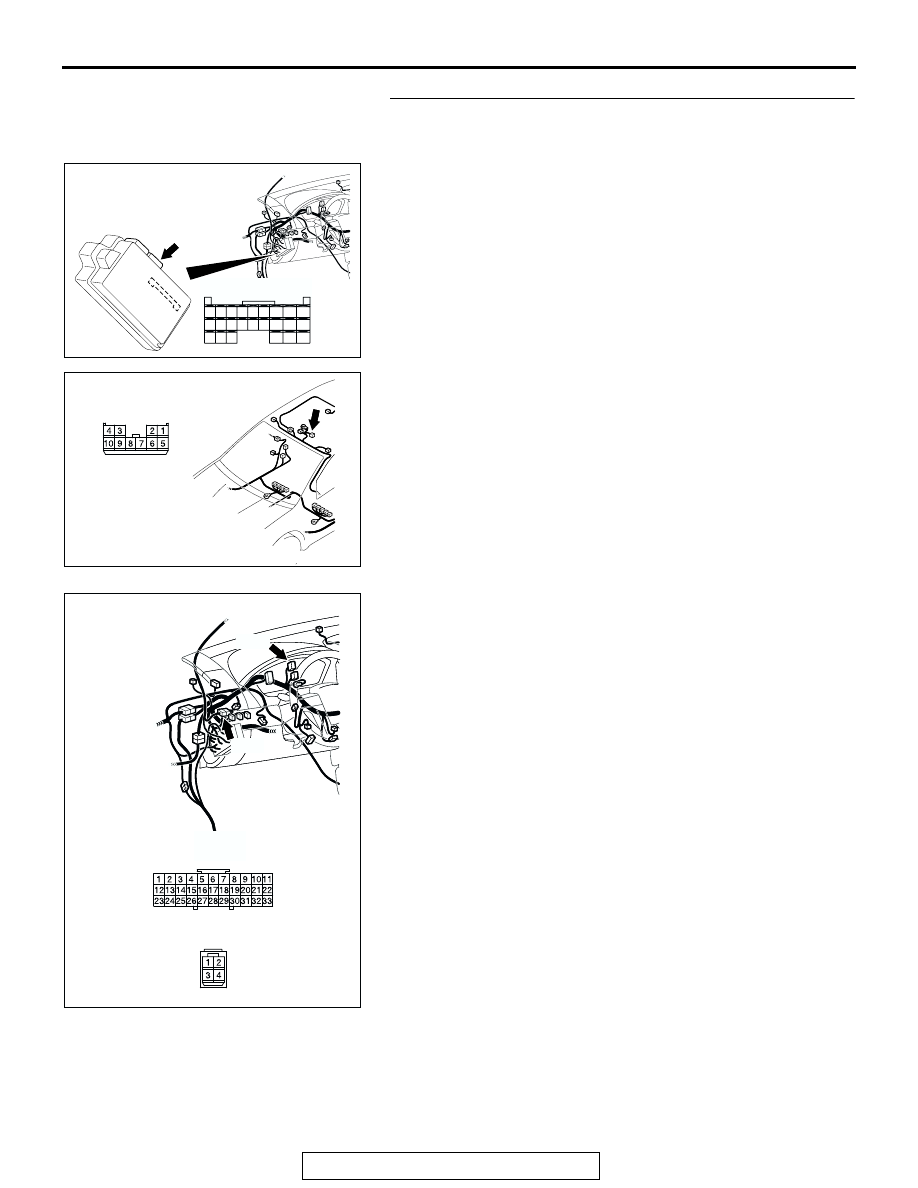

STEP 3. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 10) and ETACS-ECU
connector C-218 (terminal 59).

NOTE: Also check intermediate connector C-27 and joint con-
nector C-03. If intermediate connector C-27 or joint connector
C-03 is damaged, repair or replace the connector as described
in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector D-04 (terminal 10) and ETACS-ECU connector
C-218 (terminal 59) in good condition?
YES : Go to Step 4.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the sunroof
operates normally, a correct signal is sent from the
sunroof switch.

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

AC305264

AC305264

AM

CONNECTOR: D-04

HARNESS SIDE

AC305232

AC305232

CONNECTORS: C-03, C-27

AI

C-03

C-27

C-27

C-03 HARNESS SIDE

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-518

STEP 4. Replace the sunroof motor assembly.

(1) Replace the sunroof motor assembly.
(2) If the sunroof operates normally, a correct signal is sent

from the sunroof switch.

Q: Does the ETACS-ECU receive correct signals from the

sunroof switch?
YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. If the sunroof operates

normally, a correct signal is sent from the sunroof
switch.

INSPECTION PROCEDURE N-1: ETACS-ECU does not receive any signal from the key reminder
switch.

.

CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the key reminder
switch:

• Ignition key reminder tone alarm function

• Forgotten key reminder

• Keyless entry system

• Timed locking mechanism

• Dome light dimming function

• Ignition key hole illumination light

.

KEY
REMINDER
SWITCH

ETACS-ECU

WHEN KEY
IS REMOVED

Key Reminder Switch Input Circuit

AC305413

CONNECTOR: C-217

AK

JUNCTION BLOCK

(REAR VIEW)

AC305235

CONNECTOR: C-310

AD
