INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-507

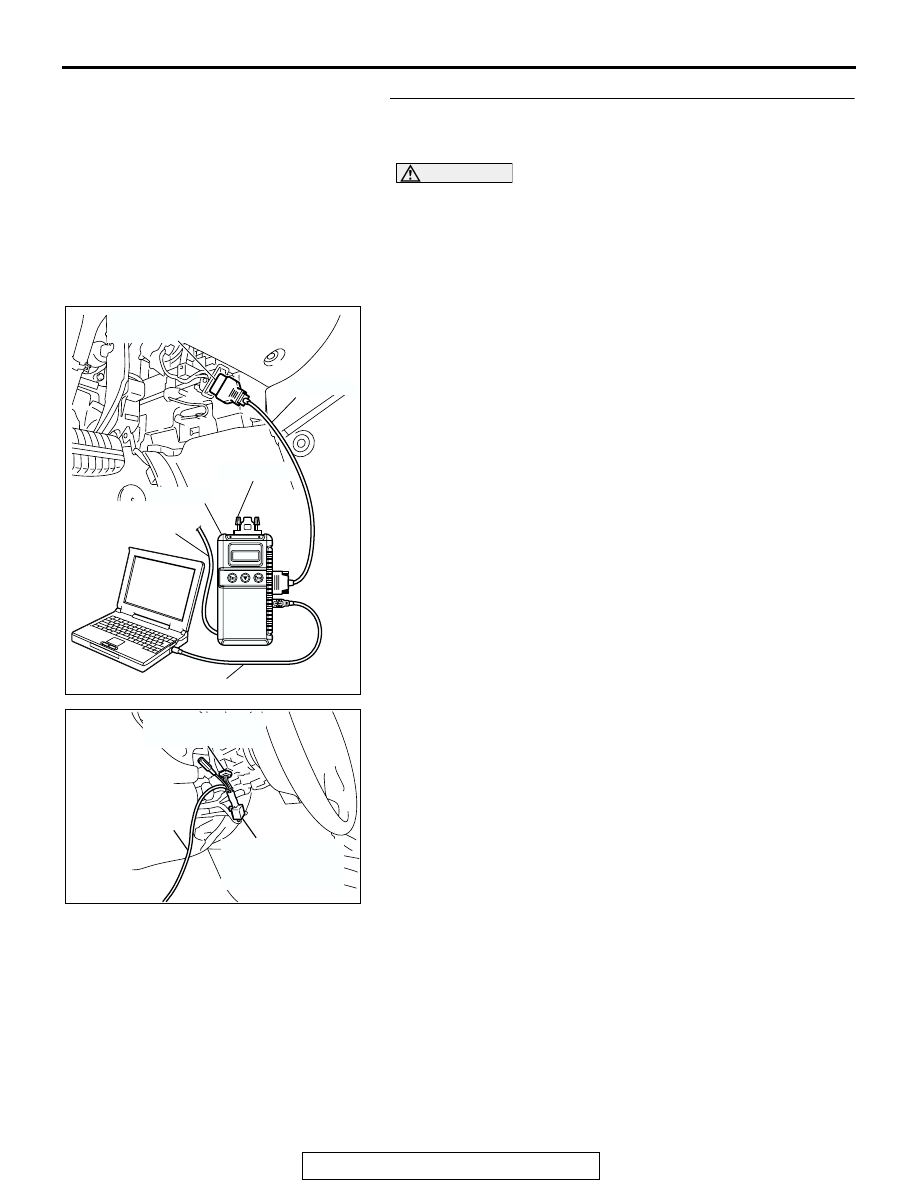

STEP 1. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.

Check the column-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate the scan tool according to the procedure below to

display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool (MUT-III) should show "OK" on the "ECU COMM

Check" menu for the "COLUMN ECU" menu.

Q: Is "OK" displayed for the "COLUMN ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-2 "Communication

with the column switch (column-ECU) is not possible

P.54B-72

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-508

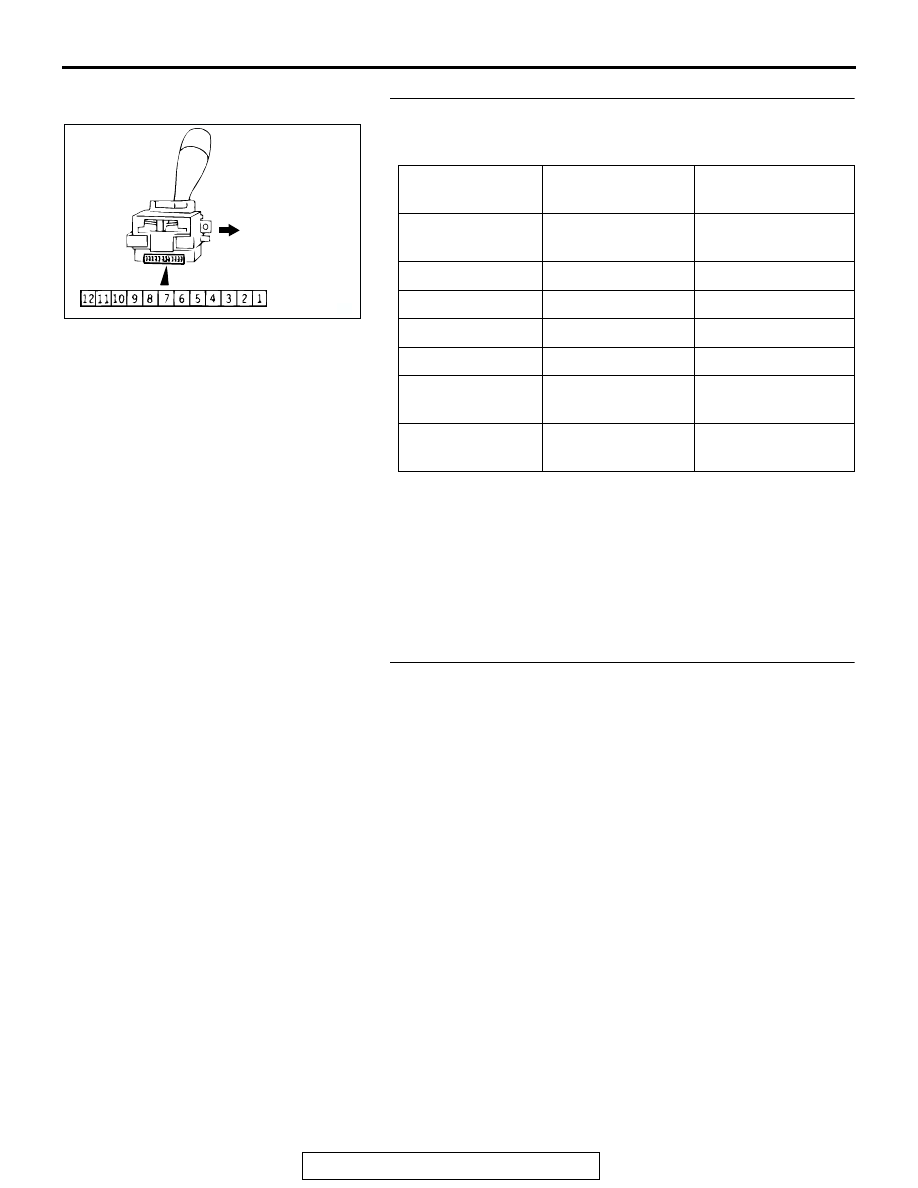

STEP 2. Check the turn-signal light and lighting switch.

Remove the turn-signal light and the lighting switch. Then
check continuity between the switch terminals.

Q: Are the turn-signal light and lighting switch in good

condition?
YES : Go to Step 3.
NO :  Replace the turn-signal light and the lighting switch.

The input signal from the column switch (turn-signal
light and lighting switch) should be able to be checked
and the functions described in the "CIRCUIT
OPERATION" should work normally.

STEP 3. Replace the column switch.
(1) Replace the column switch.
(2) The input signal from the column switch (turn-signal light

and lighting switch) should be able to be checked and the
functions described in the "CIRCUIT OPERATION" should
work normally.

Q: Is the input signal from the column switch (turn-signal

light and lighting switch) input normally?
YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. The input signal from the

column switch (turn-signal light and lighting switch)
should be able to be checked and the functions
described in the "CIRCUIT OPERATION" should work
normally.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

1

− 2, 2 − 3, 2 − 11,

2

− 12, 5 − 9, 7 − 9

Open circuit

Taillight switch

5

− 9

Less than 2 ohms

Headlight switch

5

− 9, 7 − 9

Less than 2 ohms

Passing switch

2

− 12

Less than 2 ohms

Dimmer switch

2

− 11, 2 − 12

Less than 2 ohms

Turn-signal light
switch (LH)

1

− 2

Less than 2 ohms

Turn-signal light
switch (RH)

2

− 3

Less than 2 ohms

AC003177

UPPER SIDE

AB

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-509

INSPECTION PROCEDURE M-6: Column switch: ETACS-ECU does not receive any signal from the
windshield mist wiper switch, the windshield intermittent wiper switch, the windshield low-speed
wiper switch, the windshield high-speed wiper switch or the windshield washer switch.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

CIRCUIT OPERATION
The ETACS-ECU operates the windshield wiper and
washer according to signal from the windshield wiper
and washer switch.

.

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the windshield wiper and
washer do not work normally.

.

TROUBLESHOOTING HINTS

• The column switch may be defective (windshield

wiper and washer switch)

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

AC004263

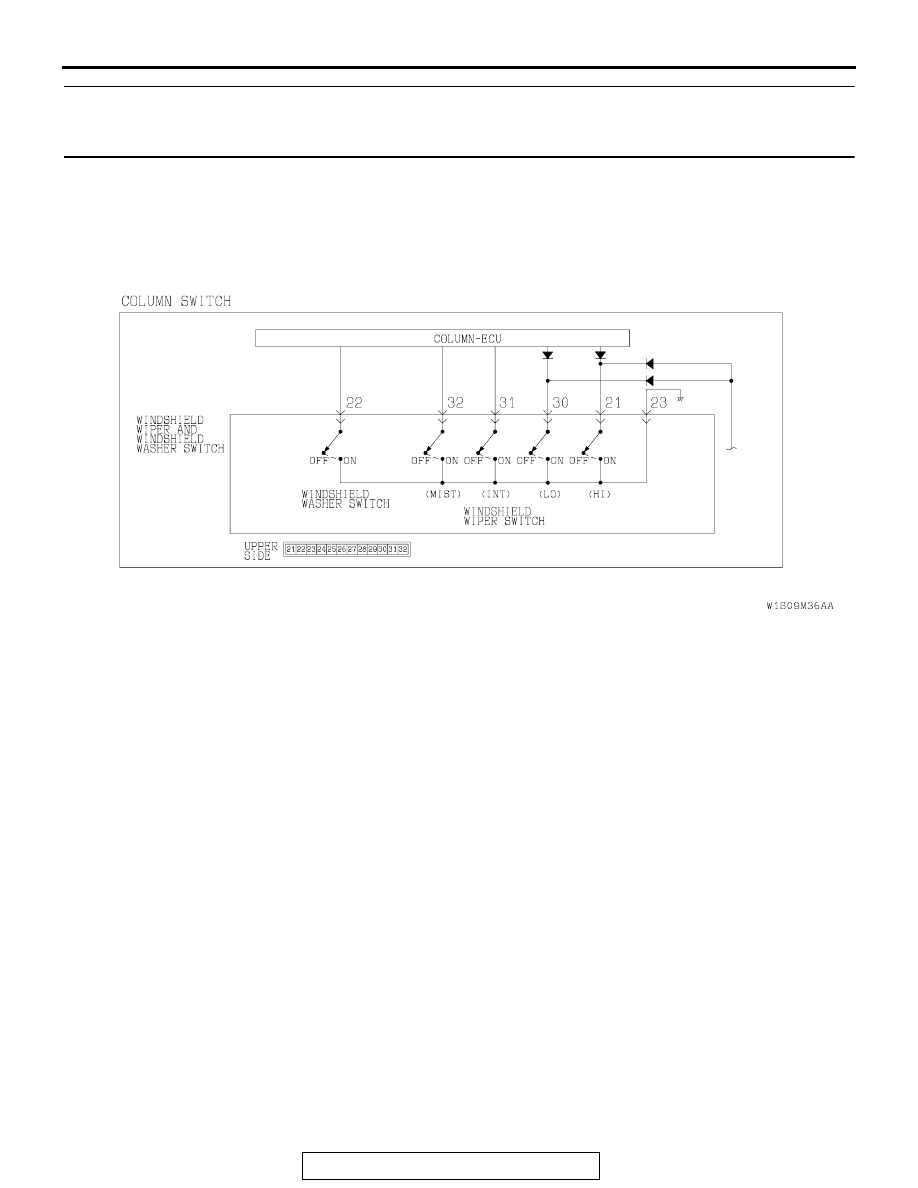

Windshield Wiper and Windshield Washer Switch Input Circuit

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-510

STEP 1. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.

Check the column-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate the scan tool according to the procedure below to

display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool (MUT-III) should show "OK" on the "ECU COMM

Check" menu for the "COLUMN ECU" menu.

Q: Is "OK" displayed for the "COLUMN ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-2 "Communication

with the column switch (column-ECU) is not possible

P.54B-72

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812
