INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-495

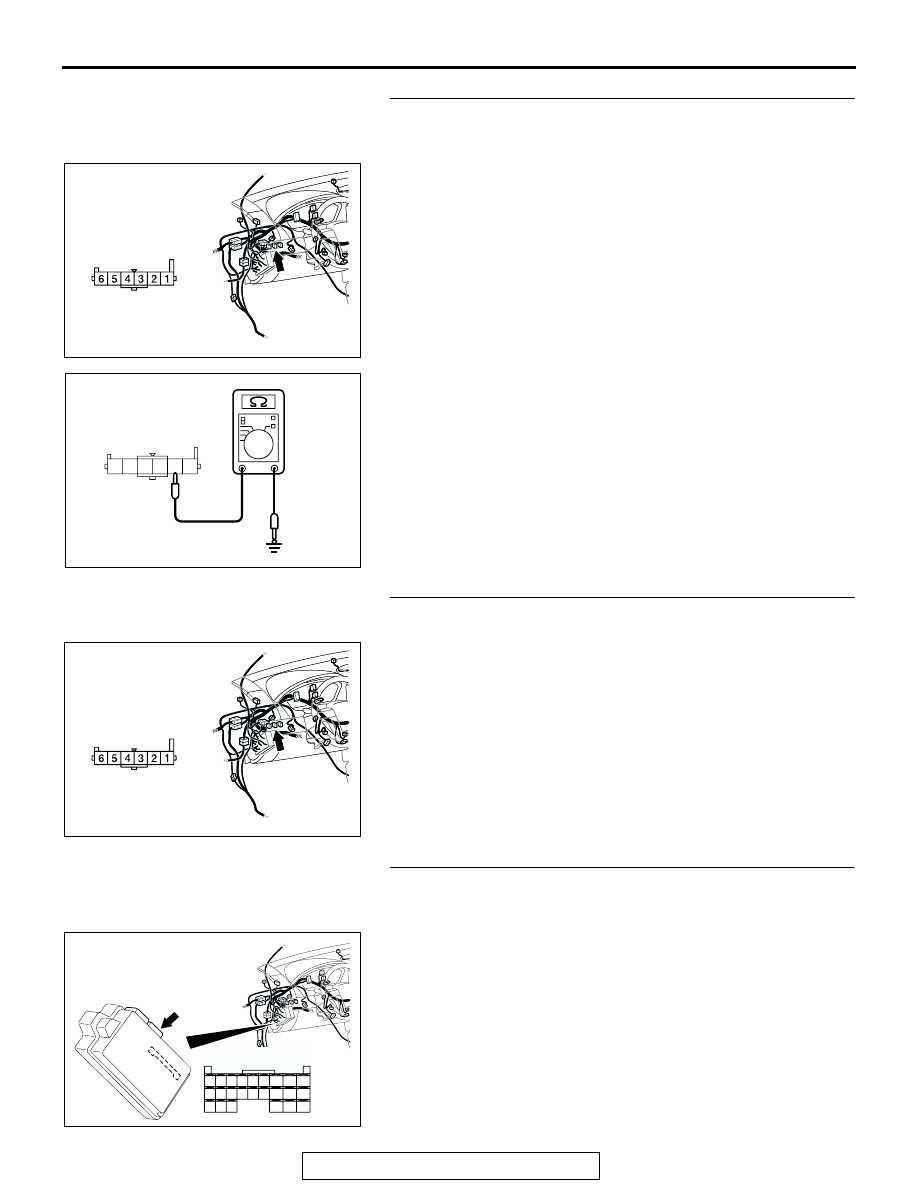

STEP 3. Check the ground circuit to the fog light switch.
Measure the resistance at fog light switch connector
C-128.

(1) Disconnect fog light switch connector C-128 and measure

the resistance available at the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between fog light switch
connector C-128 (terminal 2) and ground.

Q: Is the wiring harness between fog light switch

connector C-128 (terminal 2) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the fog light
switch operates normally, a correct signal is sent from
the fog light switch.

STEP 5. Check ETACS-ECU connector C-218 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is ETACS-ECU connector C-218 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the fog light switch operates normally, a

correct signal is sent from the fog light switch.

AC305231

AC305231

HARNESS SIDE

CONNECTOR: C-128

BS

1

2

4

5

3

6

AC210169

CONNECTOR C-128
(HARNESS SIDE)

AC

AC305231

AC305231

HARNESS SIDE

CONNECTOR: C-128

BS

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-496

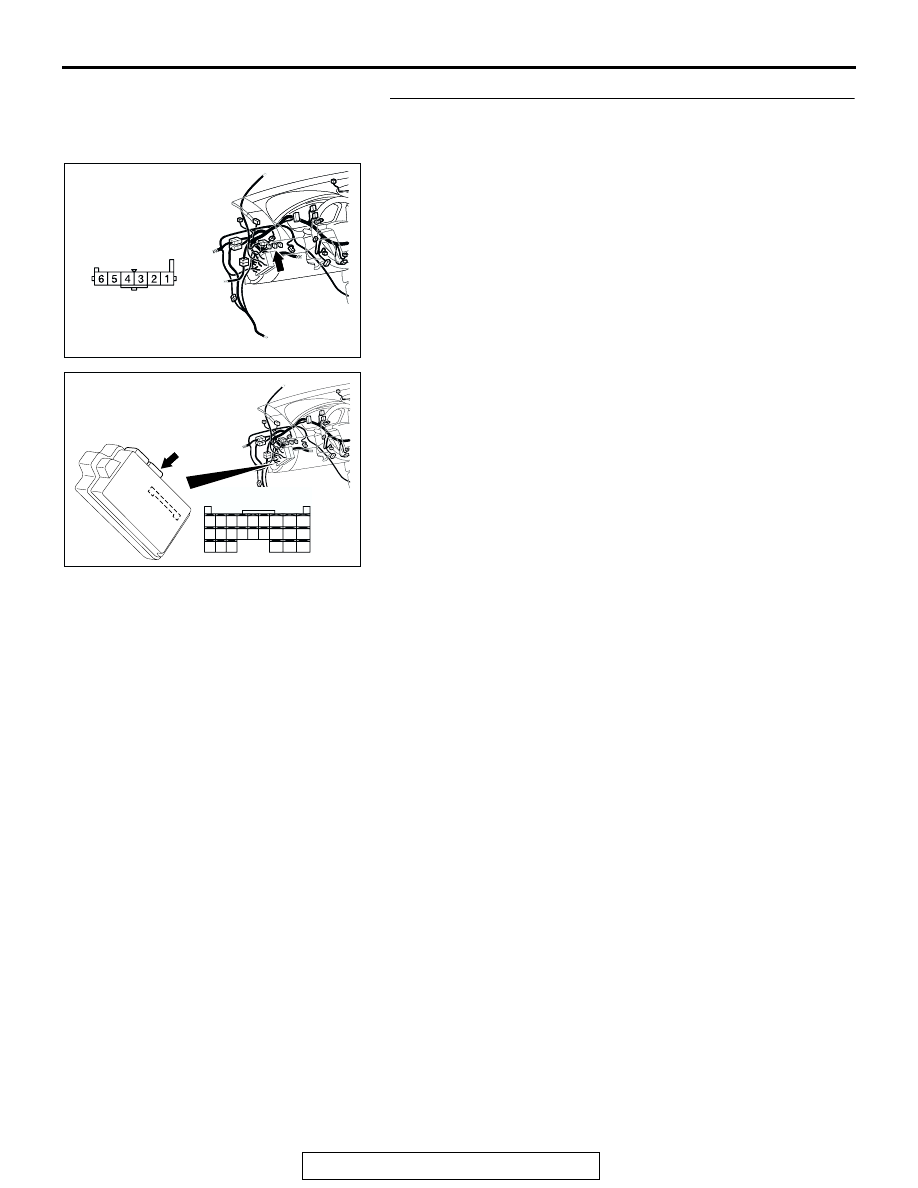

STEP 6. Check the wiring harness between fog light switch
connector C-128 (terminal 1) and ETACS-ECU connector
C-218 (terminal 54).

Q: Is the wiring harness between fog light switch

connector C-128 (terminal 1) and ETACS-ECU connector
C-218 (terminal 54) in good condition?
YES :
Replace the ETACS-ECU. If the fog light switch

operates normally, a correct signal is sent from the
fog light switch.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the fog light
switch operates normally, a correct signal is sent from
the fog light switch.

AC305231

AC305231

HARNESS SIDE

CONNECTOR: C-128

BS

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-497

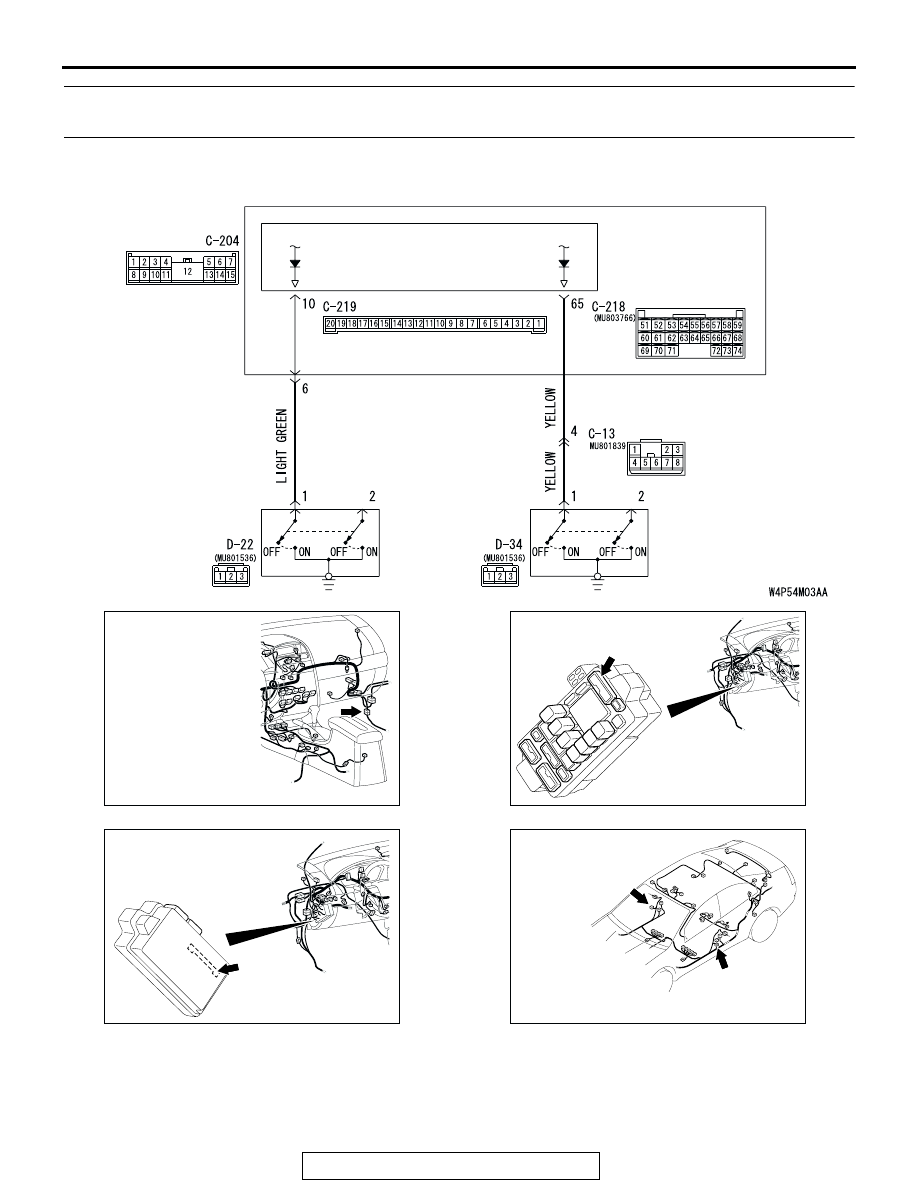

INSPECTION PROCEDURE M-4: ETACS-ECU does not receive any signal from the front door
switches.

.

JUNCTION
BLOCK

ETACS-
ECU

JUNCTION BLOCK SIDE

FRONT DOOR
SWITCH (LH)

FRONT DOOR
SWITCH (RH)

Front Door Switches Input Circuit

AC305233

CONNECTOR: C-13

AR

AC305415AL

CONNECTOR: C-204

JUNCTION BLOCK

(FRONT VIEW)

AC305413AB

CONNECTOR: C-219

JUNCTION BLOCK

(REAR VIEW)

AC305268

CONNECTORS: D-22, D-34

AM

D-22

D-34

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-498

CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the front door
switches:

• Ignition key reminder tone alarm function <front

door switch (LH)>

• Light reminder tone alarm function <front door

switch (LH)>

• Door ajar warning buzzer

• Forgotten key reminder

• Power window timer function

• Sunroof timer function <front door switch (LH)>

• Keyless entry system

• Timed locking mechanism

• Headlight automatic shutdown function <front

door switch (LH)>

• Dome light

• Interior light automatic-shutdown function

• Ignition key hole illumination light <front door

switch (LH)>

• Door-ajar indicator light

.

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the functions or systems
described in "CIRCUIT OPERATION" do not work
normally. If the signal is not normal, the front door
switches or the ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The front door switches may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A
