Mitsubishi Galant (2004+). Manual - part 287





SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-339

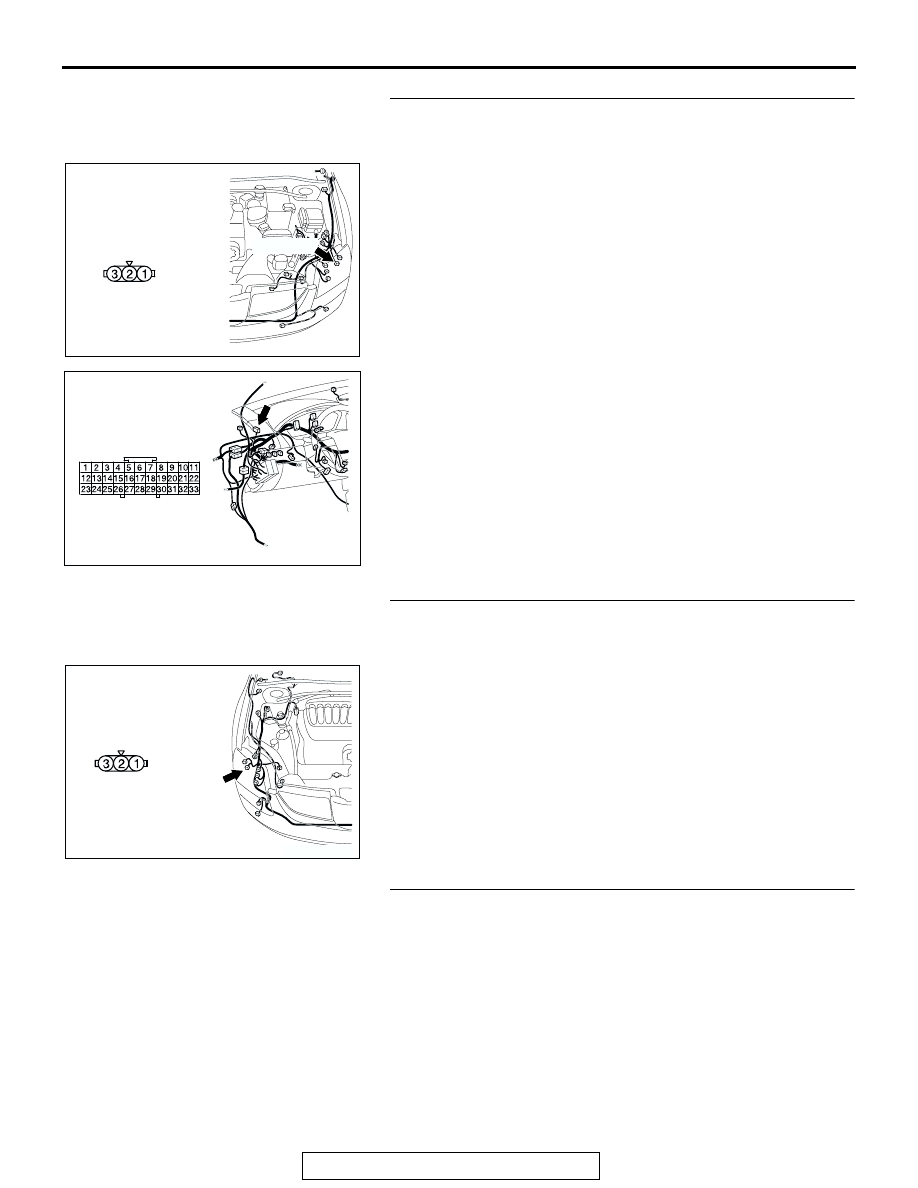

STEP 24. Check the wiring harness between front
combination light (LH) connector A-18 (terminal 3) and
joint connector C-01 (terminal 15).

Q: Is the wiring harness between front combination light

(LH) connector A-18 (terminal 3) and joint connector
C-01 (terminal 15) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking light (LH) illuminates normally.

STEP 25. Check front combination light (RH) connector
A-34 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Is front combination light (RH) connector A-34 in good

condition?
YES :
Go to Step 26.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front parking light (RH)

illuminates normally.

STEP 26. Check the front parking light bulb (RH).
(1) Remove the front parking light bulb (RH).
(2) Verify that the front parking light bulb (RH) is not damaged

or burned out.

Q: Is the front parking light bulb (RH) in good condition?

YES : Go to Step 27.
NO :  Replace the front side marker light bulb (RH). Verify

that the front parking light (RH) illuminates normally.

AC305210

A-18 (GR)

CONNECTOR: A-18

AL

HARNESS SIDE

AC305231

CONNECTOR: C-01

BO

AC305206

HARNESS SIDE

A-34 (GR)

CONNECTOR: A-34

AW

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-340

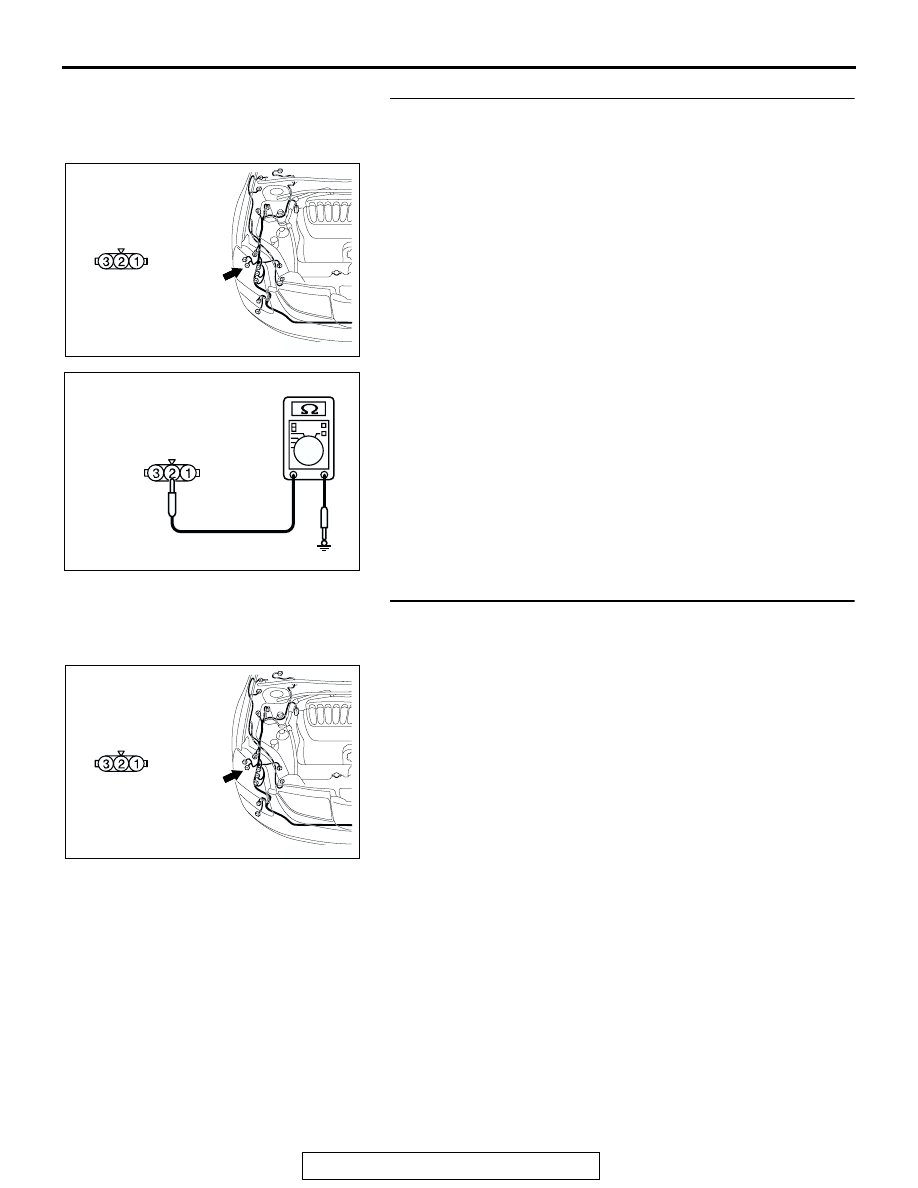

STEP 27. Check the ground circuit to the front parking
light (RH). Measure the resistance at front combination
light (RH) connector A-34.

(1) Disconnect front combination light (RH) connector A-34,

and measure the resistance available at the harness side of
the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 29.
NO :  Go to Step 28.

STEP 28. Check the wiring harness between front
combination light (RH) connector A-34 (terminal 2) and
ground.

Q: Is the wiring harness between front combination light

(RH) connector A-34 (terminal 2) and ground in good
condition?
YES :
Replace the front combination light socket (RH).

Verify that the front parking light (RH) illuminates
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking light (RH) illuminates normally.

AC305206

HARNESS SIDE

A-34 (GR)

CONNECTOR: A-34

AW

AC209364GU

CONNECTOR A-34
(HARNESS SIDE)

AC305206

HARNESS SIDE

A-34 (GR)

CONNECTOR: A-34

AW

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-341

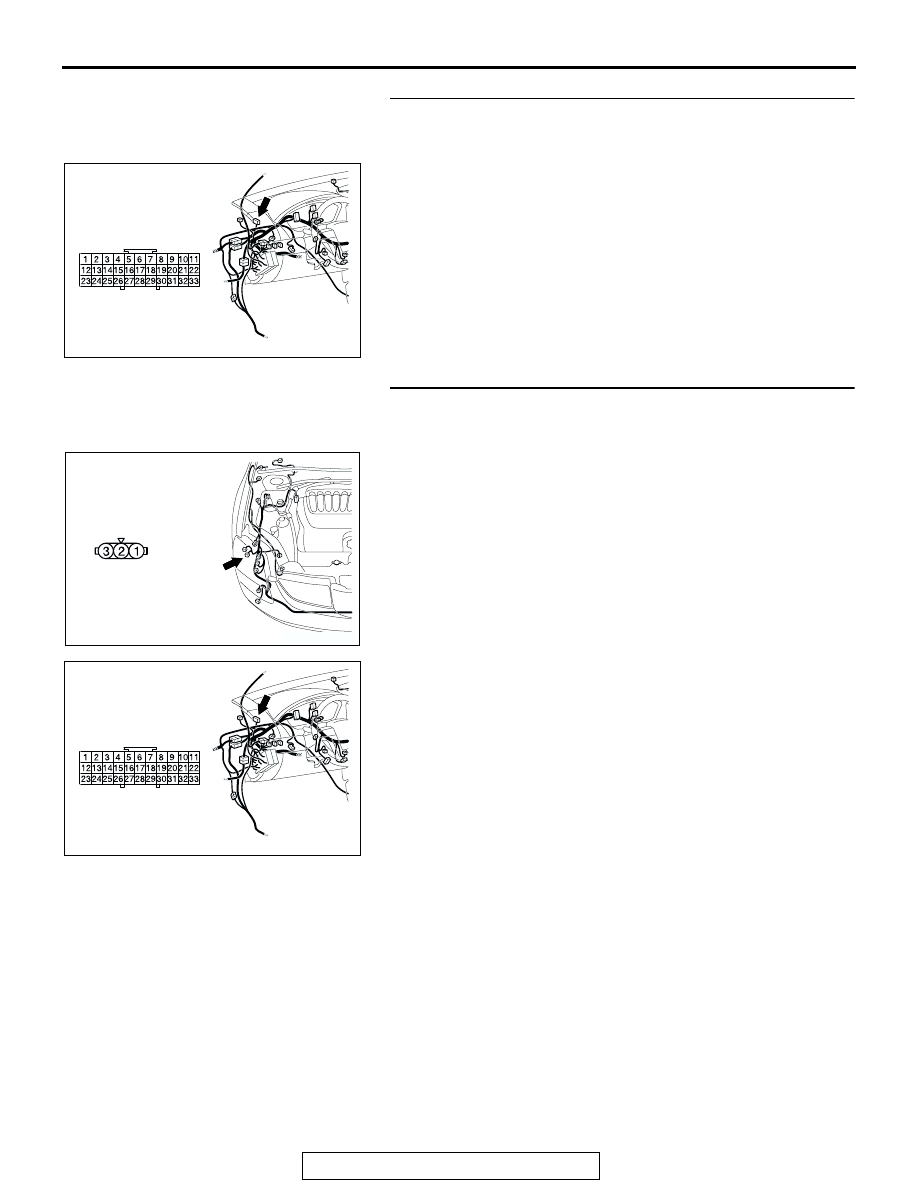

STEP 29. Check joint connector C-01 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Is joint connector C-01 in good condition?

YES : Go to Step 30.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front parking light (RH)

illuminates normally.

STEP 30. Check the wiring harness between front
combination light (RH) connector A-34 (terminal 3) and
joint connector C-01 (terminal 19).

Q: Is the wiring harness between front combination light

(RH) connector A-34 (terminal 3) and joint connector
C-01 (terminal 19) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking light (RH) illuminates normally.

AC305231

CONNECTOR: C-01

BO

AC305206

HARNESS SIDE

A-34 (GR)

CONNECTOR: A-34

AW

AC305231

CONNECTOR: C-01

BO

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-342

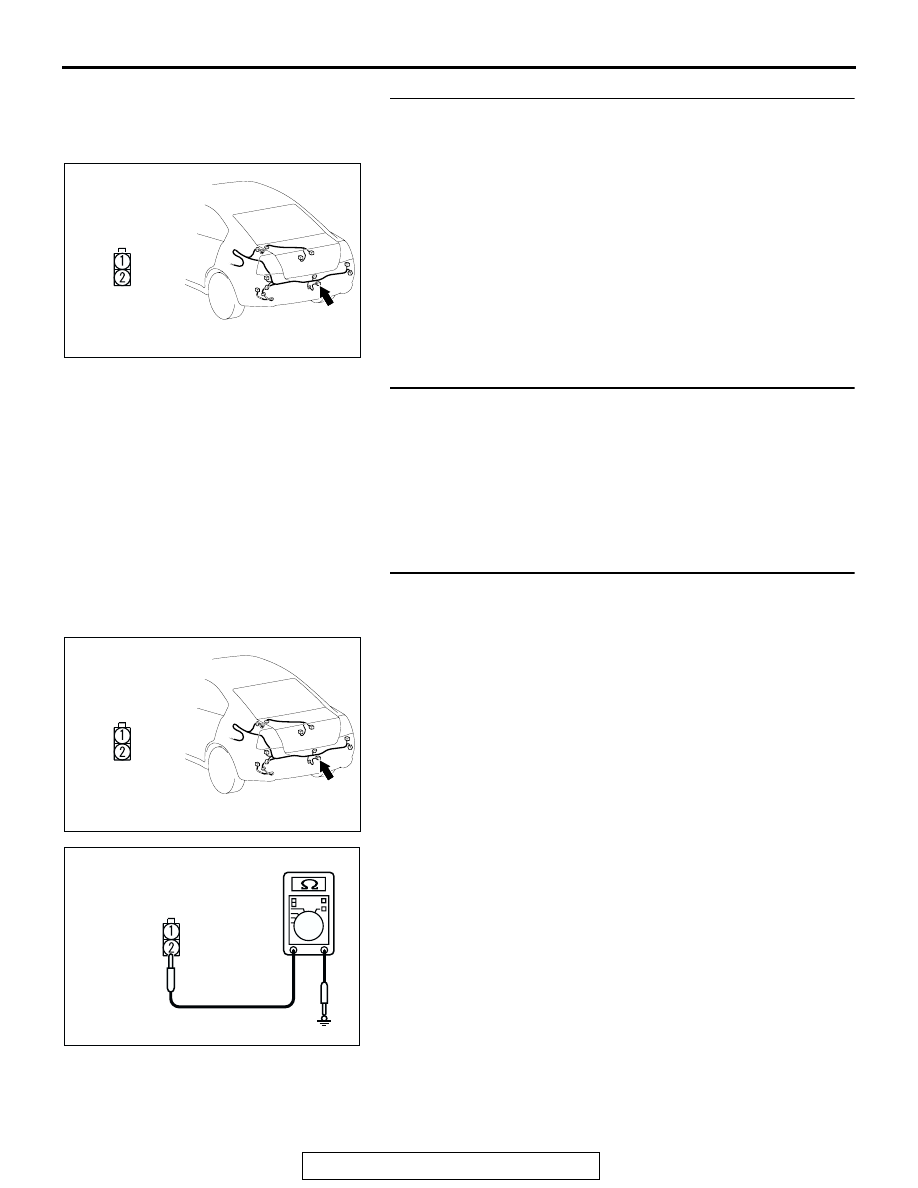

STEP 31. Check license plate light connector F-06 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is license plate light connector F-06 in good condition?

YES : Go to Step 32.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the license plate light illuminate

normally.

STEP 32. Check the license plate light bulb.
(1) Remove the license plate light bulb.
(2) Verify that the license plate light bulb is not damaged or

burned out.

Q: Is the license plate light bulb in good condition?

YES : Go to Step 33.
NO :  Replace the license plate light bulb. Verify that the

license plate light illuminate normally.

STEP 33. Check the ground circuit to the license plate
light. Measure the resistance at license plate light
connector F-06.

(1) Disconnect license plate light connector F-06 and measure

the resistance available at the wiring harness side of the

connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 35.
NO :  Go to Step 34.

AC305260

HARNESS SIDE

CONNECTOR: F-06

AJ

AC305260

HARNESS SIDE

CONNECTOR: F-06

AJ

AC209364HE

CONNECTOR F-06
(HARNESS SIDE)
