SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-335

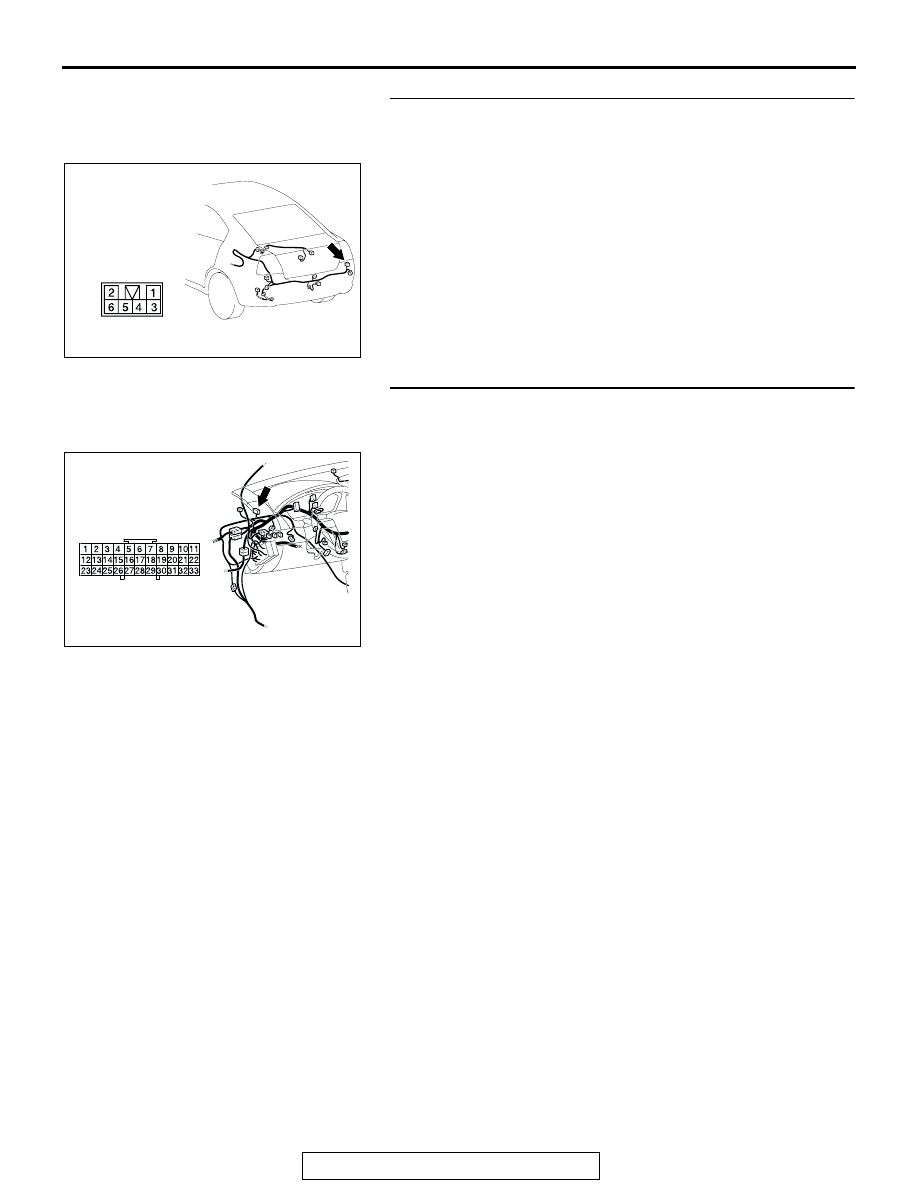

STEP 16. Check the wiring harness between rear
combination light (RH) connector F-03 (terminal 2) and
ground.

Q: Is the wiring harness between rear combination light

(RH) connector F-03 (terminal 2) and ground in good
condition?
YES : Replace the rear combination light socket (RH). Verify

that the taillight (RH) illuminates normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the taillight (RH) illuminates normally.

STEP 17. Check joint connector C-01 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Is joint connector C-01 in good condition?

YES : Go to Step 18.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the taillight (RH) illuminates

normally.

AC305260

AH

CONNECTOR: F-03

HARNESS SIDE

AC305231

CONNECTOR: C-01

BO

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-336

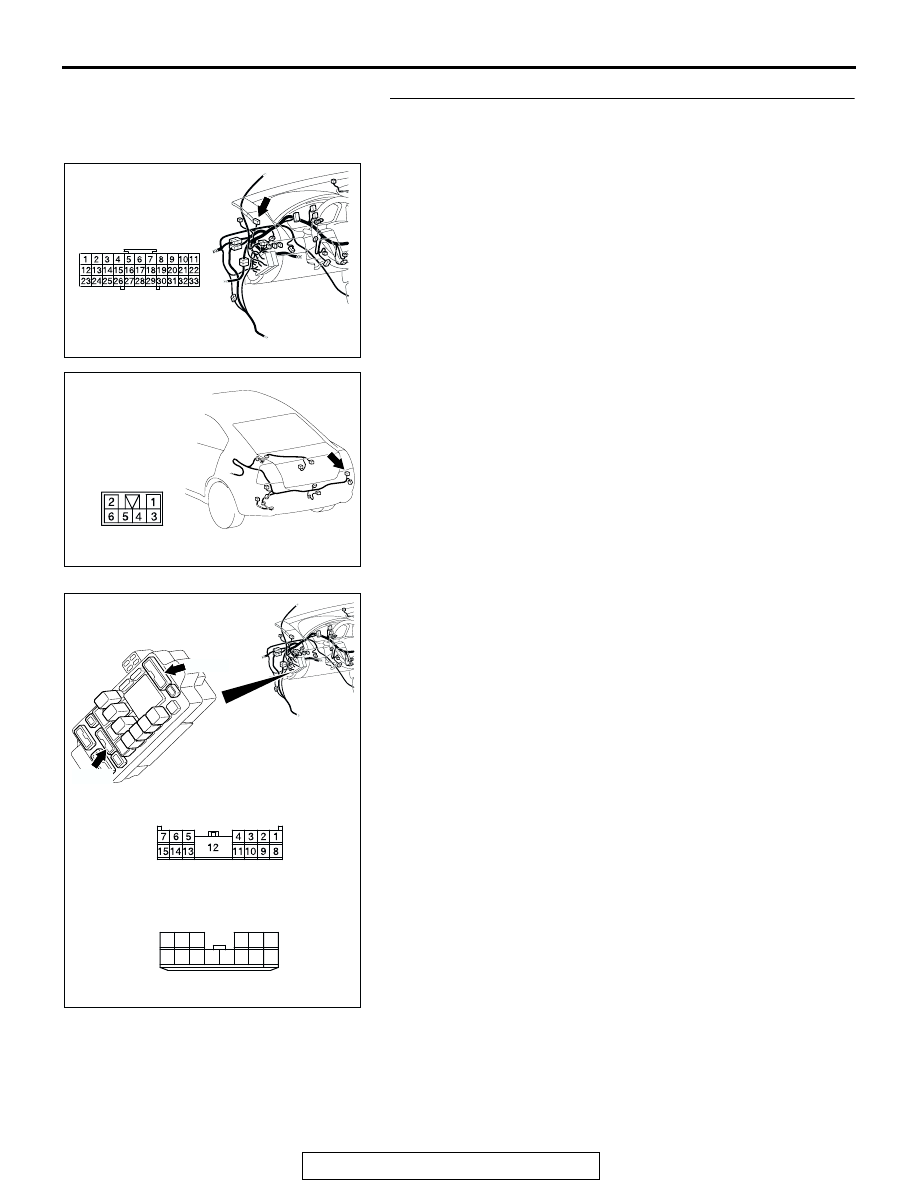

STEP 18. Check the wiring harness between rear
combination light (RH) connector F-03 (terminal 4) and
joint connector C-01 (terminal 22).

NOTE: Also check junction block connectors C-214 and C-204
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If junction block connector C-214 or
C-204 is damaged, repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between rear combination light

(RH) connector F-03 (terminal 4) and joint connector
C-01 (terminal 22) in good condition?
YES : Replace the rear combination light socket (RH). Verify

that the taillight (RH) illuminates normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the taillight (RH) illuminates normally.

AC305231

CONNECTOR: C-01

BO

AC305260

AH

CONNECTOR: F-03

HARNESS SIDE

AC305416

CONNECTORS: C-204, C-214

JUNCTION BLOCK
(FRONT VIEW)

C-204

C-214

HARNESS SIDE

C-204

C-214

HARNESS SIDE

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AG

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-337

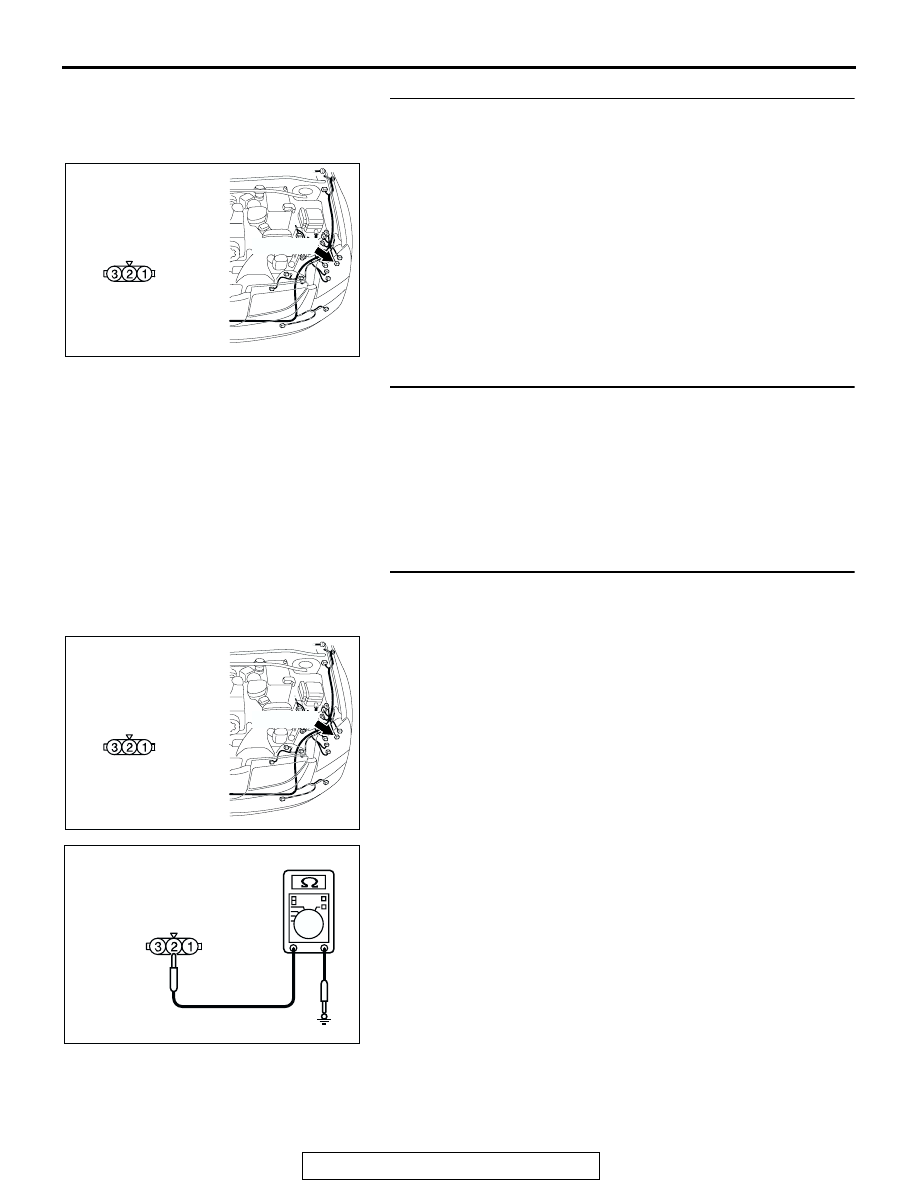

STEP 19. Check front combination light (LH) connector
A-18 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Is front combination light (LH) connector A-18 in good

condition?
YES : Go to Step 20.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front parking light (LH)

illuminates normally.

STEP 20. Check the front parking light bulb (LH).
(1) Remove the front parking light bulb (LH).
(2) Verify that the front parking light bulb (LH) is not damaged

or burned out.

Q: Is the front parking light bulb (LH) in good condition?

YES : Go to Step 21.
NO :  Replace the front parking light bulb (LH). Verify that

the front parking light (LH) illuminates normally.

STEP 21. Check the ground circuit to the front parking
light (LH). Measure the resistance at front combination
light (LH) connector A-18.

(1) Disconnect front combination light (LH) connector A-18 and

measure the resistance available at the wiring harness side

of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 23.
NO :  Go to Step 22.

AC305210

A-18 (GR)

CONNECTOR: A-18

AL

HARNESS SIDE

AC305210

A-18 (GR)

CONNECTOR: A-18

AL

HARNESS SIDE

AC209364GO

CONNECTOR A-18
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-338

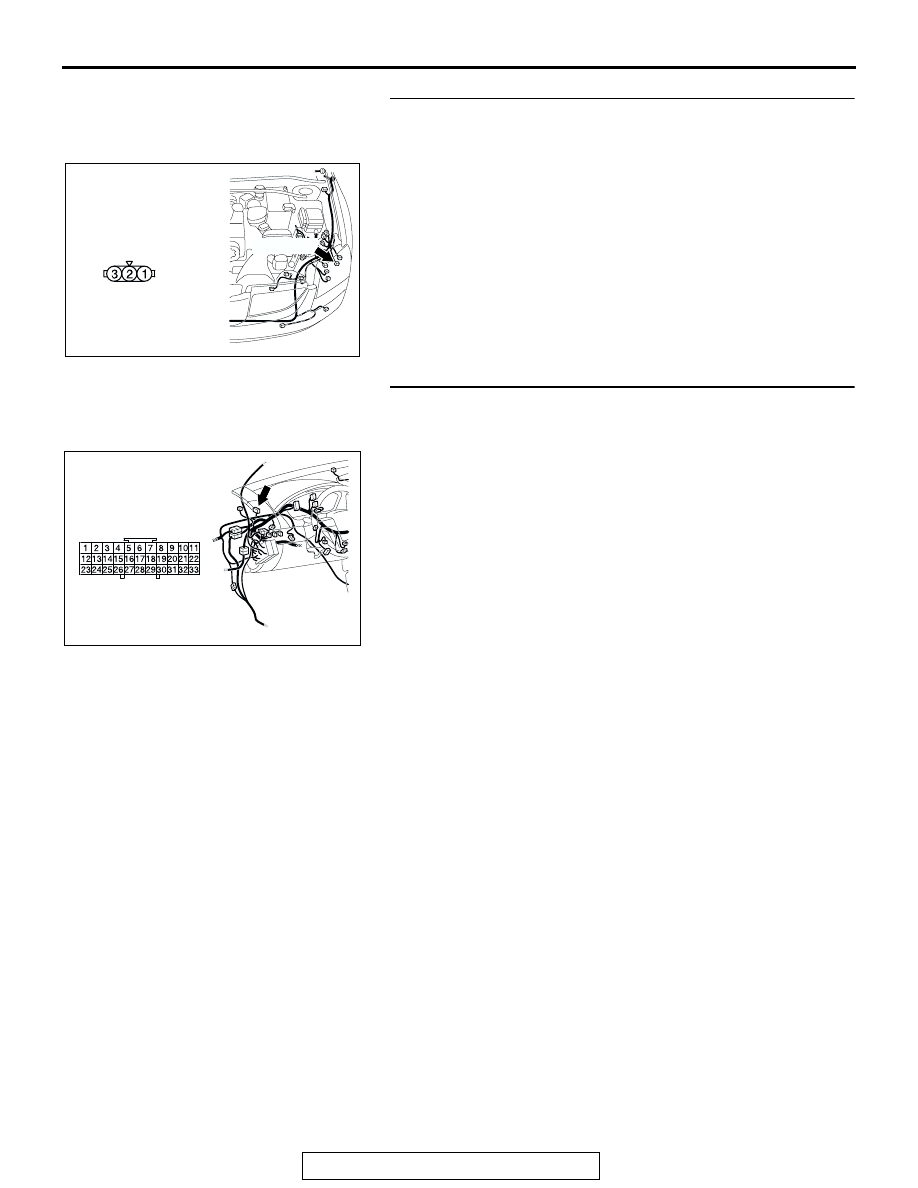

STEP 22. Check the wiring harness between front
combination light (LH) connector A-18 (terminal 2) and
ground.

Q: Is the wiring harness between front combination light

(LH) connector A-18 (terminal 2) and ground in good
condition?
YES : Replace the front combination light socket (LH). Verify

that the front parking light (LH) illuminates normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking light (LH) illuminates normally.

STEP 23. Check joint connector C-01 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Is joint connector C-01 in good condition?

YES : Go to Step 24.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front parking light (LH)

illuminates normally.

AC305210

A-18 (GR)

CONNECTOR: A-18

AL

HARNESS SIDE

AC305231

CONNECTOR: C-01

BO
