SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-211

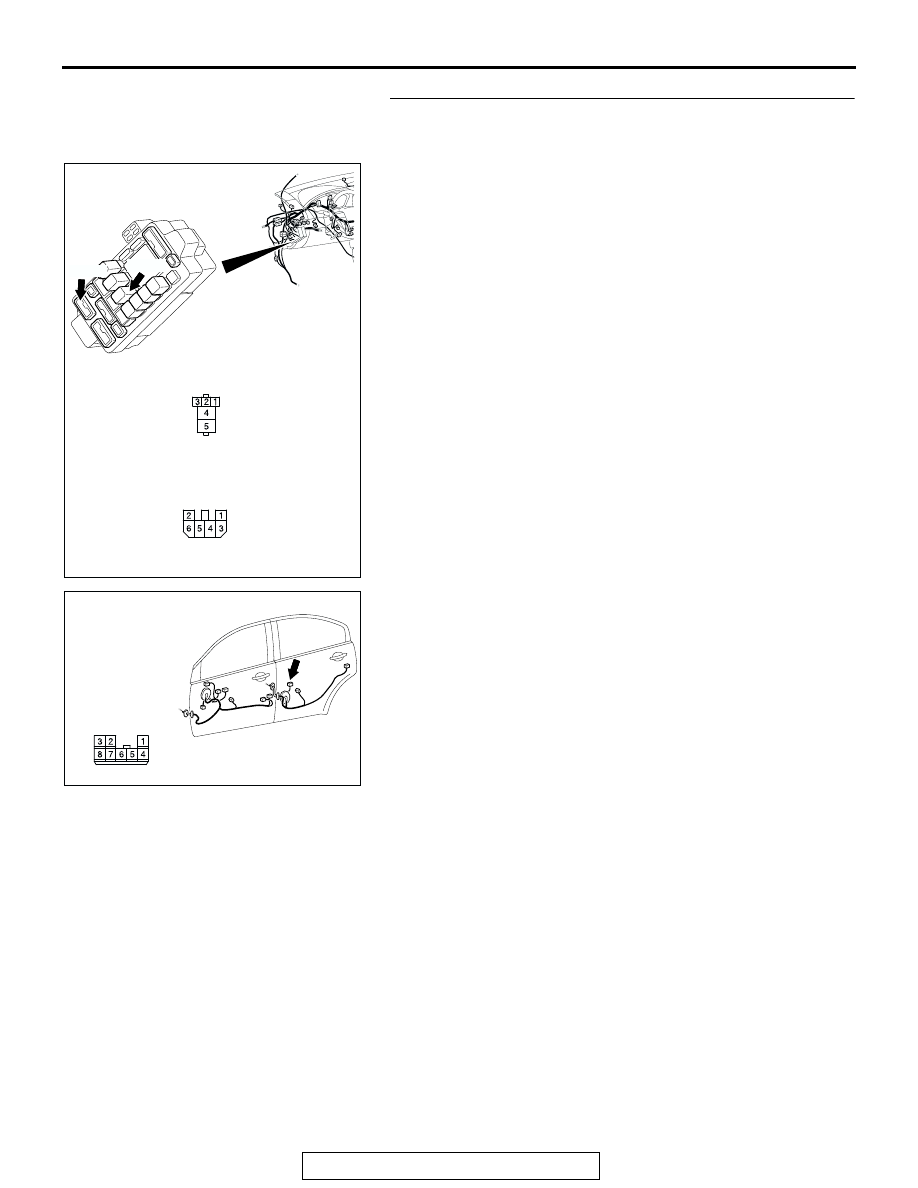

STEP 19. Check the wiring harness between power
window relay connector C-203 (terminal 4) and rear power
window sub switch (LH) connector E-17 (terminal 6).

AC305416

JUNCTION BLOCK SIDE

C-203

HARNESS SIDE

C-215

CONNECTORS: C-203,C-215

AE

C-203

C-215

JUNCTION BLOCK

(FRONT VIEW)

AC305262

HARNESS SIDE

CONNECTOR:E-17

AG

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-212

NOTE: Also check junction block connector C-215, intermedi-
ate connectors C-28 and D-19. If junction block connector
C-215, intermediate connector C-28 or D-19 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector C-203 (terminal 4) and rear power window
sub switch (LH) connector E-17 (terminal 6) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

STEP 20. Check the ground circuit to the rear power
window sub switch (LH). Measure the resistance at rear
power window sub switch (LH) connector E-17.

(1) Disconnect rear power window sub switch (LH) connector

E-17 and measure the resistance available at the wiring

harness side of the connector.

(2) Measure the resistance value between terminal 5 and

ground, and also between terminal 8 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 22.
NO :  Go to Step 21.

AC305231AE

CONNECTOR:C-28

AC305258

AB

CONNECTOR:D-19

AC305262

HARNESS SIDE

CONNECTOR:E-17

AG

AC209364FX

(HARNESS SIDE)

CONNECTOR: E-17

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-213

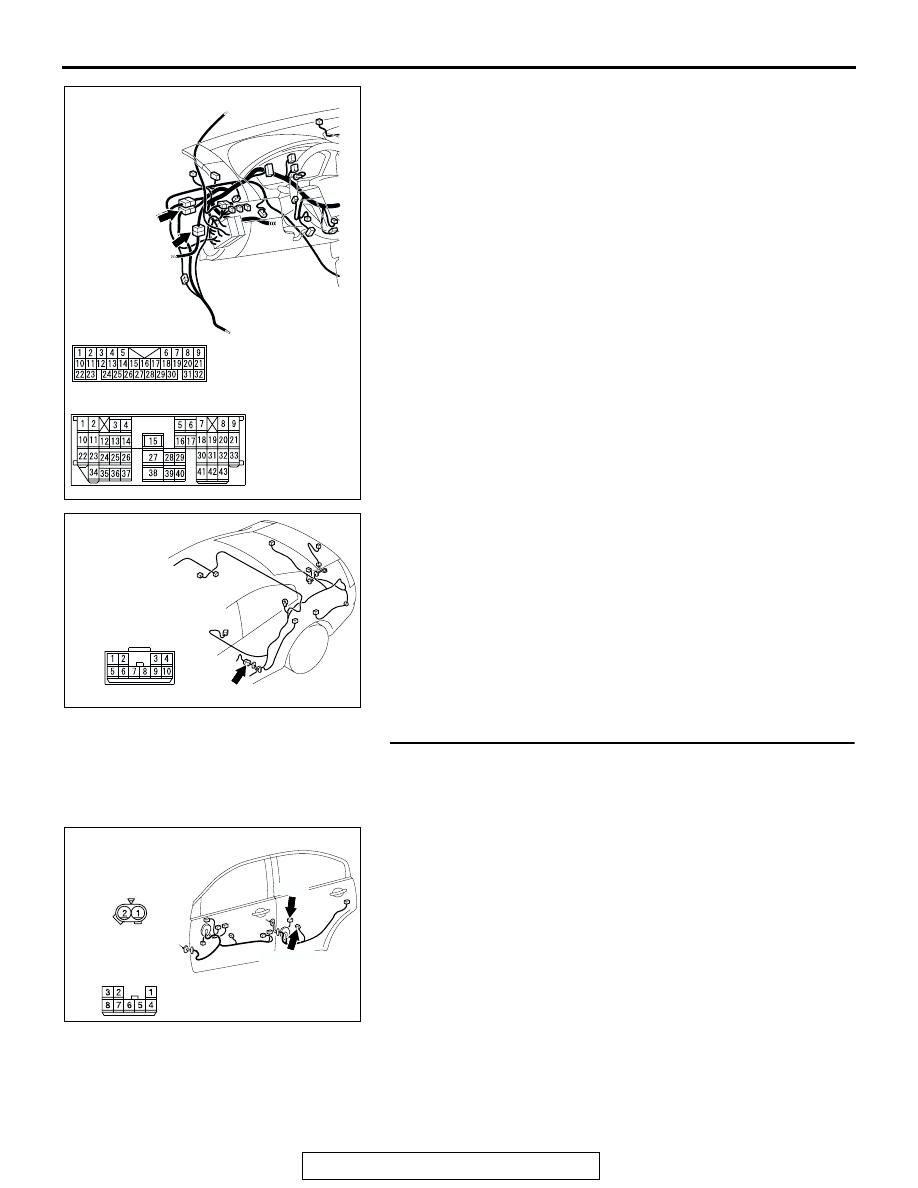

STEP 21. Check the wiring harness between power
window main switch connector E-12 (terminals 1 and 2)
and rear power window sub switch (LH) connector E-17
(terminals 8 and 5).

AC305331

CONNECTOR:E-12,E-17

E-12

E-17

3
9

4

12

14

6

13

5

1110

8

2

7

1

E-12

E-17

HARNESS SIDE

AC

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-214

NOTE: Also check intermediate connectors C-26, C-28 and
D-19. If intermediate connector C-26, C-28 or D-19 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-12 (terminals 1 and 2) and rear
power window sub switch (LH) connector E-17
(terminals 8 and 5) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

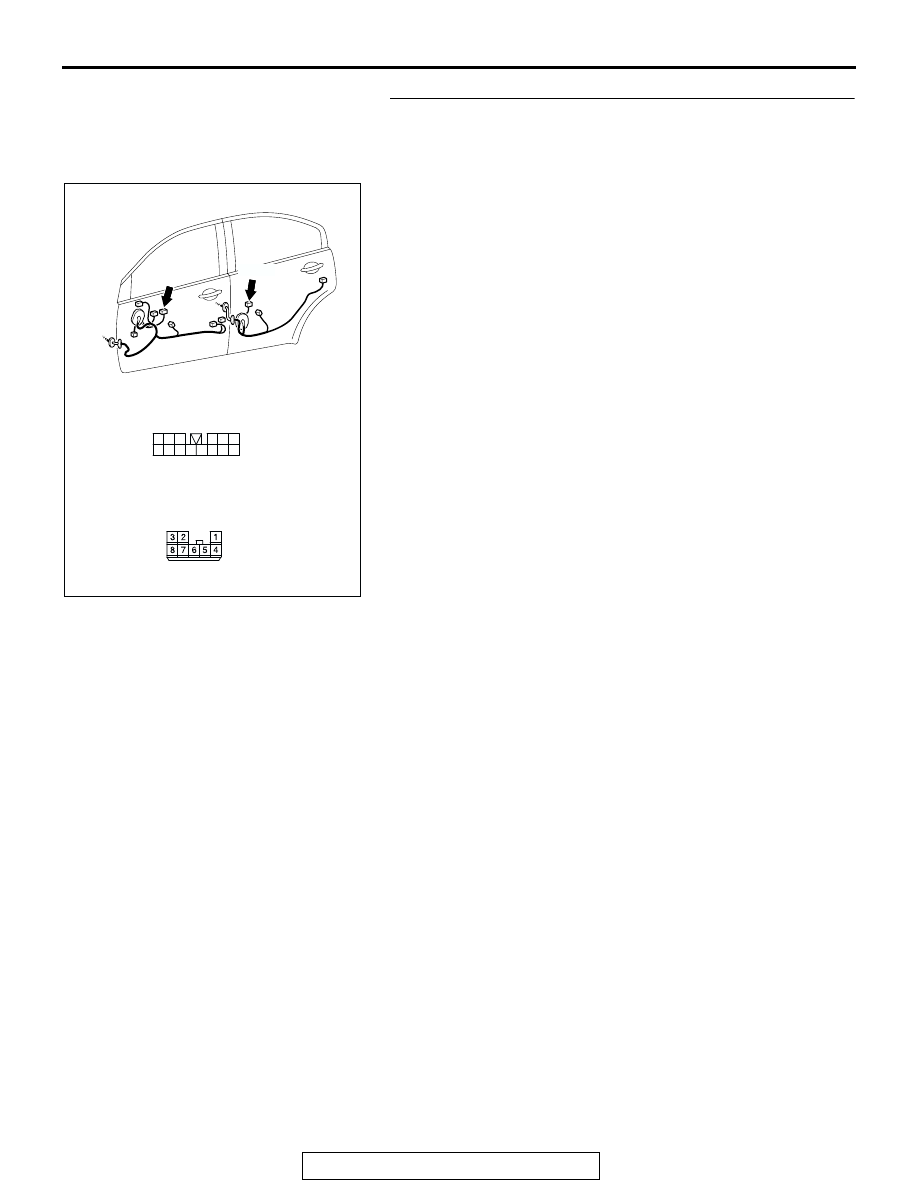

STEP 22. Check the wiring harness between rear power
window sub switch (LH) connector E-17 (terminals 4 and 7)
and rear power window regulator motor (LH) connector
E-16 (terminals 1 and 2).

Q: Is the wiring harness between rear power window sub

switch (LH) connector E-17 (terminals 4 and 7) and rear
power window regulator motor (LH) connector E-16
(terminals 1 and 2) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

AC305232

C-26

C-28

CONNECTORS: C-26,C-28

AB

C-26

C-28

AC305258

AC

CONNECTOR:D-19

AC305262

CONNECTORS:E-16,E-17

AF

E-16

E-17

HARNESS SIDE

E-17

E-16(GR)

HARNESS SIDE
