Mitsubishi Galant (2004+). Manual - part 215





DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-51

STEP 3. Using scan tool MB991958 check for any
diagnostic trouble code.

Check if a DTC, which relates to CAN communication-linked
systems below, is set.

• Engine

Meter-related time-out DTC

• Multi center display (middle-grade type) <Vehicles with

multi center display (middle-grade type)>
Meter-related time-out DTC

(1) Turn the ignition switch to the "ON" position.
(2) Check for a DTC related to the relevant system.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the combination meter. On completion,

check that the DTC is not reset.

NO :  A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the combination meter and the ETACS-ECU (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points-How to Cope with Intermittent
Malfunction

P.00-6

).

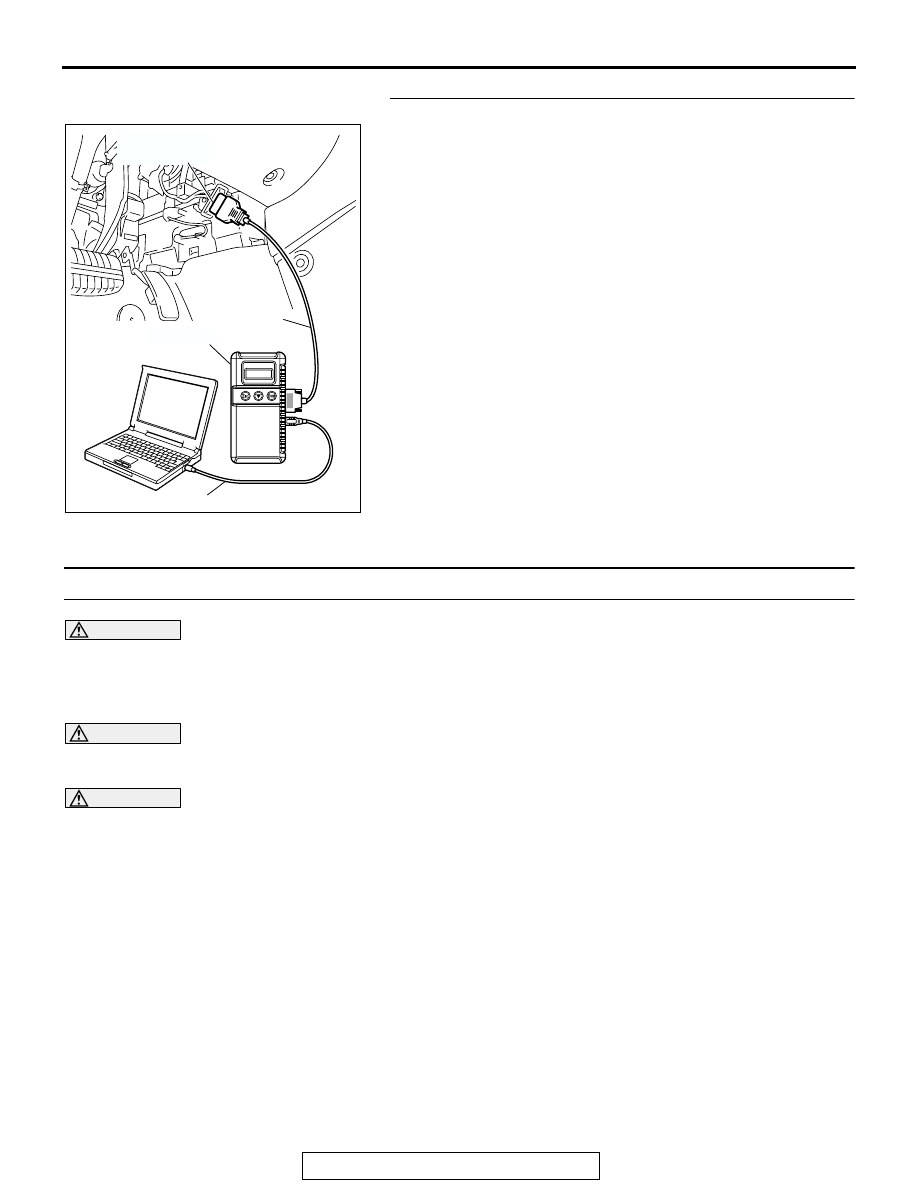

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-52

STEP 5. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU. On completion, check that

the DTC is not reset.

NO :  A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the combination meter and the ETACS-ECU (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points-How to Cope with Intermittent
Malfunction

P.00-6

).

DTC 015: Multi center Display Unit (Middle Grade Type) Time-out.

CAUTION

DTC 015 may also be set on vehicles with the
multi center display (low-grade type). This is
because the display unit does not communicate
through the CAN bus lines, and there is no fault.

CAUTION

If DTC 015 is set in the ETACS-ECU, always diag-
nose the CAN main bus line.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

TROUBLE JUDGMENT
The ETACS-ECU receives multi center dis-
play-related signal from the multi center display (mid-
dle-grade type). If the ECU cannot receive the signal,
DTC 015 will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• Connector(s) or wiring harness in the CAN bus

lines between the multi center display unit (mid-
dle-grade type) and the ETACS-ECU, the power
supply system to the multi center display unit
(middle-grade type), the multi center display unit
(middle-grade type) itself, or the ETACS-ECU
may be defective.

Past trouble

• If DTC 015 is stored as a past trouble, carry out

diagnosis with particular emphasis on wiring and
connector(s) in the CAN bus line between the
multi center display unit (middle-grade type) and
the ETACS-ECU, and the power supply system to
the multi center display unit (middle-grade type.)
For diagnosis procedures, refer to "How to cope
with past trouble" (Refer to GROUP 00, How to
Use Troubleshooting/Inspection Service Points

P.00-6

).

NOTE: You cannot find a past trouble, by the
MUT-III CAN bus diagnostics even if there is a
failure in CAN bus lines. In this case, refer to
GROUP 00, How to Use Troubleshooting/Inspec-
tion Service Points-How to Cope with Intermittent
Malfunctio

P.00-6

 and check the CAN bus lines.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-53

You can narrow down the possible cause of the
trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs
(Refer to GROUP 54C, CAN Bus Line Diagnostic
Flow

P.54C-6

).

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• Malfunction of the multi center display (mid-

dle-grade type)

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

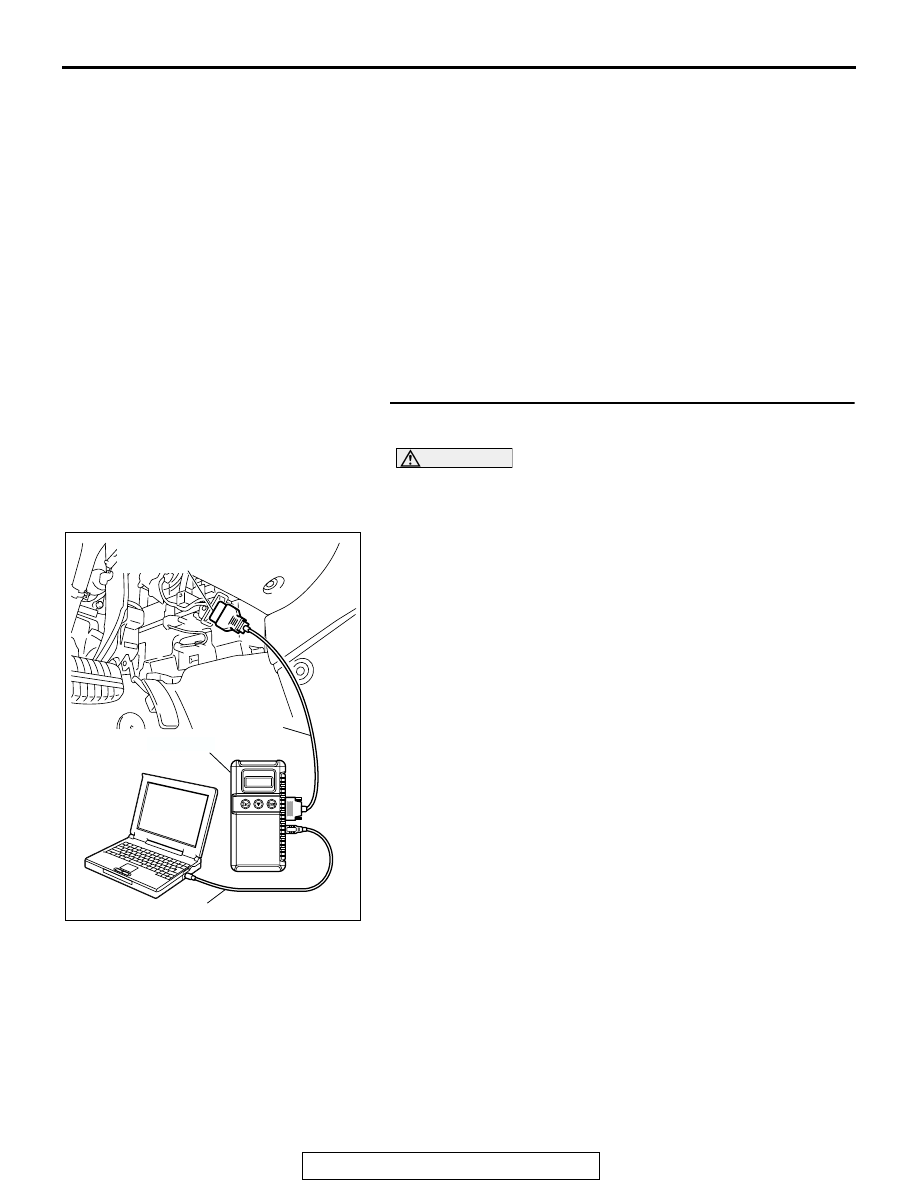

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-54

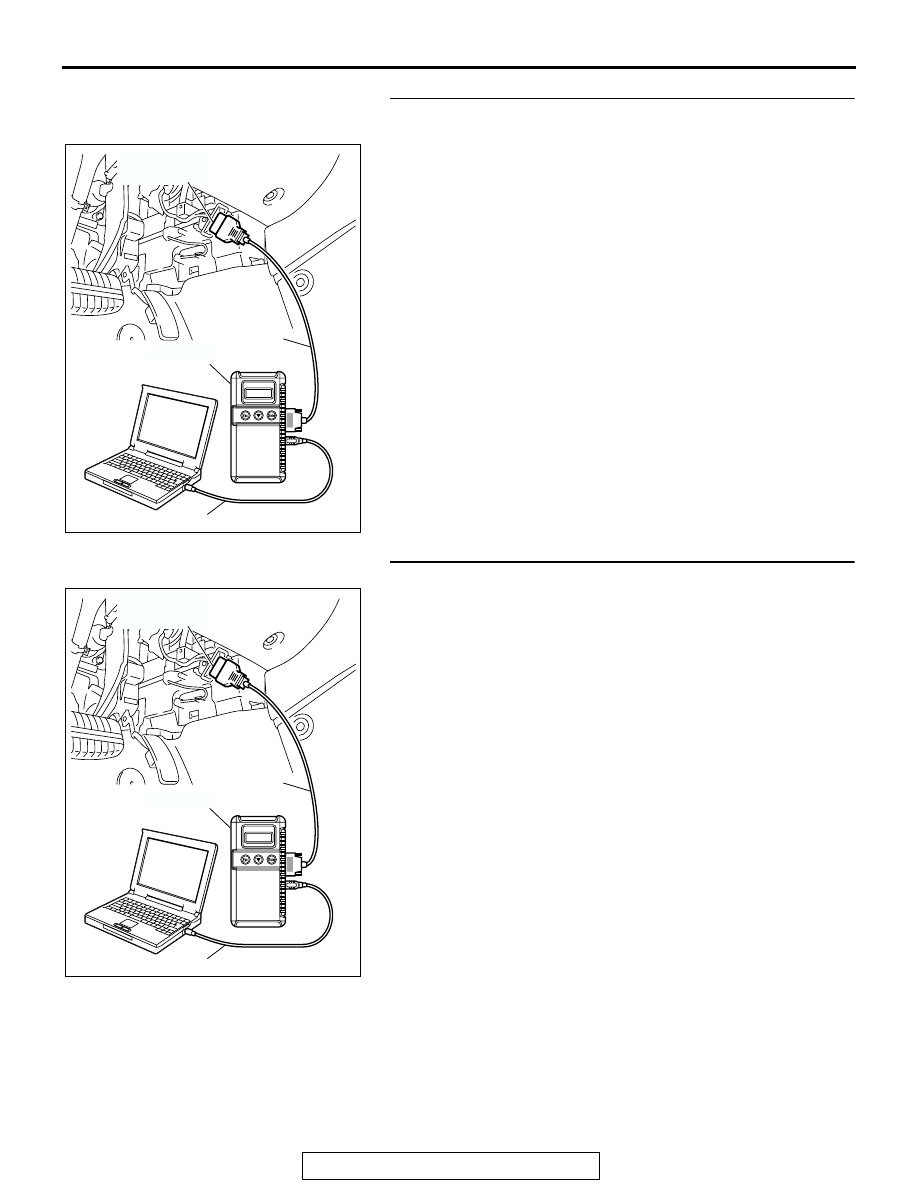

STEP 2. Using scan tool MB991958, read the multi center
display diagnostic trouble code.

Check that the multi center display unit sets a DTC.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the multi center display DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the multi center display unit (middle-grade

type) (Refer to GROUP 54A, Diagnosis

P.54A-237

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C
diagnostic trouble code.

Check if a multi center display-related DTC is set in the A/C
system.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether A/C system-related DTC is set.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
