Mitsubishi Galant (2004+). Manual - part 209





DIAGNOSTIC TROUBLE CODE CHART

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-27

DIAGNOSTIC TROUBLE CODE CHART

M1549000700290

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC 001: Trouble in SWS communication line or ETACS-ECU

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

CAUTION

If DTC 001 is set in the ETACS-ECU, always diag-
nose the CAN main bus line.

.

TROUBLE JUDGMENT
The ETACS-ECU communicates with the column
switch, the front-ECU and the sunroof-ECU through
the SWS communication line. If there is any trouble
in the SWS communication line and the
ETACS-ECU, DTC 001 will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• The wiring harness wire or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector, or the
ETACS-ECU may be defective.

Past trouble

• If DTC 001 is set as past trouble, carry out diag-

nosis with particular emphasis on wiring and con-
nector(s) in the SWS communication line. For
diagnosis procedures, refer to "How to cope with
past trouble" (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

).

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSTIC TROUBLE
CODE NO.

DESCRIPTION

REFERENCE
PAGE

001

Trouble in SWS communication line or ETACS-ECU

P.54B-27

002

Trouble in column switch

P.54B-31

003

Trouble in front-ECU

P.54B-34

004

Trouble in sunroof-ECU

P.54B-37

010

Bus Off

P.54B-40

011

Powertrain control module time-out (related to engine)

P.54B-42

012

Powertrain control module time-out (related to A/T)

013

A/C-ECU time-out

P.54B-45

014

Combination meter time-out

P.54B-49

015

Multi center display unit (middle grade type) time-out

P.54B-52

021

Failure information on combination meter

P.54B-56

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-28

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

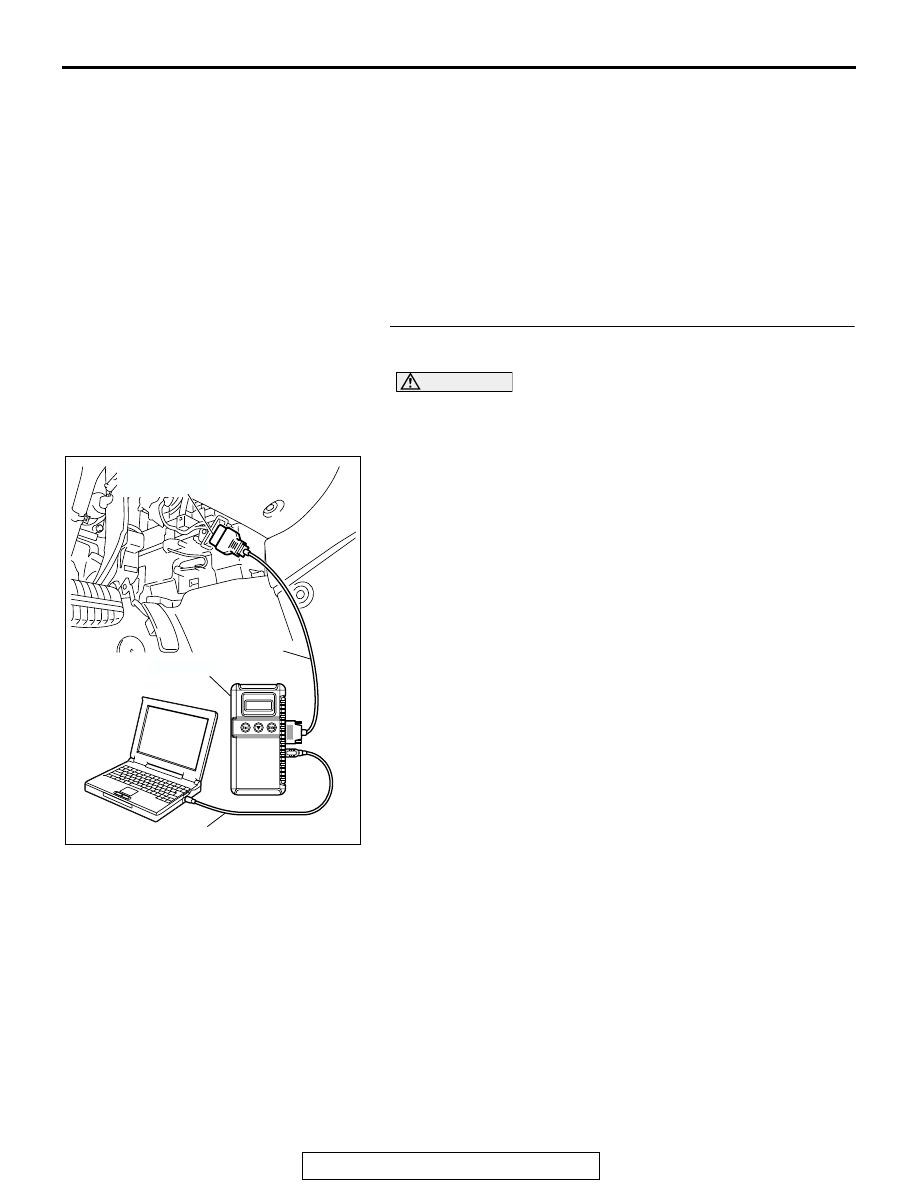

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-29

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-30

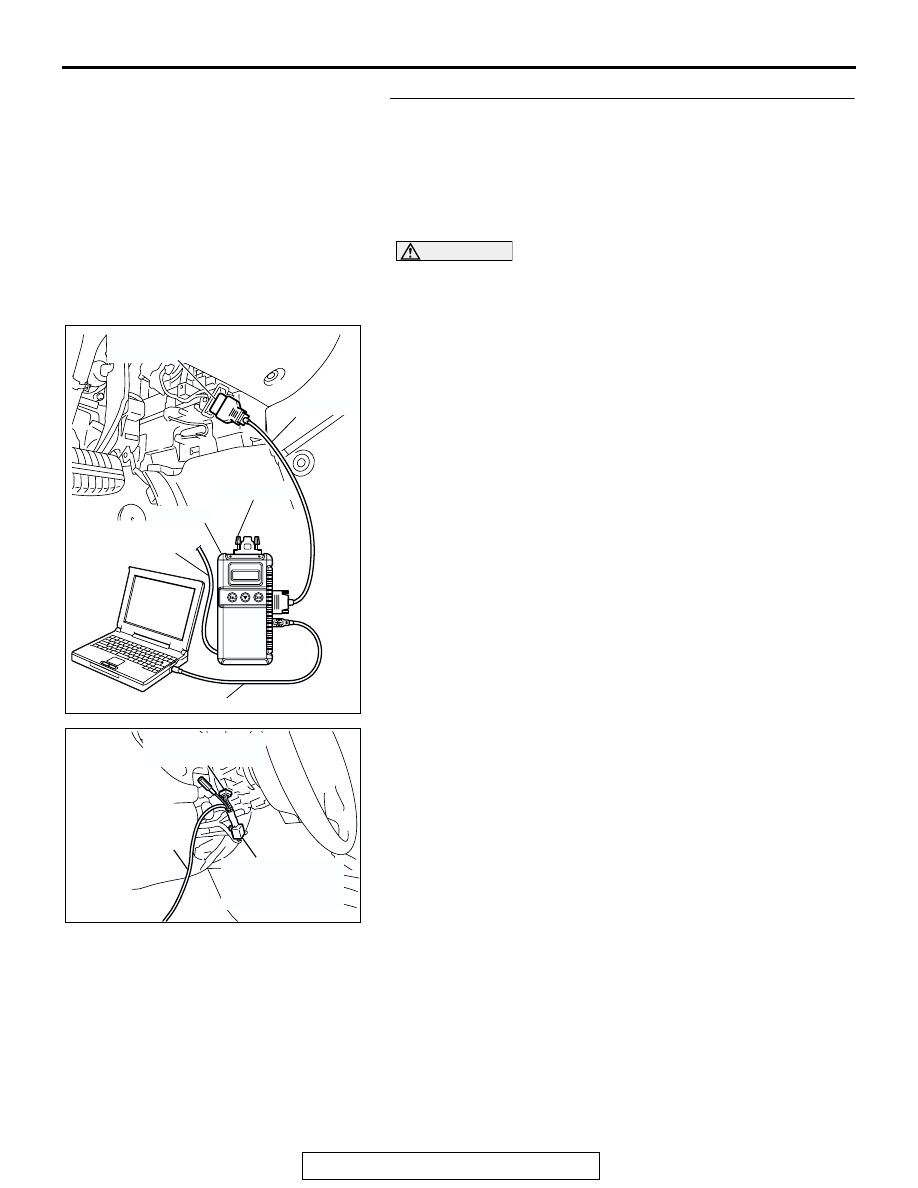

STEP 3. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.

Check the following ECUs:

• ETACS-ECU

• Column switch (column-ECU)

• Front-ECU

• Sunroof-ECU <Vehicles with sunroof only>

CAUTION

Connect special tool MB991910 before connecting special
tool MB991812. Be sure to connect special tool MB991806
after turning on special tool MB991824.
(1) Connect the SWS monitor. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menus for the "ETACS ECU", "COLUMN
ECU", "FRONT ECU" and "SUNROOF ECU" menus.

Q: Is "OK" displayed for the "ETACS ECU," "COLUMN

ECU," "FRONT ECU" and "SUNROOF ECU" menus?
"OK" is displayed for all the items :
It is determined that

there is an intermittent malfunction such as poor
engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

"NG" is displayed for the "ETACS ECU" menu : Refer to

Inspection Procedure A-3 "Communication with
ETACS-ECU is not possible

P.54B-79

."

"NG" is displayed for the "COLUMN ECU" menu : Refer

to Inspection Procedure A-2 "Communication with
column switch (column-ECU) is not possible

P.54B-72

."

"NG" is displayed for the "FRONT ECU" menu : Refer to

Inspection Procedure A-4 "Communication with
front-ECU is not possible

P.54B-87

."

"NG" is displayed for the "SUNROOF ECU" menu :

Refer to Inspection Procedure A-5 "Communication
with sunroof-ECU is not possible

P.54B-94

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
