When "CRUISE" (MAIN) switch is turned "ON", "CRUISE"
indicator light inside combination meter does not illuminate.
(However, Auto-cruise Control is Normal).

P.17-62

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-56

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: When the Brake Pedal is Depressed, Auto-cruise Control is not
Cancelled.

COMMENT
The stoplight switch circuit is suspected.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the stoplight switch.

• Damaged harness or connector.

• Malfunction of the PCM.

DIAGNOSIS

Refer to

P.17-34

, Diagnostic Trouble Code Procedures

− DTC

22: Stoplight Switch System.

INSPECTION PROCEDURE 2: When the Selector Lever is Moved to "N" Range, Auto-cruise Control is
not Cancelled.

COMMENT
The transmission range switch circuit is suspected.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the transmission range switch.

• Damaged harness or connector.

• Malfunction of the PCM.

DIAGNOSIS

Refer to GROUP 23A, Diagnostic Trouble Code Procedures

−

DTC 27: Transmission Range Switch System (Open Circuit)

P.23A-121

, DTC 28: Transmission Range Switch System

(Short Circuit)

P.23A-166

INSPECTION PROCEDURE 3: When the Auto-cruise Control "CANCEL" Switch is Set to ON,
Auto-cruise Control is not Cancelled.

COMMENT
The cause is probably an open-circuit in the output in
the circuit inside the "CANCEL" switch.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the auto-cruise control switch.

DIAGNOSIS

Replace the auto-cruise control switch. (Refer to

P.17-75

Auto-cruise Control).

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-57

INSPECTION PROCEDURE 4: Auto-cruise Control cannot be Set.

COMMENT
The fail-safe function is probably canceling
auto-cruise control. In this case, scan tool MB991958
can be used to retest each system by checking the
diagnostic trouble codes. The scan tool can also be
used to check if the circuits of each input switch are
normal or not by checking the input switch codes.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the auto-cruise control switch.

• Malfunction of the stoplight switch.

• Malfunction of the transmission range switch.

• Malfunction of the PCM.

DIAGNOSIS

Required Special Tool:

• MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Check for auto-cruise control system diagnostic trouble

code.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC set?

YES : Refer to

P.17-15

, Diagnostic Trouble Code Chart.

Then go to Step 6 .

NO : Go to Step 2 .

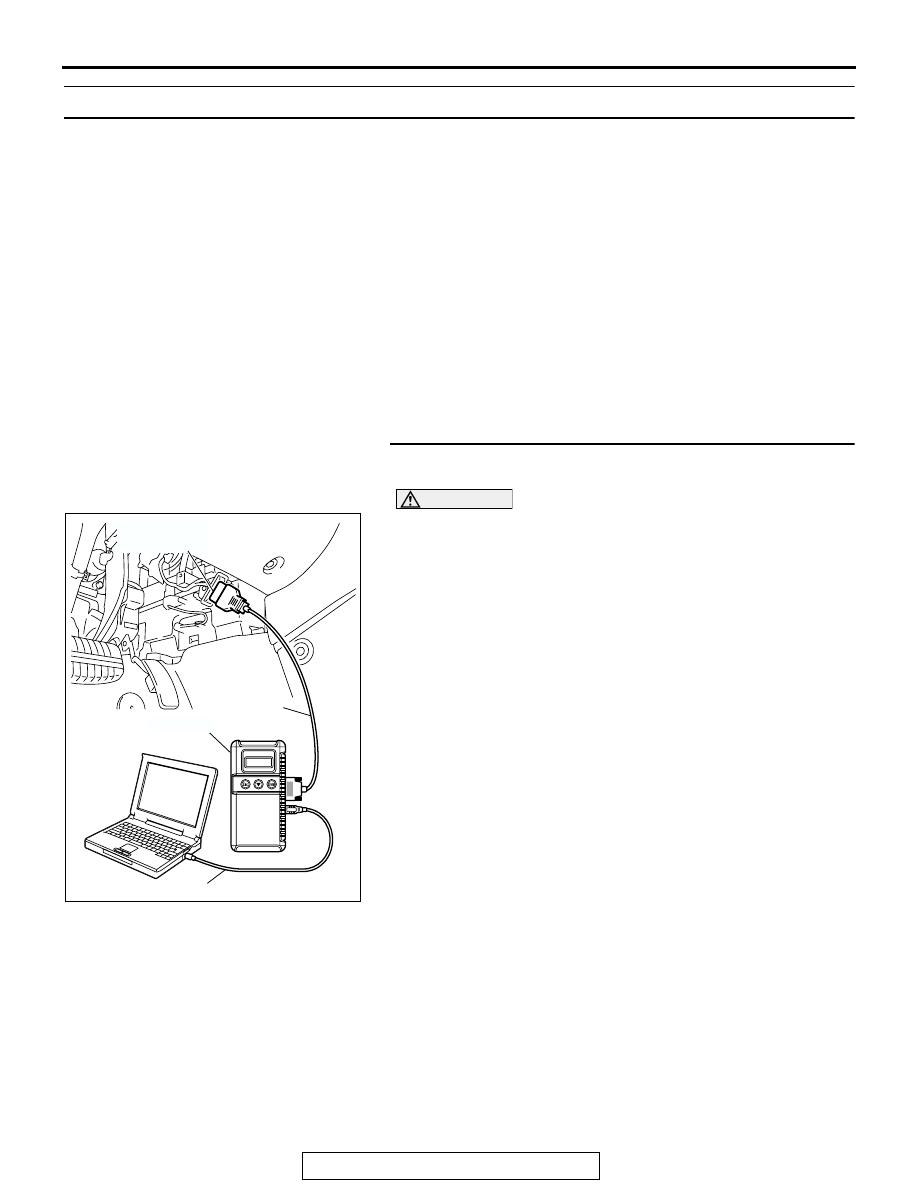

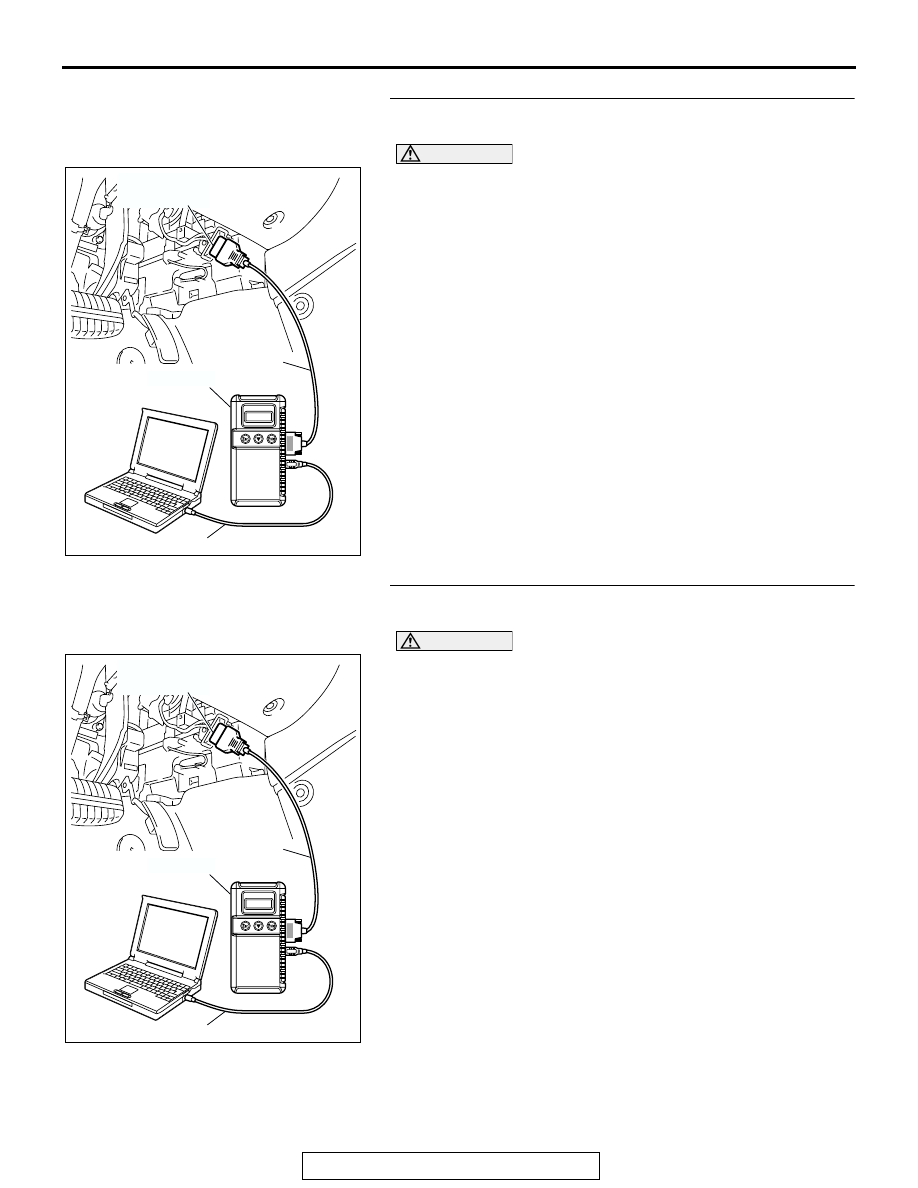

AC305412

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-58

STEP 2. Using scan tool MB991958, check data list item 04:
Cancel Switch.

CAUTION

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode.

• Auto-cruise control system item 04, Cancel Switch.

• When "CANCEL" switch is at the ON position, the

display on scan tool MB991958 should be "ON".

• When "CANCEL" switch is at the OFF position, the

display on scan tool MB991958 should be "OFF".

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is the switch operating properly?

YES : Go to Step 3 .
NO : Refer to

P.17-56

, Symptom Procedures number 3.

Then go to Step 6 .

STEP 3. Using scan tool MB991958, check data list item 05:
Stoplight Switch and data list item 06: Brake switch.

CAUTION

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode.

• Auto-cruise control system item 05, Stoplight Switch.

• When brake pedal is depressed, the display on scan

tool MB991958 should be "ON".

• When brake pedal is released, the display on scan

tool MB991958 should be "OFF".

(4) Set scan tool MB991958 to data reading mode.

• Auto-cruise control system item 06, Brake Switch.

• When brake pedal is depressed, the display on scan

tool MB991958 should be "ON".

• When brake pedal is released, the display on scan

tool MB991958 should be "OFF".

(5) Turn the ignition switch to the "LOCK" (OFF) position.
(6) Disconnect scan tool MB991958.
Q: Is the switch operating properly?

YES : Go to Step 4 .
NO : Refer to

P.17-56

, Symptom Procedures number 1.

Then go to Step 6 .

AC305412

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
