AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-51

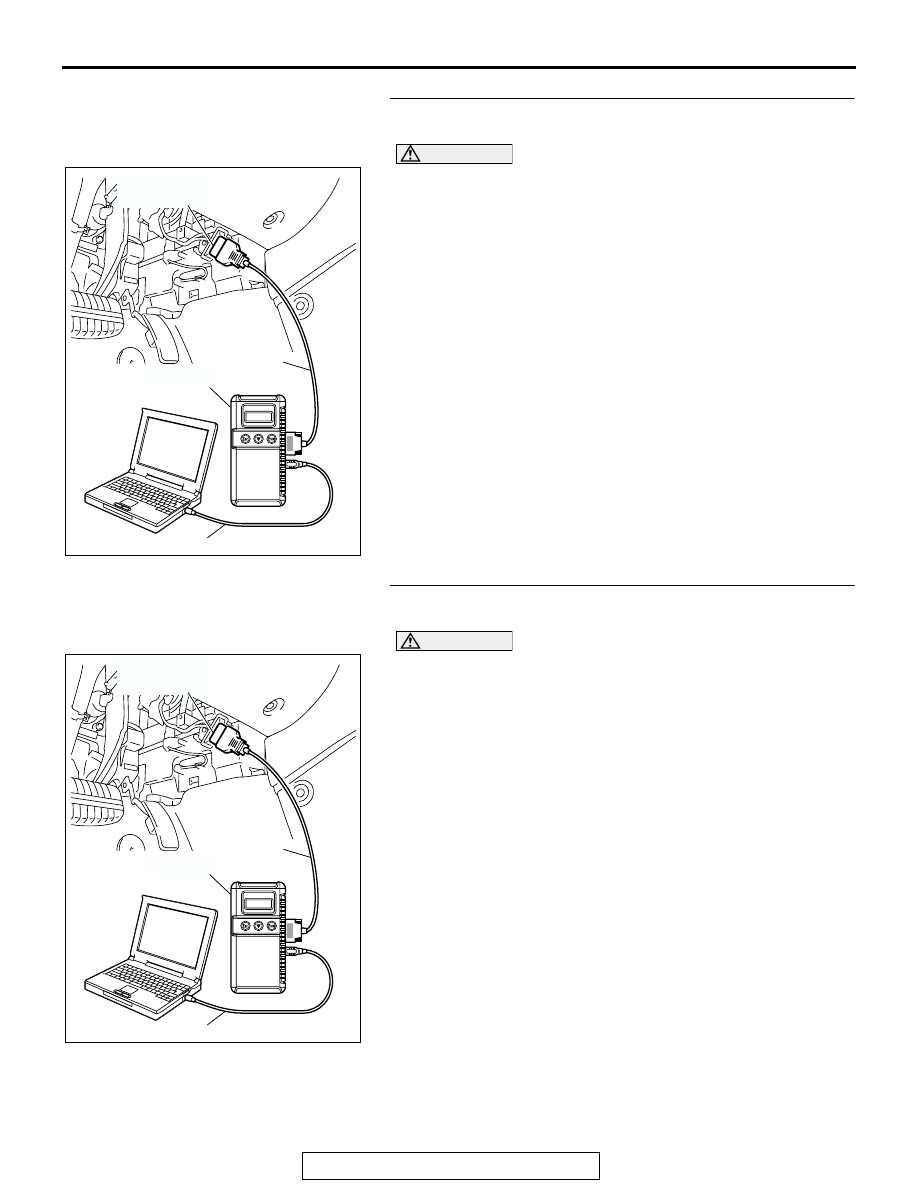

STEP 21. Using scan tool MB991958, read the diagnostic
trouble codes.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

P.17-12

.

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to read the diagnostic trouble

codes.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC 22 set?

YES : Replace the PCM [Refer to GROUP 13A, Power

Control Module (PCM)

P.13A-1121

]. Then go to Step

22 .

NO :  It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

).

STEP 22. Using scan tool MB991958, read the diagnostic
trouble codes.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

P.17-12

.

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to read the diagnostic trouble

codes.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC 22 set?

YES : Return to Step 1 .
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-52

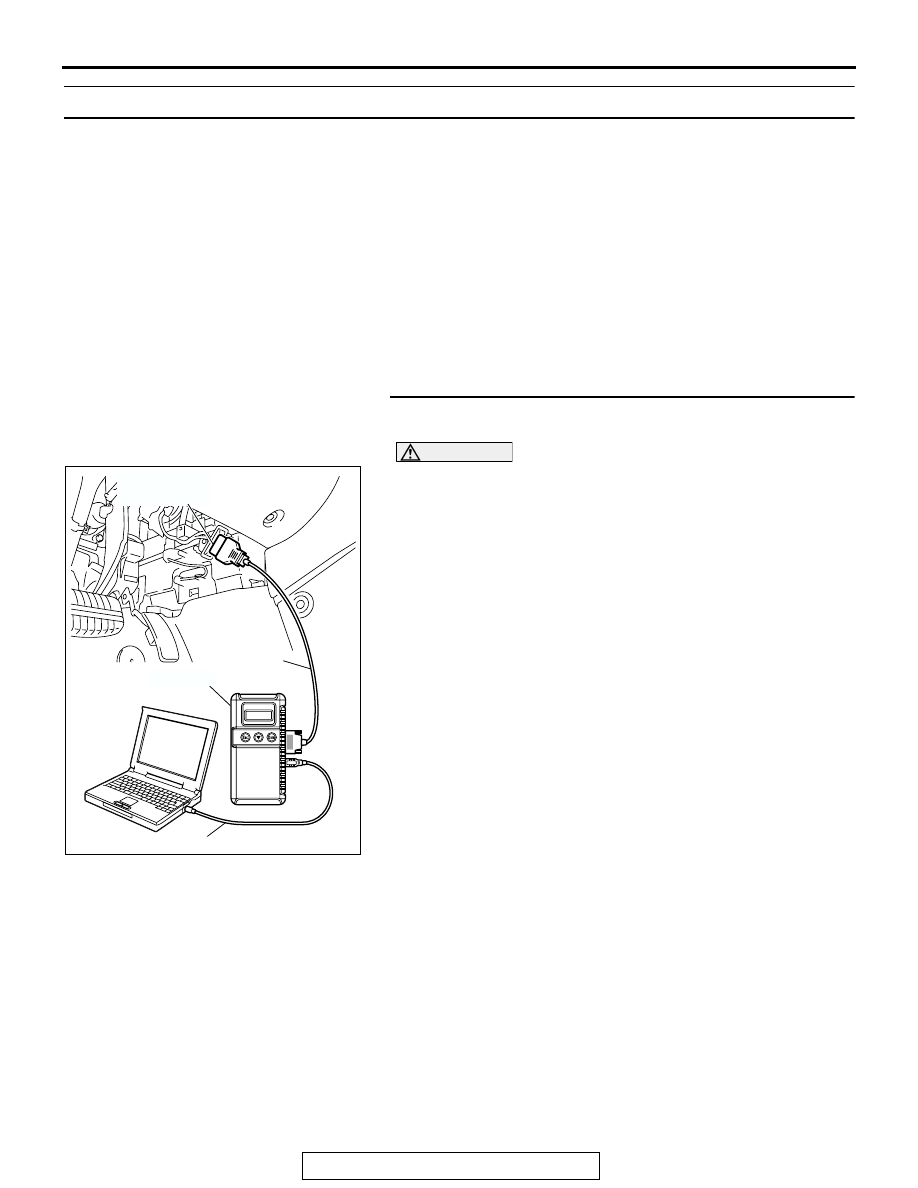

DTC 23: Powertrain Control module (PCM) and Its Related Components

.

DTC SET CONDITIONS
This DTC is set when there is an failure in the PCM
and its related components.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the MFI system.

• Malfunction of the A/T system.

• Malfunction of the PCM.

DIAGNOSIS

Required Special Tool:

• MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

STEP 1. Using scan tool MB991958, read the MFI system
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Check for MFI system diagnostic trouble code (Refer to

GROUP 13A, MFI Diagnosis - How to Read and Erase
Diagnostic Trouble Code

P.13A-5

) <2.4L engine>. (Refer to

GROUP 13B, MFI Diagnosis - How to Read and Erase
Diagnostic Trouble Code

P.13B-5

) <3.8L engine>.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is any DTC set?

YES : Diagnose the MFI control system. (Refer to GROUP

13A, MFI Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

) <2.4L engine>. (Refer to GROUP 13B, MFI

Diagnosis

− Diagnostic Trouble Code Chart

P.13B-33

) <3.8L engine>.Then go to Step 4 .

NO :  Go to Step 2 .

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-53

STEP 2. Using scan tool MB991958, read the A/T system
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Check for A/T system diagnostic trouble code. (refer to

GROUP 23A, Diagnosis Function - How to Read and Erase
Diagnostic Trouble Code

P.23A-15

).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is any DTC set?

YES : Diagnose the A/T system. (Refer to GROUP 23A, A/T

Diagnosis

− Diagnostic Trouble Code Chart

P.23A-43

). Then go to Step 4 .

NO :  Go to Step 3 .

STEP 3. Using scan tool MB991958, read the auto-cruise
control system diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Use scan tool MB991958 to read the auto-cruise control

system diagnostic trouble codes.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC 23 set?

YES : Replace the PCM [Refer to GROUP 13A, Power

Control Module (PCM)

P.13A-1121

]. Then go to Step

4 .

NO :  It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to
Cope with Intermittent Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-54

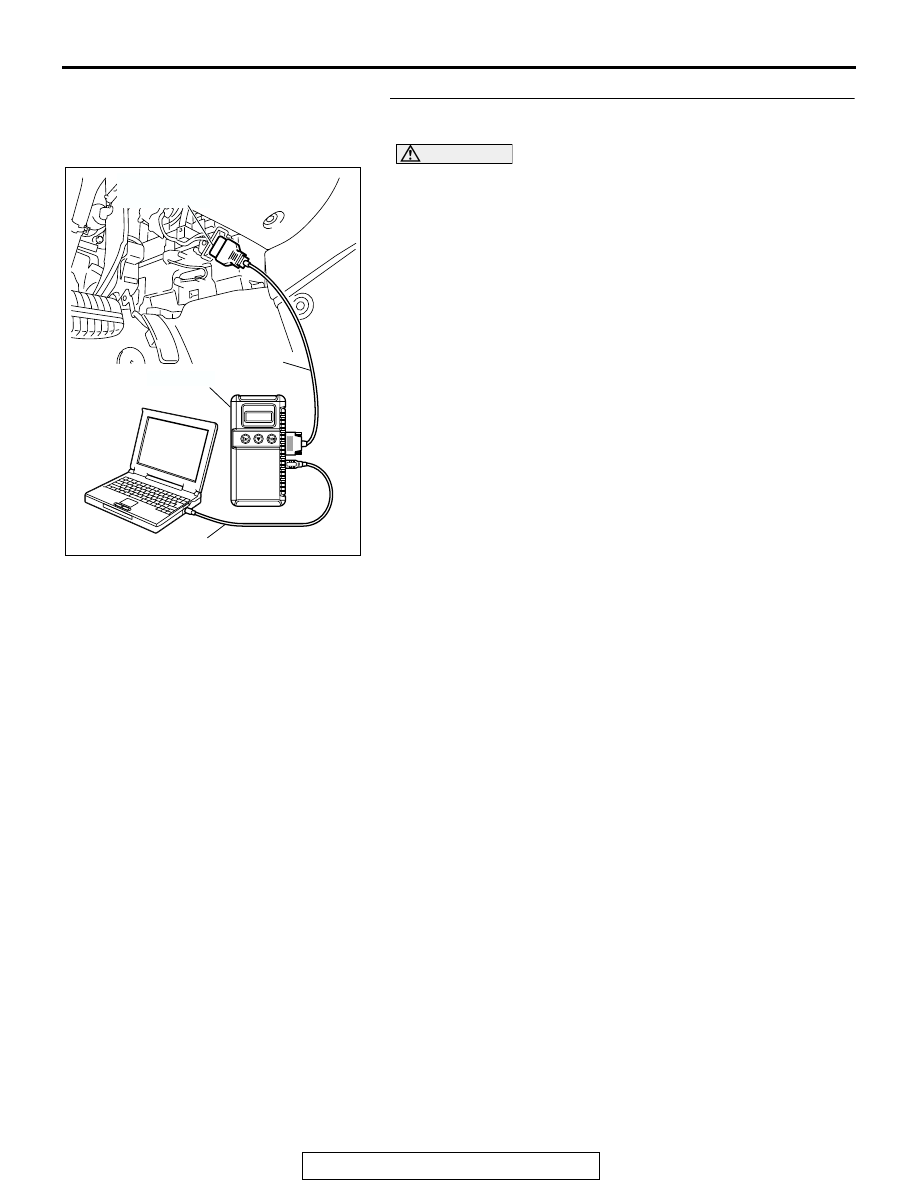

STEP 4. Using scan tool MB991958, read the auto-cruise
control system diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Use scan tool MB991958 to read the auto-cruise control

system diagnostic trouble codes.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC 23 set?

YES : Return to Step 1 .
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
