CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

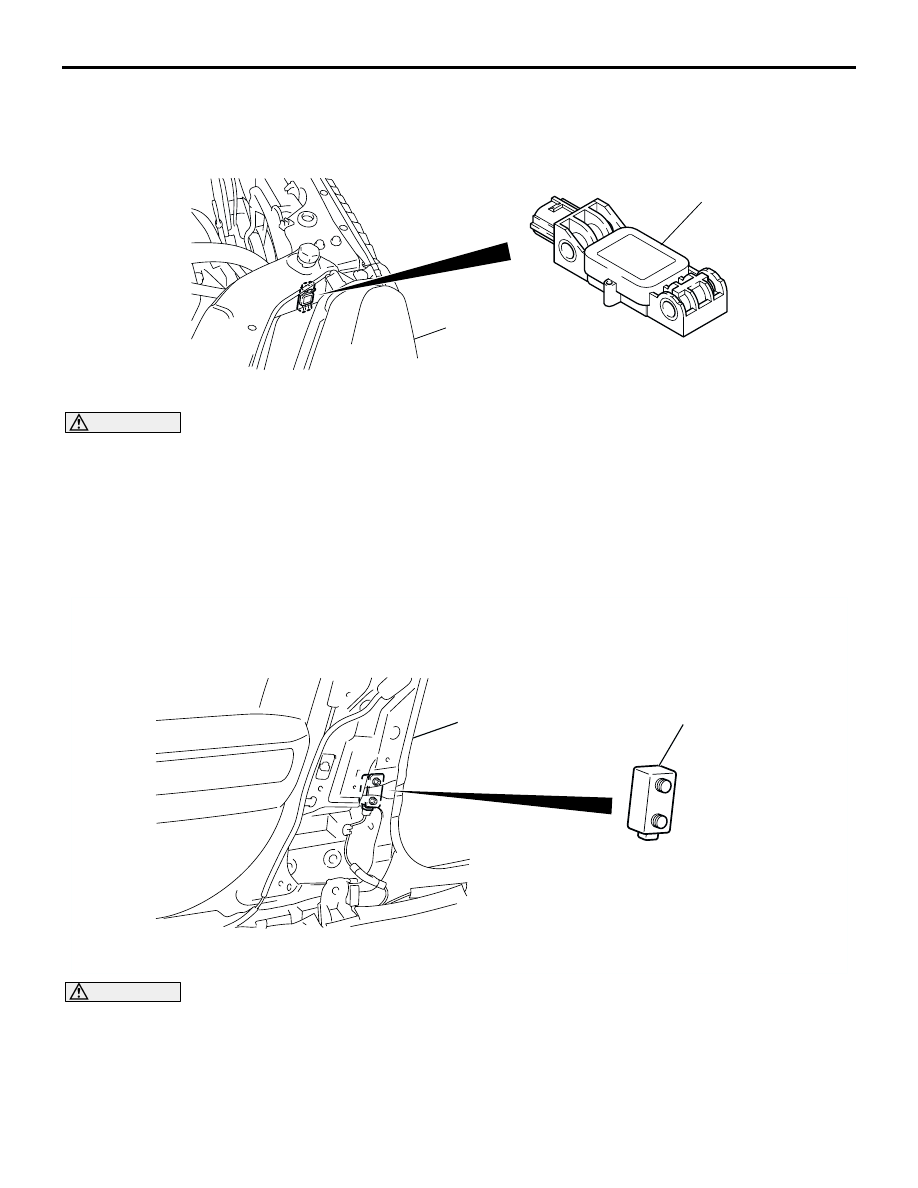

FRONT IMPACT SENSOR

M2521005000099

CAUTION

Improper services cause the sudden operation of
SRS (air bag) or the system to be inoperative. Do
not disassemble or tamper with the front impact
sensor to prevent the serious injury.
The front impact sensors are installed on both radia-
tor support panels.

The front impact sensors transmit acceleration data
to SRS-ECU. The SRS-ECU then determines
whether to operate the driver’s air bag, front passen-
ger’s air bag and seat belt pretensioners, and then
outputs an ignition signal when necessary. The front
impact sensor also diagnoses itself, and sends a
diagnosis code to the SRS-ECU if a problem occurs.

SIDE IMPACT SENSOR

M2521006000081

CAUTION

Improper services cause the sudden operation of
SRS (air bag) or the system to be inoperative. Do
not disassemble or tamper with the side impact
sensor to prevent the serious injury.
The side impact sensors are installed in the lower
part of the center pillar.

The side impact sensors transmit acceleration data
to the SRS-ECU. The SRS-ECU then determines if
the side air bags should be inflated, and sends an
ignition signal. The side impact sensor also diag-
noses itself, and sends a diagnosis code to the
SRS-ECU if a problem occurs.

AC306681

AC306331

AC308439

AB

HEAD LIGHT
(RH)

FRONT IMPACT SENSOR

AC308953AB

SIDE IMPACT
SENSOR

CENTER PILLAR

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

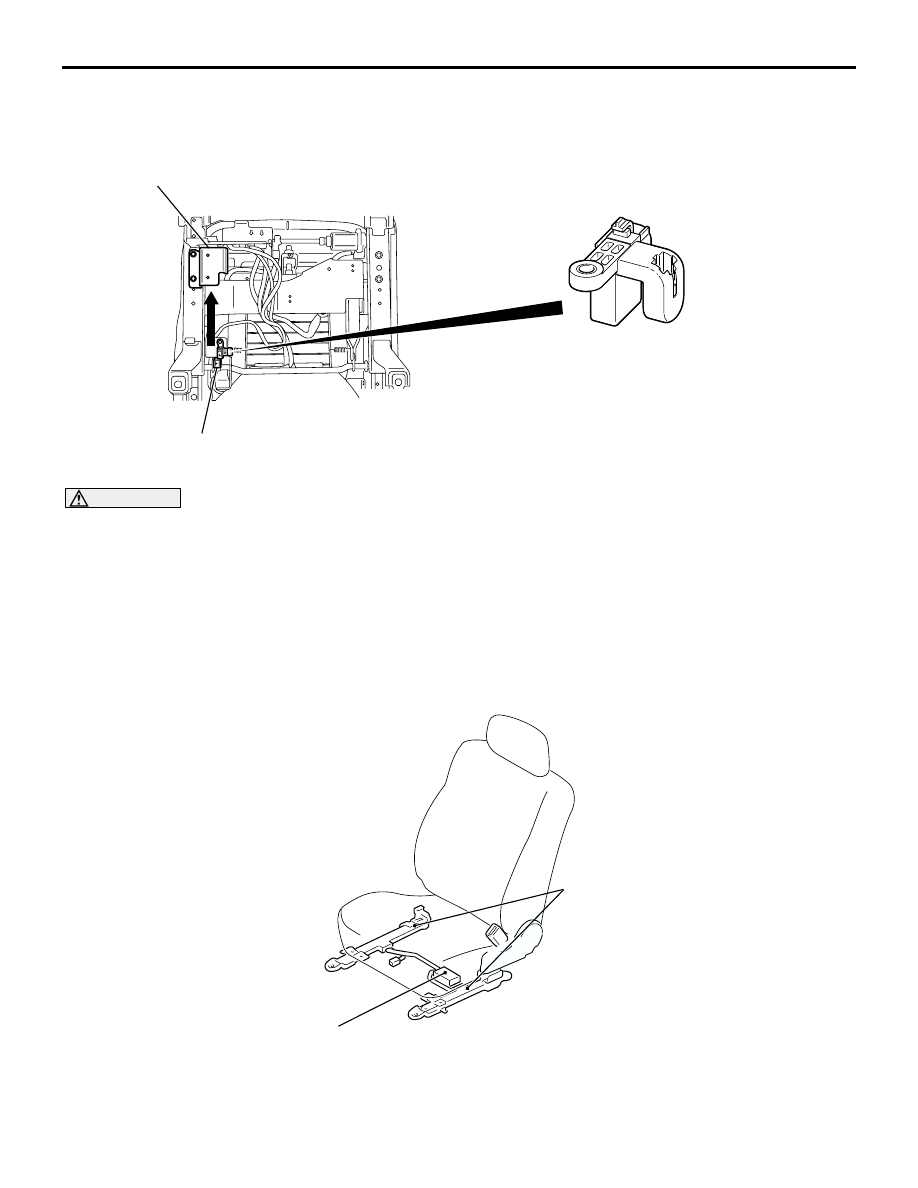

SEAT SLIDE SENSOR

M2521001400017

CAUTION

Improper services cause the system to be inop-
erative.  Do not disassemble or tamper with the
seat slide sensor to prevent the serious injury.
The seat slide sensor is attached to the seat rail and
provides the air bag control unit with information on
the seat position.

The air bag control unit controls deployment output
of the driver’s air bag in accordance with the informa-
tion from the sensor.

OCCUPANT CLASSIFICATION SENSOR

M2521001300010

AC306933

AC306617

AC306418

AB

SEAT SLIDE SENSOR

SEAT SLIDE
SENSOR

SHIELD PLATE

AC308898

OCCUPANT
CLASSIFICATION-ECU

OCCUPANT
CLASSIFICATION
SENSOR

AB

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

CAUTION

Improper services cause the system to be inop-
erative.  Do not disassemble or tamper with the
occupant classification sensor to prevent the
serious injury.
The occupant classification sensors are attached to
the seat rails and provide the air bag control unit with
information on the weight applied to the front passen-
ger seat.

The air bag control unit controls deployment output
of the front passenger’s air bag in accordance with
the information from the sensor. The front passen-
ger’s air bag does not deploy in an impact when the
weight applied to the seat is sensed as less than 66
pounds (30 kg).

SEAT BELT WITH PRE-TENSIONER

M2521008000128

CAUTION

Improper services cause the sudden operation of
the seat belt with pre-tensioner or the system to
be inoperative.  Do not disassemble or tamper
with the seat belt to prevent the serious injury.

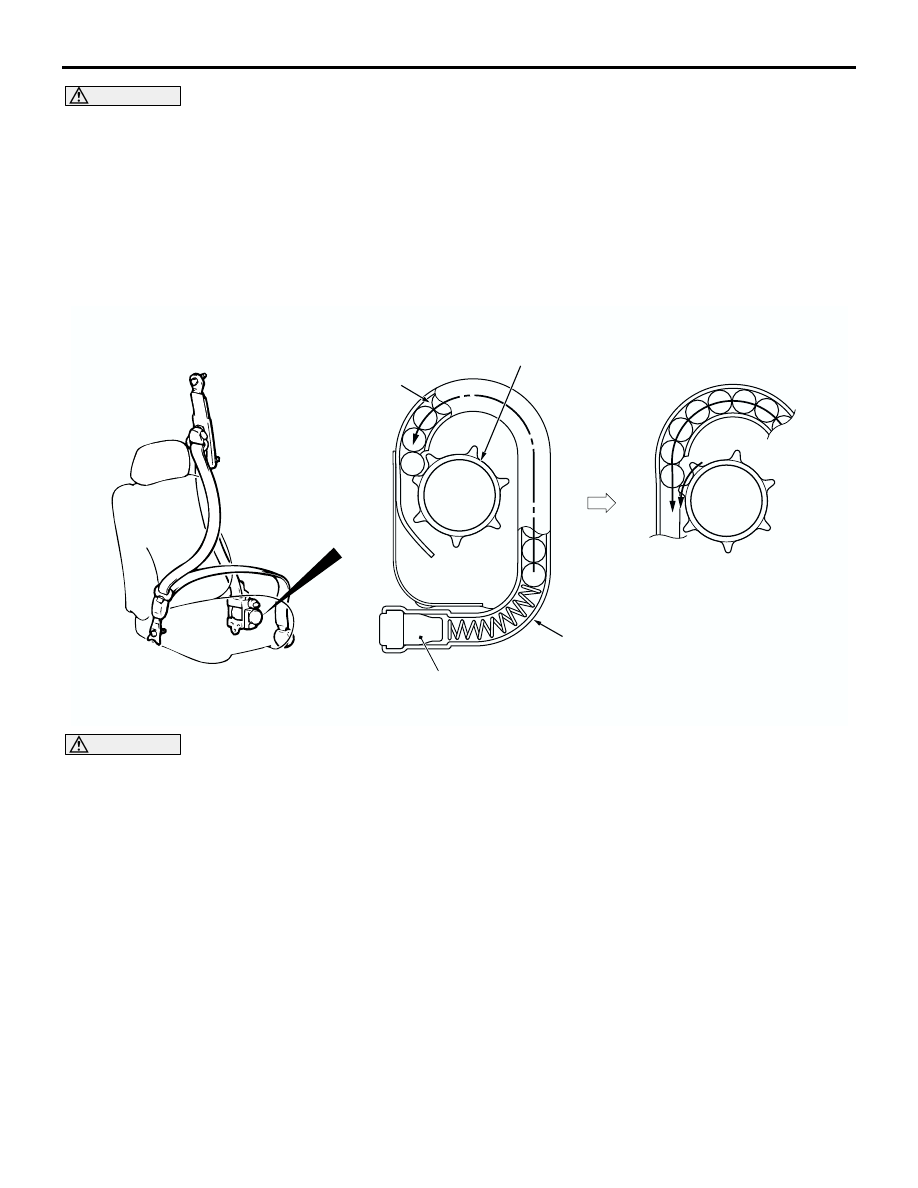

The seatbelt incorporating the pretensioner automat-
ically winds the seatbelt upon front impact to reduce
forward shifting of the driver’s and passenger’s.
The seat belt pre-tensioner is built into the driver's
and passenger's front seat belt retractor.

Upon front impact, the seat belt pre-tensioner ignites
the gas generator and emits gas with the SRS-ECU
signal when the front impact sensor and the
SRS-ECU detects a gravitational impact at the same
time. The gas pressure shifts the ball in the pipe and
the balls comes in contact with the protrusion of the
ring gear, is inserted in the ring gear. The ring gear
rotates to wind the webbing.
When the seatbelt switch indicates that the seatbelt
is not worn, the pretensioners are deactivated by
SRS-ECU.

AC309018AB

RING GEAR

PIPE

BALL

GAS GENERATOR

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-16

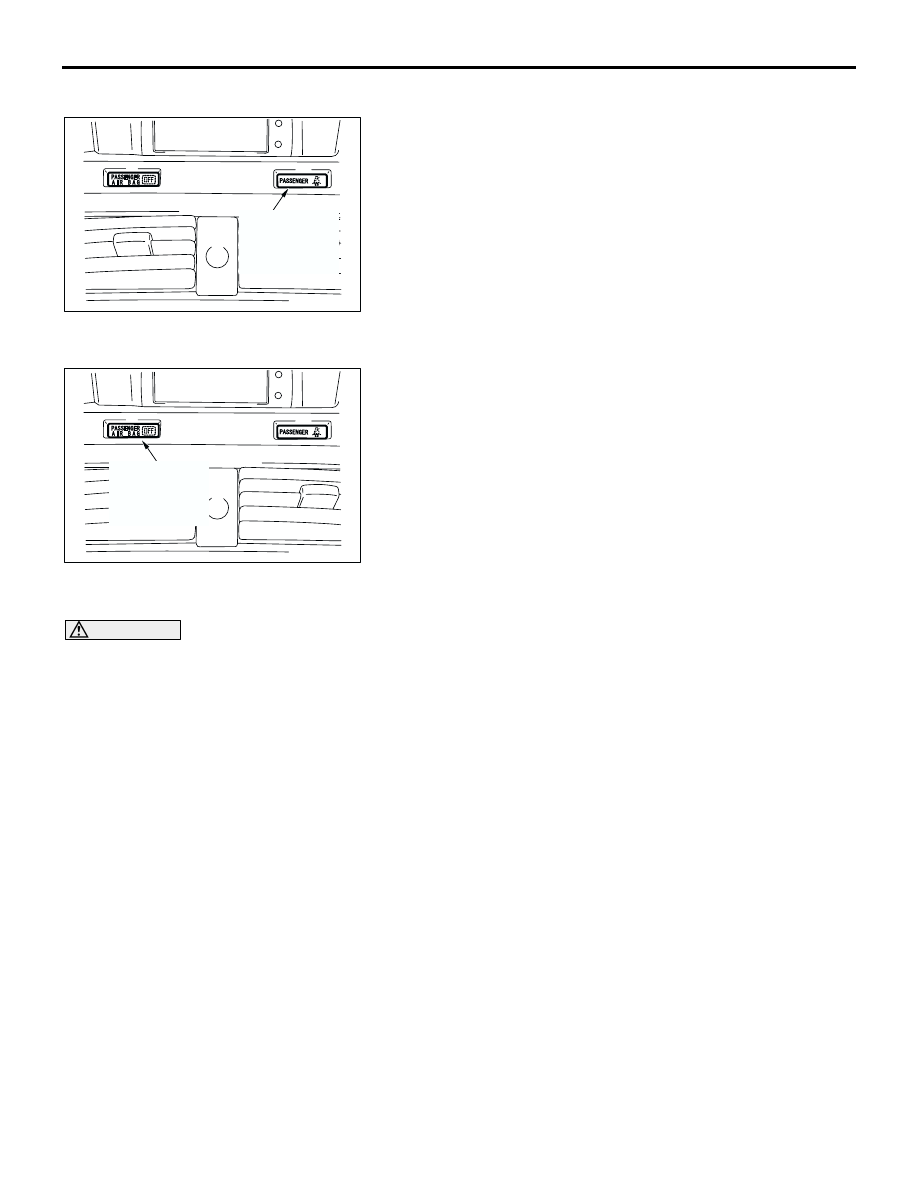

PASSENGER SEAT BELT WARNING LIGHT

M2521001500014

The light normally comes on when the ignition switch is turned
to the "ON" position and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt.

PASSENGER AIR BAG OFF INDICATOR LIGHT

M2521001600011

The indicator normally comes on when the ignition switch is
turned to the "ON" position and goes off a few seconds later.
In the following situations, the indicator will stay on to show that
the front passenger air bag is not operational.

•

The occupant classification sensors sense 66 pounds (30
kg) on the front passenger seat.

•

The front passenger’s seat is not occupied.

When the weight applied to the front passenger seat is sensed
as 66 pounds (30 kg) or greater, the indicator goes off to show
that the passenger front air bag is operational.

SRS-ECU

M2521007000170

CAUTION

Improper services cause the sudden operation of
SRS (air bag) or the system to be inoperative. Do
not disassemble or tamper with the SRS-ECU to
prevent the serious injury.
The SRS-ECU incorporates a front analog G-sensor
and front safing G-sensor for frontal collisions and a
side-airbag safing G-sensor for side collisions. Upon
front impact, the SRS-ECU set the ignition signal to
the driver’s air bag module, the front passenger’s air
bag module and the seat belt pre-tensioner when the
front impact sensor and the SRS-ECU detects a
gravitational impact at the same time. Upon side
impact, the SRS-ECU set the ignition signal to the
side air bag module suffered a impact, when the side
impact sensor and the SRS-ECU detects a gravita-
tional impact at the same time.

The SRS-ECU is provided with the following capabil-
ities:

•

Backup power supply in case of power failure in
collisions

•

Self-diagnosis function to avoid system’s opera-
tion errors and to improve its reliability

DIAGNOSTIC FUNCTION

The SRS-ECU has the following functions to make
system checking easily using the scan tool.

•

Diagnostic trouble code output

•

Service data output

•

Actuator test

•

Accuracy check occupant classification sensor

CAN COMMUNICATION

SRS-ECU, through CAN communication, outputs a
signal that requests SRS warning lamp illumination
to the meter ECU.

AC306329AC

PASSENGER'S
SEAT BELT
WARNING
LIGHT

AC306329AB

PASSENGER'S
AIR BAG OFF
INDICATOR
LIGHT
