CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

CONSTRUCTION AND OPERATION

SYSTEM OPERATION

M2521001000213

.

FRONT AIR BAG AND SEAT BELT WITH PRE-TENSIONER

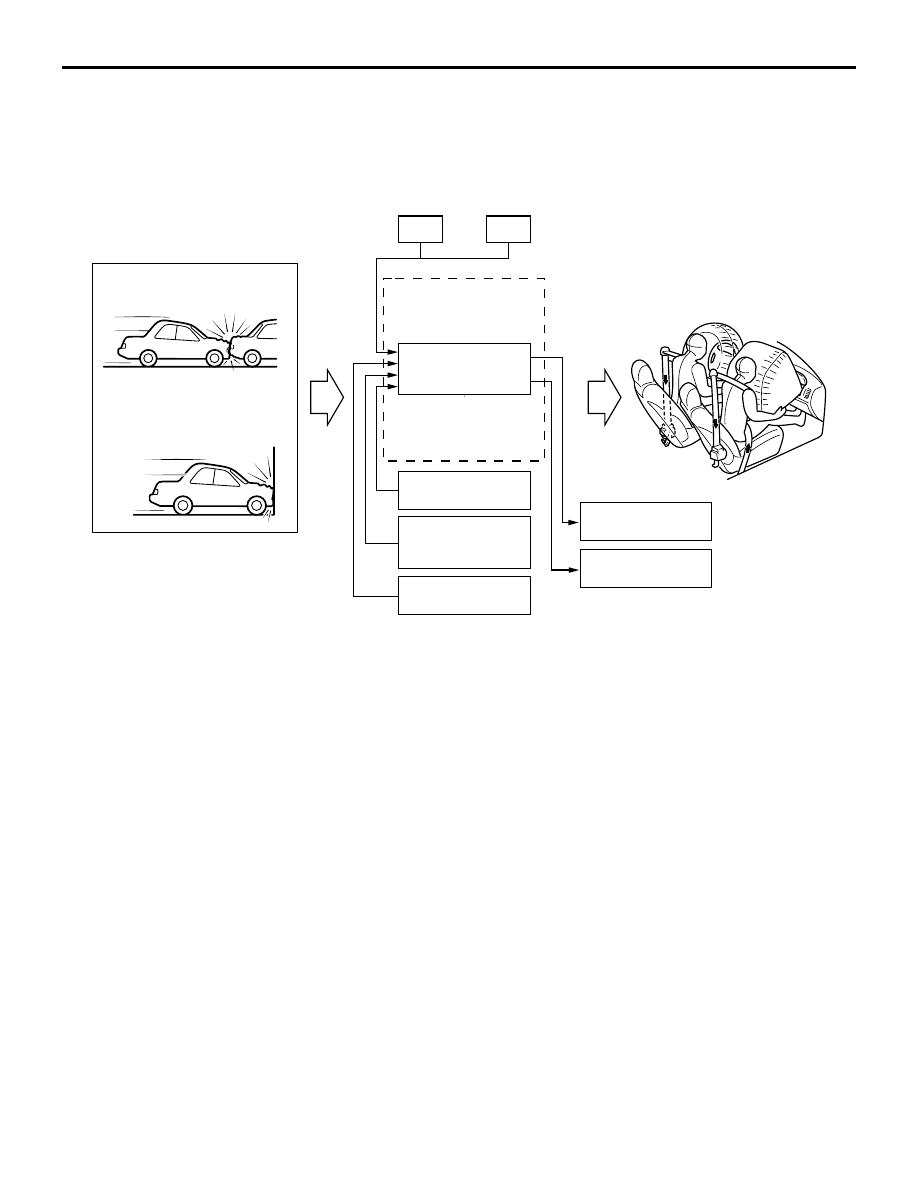

In case of a frontal collision, if the SRS-ECU and the
front air bag safing G sensor simultaneously detect
an impact that based on criteria (turn ON), the
SRS-ECU sends an ignition signal to the air bag
modules (squibs) and seat belt pre-tensioners
(squibs) on the driver and passenger sides, thus
inflating the air bags and operating the seat belt
pre-tensioners.

.

AC306416

AB

ANALOG G SENSOR

IGNITION
JUDGMENT

SHOCK
ABOVE A
CERTAIN
LEVEL

IGNITION
SIGNAL

SRS-ECU

FRONT IMPACT AGAINST
ANOTHER VEHICLE

OR
FRONT IMPACT AGAINST A
SOLID SURFACE

FRONT AIR BAG
SAFING G SENSOR

FRONT
IMPACT
SENSOR
(LH)

FRONT
IMPACT
SENSOR
(RH)

OCCUPANT
CLASSIFICATION-
ECU

SEAT
BELT SWITCH

SEAT
SLIDE SENSOR

AIR BAG OFF
INDICATOR LIGHT

SEAT BELT
WARNING LIGHT

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-10

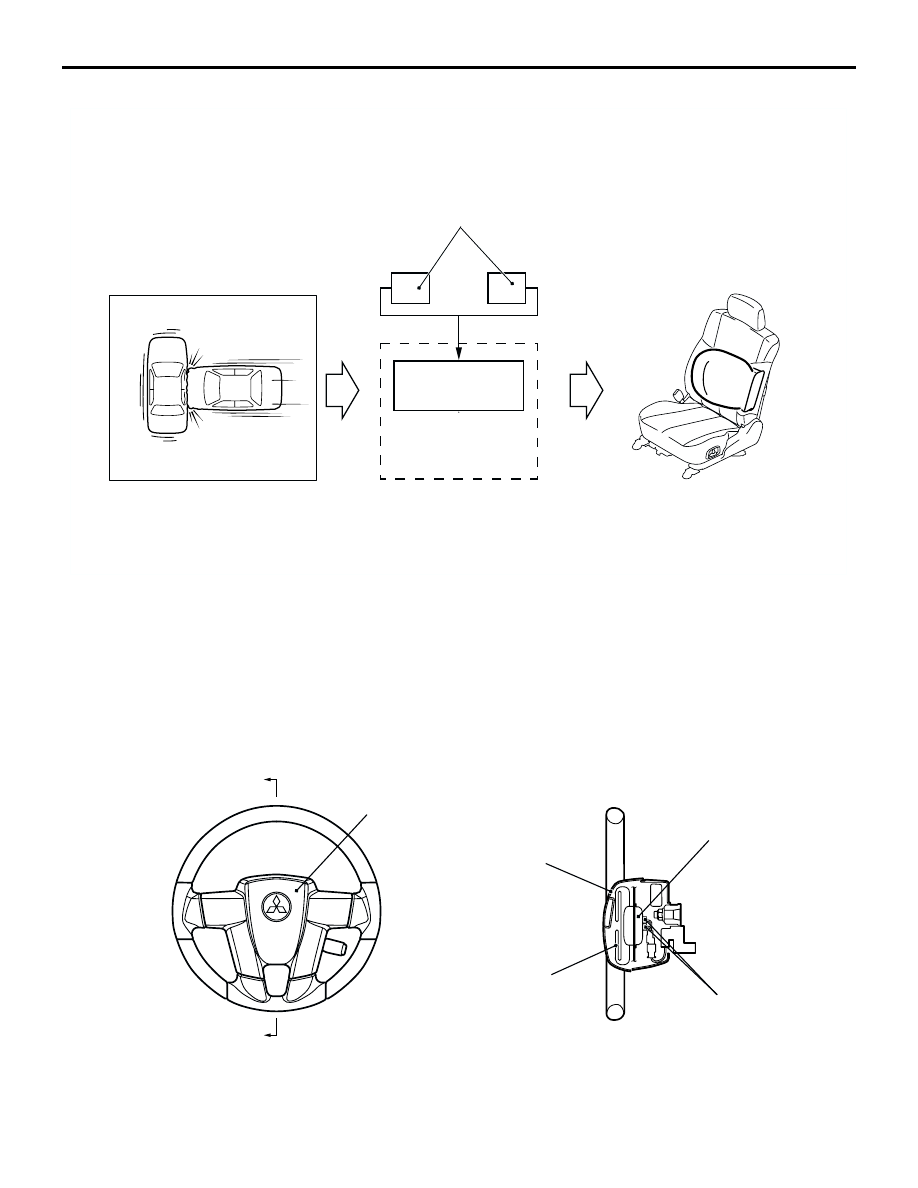

SIDE AIR BAGS

In case of a side collision, if an impact that based on
criteria is simultaneously detected by the side-impact
sensors installed in a center pillar respectively and
by the side air bag safing G sensor (the sensors turn
ON), the SRS-ECU sends an ignition signal to the
side air bag module on the relevant side to inflate
them.

DRIVER'S AIR BAG MODULE

M2521002000142

AC308644

AB

IGNITION
JUDGMENT

SHOCK
ABOVE A
CERTAIN
LEVEL

IGNITION
SIGNAL

SRS-ECU

SIDE-AIRBAG MODULES

SIDE IMPACT
SENSOR

SIDE IMPACT BY
ANOTHER VEHICLE

AC308889

A

A

SECTION A - A

AIR BAG MODULE

INFLATOR

AIR BAG

MODULE COVER

AB

SQUIB CONNECTOR

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

CAUTION

Improper services cause the sudden operation of
driver’s air bag module or the system to be inop-
erative.  Do not disassemble or tamper with the
air bag module to prevent the serious injury.
The driver’s air bag module incorporates a 4-spoke
steering wheel. The driver’s air bag module is an
assembly part consisting of an air bag, module cover,
inflator, and their fasteners. The air bag is made from
nylon and inflates by gas from the inflator. As a driver
is being pressed to the air bag, it deflates discharg-
ing gas from two vents at the rear of the air bag to
reduce the shock from the impact.

The driver's air bag deploys by changing its inflation
pressure in two steps.
The inflator has two squib connectors to deploy the
air bag in two steps.

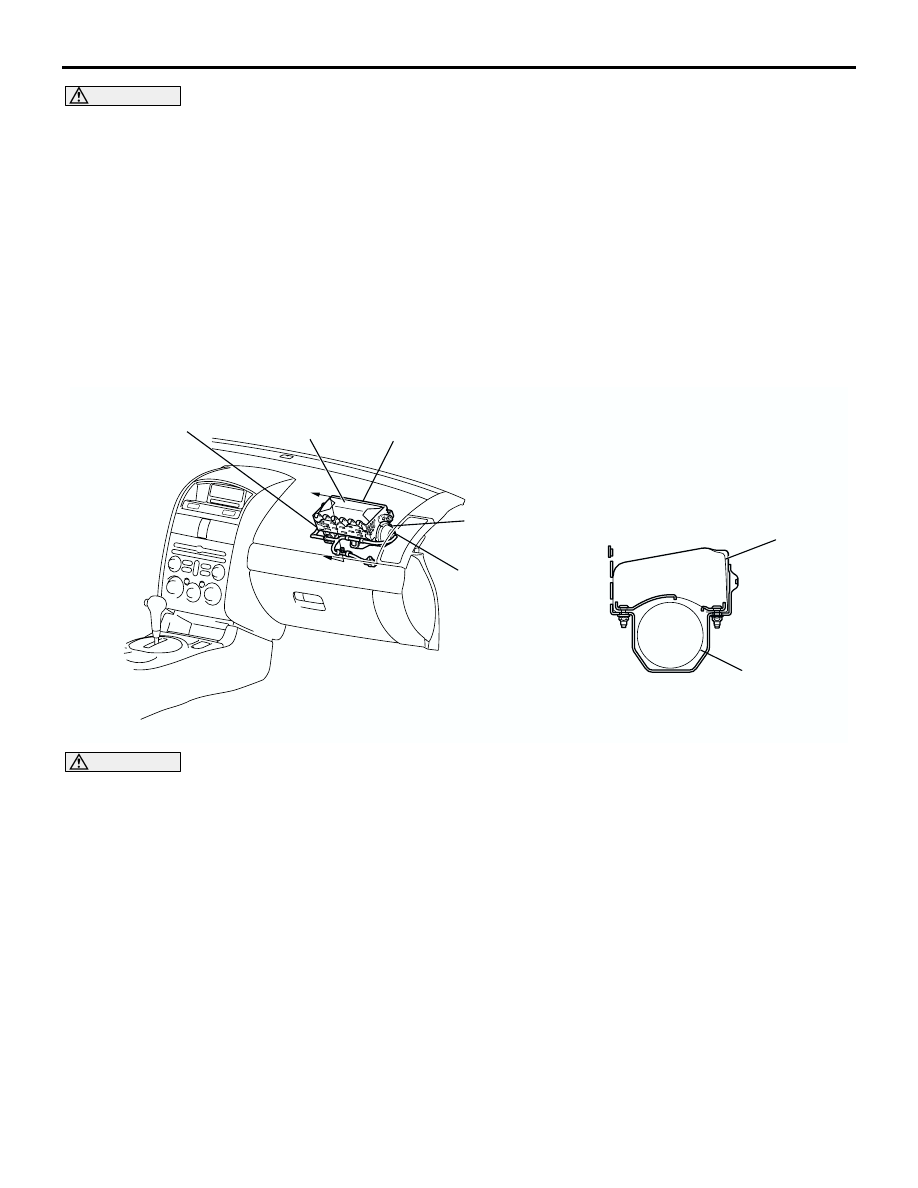

FRONT PASSENGER'S AIR BAG MODULE

M2521003000123

CAUTION

Improper services cause the sudden operation of
front passenger's air bag module or the system
to be inoperative.  Do not disassemble or tamper
with the air bag module to prevent the serious
injury.
The front passenger’s air bag module consists of an
air bag, inflator, module cover (incorporating the
instrument panel pad), and their fasteners.

The air bag is made from nylon and inflates by the
gas from the inflator. As a passenger is being
pressed to the air bag, it deflates, discharging gas
from two vent holes at the side of the air bag to
reduce the shock from the impact.
The front passenger’s air bag deploys by changing
its inflation pressure in two steps.
The inflator has two squib connector to deploy the air
bag in two steps.
The front passenger air bag does not deploy at the
front passenger seat is not occupied and when the
occupant classification sensor in the front passenger
seat senses a weight on the seat of less than 66
pounds (30 kg).

AC306325

AC306752

AC308893

AB

SECTION A - A

AIR BAG

INFLATOR

A

A

AIR BAG MODULE

AIR BAG

INFLATOR

SQUIB CONNECTOR

SQUIB CONNECTOR

CONSTRUCTION AND OPERATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

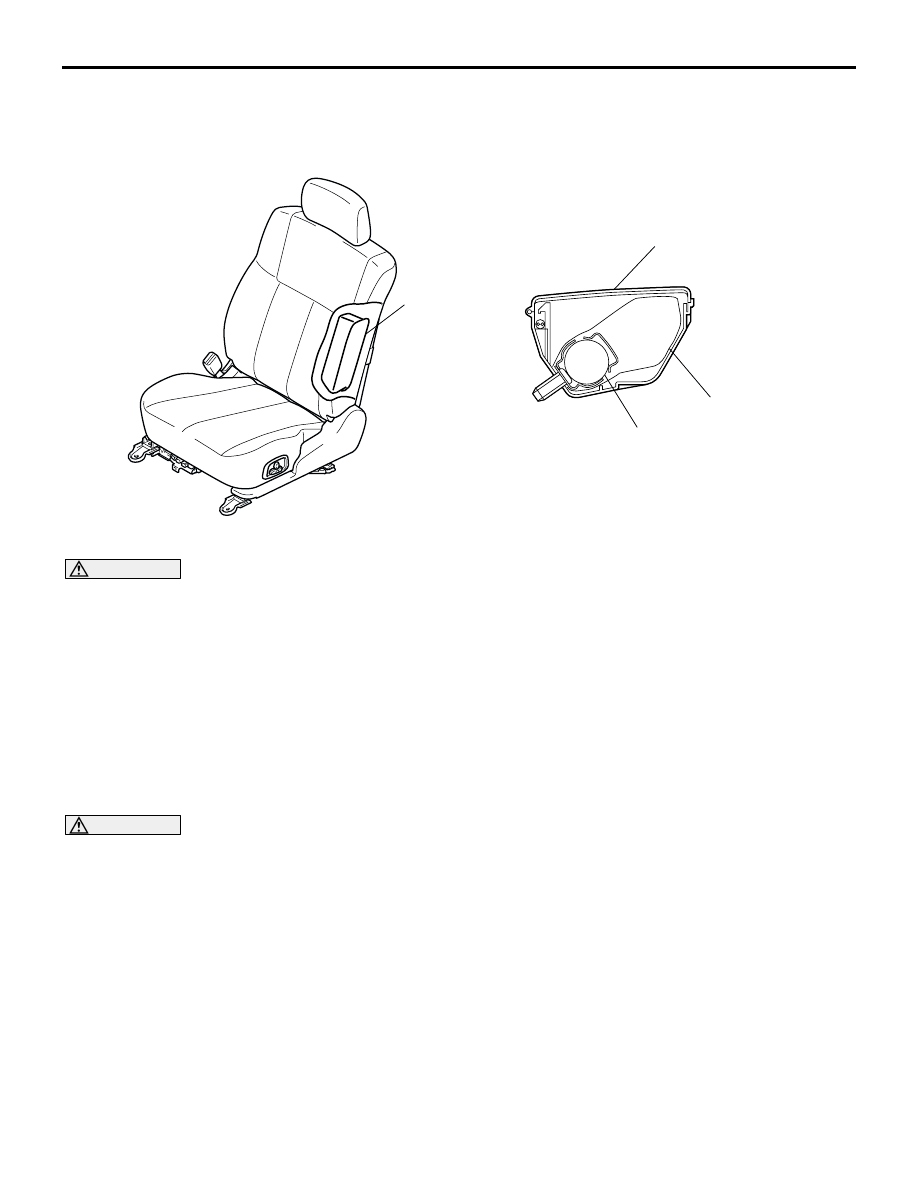

SIDE AIR BAG MODULE

M2521004000085

CAUTION

Improper services cause the sudden operation of
side air bag module or the system to be inopera-
tive.  Do not disassemble or tamper with the air
bag module to prevent the serious injury.
The side-airbag module consists of an air bag, air
bag cover, inflator and their fasteners. The modules
are installed in the outer side supports of the driver’s
and front passenger’s seatbacks. The side-airbags
help protect the occupants regardless of the seat
position and seatback angle.

The side-airbag are made of nylon fabric. The air
bags are compactly folded and stored under the
cover. On the side of the air bags, there are holes
through which gas is partially released to alleviate
shock to the occupant when the air bag is deployed.

CLOCK SPRING

M2521001100027

CAUTION

Improper services cause the system to be inop-
erative.  Do not disassemble or tamper with the
clock spring to prevent the serious injury.
The clock spring consists of a flat cable, rotator, sta-
tor, etc. While this clock spring is essentially the
same as before, it does not have a neutral position
indication mechanism. Therefore, the clock spring
centering procedures are different.

NOTE: For the clock spring centering procedures,
refer to the SERVICE MANUAL.

AC308431AB

AIR BAG MODULE

INFLATOR

AIR BAG

COVER
