Mitsubishi Galant (2004+). Manual - part 1730





SEAT

INTERIOR

52A-7

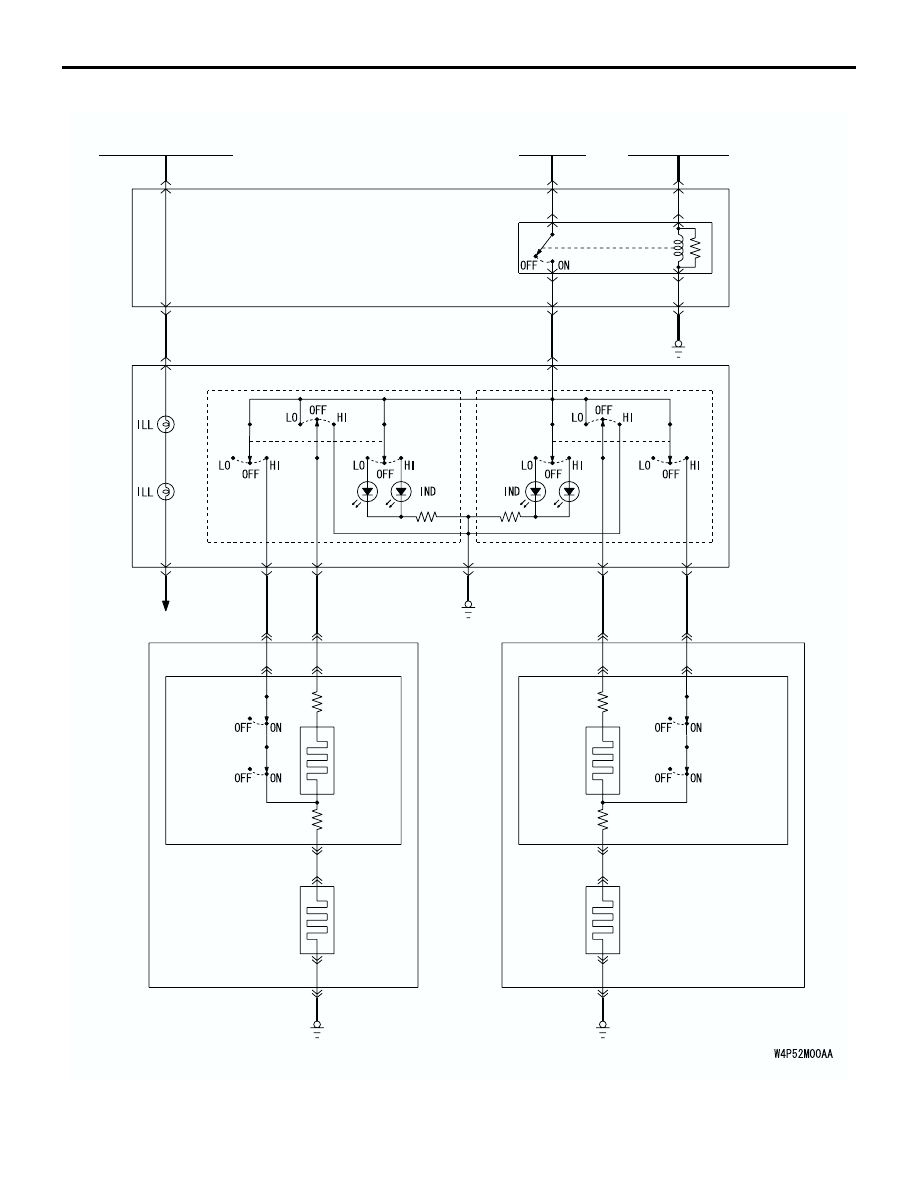

HEATED SEAT SYSTEM CIRCUIT DIAGRAM

BATTERY

(RH)

(LH)

FRONT-ECU
(TAILLIGHT RELAY)

IGNITION
SWITCH (IG2)

JUNCTION
BLOCK

HEATED
SEAT
RELAY

HEATED
SEAT
SWITCH

HEATED SEAT
ASSEMBLY
(RH)

HEATED SEAT
ASSEMBLY
(LH)

SEAT
BACK
HEATER

SEAT
BACK
HEATER

HEATER

HEATER

THERMOSTAT

THERMOSTAT

THERMOSTAT

THERMOSTAT

SEAT
CUSHION
HEATER

SEAT
CUSHION
HEATER

RHEOSTAT

AC306522

SEAT

INTERIOR

52A-8

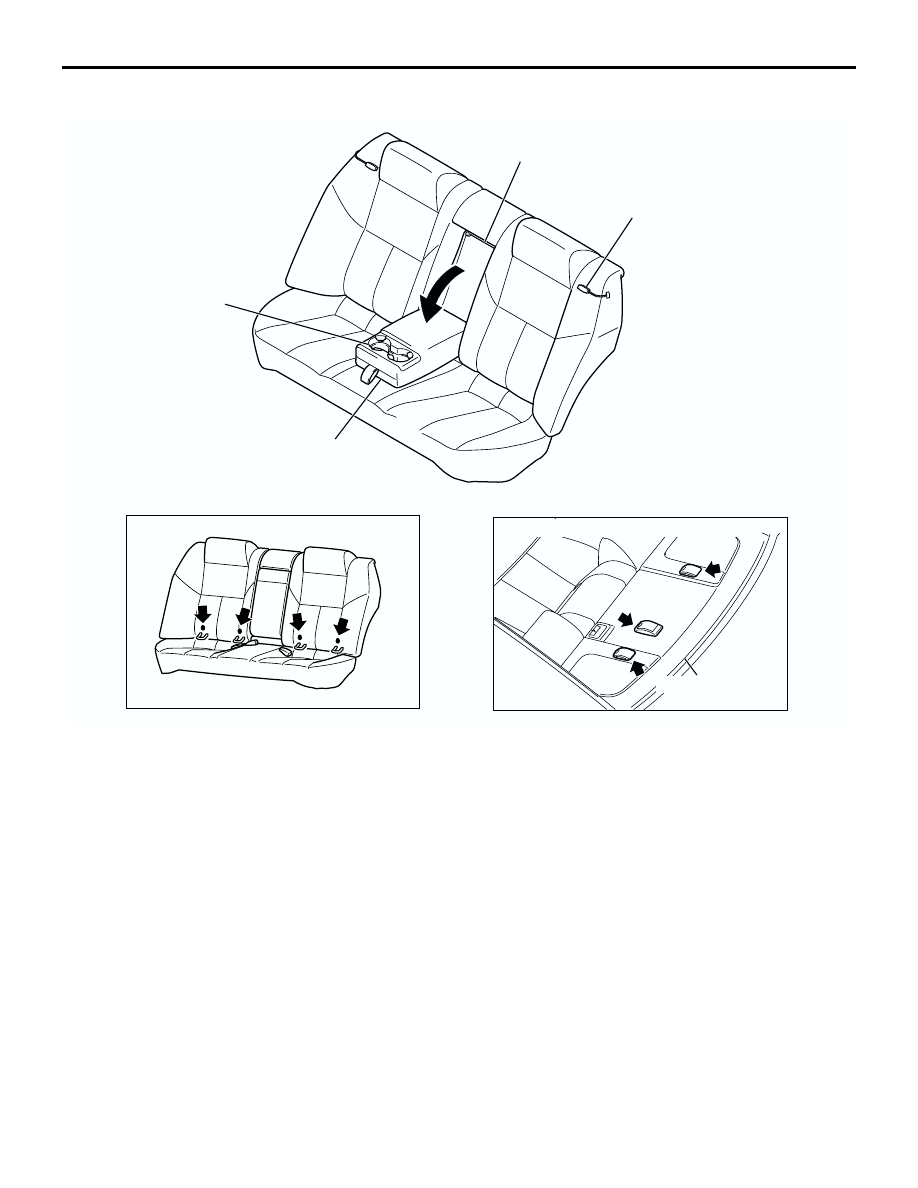

REAR SEAT

M2520007000177

The rear seats are configured in a bench seat. The
rear seats offer the following advantages.

Genuine leather is used for the seats for superior
quality. <Some models>

The center armrest has cup holders stored
inside.

Comfort guides have been installed so that the
seat belts better fit small passengers.

A trunk-through lid is provided.

Lower anchorage points and tether anchors are
installed for attachment of a child seat in compli-
ance with FMVSS225/CMVSS210 safety codes.
In the seat assembly, the lower anchorage points
are arranged between the seat back and seat
cushion for a more attractive appearance when
not in use. The tether anchor points are installed
at three positions on the inside of the rear shelf
trim.

AC306669

TRUNK THROUGH LID

CUP HOLDER

ARM REST

<LOWER ANCHORAGE FOR CHILD SEAT>

<TETHER ANCHOR FOR CHILD SEAT>

REAR SHELF TRIM

AB

COMFORT GUIDE

SEAT BELT

INTERIOR

52A-9

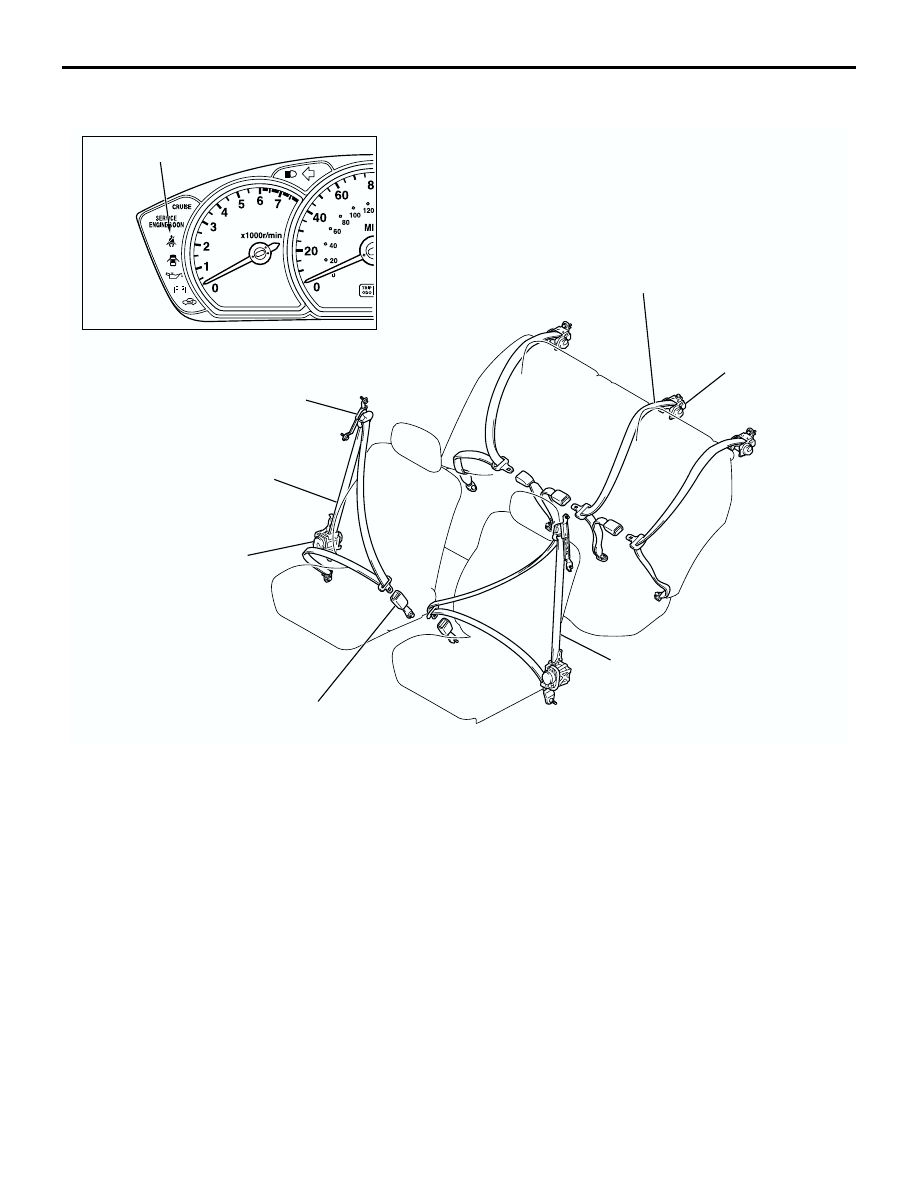

SEAT BELT

M2520010000188

<FRONT SEAT BELT>

One-touch push button style adjustable seat belt
anchors and seat-incorporated buckles ensure
optimum belt fitting and placement.

ELR three-point seat belt is used for the driver's
seat.

ELR three-point/child seat fixing mechanism
(ALR) switching seat belt is used for the passen-
ger's seat to improve safety.

Seat belt retractor has a pre-tensioner force lim-
iter.

The combination meter has a seat belt warning
lamp to prompt the driver to wear the seat belt.

<REAR SEAT BELT>

ELR three-point/child seat fixing mechanism
(ALR) seat belt is used improve safety.

AC306719

SEAT BELT WARNING LIGHT

ONE-TOUCH
PUSH BUTTON STYLE
ADJUSTABLE SEAT BELT
SHOULDER ANCHOR

ELR/AUTOMATIC LOCKING
RETRACTOR (ALR) SWITCHING
THREE-POINT SEAT BELT

SEAT BELT RETRACTOR
WITH A PRE-TENSIONER
AND FORCE LIMITER

SEAT-INCORPORATED BUCKLE

ELR THREE-POINT
SEAT BELT

ELR/AUTOMATIC LOCKING RETRACTOR
(ALR) SWITCHING THREE-POINT SEAT BELT

SEAT BELT
RETRACTOR

AB

SEAT BELT

INTERIOR

52A-10

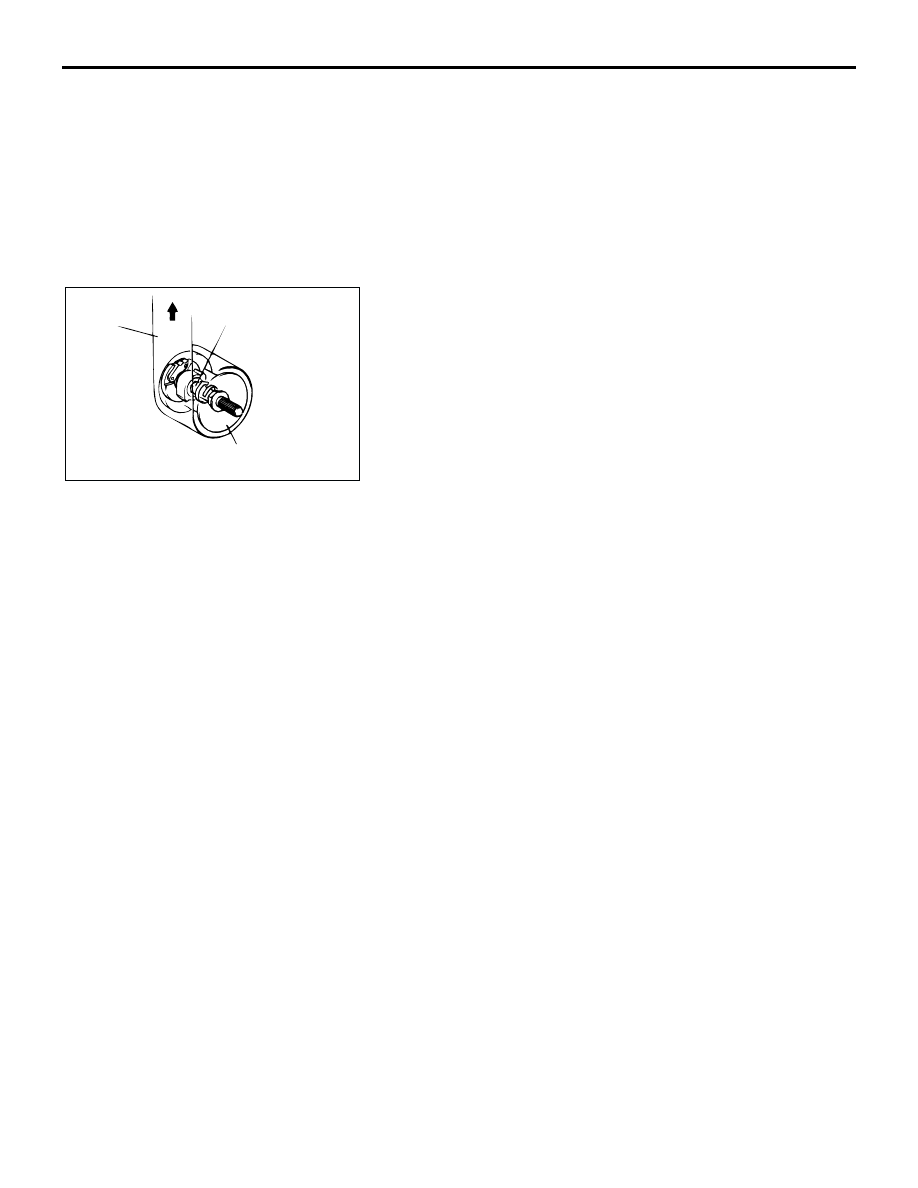

SEAT BELT RETRACTOR WITH FORCE
LIMITER

The driver’s/front passenger’s seat belt retractor has
been equipped with a force limiter. The force limiter
is a device which operates when a predetermined
force is applied, and limits the force.

.

OPERATION
1. If a collision energy is transmitted to the seat belt, the ELR

mechanism will operate to lock the seat belt.

2. Then, if the energy increases to a predetermined value, the

torsion bar will be distorted. As the spindle rotates together
with the torsion bar, the seat belt webbing is pulled out,
reducing the impact against the occupants.

AC100083

TORSION BAR

SPINDLE

BELT

AB
