Mitsubishi Galant (2004+). Manual - part 1721





DIAGNOSTIC SYSTEM

CHASSIS ELECTRICAL

54A-3

DIAGNOSTIC SYSTEM

M2540001000193

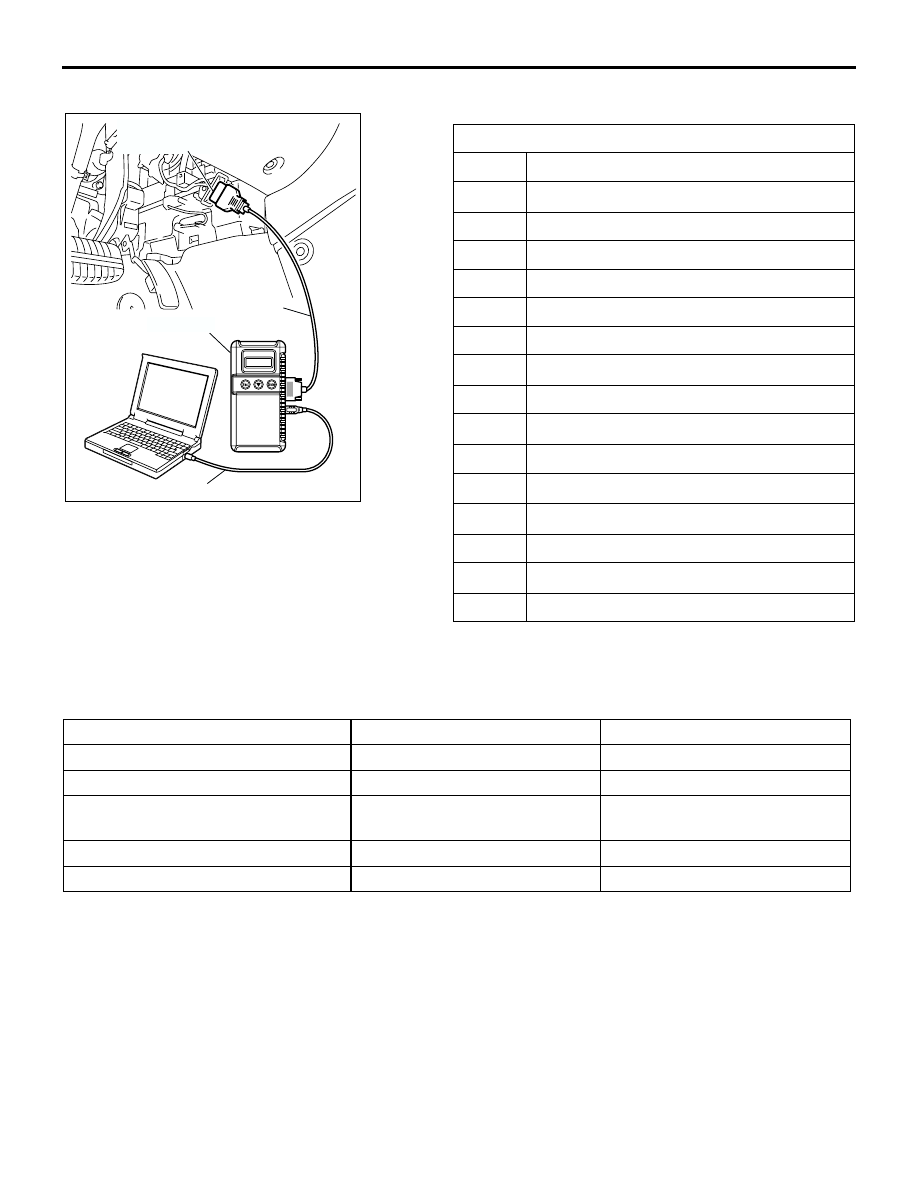

For improved serviceability, a data link connector for
inspection with MUT-III is built into the instrument
panel near the position of the driver's right foot.

NOTE:

.

*

: If a diagnosis code is sent for this function, the

display informs users whether a mechanical
problem currently exists ("current problem"), or
whether it previously existed ("past problem") but
normal operation has been restored.

x

: indicates that the diagnosis function is set.

: indicates that the diagnosis function is not set.

DIAGNOSIS FUNCTION PCM

ABS

A/C

ETACS

MULTI-CENTER
DISPLAY
(MIDDLE GRADE
TYPE)

COMBIN-ATION
METER

SRS

DTC code sent

×

×

×

×

×

×

×

Service data
sent

×

×

×

×

Actuator test

×

×

×

×

Diagnosis
record stored

×

×

×

×

×

×

×

Erase DTCs
using scan tool

×

×

×

×

×

×

×

Pulse check
using scan tool

×

Status display
for each DTC
code

*



×

×

×

×

×

Estimated
vehicle speed
sent

x (via CAN)

x (via CAN)

ECU version
number
displayed

x

x

BATTERY

CHASSIS ELECTRICAL

54A-4

DATA LINK CONNECTOR

BATTERY

M2540002000185

DATA LINK CONNECTOR (BLACK)

1

Diagnosis control

2

3

SWS communication line

4

Ground

5

Ground

6

CAN communication line (CAN_H)

7

PCM

8

9

ETACS

10

11

ECU optimization control

12

13

14

CAN communication line (CAN_L)

15

16

Battery power supply

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

Item

BCI Group size 86

BCI Group size 24

Voltage V

12

12

Capacity (5-hour rate Ah)

50

56

Electrolytic fluid specific gravity [fully
charged state at 20

°

C (68

°

F)]

1.280

1.280

Reserve capacity min

90

115

Cold cranking current A (at

18

°

C)

525

550

IMMOBILIZER SYSTEM

CHASSIS ELECTRICAL

54A-5

IMMOBILIZER SYSTEM

M2540003000111

The engine immobilizer system prevents the engine
from starting and immobilizes the vehicle if a key
other than the key registered for that vehicle is used
in an attempt to start the engine after forced entry.
The engine immobilizer system consists of the igni-
tion key, the immobilizer-ECU, and the powertrain
control module. It works in the following way and has
these functions:

1. After the ignition is switched on, the powertrain

control module sends a control signal and tran-
sponder read command signal to the immobi-
lizer-ECU.

2. When the immobilizer-ECU receives the control

signal from the powertrain control module,
through the key ring antenna the immobi-
lizer-ECU supplies a current and sends random
number data to the transponder in the ignition
key.

3. The transponder uses the random number data

to derive an ID code, which is sent to the immobi-
lizer-ECU through the key ring antenna.

4. The immobilizer-ECU compares the ID code that

was sent with pre-registered ID codes, and if it
matches, a control signal approving ignition is
sent to the powertrain control module. If the ID
code does not match (in the case of counterfeit
ignition keys, for example), the immobilizer-ECU
sends a control signal denying ignition to the
powertrain control module, preventing the engine
from starting.

5. The system is designed to be maintenance-free

because the power source for the transponder is
supplied by the immobilizer-ECU. Two ignition
keys are provided, and up to eight keys can be
registered to one vehicle (one receiver) as
needed. There are 4 billion possible combina-
tions for the registered ID codes. In addition, one
part of the code is changed each time the key is
switched on, which improves security by prevent-
ing theft using a copied ID code.

NOTE: If the immobilizer-ECU is replaced or if the
ignition key is lost, the MUT-III must be used to reset
all transponder ID codes. During the resetting pro-
cess, all transponders must be re-registered
because the registered ID codes will be erased.

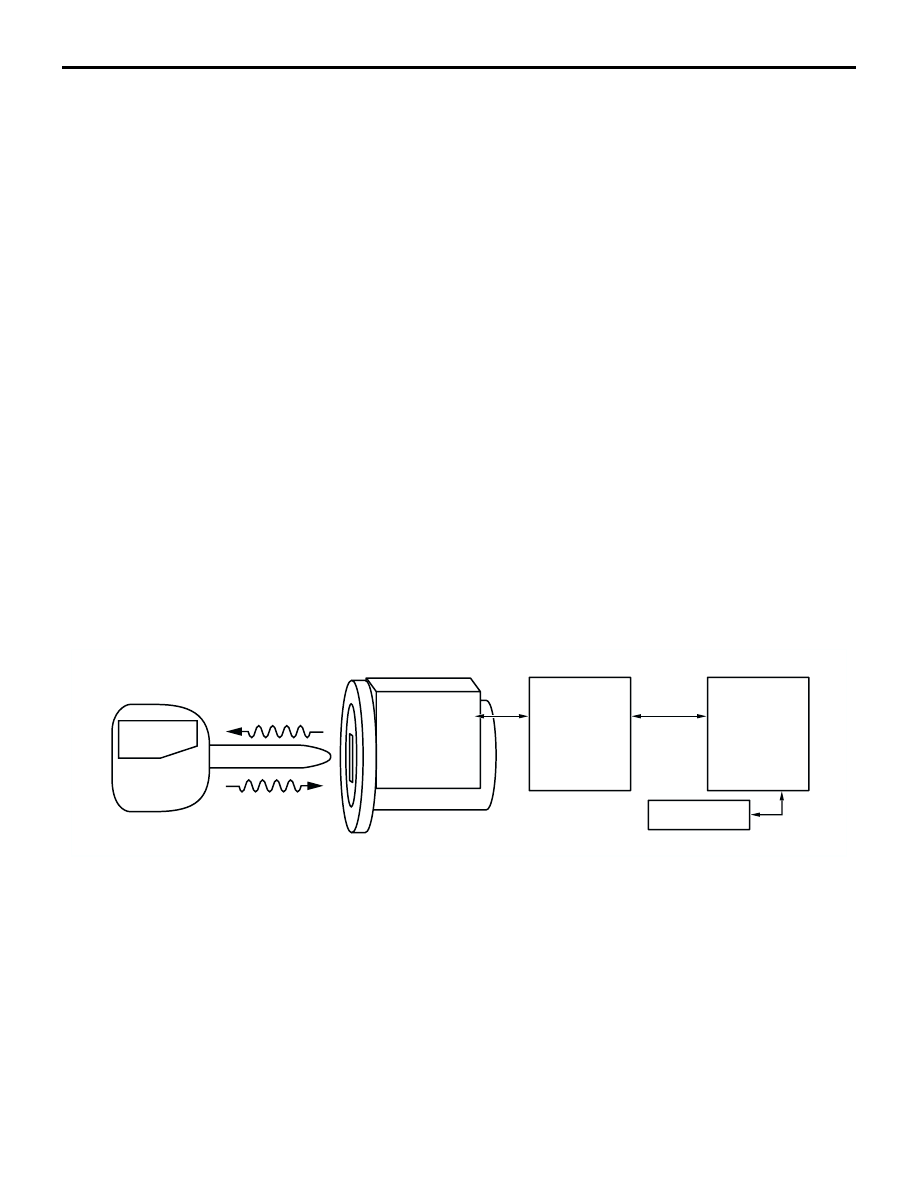

CONSTRUCTION DIAGRAM

AC306415AB

TRANS-
PONDER

POWER
(WIRELESS)

ENCRYPTED
CODE (WIRELESS)

MUT-III

POWERTRAIN
CONTROL
MODULE

CONTROL
SIGNAL

IGNITION
KEY RING
ANTENNA

IMMOBILIZER-
ECU

LIGHTING

CHASSIS ELECTRICAL

54A-6

LIGHTING

M2540004000277

EXTERIOR LIGHTS

HEADLIGHT ASSEMBLY <Except for GTS>

Two large headlight assemblies have been
adopted each of which houses a front turn-signal
and parking light, a front-side-maker light, and a
front-side reflex reflector.

Double filament bulbs, multi-reflectors, and uncut
outer lenses have been adopted for improved
appearance. Also, the shapes of the multi-reflec-
tors have been optimised to provide a wide distri-
bution of light, thereby improving visibility for
improved safety.

 Honeycomb cut lenses have been adopted for
the inner lenses of the front turn-signal and park-
ing lights and of front side-marker lights, to
improve the appearance.

Chrome color deposition extensions have been
adopted for improved appearance.

HEADLIGHT ASSEMBLY <GTS>

Four large headlight assemblies have been
adopted which house a front turn-signal and
parking light, a front-side-maker light, and a
front-side reflex reflector.

Oval projectors have been adopted as the low
beam lights for a wide distribution of light, thereby
improving visibility for improved safety.
Multi-reflectors have been adopted for the high
beam lights, and uncut lenses for the outer
lenses for improved appearance.

Honeycomb cut lenses have been adopted for
the inner lenses of the front turn-signal and park-
ing lights in order to improve the appearance.

Dark color deposition extensions have been
adopted for improved appearance.

FOG LIGHT <GTS>

The fog lights have non-faceted lenses and
multi-reflectors.

REAR COMBINATION LIGHT <Except for GTS>

For the rear lights, combination lights have been
adopted each of which is made up of a turn signal
light, a tail/stoplight, a backup light, a reflex
reflector, and a side-maker light.

A red housing is used for a more appealing look.

A combination of red-stripe lens cuts and
multi-reflectors has achieved a high-quality atmo-
sphere.

Striped lenses with aluminum-finished
multi-reflectors increase brightness and visibility.

REAR COMBINATION LIGHT <GTS>

For the rear lights, combination lights have been
adopted each of which is made up of a turn signal
light, a tail/stoplight, a backup light, a reflex
reflector, and a side-maker light.

Clear outer lenses and dark color deposition
extensions combined with the rear spoiler for
integrity appearance have been adopted for
improved exterior appearance.

The oval shape of the light emitting portion pro-
vides the appearance of oneness with the rest of
the headlight assemblies.

Striped lenses with aluminum-finished
multi-reflectors increase brightness and visibility.

HIGH-MOUNTED STOPLIGHT <Except for GTS>

A high-mounted stoplight of a one-bulb type has
been adopted. Also, the location of the
high-mounted stoplight, the rear end of the trunk
lid, gives a sporty appearance.

Cut lens which well fits the rear combination
lights have been adopted for improved appear-
ance.

HIGH-MOUNTED STOPLIGHT <GTS>

The adopted high-mounted stoplight of a
high-intensity LED-type is small but has an ample
amount of light, which contributes to high visibility
and improved safety.

Uncut clear lenses appearing to have depth have
been built into the rear spoiler for improved
appearance.

.
