AIR INTAKE SYSTEM

INTAKE AND EXHAUST

15-3

INTAKE MANIFOLD

M2150005000068

<2.4L ENGINE>

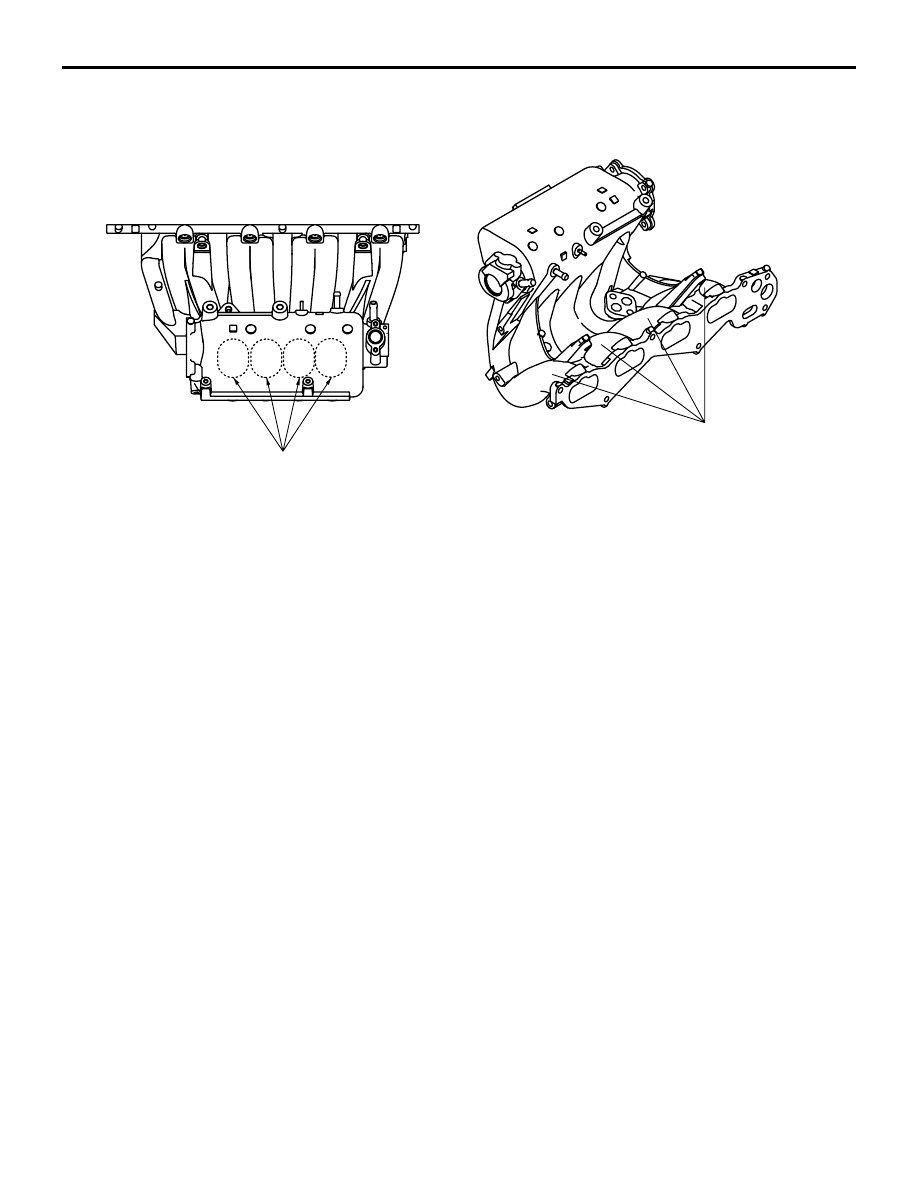

The intake manifold is designed to improve the low,
middle and high torque by optimizing the port diame-
ter and length. A port opening with an optimized bell
mouth shape and improved the inside roughness of
the port reduces airfloe resistance.

AK302279AC

BELL MOUTH SHAPE

INTAKE PORT

AIR INTAKE SYSTEM

INTAKE AND EXHAUST

15-4

<3.8L ENGINE>

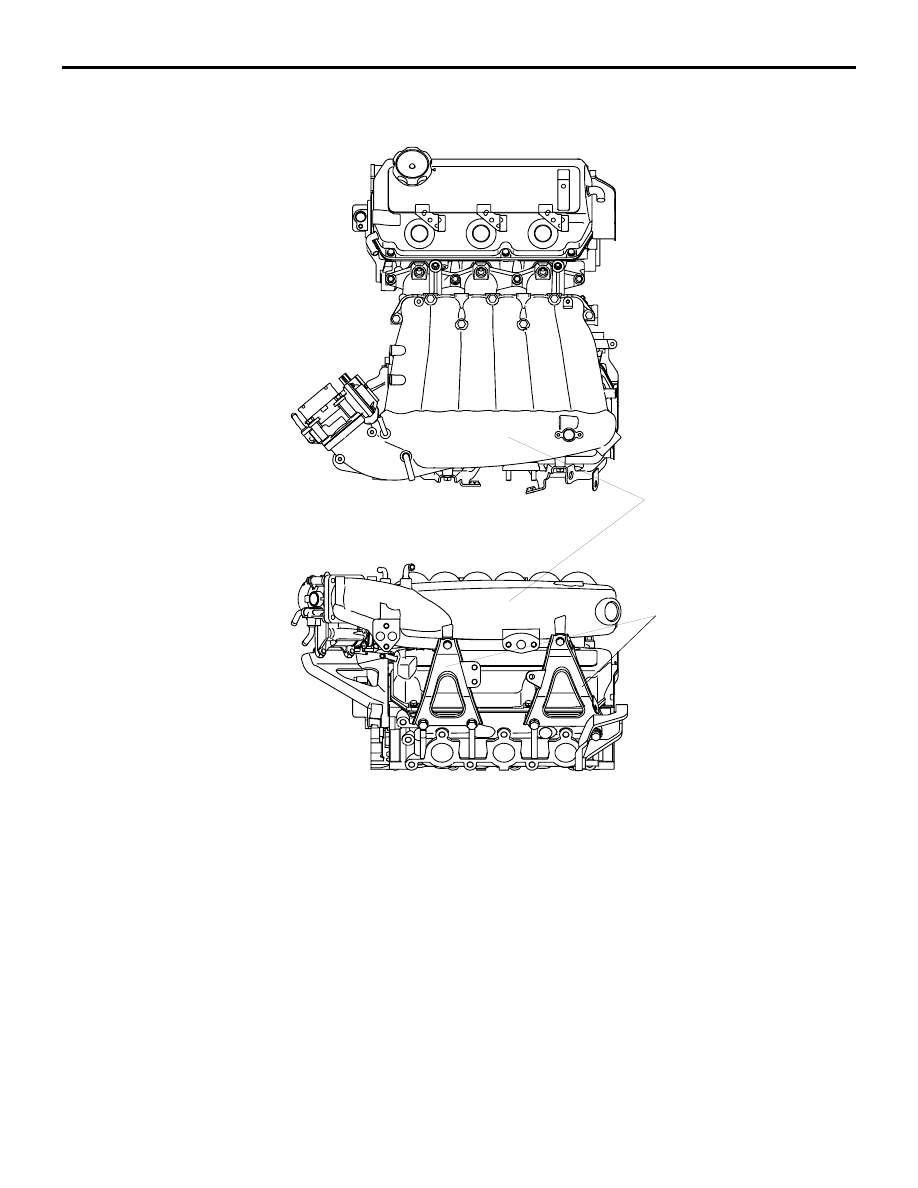

Air intake plenum is adopted for weight reduction.

AK302430AB

AIR INTAKE PLENUM

AIR INTAKE
PLENUM STAY

EXHAUST SYSTEM

INTAKE AND EXHAUST

15-5

EXHAUST SYSTEM

EXHAUST PIPE AND MUFFLER

M2150003000095

The exhaust system is composed of the front
exhaust pipe, center exhaust pipe, and main muffler,
and it has the following characteristics.

•

Fewer, more environmentally-friendly rubber
hangers to reduce vibration from exhaust system.

•

Straighter exhaust pipe to reduce noise.

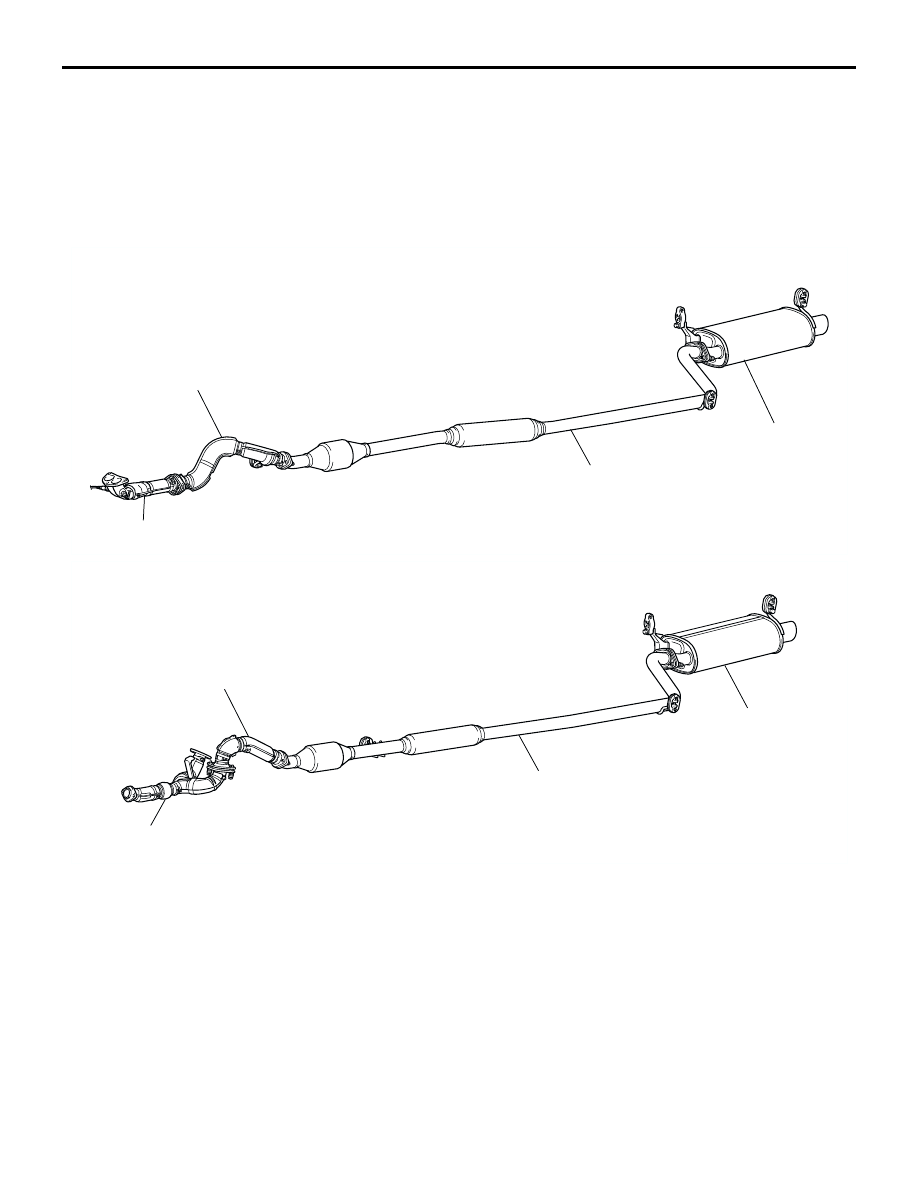

CONSTRUCTION DIAGRAM

AC305863

FRONT NO.1 EXHAUST PIPE

FRONT NO.2 EXHAUST PIPE

CENTER EXHAUST PIPE

MAIN MUFFLER

AB

<2.4L ENGINE>

AC305864

FRONT NO.1 EXHAUST PIPE

FRONT NO.2 EXHAUST PIPE

CENTER EXHAUST PIPE

MAIN MUFFLER

AB

<3.8L ENGINE>

EXHAUST SYSTEM

INTAKE AND EXHAUST

15-6

EXHAUST MANIFOLD

M2150006000135

<2.4L ENGINE>

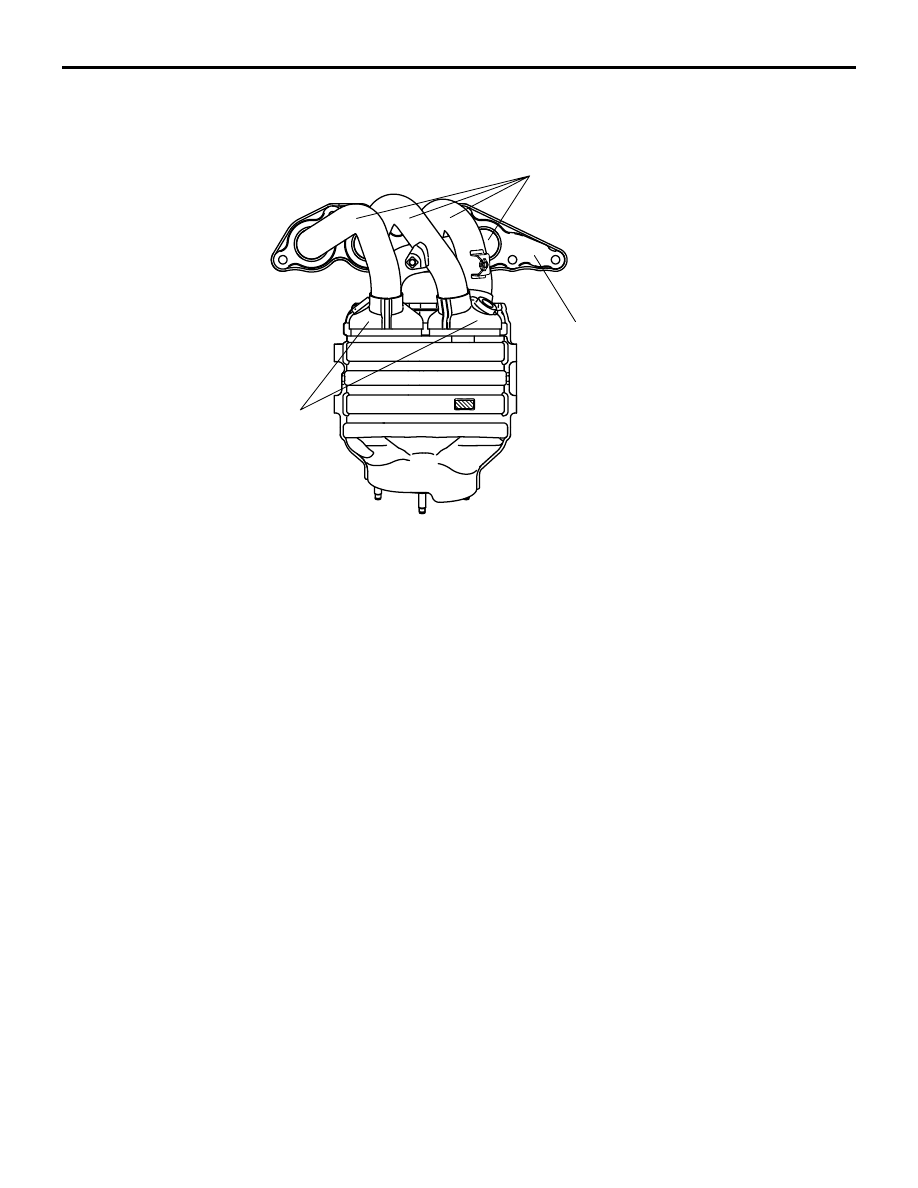

The exhaust manifold is design to reduce the heat
capacity and to improve exhaust gas performance by
preventing exhaust interference through dual pip-
ing.The improvement of the exhaust gas perfor-
mance just after engine start is designed through the
quicker warm-up in the catalyst by installing manifold
catalytic converter (MCC) on the dual portion.

The flange plate thickness is reduced for lighter
weight.

AK300854 AC

DUAL
MANIFOLD
CATALYTIC
CONVERTER
(MCC)

THIN FLANGE

PIPES
