WINDSHIELD WIPER AND WASHER

EXTERIOR

51-5

WINDSHIELD WIPER AND WASHER

M2510007000239

.

WIPER LINK ASSEMBLY
A modular wiper link assembly increases durability of
the wiper link area, provides smoother wiper opera-
tions and quieter wiper operations.

.

INTERMITTENT WIPER
The intermittent wiper features a vehicle speed sen-
sitive intermittent time variable system. The vehicle
speed sensitive intermittent function can be turned
OFF. It is factory preset (default setting) to ON.
NOTE: Refer to GROUP 54B, Simplified Wiring Sys-
tem

P.54B-10

 to change the functions.

.

MIST WIPER FUNCTION
Features a mist wiper function that rigorously wipes
away rain with high speed wiping when the mist
switch is ON, slows down when the mist switch is
OFF and operates until stopped. When the mist
switch is temporarily turned ON, the wiper wipes
once at low speed.

.

WASHER NOZZLE
The windshield washers have two nozzles for two
spray jets. The washers also feature a washer-inter-
locked wiper function.

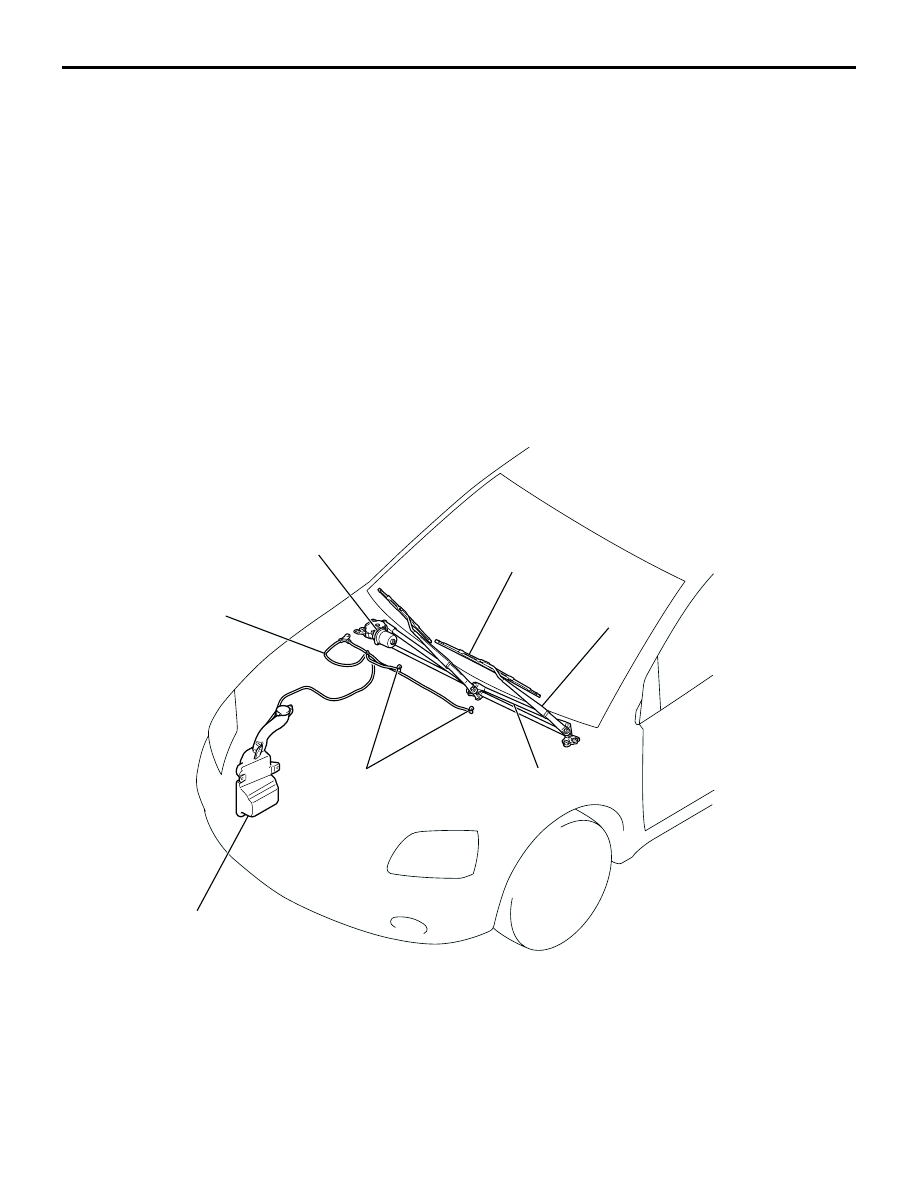

CONSTRUCTION DIAGRAM

AC305762

WASHER NOZZLE

WASHER HOSE

WIPER MOTOR

WIPER ARM

WIPER BLADE

WIPER LINK ASSEMBLY

AB

WASHER TANK

DOOR MIRRORS

EXTERIOR

51-6

DOOR MIRRORS

M2510008100110

The door mirror has the following characteristics:

Electric remote controlled door mirrors are used.

Features a heated door mirror (works with the
defogger).

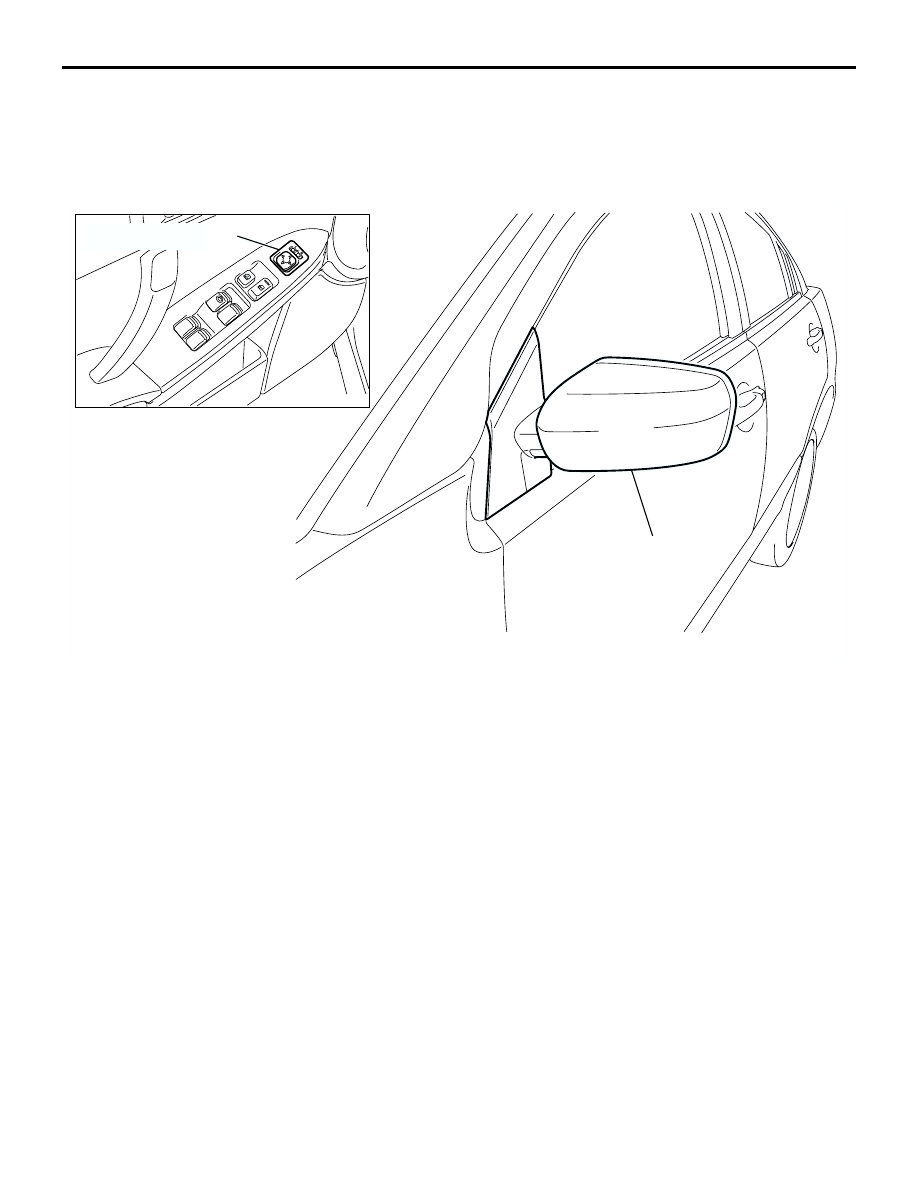

CONSTRUCTION DIAGRAM

LOCK

AC305500

AC306308

MIRROR ASSEMBLY

AB

REMOTE CONTROLLED
MIRROR SWITCH

14-1

GROUP 14

ENGINE COOLING

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

14-2

GENERAL DESCRIPTION

ENGINE COOLING

14-2

GENERAL DESCRIPTION

M2140000100199

The cooling system is a water-cooled pressurized,
forced circulation type which offers the following fea-
tures.

To stabilize engine coolant temperature, the ther-
mostat is located at the coolant inlet port from the
radiator.

To improve engine cooling performance and save
weight, a plastic tank and aluminum radiator fins
are used.

PremAir

â* direct ozone  reduction (DOR) radia-

tor has been adopted to protect the environment.
A catalyst which reduces ozone (O

3

) in the ambi-

ent air has been applied to the radiator core.
<Vehicle for California emission regulation>
NOTE: *: PremAir is a registered trademark of
Engelhard Corporation.

SPECIFICATIONS

NOTE: *: Vehicles for  California emission regulation

ITEM

SPECIFICATION

Cooling method

Water-cooled pressurized, forced
circulation with electrical fan

Radiator

Type

Pressurized corrugate type

Performance kJ/h
(kcal/h)

2.4L

184,320 (44,032)
204,840 (48,934)*

3.8L

198,720 (47,472)

Water pump

Type

Centrifugal impeller

Drive method

Drive belt

Thermostat

Type

Wax pellet with jiggle valve

Valve open
temperature

°

C (

°

F)

2.4L

82 (180)

3.4L

88 (190)

Built-in transmission fluid cooler Performance kJ/h (kcal/h)

7,524 (1,797)
