27-1

GROUP 27

REAR AXLE

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

27-2

GENERAL DESCRIPTION

REAR AXLE

27-2

GENERAL DESCRIPTION

M2270000100069

The rear axle has the following features:

The wheel bearing incorporates a unit ball bear-
ing (double-row angular contact ball bearing) for
reduced friction.

The rear wheel hub assembly combines the hub,
wheel bearing, housing, and oil seal in a single
unit for fewer parts, better durability, improved
assembly precision, and better structural organi-
zation.

ABS rotor for detecting the wheel speeds is
press-fitted to the rear hub in vehicles with ABS.

SPECIFICATIONS

NOTE: The wheel bearing is part of the hub, there-
fore its size is not listed here.

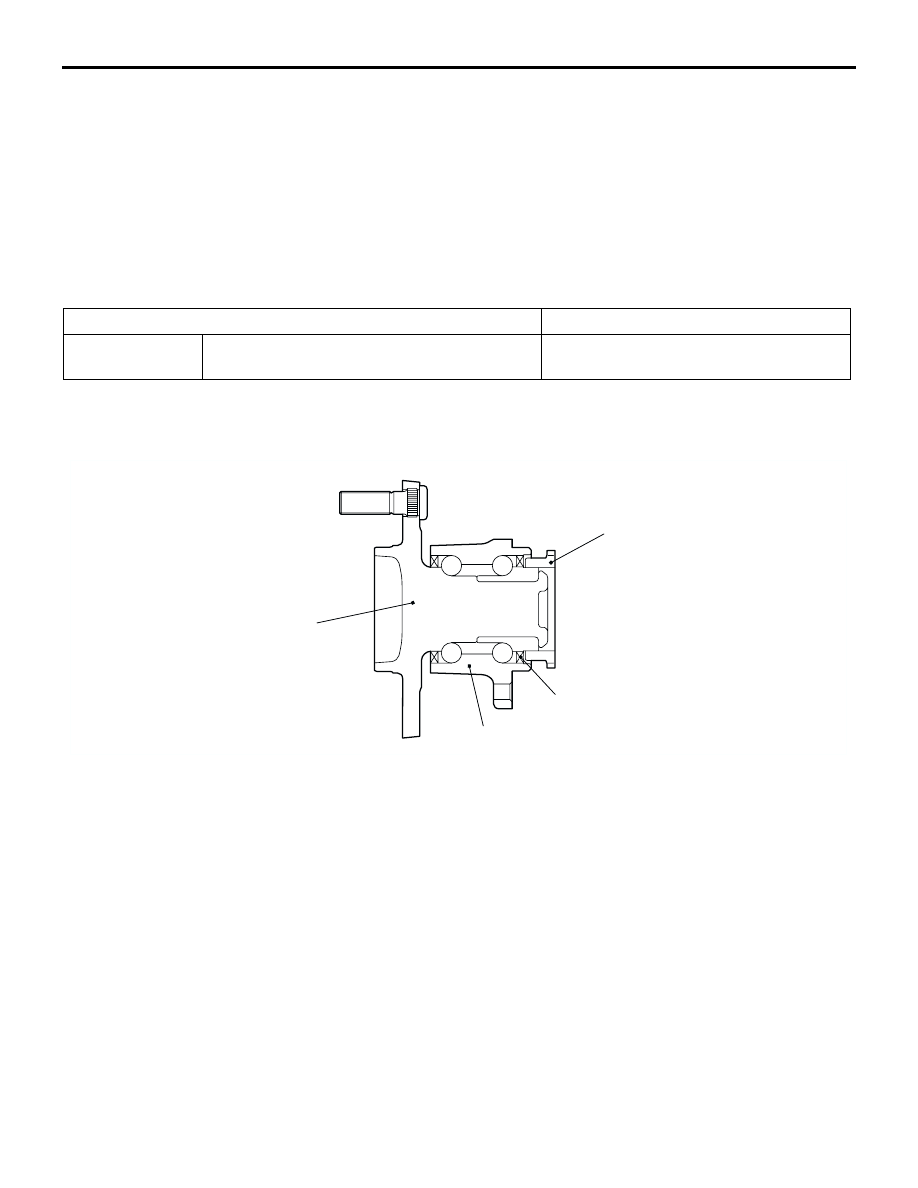

CONSTRUCTION DIAGRAM

ITEM

SPECIFICATION

Wheel bearing

Type

Unit ball bearing (Double-row angular
contact ball bearing)

AC305169 AB

REAR HUB

OIL SEAL

WHEEL BEARING

ABS ROTOR

23-1

GROUP 23

AUTOMATIC

TRANSAXLE

CONTENTS

AUTOMATIC TRANSAXLE . . . . . . . .

23-2

GENERAL DESCRIPTION . . . . . . . . . . . . .

23-2

ELECTRONIC CONTROL SYSTEM. . . . . .

23-3

CONTROLLER AREA NETWORK (CAN)
COMMUNICATION . . . . . . . . . . . . . . . . . . .

23-3

EEPROM. . . . . . . . . . . . . . . . . . . . . . . . . . .

23-3

CONTROL UNIT . . . . . . . . . . . . . . . . . . . . .

23-3

SHIFT PATTERN CONTROL . . . . . . . . . . .

23-4

DIAGNOSTIC FUNCTION. . . . . . . . . . . . . .

23-6

TRANSMISSION FLUID COOLER . . . . . . .

23-7

TRANSAXLE CONTROL . . . . . . . . . .

23-9

GENERAL DESCRIPTION  . . . . . . . . . . . . .

23-9

A/T ERRONEOUS OPERATION PREVENTION
MECHANISMS  . . . . . . . . . . . . . . . . . . . . . .

23-9

AUTOMATIC TRANSAXLE

AUTOMATIC TRANSAXLE

23-2

AUTOMATIC TRANSAXLE

GENERAL DESCRIPTION

M2230000100269

For the automatic transaxle, F4A4B and F4A5A
models are used. On the F4A5A transaxle, the con-
ventional transmission fluid cooler (fluid-cooled and
air-cooled) is used to improve transmission fluid
cooling performance. On the F4A4B transaxle, a
newly developed ATF warmer (transmission fluid
cooler) is used.

SPECIFICATIONS

ITEMS

SPECIFICATION

Transaxle model

F4A4B-4-L1Z

F4A5A-4-F2Z

Engine model

4G69-MPI-MIVEC

6G75-MPI

Torque converter

Type

3-element, 1-stage, 2-phase type

Lock-up

Provided

Stall torque ratio

2.0

1.7

Transaxle type

4 forward speeds, 1 reverse speed, fully automatic

Transaxle gear ratio

1st

2.842

2.842

2nd

1.573

1.576

3rd

1.000

1.000

4th

0.688

0.686

Reverse

2.214

2.193

Final reduction ratio (Differential gear ratio) 4.212

3.728

Clutch

Multi-disc type 3 sets

Brake

Multi-disc type 2 sets

Manual control system

P-R-N-D-3-2-L (7 positions)

P-R-N-D (4 position) + Sport
mode (up, down)

Shift pattern control

Electronic control

Hydraulic control during shifting

Electronic control (Each clutch hydraulically independently
controlled)

Torque converter clutch control

Electronic control

Transmission fluid

Specified lubricants

DIAMOND ATF SP III

Quantity dm

3

 (qt)

7.7 (8.1)

8.4 (8.9)
