26-1

GROUP 26

FRONT AXLE

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

26-2

GENERAL DESCRIPTION

FRONT AXLE

26-2

GENERAL DESCRIPTION

M2260000100217

The front axle consists of front hub unit bearings,
knuckles and driveshafts, and it has the following
features:

•

The wheel bearing incorporates double-row
angular contact ball bearing <2.4L>,  a unit ball
bearing (double-row angular contact ball bearing)
<3.8L>for reduced friction.

•

The front wheel hub assembly combines the hub,
wheel bearing, housing, and oil seal in a single
unit for fewer parts, better durability, improved
assembly precision, and better structural organi-
zation. <3.8L>

•

The driveshaft incorporates BJ-TJ type constant
velocity joints <2.4L> and BJ-PTJ type constant
velocity joints <3.8L> with high transmission effi-
ciency for low vibration and noise.

•

Due to the use of the inner shaft and bracket
assembly, the right and left drive shafts are
approximately the same in length. This reduces
noise, vibration and torque steer.<3.8L-RH>

•

The dynamic damper is mounted on the LH
driveshaft <2.4L, 3.8L> and on the RH driveshaft
<2.4L>  to reduce differential gear noise.

•

ABS rotor for detecting the wheel speed is
press-fitted to the BJ.

NOTE:

.

•

TJ: Tripod Joint

•

PTJ: Pillow Tripod Joint

•

BJ: Birfield Joint

SPECIFICATIONS

NOTE: The wheel bearing for 3.8L is part of the hub,
therefore its size is not listed here.

ITEM

2.4L

3.8L

Wheel bearing Type

Double-row angular
contact ball bearing

Unit ball bearing
(Double-row angular
contact ball bearing)

Bearing (OD

×

 ID)  mm (in)

84

×

 40 (3.3

×

 1.6)

−

Driveshaft

Joint type

Outer

BJ

BJ

Inner

TJ

PTJ

Length (joint to joint)
mm (in)

Left

420 (16.5)

403 (15.9)

Right

742 (29.2)

415 (16.3)

GENERAL DESCRIPTION

FRONT AXLE

26-3

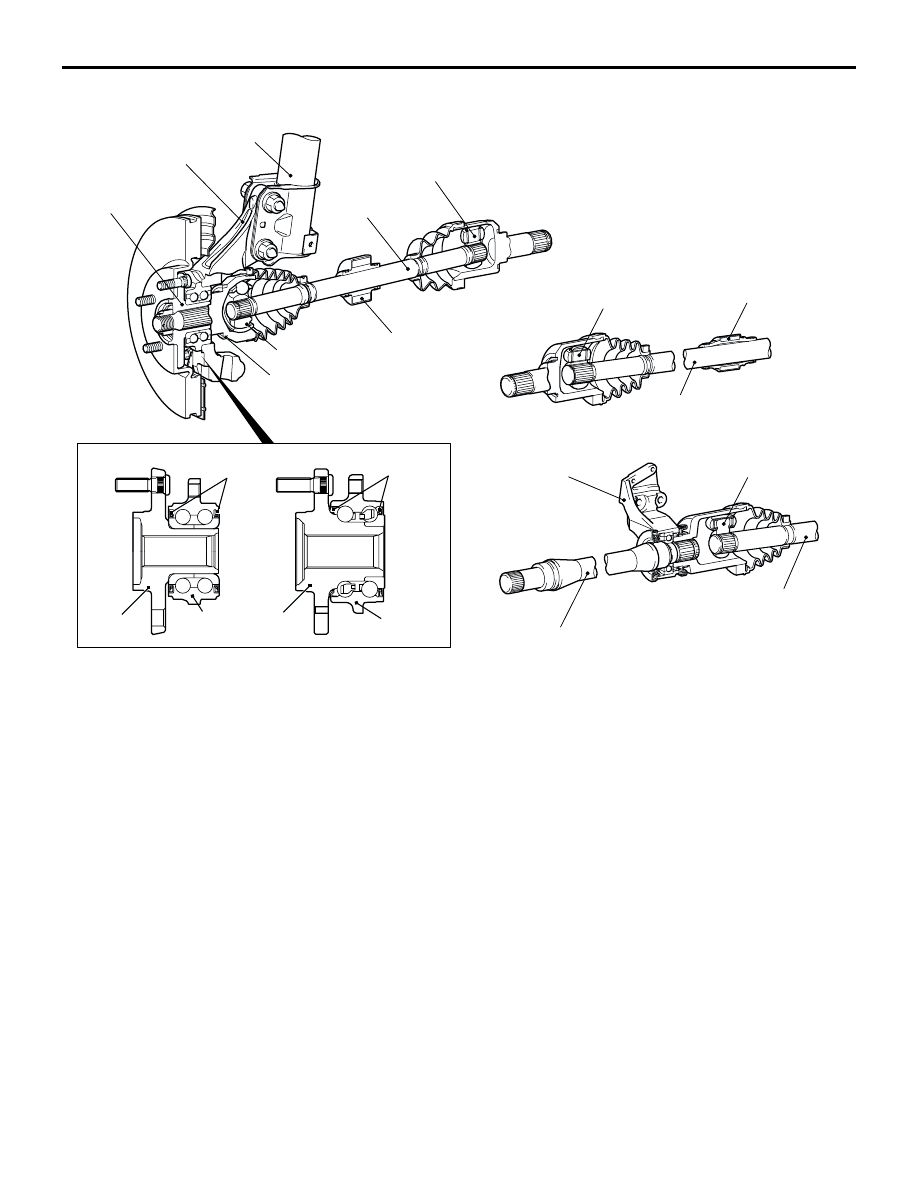

CONSTRUCTION DIAGRAM

AC305535

FRONT WHEEL
HUB ASSEMBLY

KNUCKLE

STRUT ASSEMBLY

TJ (LH) <2.4L>
PTJ (LH) <3.8L>

DRIVE SHAFT
(LH)

BJ

BRACKET
ASSEMBLY

DRIVE SHAFT (RH)

PTJ (RH)

INNER SHAFT

ABS ROTOR

DYNAMIC
DAMPER

<3.8L-RH>

<2.4L-RH>

WHEEL
BEARING

OIL
SEAL

HUB

<2.4L>

<3.8L>

WHEEL
BEARING

OIL
SEAL

HUB

AB

TJ (RH)

DYNAMIC DAMPER

DRIVE SHAFT (RH)
