ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-27

Door ajar indicator
The combination meter receives the signal sent from the
ETACS-ECU about whether each door is open or closed and
turns the door ajar indicator on and off. While the door ajar indi-
cator is illuminated, the door ajar warning function is activated
and the door ajar indicator flashes 4 times. If the door remains
open even after the 4 warning flashes, the door ajar indicator
will be illuminated again. And when the interior light auto-
matic-shutoff function is activated, the door ajar indicator is
extinguished.

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-28

CONFIGURATION FUNCTION

.

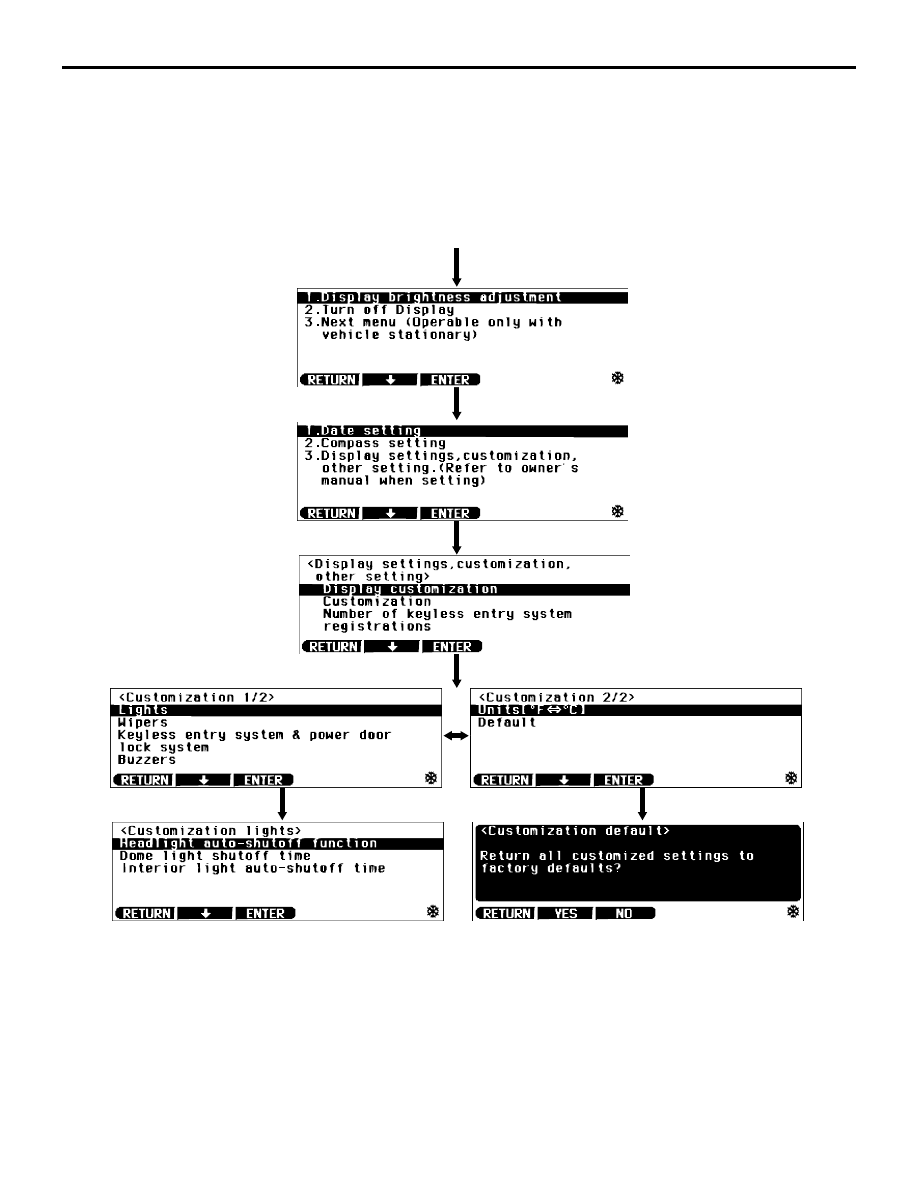

Adjustment by operating the multi center display <vehicles with multi center display (middle grade
type>
The following function and system customizations
are possible by using the multi center display.

AC207102 AB

KEEP PRESSING THE "DISP" BUTTON WHILE THE CENTER DISPLAY OPERATES.

SELECT "3. Next menu".

SELECT "3. Display settings".

SELECT "Customization".

SELECT ANY ITEM YOU
WANT TO CUSTOMIZE.

SELECT "Default" WHEN
INITIALIZING ALL FUNCTIONS.

SELECT ANY FUNCTION YOU WANT TO CUSTOMIZE.

INITIALIZE ALL FUNCTIONS TO THE ORIGINAL
FACTORY SETTINGS.

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-29

ITEM (Display of multi center display)

ADJUSTMENT DETAILS

Lights

Headlight auto-cutout function

The headlight automatic shutoff function can
be set in the following ways.

a. Auto-cutout only when the ignition is turned

OFF while lights are on (default)

b. Auto-cutout when ignition is turned OFF at

any time

c. No auto-cutout

Dome light cutout time

The interior dimmer delay period can be set in
the following ways.

a. 0 second
b. 15 seconds
c. 30 seconds (default)
d. 60 seconds
e. 120 seconds
f. 180 seconds

Interior light auto-cutout time

The period before the interior illumination is
turned off automatically can be set in the
following ways.

a. 3 minutes
b. 30 minutes (default)
c. 60 minutes
d. No auto-cutout

Wipers

Windshield wiper speed-sensitive
operation

The speed-sensitive wiper function can be
activated or deactivated. (ON by default)

Rear wiper intermittent interval

*

−

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-30

NOTE: The item of the rear wiper is shown on the
display, but the rear wiper can not be customized
because it is not equipped on GALANT.

Keyless entry and
power door lock
system

Keyless entry system confirmation
by horn

The horn answerback honking conditions can
be set in the following ways.

a. Horn sounds
b. Horn sounds if doors are already locked

(default)

c. Horn does not sound

Keyless entry system confirmation
by turn signal lights

The hazard answerback flashing conditions
can be set in the following ways.

a. Locking and unlocking (default)
b. Locking only
c. Unlocking only
d. No indication

Time until automatic relocking after
unlock operation using keyless
entry system

The timed lock period after unlocking with the
keyless entry transmitter can be set in the
following ways.

a. 30 seconds (default)
b. 60 seconds
c. 120 seconds
d. 180 seconds

Unlock operation using keyless
entry system or door key

The unlocking operations after unlocking with
or without a key can be set in the following
ways.

a. Unlock driver's door on first unlock

operation, and unlock all doors on second
unlock operation (default)

b. Unlock all doors on first unlock operation

Buzzers

Turn signal buzzer

The turn-signal buzzer function can be
activated or deactivated. (OFF by default)

Door-ajar warning buzzer

The door ajar warning buzzer function can be
activated or deactivated (ON by default).

Default

Initialization of above mentioned functions

ITEM (Display of multi center display)

ADJUSTMENT DETAILS
