Mitsubishi Galant (2004+). Manual - part 1678





GENERAL DESCRIPTION

ENGINE <2.4L ENGINE>

11A-2

GENERAL DESCRIPTION

M2112000100341

The 4G69-SOHC-MIVEC engine employs the new
Mitsubishi Innovative Valve timing & lifting Electronic
Control system (MIVEC). The following are main
design changes.

The cylinder head is designed to reexamine the
port profile and to improve the coolant flow.

The rocker cover is designed to reduce noise by
using aluminum die-casting.

The cylinder block is designed to be lightweight.

The piston diameter is larger and has molybde-
num coating.

The connecting rod is designed to be lightweight.

The crankshaft is designed to be lightweight.

The counter balancer shaft is designed to be
lightweight.

The crankshaft pulley hub is made of aluminum.

.

MAJOR SPECIFICATIONS

ITEMS

SPECIFICATIONS

Total displacement cm

3

 (cu in)

2,378 (145.1)

Bore

×

 Stroke mm (in)

87.0 (3.42)

×

 100.0 (3.94)

Compression ratio

9.5

Combustion chamber

Pentroof type

Camshaft arrangement

SOHC

Valve timing

Intake Open

10

°

 BTDC <Low speed cam A>

12

°

 BTDC <Low speed cam B>

24

°

 BTDC <High speed cam>

Intake Close

42

°

 ABDC <Low speed cam A>

44

°

 ABDC <Low speed cam B>

68

°

 ABDC <High speed cam>

Exhaust Open

58

°

 BBDC

Exhaust Close

14

°

 ATDC

Maximum output kW/r/min (HP/r/min)

119/5500 (160/5500) [FED], 116/5500 (155/5500) [CAL]

Maximum torque N

m/r/min (lbs-ft/r/min)

213/4000 (157/4000) [FED], 210/4000 (155/4000) [CAL]

Fuel system

Electronic-controlled multiport fuel injection

Ignition system

Electronic-controlled 4-coil

BASE ENGINE

ENGINE <2.4L ENGINE>

11A-3

BASE ENGINE

M2112001000284

GENERAL DESCRIPTION

The following changes are applied based on the pre-
vious 4G64-SOHC engine.

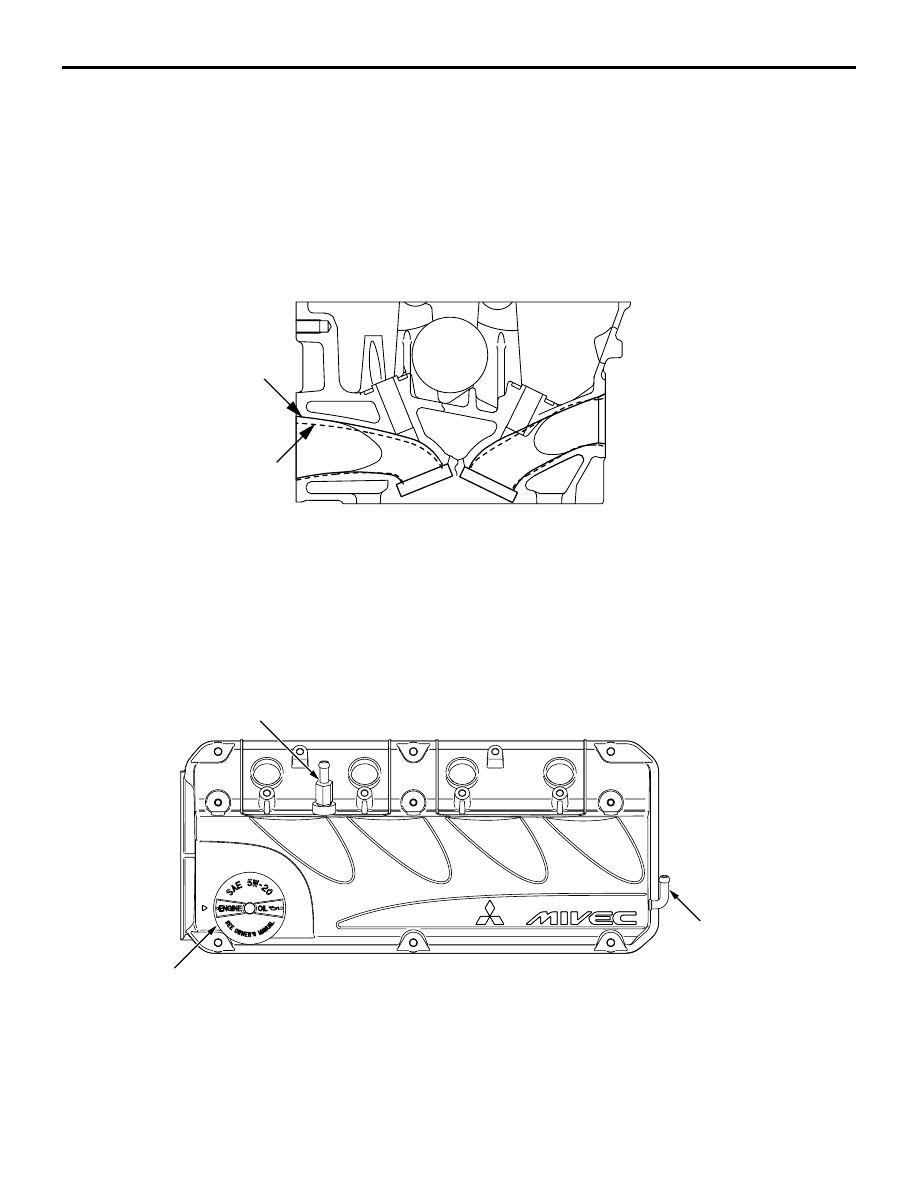

CYLINDER HEAD

The cylinder head optimizes the port profile by
increasing the diameter of the intake and exhaust
valves. The location of the breathing hole is changed
to reduce the oil intake amount.

ROCKER COVER

The rocker cover is designed to reduce noise by
using aluminum die-casting.

AK301029

<4G64>

<4G69>

AC

AK303308

PCV NIPPLE

BREATHER NIPPLE

OIL FILLER CAP

AB

BASE ENGINE

ENGINE <2.4L ENGINE>

11A-4

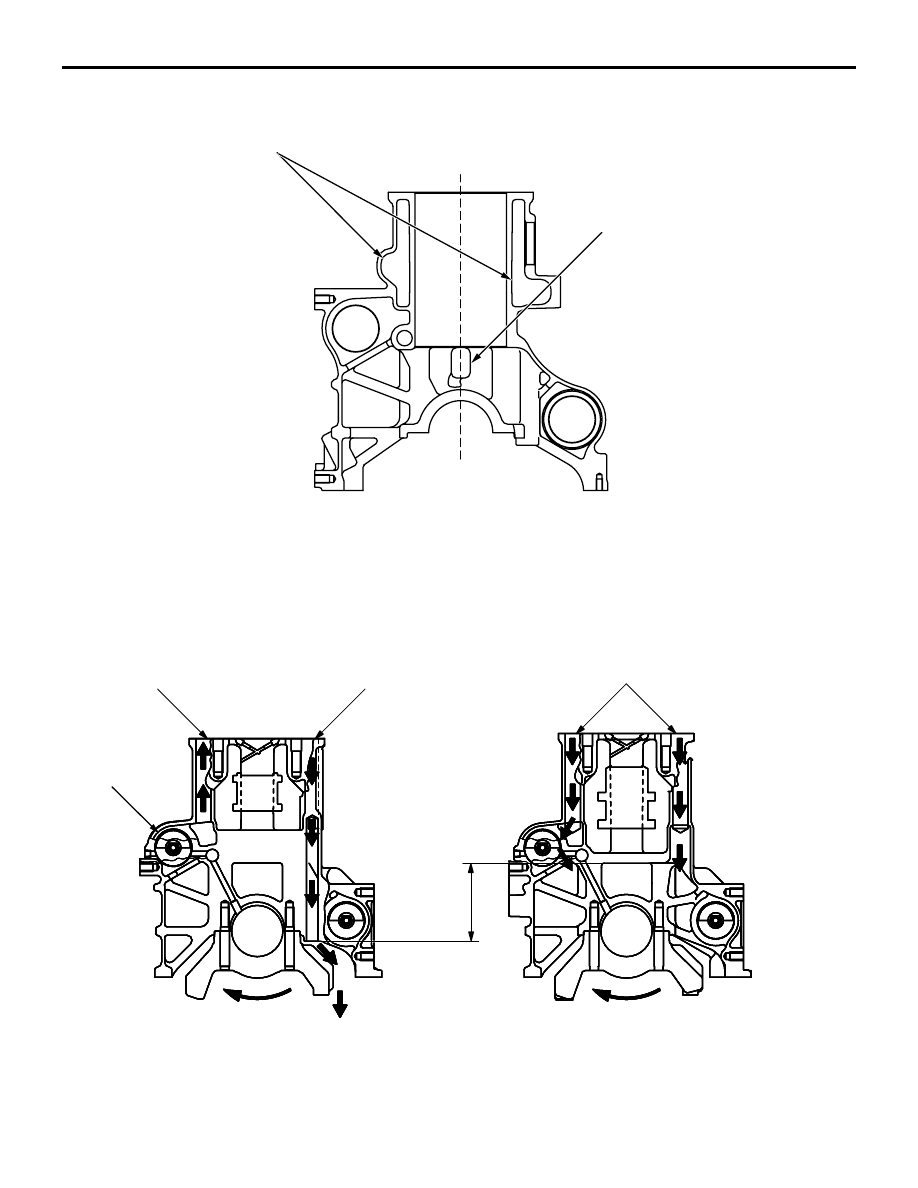

CYLINDER BLOCK

To reduce the weight, the cylinder block height is
reduced.
The bottom of the water jacket is designed to be thin
for the improvement of fuel economy and faster
engine warm-up.

The through-hole is added on the bulkhead of the
journal between No.1 and No.2 cylinders, also
between No.3 and No.4 cylinders so that the pres-
sure pulsation within the crankcase due to the piston
vertical motion can be eliminated and friction can be
reduced.

Oil dropping on the cylinder block from the cylinder
head affects the crankshaft or the con rod and then
produces rotational resistance. To prevent this, the

location of the oil drain hole and the profile of the
passage are changed.

AK300819

THROUGH-HOLE (#2, #4 JOURNAL)

AF

WATER JACKET

AK303221

AK30321

OIL DRAIN

BLOW-BY PASSAGE

COUNTER
BALANCE
SHAFT

DOWNWARD
MOVEMENT

OIL DRAIN

AB
