WINDOW GLASS

BODY

42-9

WINDOW GLASS

M2420015000186

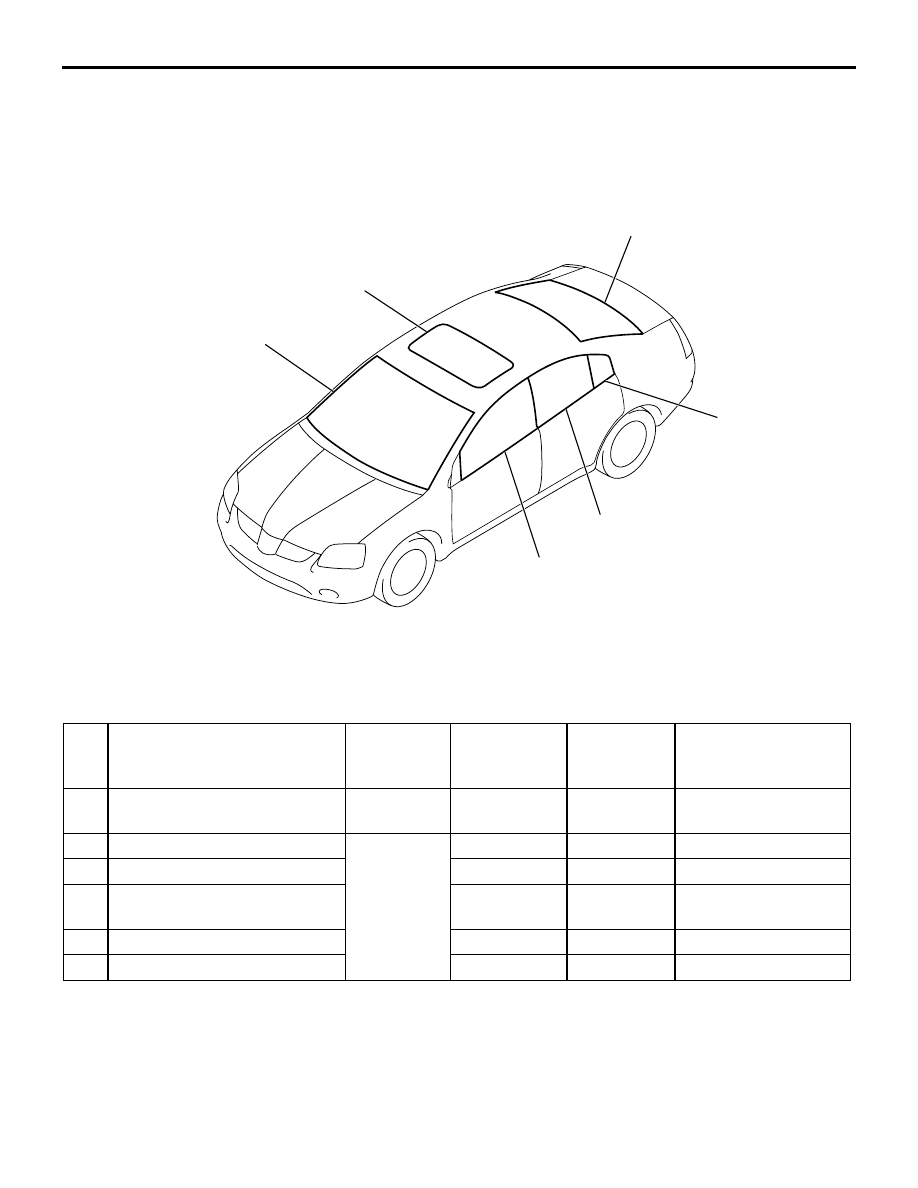

The windshield is laminated glass. The other glass is
made of tempered glass.

NOTE: The figure at the visible light permeation rate
is a reference value. There could be marginal errors.

AC305499

1

2

3

4

5

6

AB

NO. NAME

TYPE

THICKNESS
mm (in)

COLOR

VISIBLE LIGHT
TRANSMITTANCE
(%)

1

Windshield

Laminated
glass

5.16 (0.203)

Green

73.7

2

Front door window glass

Tempered
glass

4.0 (0.157)

Green

72.7

3

Rear door window glass

4.0 (0.157)

Green

72.7

4

Rear door stationary window
glass

4.0 (0.157)

Green

72.7

5

Rear window glass

3.5 (0.138)

Green

74.8

6

Roof lid glass

4.0 (0.157)

Dark gray

18.0

WINDOW GLASS

BODY

42-10

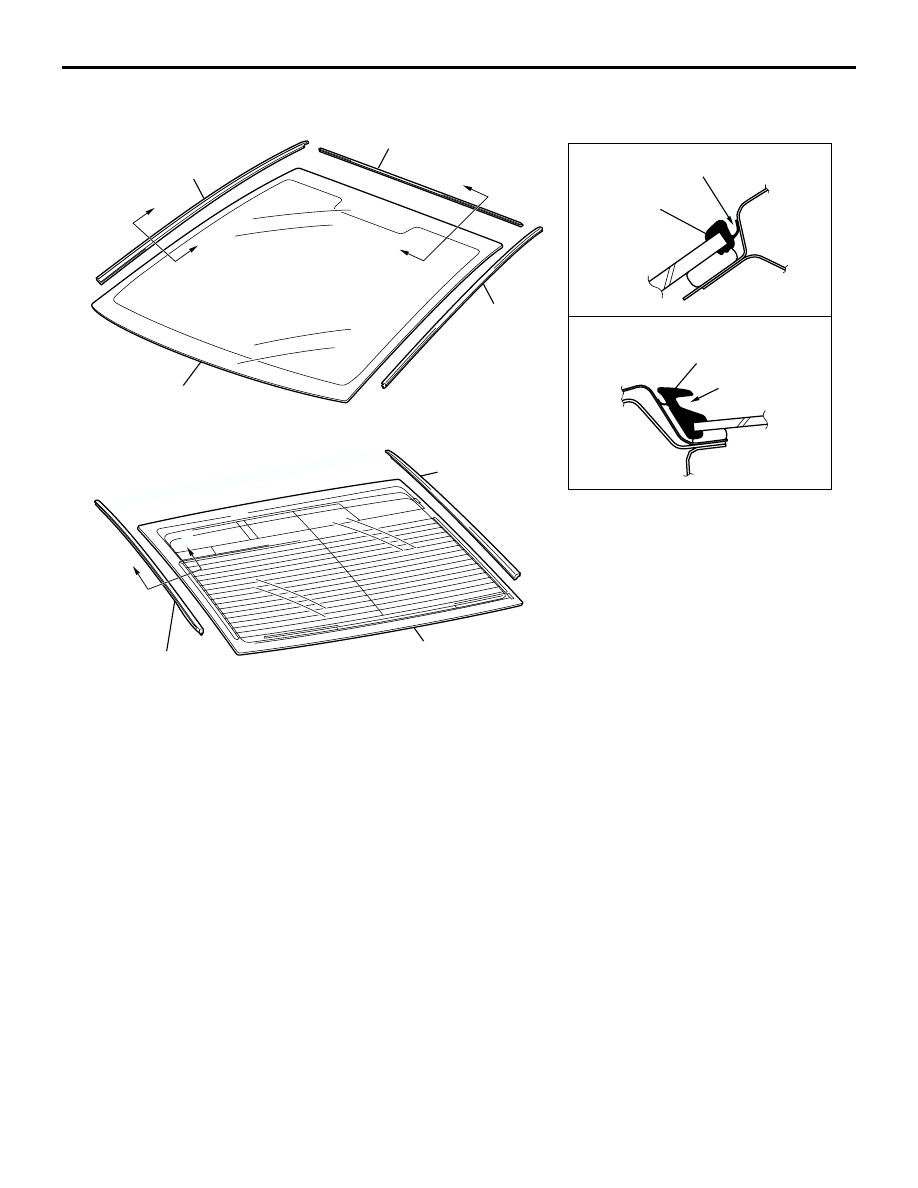

MOLDING

Around the windshield and rear window glass, mold-
ing with a rain gutter is installed, improving front and
side visibility when driving in rainy weather.

AC305559

AC305560

AC206535

AC206082

AC305821

UPPER
MOLDING

SIDE MOLDING

SECTION A – A

SECTION B – B

A

B

A

B

UPPER MOLDING

SIDE MOLDING

SIDE
MOLDING

WINDSHIELD

B

SIDE MOLDING

SIDE MOLDING

REAR WINDOW GLASS

AB

RAIN GUTTER

RAIN GUTTER

B

DOOR

BODY

42-11

DOOR

DOOR

M2420006000070

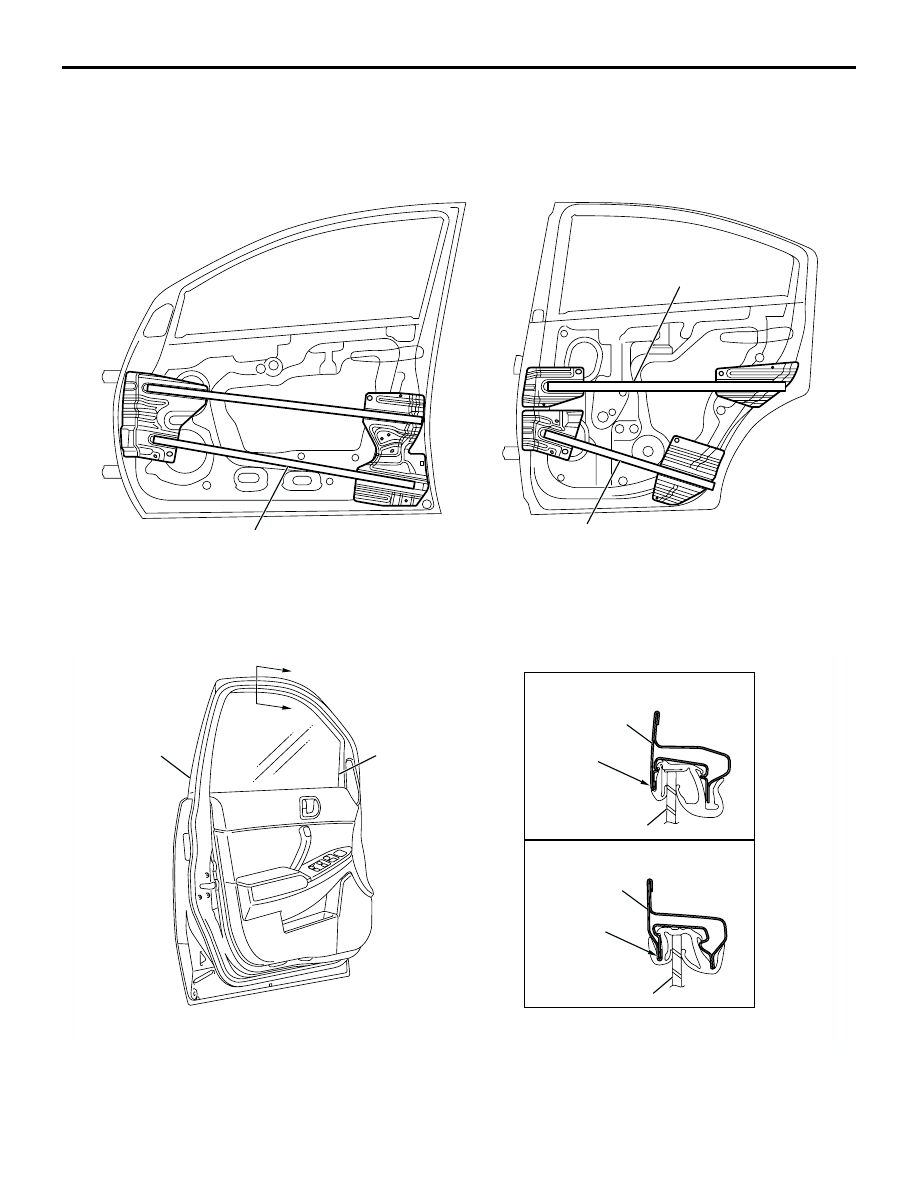

SIDE DOOR BEAM

Safety against side collision has been enhanced by
using two side door beams for each door.

DOOR PANEL

To improve the appearance of the door sash, hem-
ming is used instead of conventional spot welding at
the junctures between the inner and outer parts of
the door panel of the door sash.

AC305686

AC305997

AC305687

<FRONT>

<REAR>

AB

SIDE DOOR BEAM

SIDE DOOR BEAM LOWER

SIDE DOOR BEAM UPPER

AC305690

AC306168

AC205923

AC205922

SECTION A – A (HEMMING TYPE)

SECTION A – A (SPOT WELD TYPE)

DOOR PANEL

DOOR PANEL

DOOR WINDOW GLASS

DOOR WINDOW
GLASS

HEMING

AB

A

A

DOOR PANEL

DOOR WINDOW GLASS

SPOT WELD

DOOR

BODY

42-12

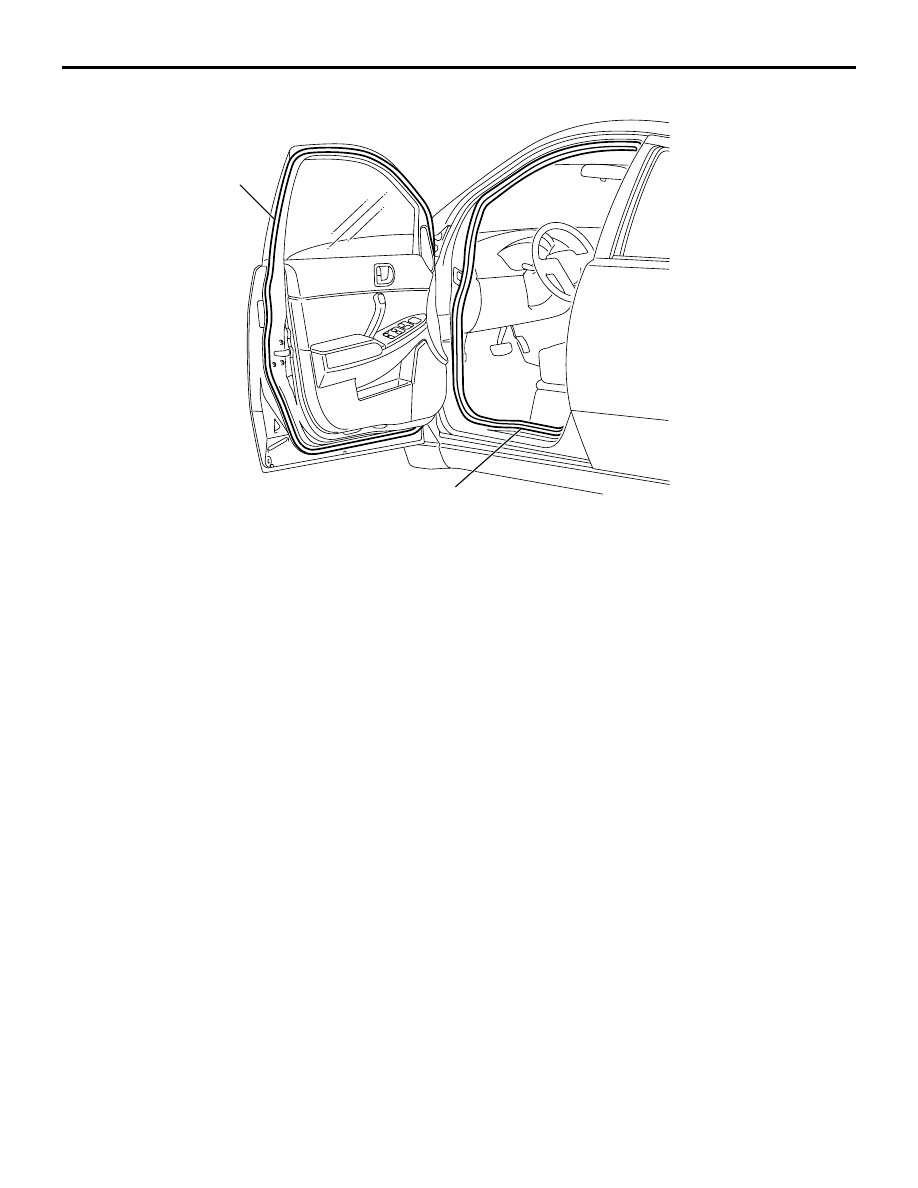

DOOR OPENING WEATHERSTRIP

For an improved sound transmission rating and bet-
ter soundproofing, two-ply construction is used for
the weatherstrip, with opening weatherstrips on the
door and body.

DOOR LOCK

M2420009000165

The center door lock enables locking and unlock-
ing of all doors by using the key cylinder at the
driver's side door, the driver's side door lock
switch, or passenger's side door lock switch.
Locking and unlocking is controlled by the
ETACS-ECU. For further details on the door lock-
ing and unlocking controls, refer to GROUP 54B,
Simplified Wiring System

P.54B-10

.

As an added safety measure, the doors have an
inside lock cable to prevent the door from locking
by an impact.

The door lock prevention function by
ETACS-ECU control when the ignition key is left
in the switch is used (Refer to GROUP 54B, Sim-
plified Wiring System

P.54B-10

).

AC305689

OPENING OUTER
WEATHERSTRIP

 OPENING INNER
 WEATHERSTRIP

AB
