FUEL TANK

TSB Revision

FUEL SUPPLY

13C-11

AC306992

20

21

23

14

15

16

13

17

18

19

24

26

27

28

29

30

31

32

N

N

N

N

AB

33

22

25

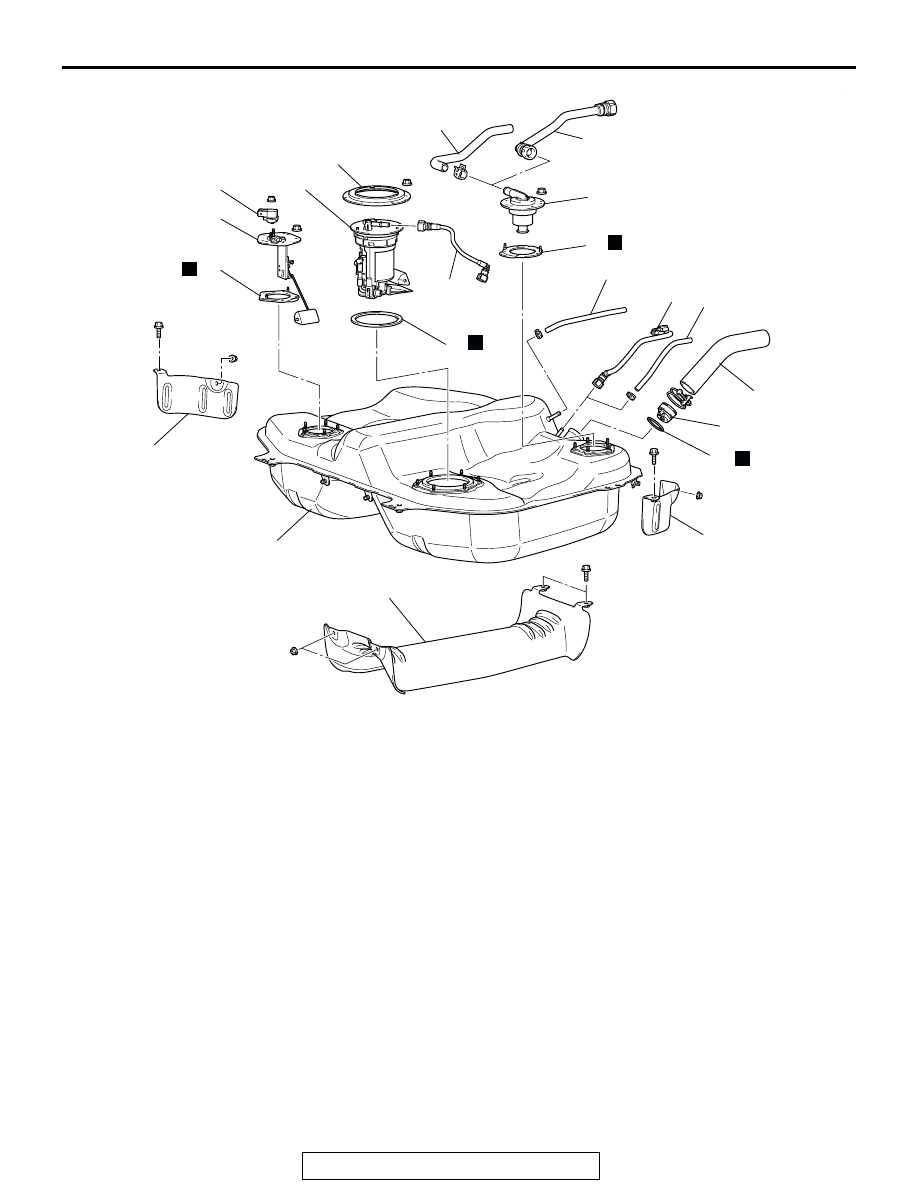

FUEL TANK REMOVAL STEPS

>>C<<

13. FUEL HIGH-PRESSURE HOSE
14. PLATE

<<E>>

>>B<<

15. FUEL PUMP MODULE
16. PACKING
17. FUEL TANK DIFFERENTIAL

PRESSURE SENSOR

<<F>>

>>A<<

18. FUEL LEVEL SENSOR (SUB)
19. PACKING
20. FUEL TANK VAPOR HOSE A

<EXCEPT VEHICLES FOR
CALIFORNIA EMISSION
REGULATION>

21. FUEL TANK VAPOR TUBE A

<VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

22. LEVELING VALVE ASSEMBLY
23. PACKING

24. FUEL TANK VAPOR HOSE C
25. FUEL TANK VAPOR HOSE B

<EXCEPT VEHICLES FOR
CALIFORNIA EMISSION
REGULATION>

26. FUEL TANK VAPOR TUBE B

<VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

27. FUEL FILLER HOSE
28. FUEL SHUT-OFF VALVE
29. O-RING
30. FUEL TANK PROTECTOR (A)
31. FUEL TANK PROTECTOR (B)
32. FUEL TANK CENTER

PROTECTOR

33. FUEL TANK

FUEL TANK REMOVAL STEPS

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-12

REMOVAL SERVICE POINTS

.

<<A>> FUEL PUMP MODULE CONNECTOR CONNECTION
REMOVAL
1. Remove the rear seat cushion assembly. (Refer to GROUP

52A, Rear Seat Assembly

P.52A-30

.)

2. Remove the hole cover (LH).

AC306993

36

37

35

38

39

34

40

40 41

AB

N

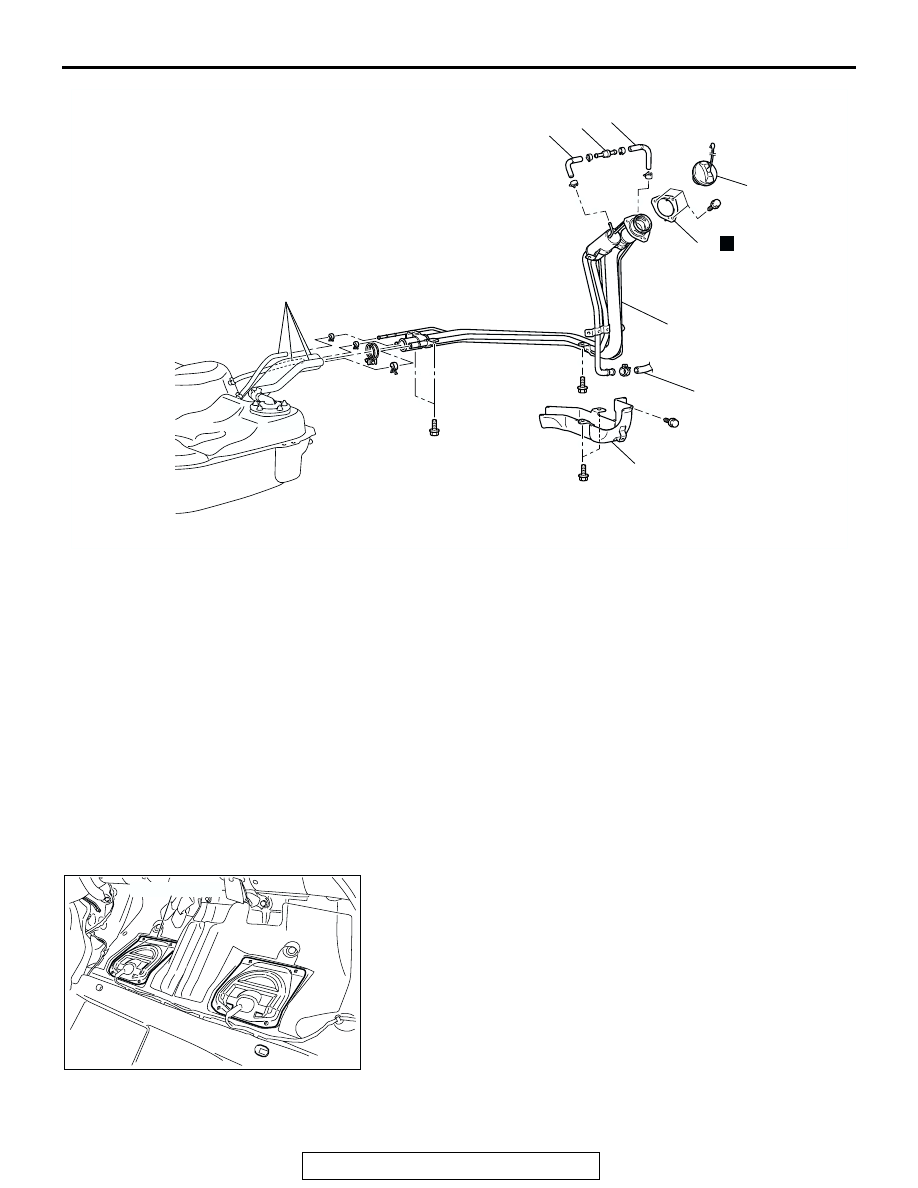

FUEL TANK FILLER TUBE
REMOVAL STEPS

34. FUEL CAP
35. VAPOR HOSE CONNECTION
36. FUEL FILLER HOSE AND FUEL

TANK VAPOR HOSE
CONNECTION

37. FUEL TANK FILLER TUBE

PROTECTOR

38. FUEL TANK FILLER TUBE
39. FUEL TANK FILLER TUBE

PACKING

40. FUEL TANK FILLER TUBE VAPOR

HOSE

41. CHECK VALVE

FUEL TANK FILLER TUBE
REMOVAL STEPS (Continued)

AC306089

HOLE COVER

AB

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-13

3. Disconnect the fuel pump module connector.

.

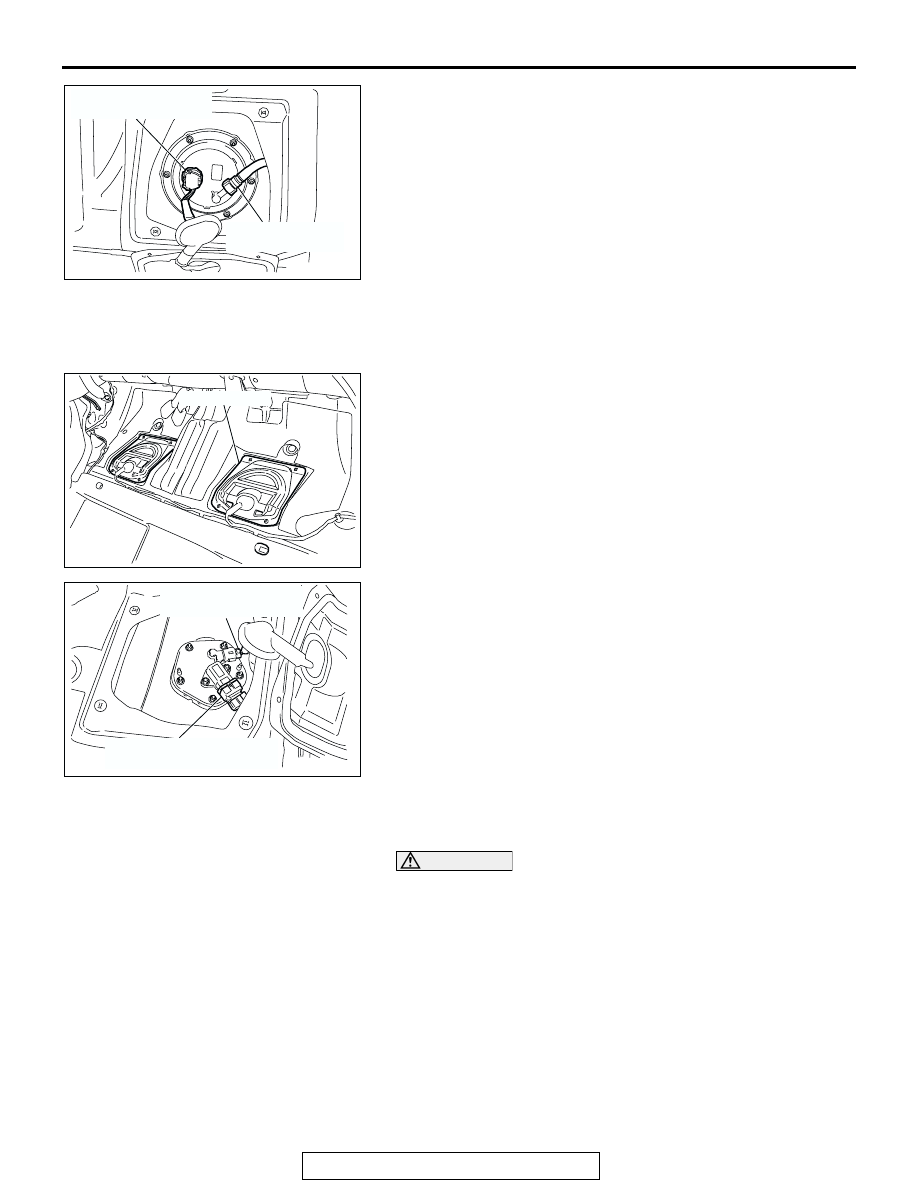

<<B>> FUEL TANK DIFFERENTIAL PRESSURE SENSOR
CONNECTOR/FUEL LEVEL SENSOR (SUB) CONNECTOR
CONNECTION REMOVAL
1. Remove the hole cover (RH).

2. Disconnect the fuel level sensor (sub) connector and fuel

tank differential pressure sensor connector.

.

<<C>> FUEL HIGH-PRESSURE HOSE CONNECTION
REMOVAL

CAUTION

As there will be some pressure remaining in the fuel pipe
line, cover it with a shop towel to prevent fuel from spray-
ing out.

.

AC306090

FUEL PUMP MODULE
CONNECTOR

FUEL HIGH-
PRESSURE HOSE

AB

AC306089AD

HOLE COVER

 AC306093

FUEL LEVEL SENSOR
(SUB) CONNECTOR

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AB

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-14

<<D>> FUEL TANK ASSEMBLY/FUEL TANK BAND
REMOVAL
1. Support the fuel tank with a transaxle jack.
2. Remove the fuel tank band and fuel tank assembly as

follows.

(1) Remove the front securing nut of the fuel tank band.
(2) Tilt the fuel tank assembly forward and lower it gradually

to remove it.

(3) Remove the fuel tank band.

.

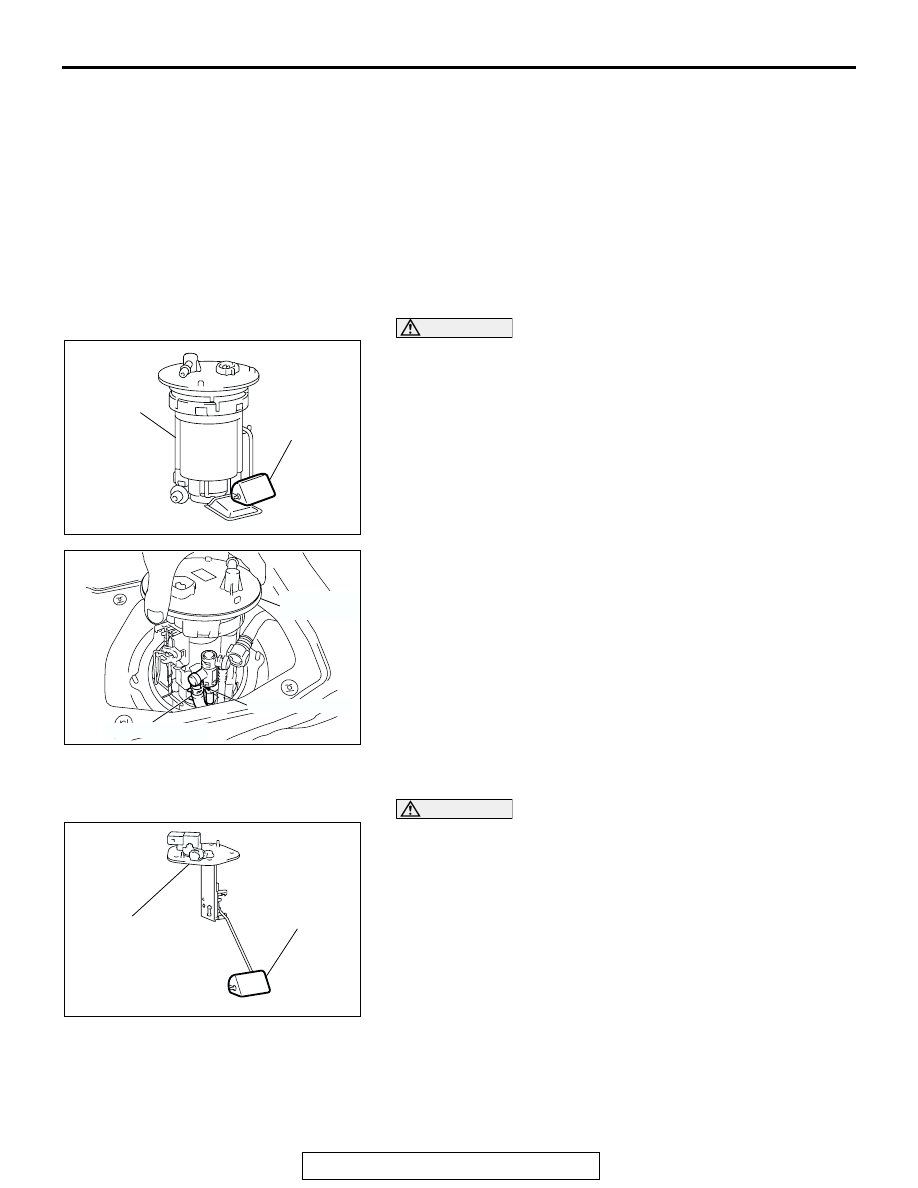

<<E>> FUEL PUMP MODULE REMOVAL

CAUTION

When withdrawing the fuel pump module from the fuel
tank, be careful not to damage the module unit and the
float.

Make alignment marks between the suction hose and the fuel
pump module and then disconnect the suction hose to remove
the fuel pump module.

.

<<F>> FUEL LEVEL SENSOR (SUB) REMOVAL

CAUTION

When withdrawing the fuel level sensor (sub) from the fuel
tank, be careful not to damage the sensor unit and the
float.

AC307207

FUEL PUMP
MODULE

FLOAT

AB

AC306092AB

SUCTION HOSE

FUEL PUMP
MODULE

MATING MARKS

AC307206AB

FLOAT

FUEL LEVEL
SENSOR (SUB)
