OUTPUT SHAFT

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-73

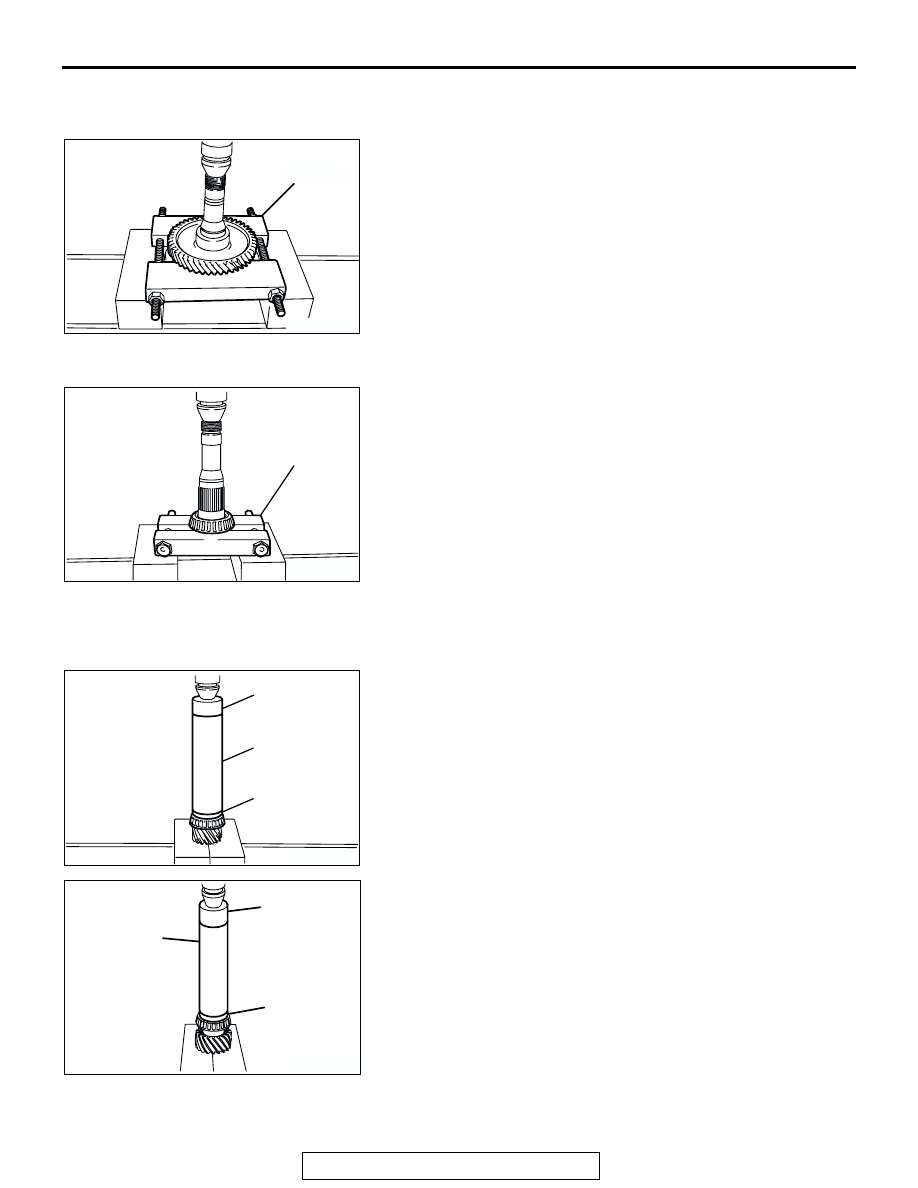

DISASSEMBLY SERVICE POINTS

.

<<A>> TRANSFER DRIVEN GEAR REMOVAL
1. Support the transfer driven gear with general service tool or

special tool MD998917, and then set them on the press.

2. Push down on the output shaft with the press to remove the

transfer driven gear.

.

<<B>> TAPER ROLLER BEARING REMOVAL
1. Support the taper roller bearing with the special tool

MD998801, and then set them on the press.

2. Push down on the output shaft with the press to remove the

taper roller bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< TAPER ROLLER BEARING INSTALLATION
1. Set the output shaft on the press support stand.
2. Using special tools MD998823 <F4A4B> or MD998827

<F4A5A>, MD998812 and MD998814, press in the taper
roller bearing.

.

AK300530AD

MD998917

AK300531AD

MD998801

AK300533AE

MD998812

MD998814

MD998823

<F4A4B>

AK202316

MD998814

MD998812

MD998825

AC

<F4A5A>

OUTPUT SHAFT

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-74

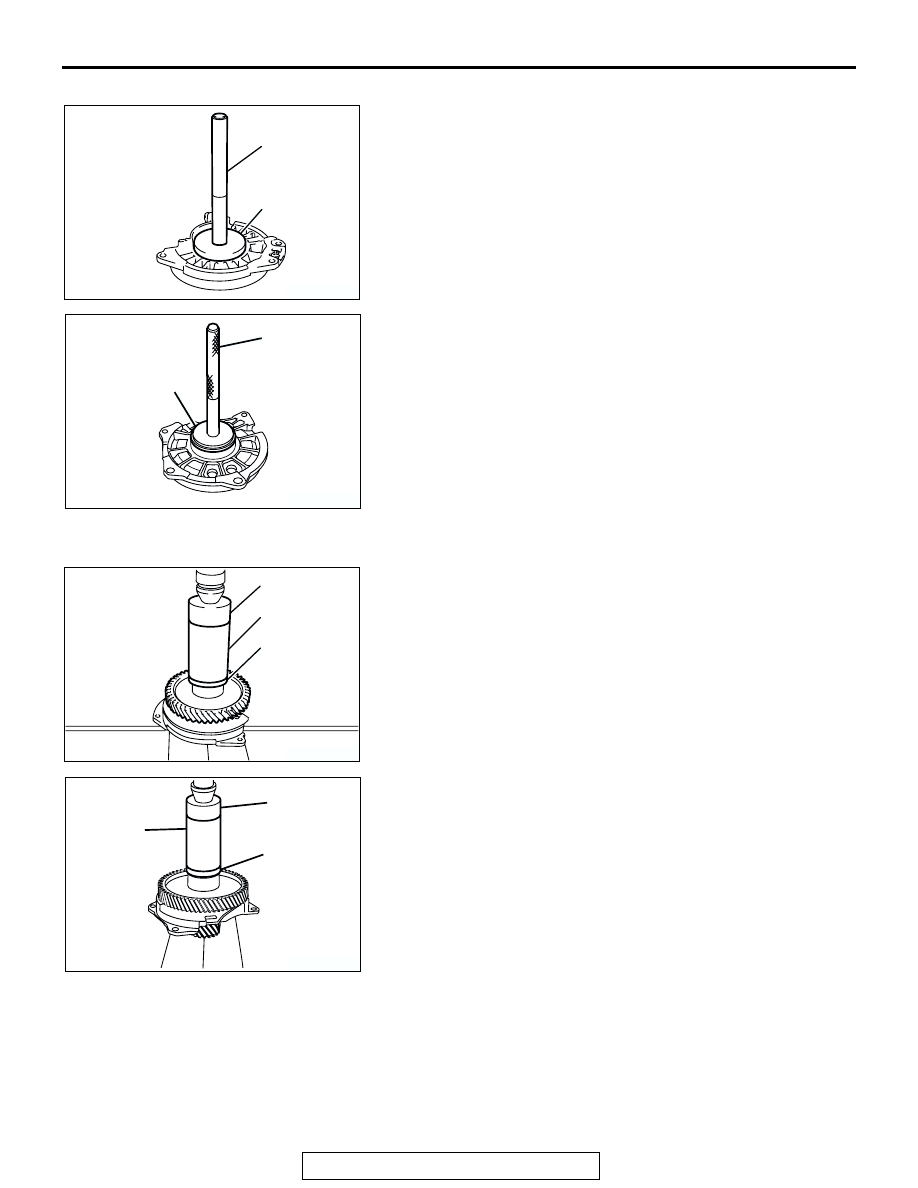

>>B<< OUTER RACE INSTALLATION
Use special tools MB990936 <F4A4B> or MB990937 <F4A5A>
and MB990938 to tap the outer race in the bearing retainer.

.

>>C<< TRANSFER DRIVEN GEAR INSTALLATION
1. Set the output shaft on the press support stand.
2. Using special tools MD998823 <F4A4B> or MB998824

<F4A5A>, MD998812 and MD998813, press in the transfer
driven gear.

AK300534AE

MB990936

MB990938

<F4A4B>

AK202317

MD990938

MB990937

AC

<F4A5A>

AK300535AE

MD998812

MD998813

MD998823

<F4A4B>

AK202318

MD998812

MD998824

MD998813

AC

<F4A5A>

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-75

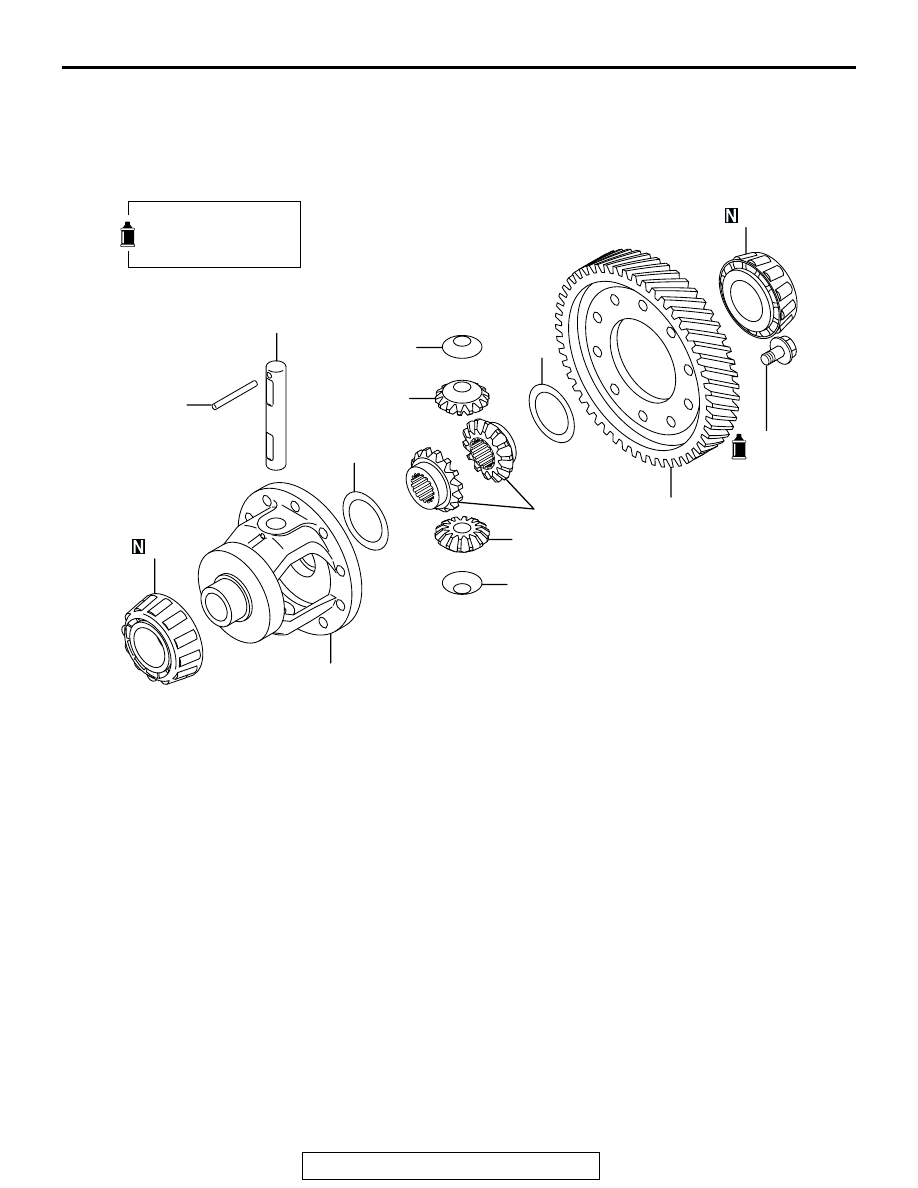

DIFFERENTIAL

DIFFERENTIAL DISASSEMBLY AND ASSEMBLY

M1233003100297

Required Special Tools:

• MD998801: Bearing Remover

• MD998812: Installer Cap

• MD998820: Installer Adapter (42)

• MD998823: Installer Adapter (48)

AK301606

2

4

8

6

5

3

8

135

± 5

N·m

100

± 4

ft-lb

1

7

5

2

6

9

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

DISASSEMBLY STEPS

>>D<<

1.

DIFFERENTIAL DRIVE GEAR

<<A>>

>>C<<

2.

TAPER ROLLER BEARINGS

>>B<<

3.

LOCK PIN

>>A<<

4.

PINION SHAFT

>>A<<

5.

PINIONS

>>A<<

6.

WASHERS

>>A<<

7.

SIDE GEARS

>>A<<

8.

SPACERS

9.

DIFFERENTIAL CASE

DISASSEMBLY STEPS

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-76

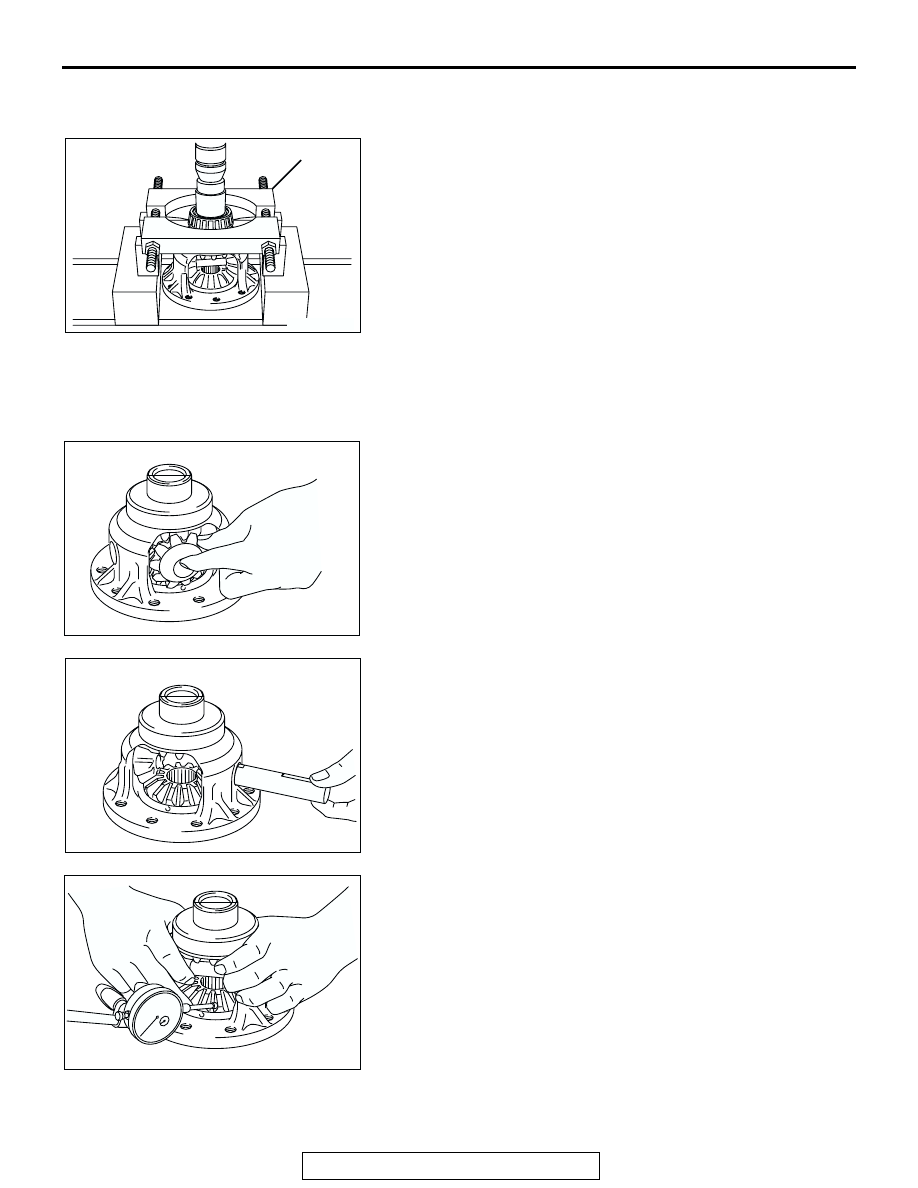

DISASSEMBLY SERVICE POINT

.

<<A>> TAPER ROLLER BEARING REMOVAL
1. Support the taper roller bearing with special tool MD998801,

and then set them on the press.

2. Push down on the differential case with the press to remove

the bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< SPACER, SIDE GEAR, WASHER, PINION AND PIN-
ION SHAFT INSTALLATION
1. Mount a spacer on the back surface of the side gear, and

then install the side gear in the differential case.
NOTE: When a new side gear is to be installed, use a
medium thickness spacer [0.93 to 1.00 mm (0.0366 to
0.0395 inch)].

2. Set the washer on the back of each pinion, and put both

pinions simultaneously in mesh with the side gears. While
rotating them, install them into position.

3. Insert the pinion shaft.

4. Measure the backlash between the side gear and pinion.

Standard value:
0.025

− 0.150 mm (0.0010 − 0.0059 inch)

5. If the backlash is out of the standard value, select a spacer

and re-measure the backlash.
NOTE: Adjust until the backlash on both sides are equal.

.

AK301767AB

MD998801

AK300655

AK300656

AK300657
