UNDERDRIVE CLUTCH AND INPUT SHAFT

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-61

DISASSEMBLY SERVICE POINT

.

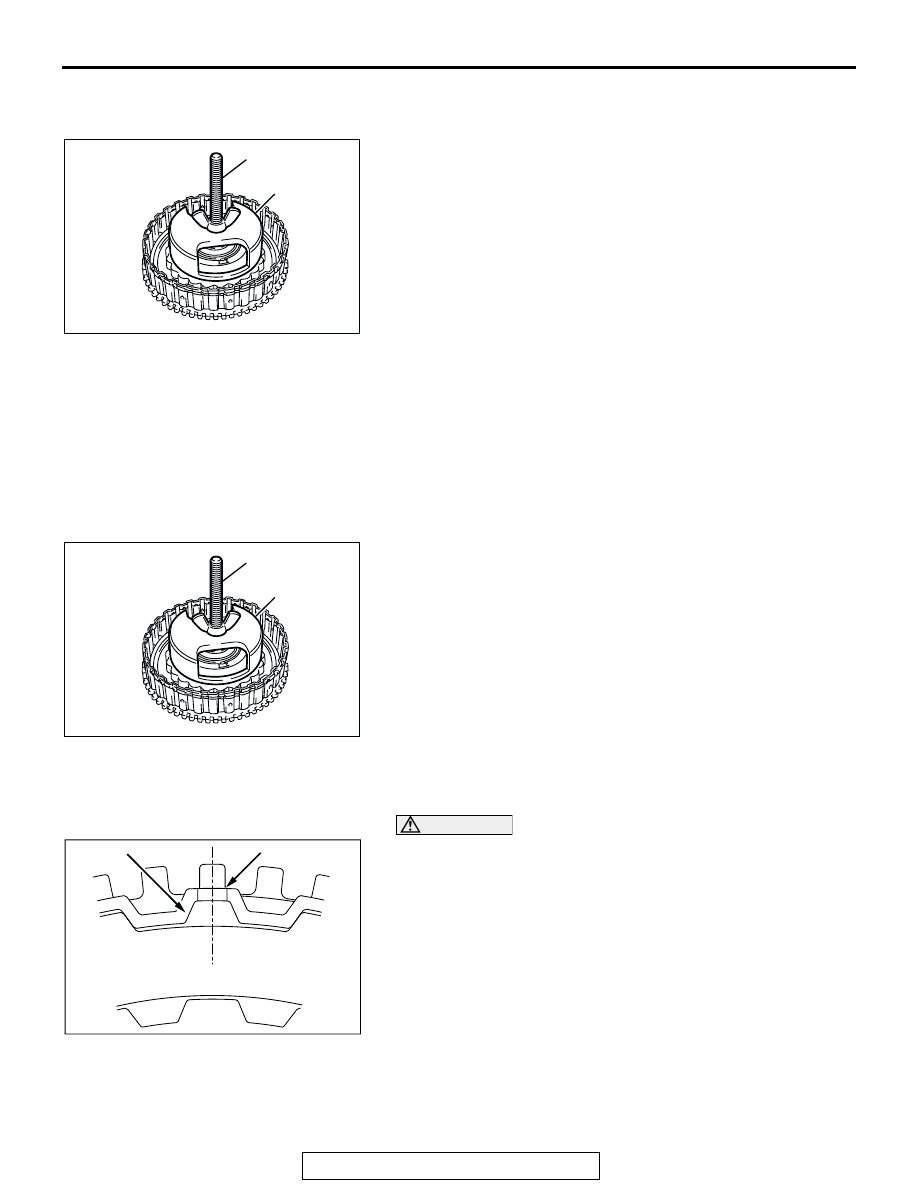

<<A>> SNAP RING REMOVAL
1. Set special tools MD998907 and MD998924 as shown in the

illustration.

2. Compress the return spring and remove the snap ring.

ASSEMBLY SERVICE POINTS

.

>>A<< D-RING INSTALLATION
1. Install a D-ring in the groove in the underdrive clutch retainer

and piston, and in the groove in the outside of the spring
retainer. Be careful not to twist or damage the D-rings.

2. Apply ATF or petroleum jelly (Vaseline) to the D-rings.

.

>>B<< SNAP RING INSTALLATION
1. Place the snap ring on top of the spring retainer, and then

set special tool MD998907 and MD998924 as shown in the
illustration.

2. Compress the return spring and install the snap ring.

.

>>C<< CLUTCH PLATE/CLUTCH DISC/CLUTCH REACTION
PLATE INSTALLATION

CAUTION

Immerse the clutch disc in ATF before assembling it. If the
clutch disc is new, soak it in ATF for at least two hours.
1. Assemble the four clutch plates and four clutch discs one on

top of the other inside the underdrive clutch retainer. All four
clutch plates should be assembled so that the places with no
teeth (marked "A") are aligned with the holes in the retainer
(marked "B").

AK300523AD

MD998907

MD998924

AK300523AD

MD998907

MD998924

AK301272AC

A

B

REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-62

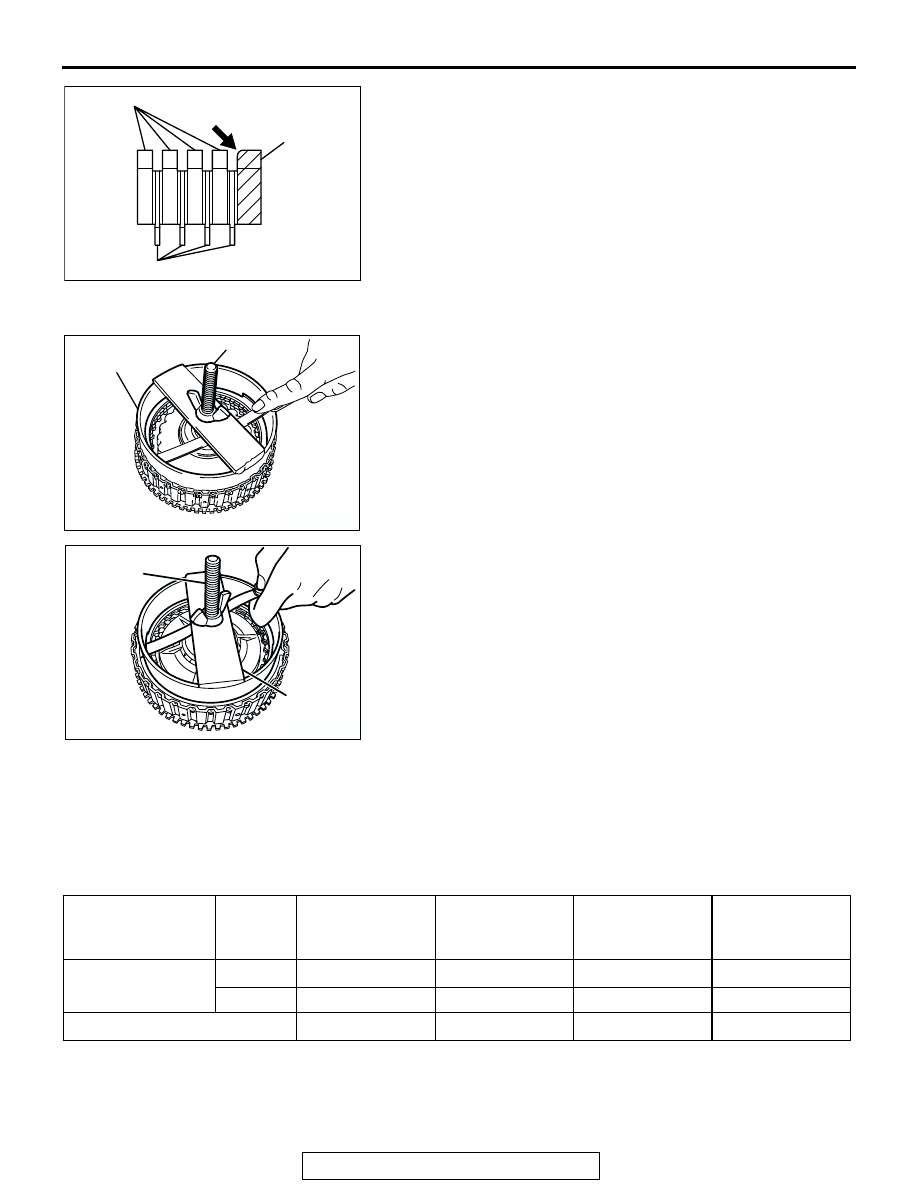

2. Install the clutch reaction plate in the direction shown.

Install it the same as the clutch plates, so that the areas with
no teeth (marked "A") are aligned with the retainer (marked
"B").

.

>>D<< SNAP RING INSTALLATION
1. Install the snap ring into the groove of clutch retainer.
2. Set special tools MB991628 <F4A4B> or MB991629

<F4A5A> and MD998924 as shown in the illustration, and
then compress the clutch element.

3. Check that the clearance between the snap ring and the

clutch reaction plate is within the standard value. If not within
the standard value, select a snap ring to achieve the
standard value clearance.

Standard value: 1.60

 1.80 mm (0.0630  0.0709 inch)

REVERSE AND OVERDRIVE CLUTCH

DISASSEMBLY AND ASSEMBLY

M1233024800149

NUMBER OF CLUTCH DISCS AND PLATES

AK301764

CLUTCH PLATES

ROUNDED EDGE

PISTON
SIDE

CLUTCH DISCS

AB

CLUTCH
REACTION
PLATE

AK300524AE

MD998924

MB991628

<F4A4B>

AK202311

MB991629

MD998924

AC

<F4A5A>

MODEL

PRESSURE
PLATE

CLUTCH DISC

CLUTCH PLATE CLUTCH

REACTION
PLATE

Over drive clutch

F4A4B

4

4

1

F4A5A

1

4

3

1

Reverse clutch

2

2

1

REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-63

<F4A4B>

AK301601

16

19

18

17

16

15

13

12

11

10

9

14

18

17

12

15

13

19

9

10

14

11

7

3

5

8

6

4

2

1

1 2

4

5

6

8

7

3

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

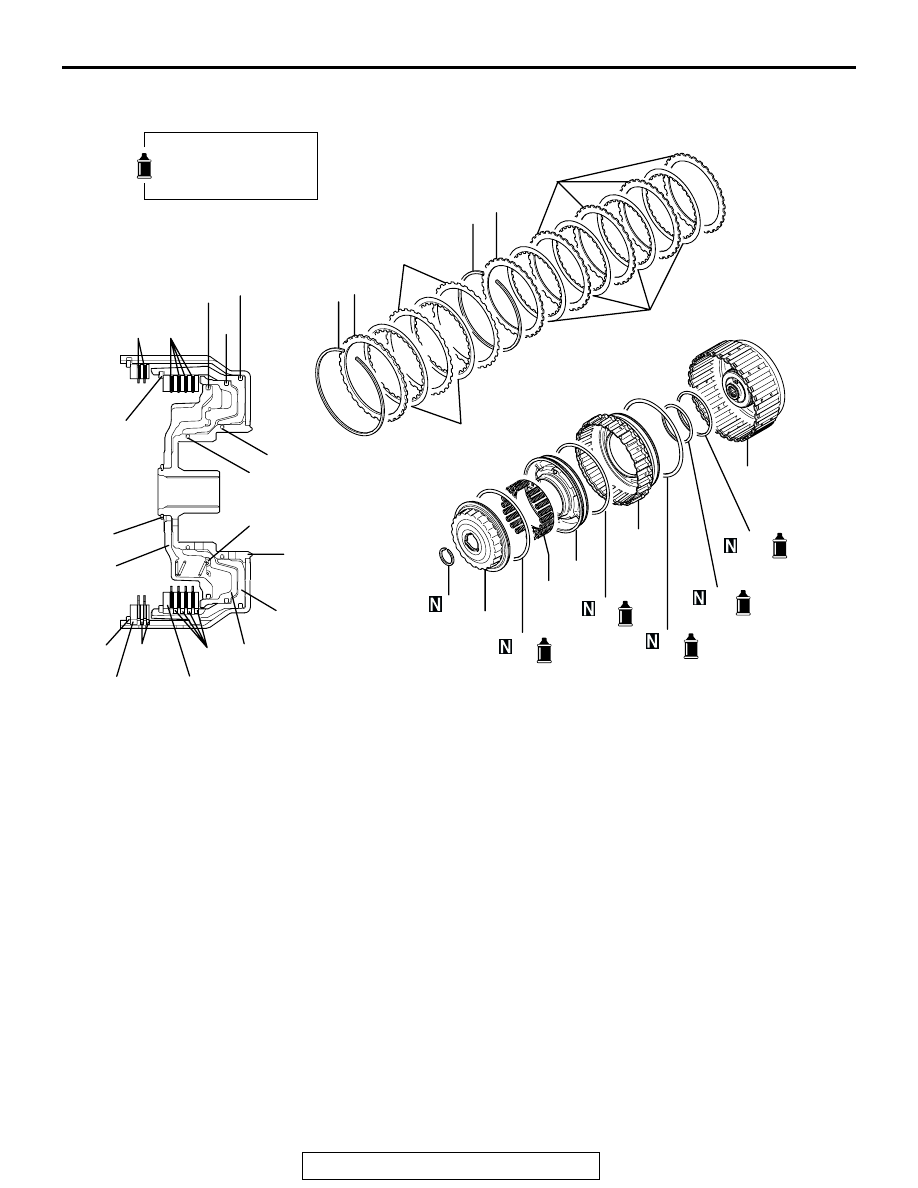

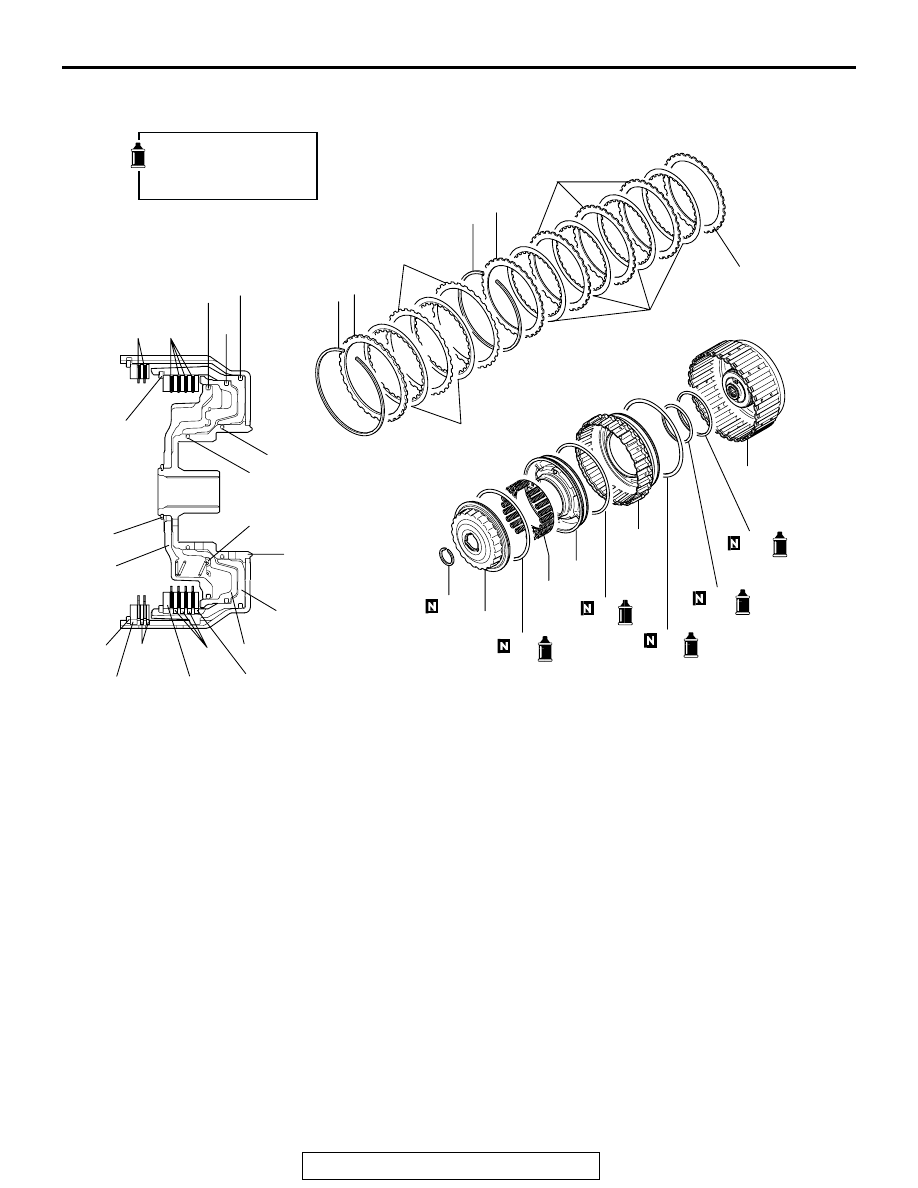

DISASSEMBLY STEPS

>>G<<

1.

SNAP RING

>>F<<

2.

CLUTCH REACTION PLATE

>>F<<

3.

CLUTCH DISC

>>F<<

4.

CLUTCH PLATE

>>E<<

5.

SNAP RING

>>D<<

6.

CLUTCH REACTION PLATE

>>D<<

7.

CLUTCH DISC

>>D<<

8.

CLUTCH PLATE

<<A>>

>>C<<

9.

SNAP RING

10. SPRING RETAINER

>>A<<

11. D-RING
12. RETURN SPRING
13. OVERDRIVE CLUTCH PISTON

>>A<<

14. D-RING

>>B<<

15. REVERSE CLUTCH PISTON

>>A<<

16. D-RING

>>A<<

17. D-RING

>>A<<

18. D-RING
19. REVERSE CLUTCH RETAINER

DISASSEMBLY STEPS

REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-64

<F4A5A>

Required Special Tools:

• MB991628: Spring Compressor

• MB991629: Spring Compressor

• MB991789: Spring Compressor

• MB991790: Spring Compressor

• MD998924: Spring Compressor Retainer

• MD999590: Spring Compressor

AKX01127

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

17

20

19

18

17

16

14

13

12

11

10

15

19

18

13

16

14

20

10

11

15

12

7

3

5

8

6

4

2

1

1 2

4

5

6

8

7

3

9

      9

AC

DISASSEMBLY STEPS

>>G<<

1.

SNAP RING

>>F<<

2.

CLUTCH REACTION PLATE

>>F<<

3.

CLUTCH DISC

>>F<<

4.

CLUTCH PLATE

>>E<<

5.

SNAP RING

>>D<<

6.

CLUTCH REACTION PLATE

>>D<<

7.

CLUTCH DISC

>>D<<

8.

CLUTCH PLATE

>>D<<

9.

PRESSURE PLATE

<<A>>

>>C<<

10. SNAP RING

11. SPRING RETAINER

>>A<<

12. D-RING
13. RETURN SPRING
14. OVERDRIVE CLUTCH PISTON

>>A<<

15. D-RING

>>B<<

16. REVERSE CLUTCH PISTON

>>A<<

17. D-RING

>>A<<

18. D-RING

>>A<<

19. D-RING
20. REVERSE CLUTCH RETAINER

DISASSEMBLY STEPS
