SPECIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-9

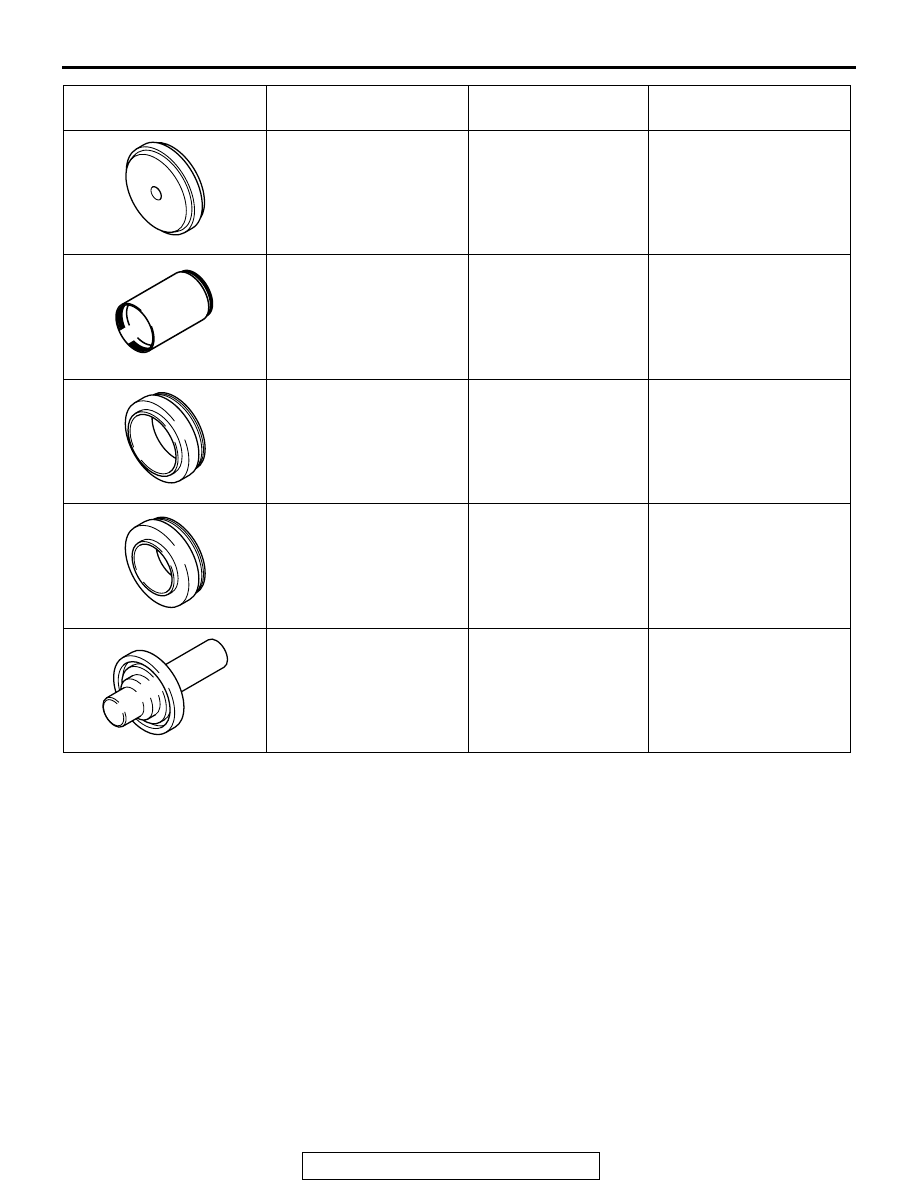

MB990937
Installer adapter

MB990937 or General
service tool

Installation of output shaft
taper roller bearing outer
race <F4A5A>

MD998813
Installer 100

General service tool

Use with installer cap and
installer adapter

MD998824
Installer adapter (50)

General service tool

Installation of transfer
driven gear <F4A5A>

MD998820
Installer adapter (42)

MIT215013

Installation of differential
taper roller bearing
<F4A5A>

MD998800
Oil seal installer

General service tool

Installation of driveshaft oil
seal

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-10

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1233001000432

<F4A4B>

AK301761AB

18

6

19

14

7

8

15

9

7

13

10

5

3

16

2

17

1

2

4

11

12

22 ± 3 N·m
16 ± 52 ft-lb

24 ± 3 N·m
18 ± 2 ft-lb

24 ± 3 N·m
18 ± 2 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

5.0 ± 1.0 N·m
43 ± 9 in-lb

70 ± 10 N·m
52 ± 7 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

70 ± 10 N·m
52 ± 7 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

6.0 ± 1.0 N·m
52 ± 9 in-lb

23 ± 3 N·m
17 ± 2 ft-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

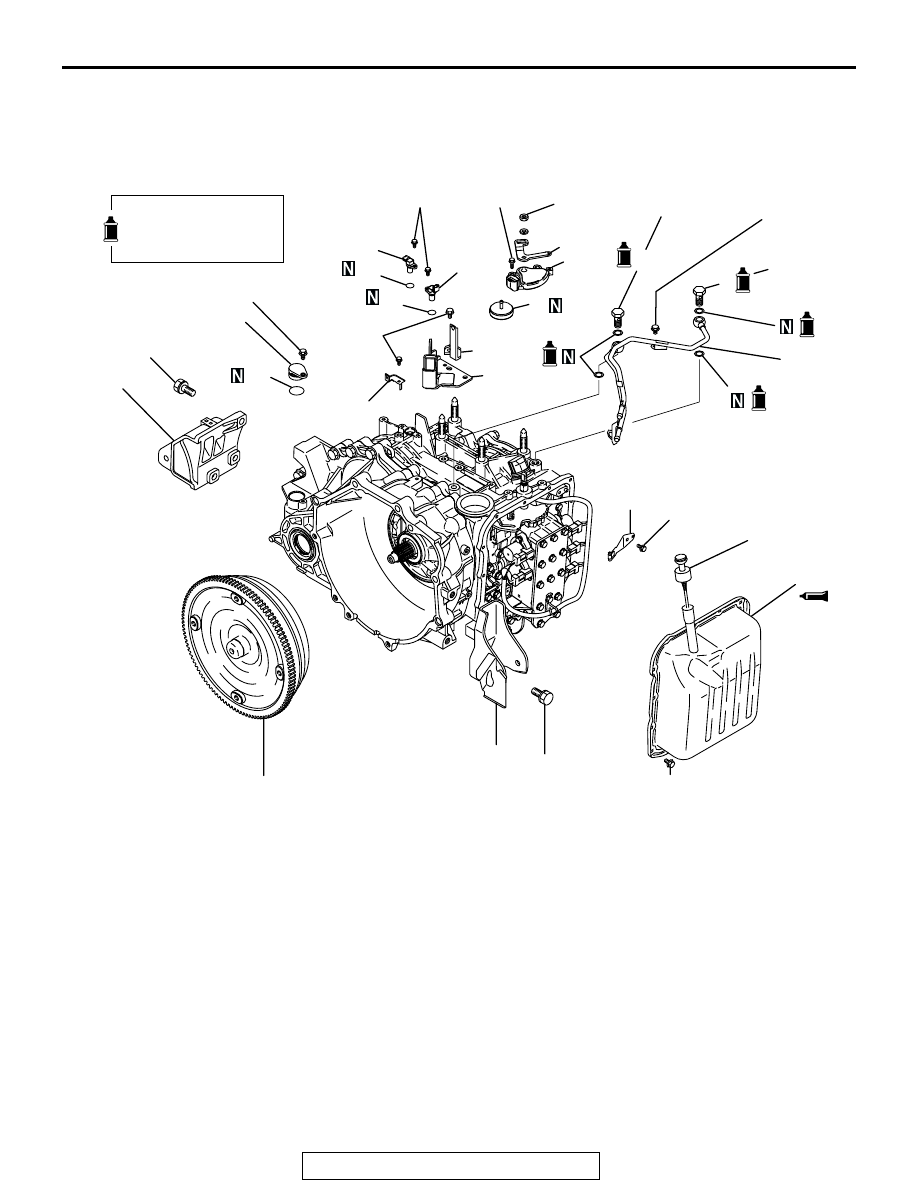

1.

TORQUE CONVERTER

2.

ROLL STOPPER BRACKET

3.

HARNESS BRACKET

4.

HARNESS BRACKET

5.

CONTROL CABLE SUPPORT BRACKET

6.

OIL DIPSTICK

7.

EYE BOLT

8.

OIL COOLER FEED TUBE

9.

AIR BREATHER

10. INPUT SHAFT SPEED SENSOR

11. O-RING
12. OUTPUT SHAFT SPEED SENSOR
13. O-RING
14. MANUAL CONTROL LEVER
15. PARK/NEUTRAL POSITION SWITCH
16. SEALING CAP
17. O-RING
18. VALVE BODY COVER
19. MANUAL CONTROL SHAFT DETENT

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-11

AK301614

32

31

30

26

29

28

25

22

21

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

23

24

20

27

AB

11 ± 1 N·m
95 ± 9 in-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

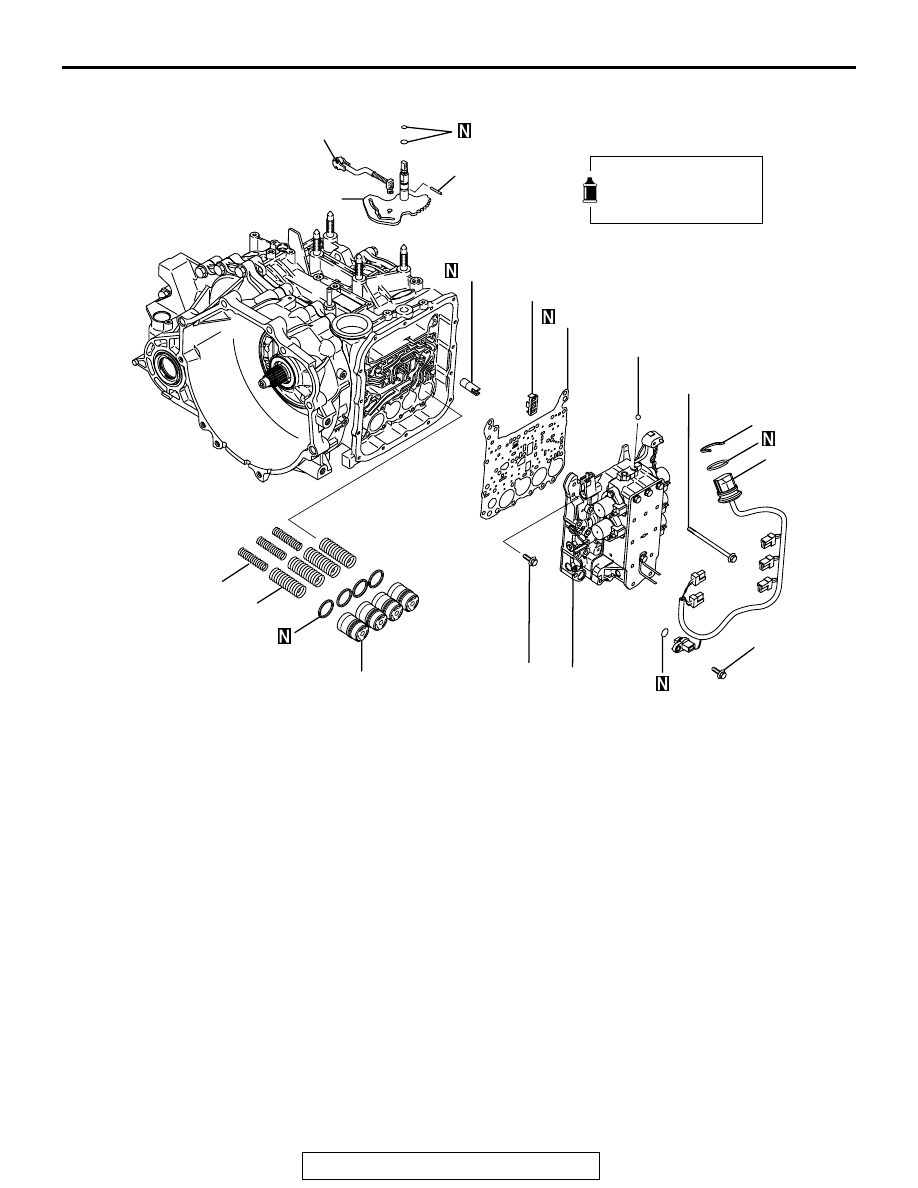

20. VALVE BODY
21. STEEL BALL
22. GASKET
23. SNAP RING
24. SOLENOID VALVE HARNESS
25. STRAINER
26. SECOND BRAKE RETAINER OIL SEAL

27. ACCUMULATOR PISTON
28. ACCUMULATOR SPRING
29. ACCUMULATOR SPRING
30. MANUAL CONTROL LEVER SHAFT

ROLLER

31. MANUAL CONTROL LEVER SHAFT
32. PARKING PAWL ROD

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-12

AK301615

41

34

39

42

43

38

33

35

37

36

48 ± 6 N·m
35 ± 4 ft-lb

48 ± 6 N·m
35 ± 4 ft-lb

29 ± 2 N·m
21 ± 1 ft-lb

AB

40

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

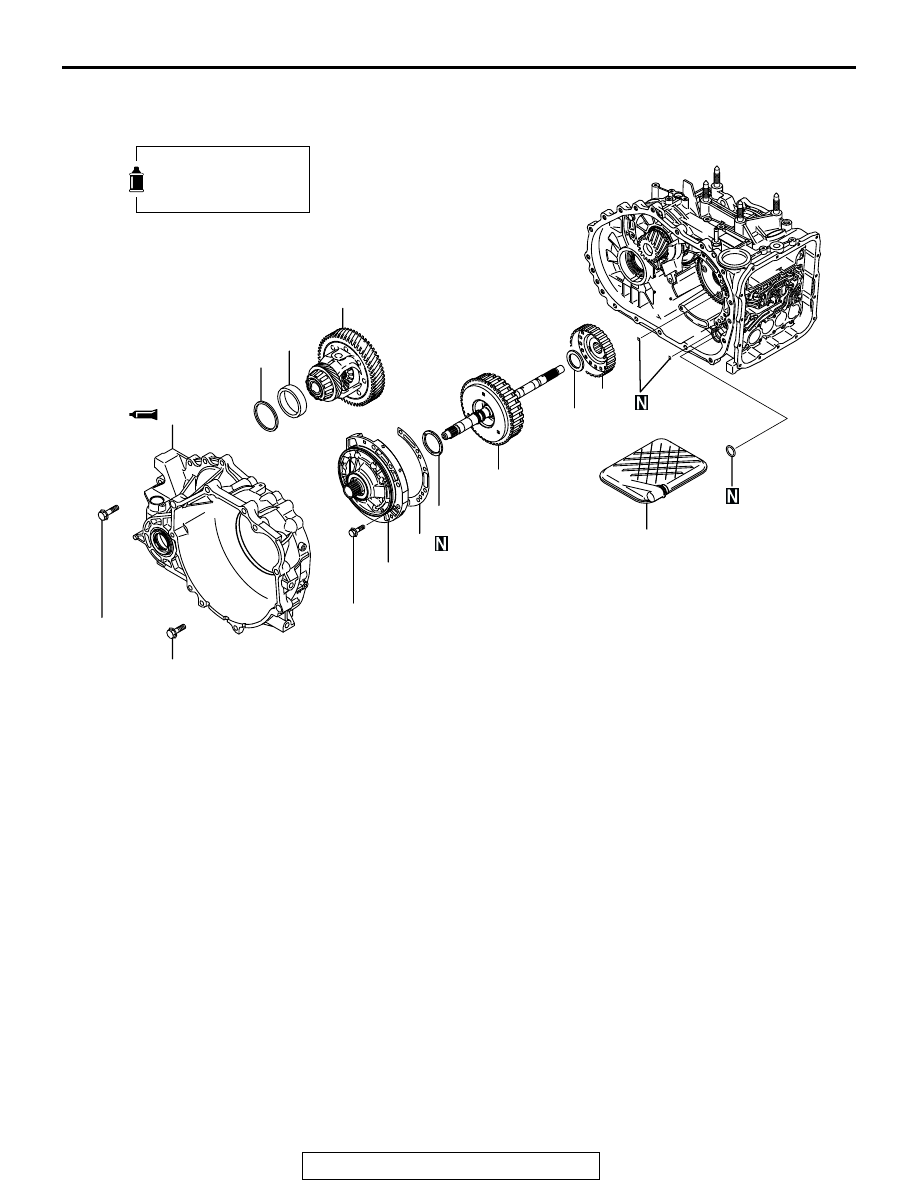

33. TORQUE CONVERTER HOUSING
34. DIFFERENTIAL
35. OIL FILTER
36. OIL PUMP
37. GASKET
38. THRUST WASHER NO.1

39. UNDERDRIVE CLUTCH AND INPUT SHAFT
40. THRUST BEARING NO.2
41. UNDERDRIVE CLUTCH HUB
42. OUTER RACE
43. SPACER
