SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-309

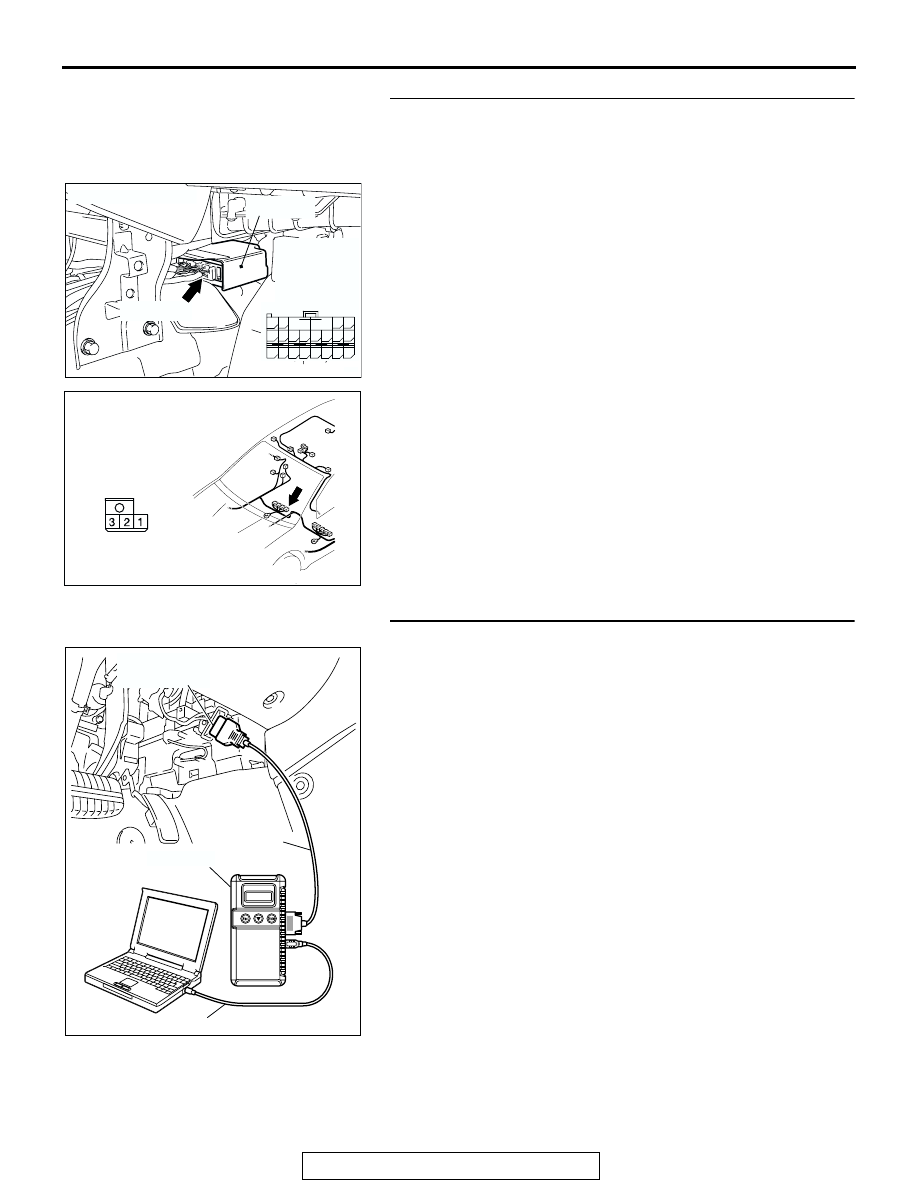

STEP 5. Check the harness wires between SRS-ECU
connector C-120 (terminal No.52, 65 and 51) and
passenger’s seat belt switch connector D-29 (terminal
No.1, 2 and 3).

Q: Are harness wires between SRS-ECU connector C-120

(terminal No.52, 65 and 51)  and passenger’s seat belt
switch connector D-29 (terminal No.1, 2 and 3) in good
condition?
YES : Go to Step 6.
NO :  Replace the harness wires between SRS-ECU

connector C-120 and passenger’s seat belt switch
connector D-29. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1520, B1521, B1522, B1523, B1524, B1525,

B1526, B1527, B1528 or B1529 set?
YES : Return to Step 1.
NO :  The procedure is complete.

AC305362

CONNECTOR: C-120

C-120 (Y)

AG

SRS-ECU

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120
Harness side
connector
(rear view)

AC305264

AT

CONNECTOR: D-29

HARNESS SIDE

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-310

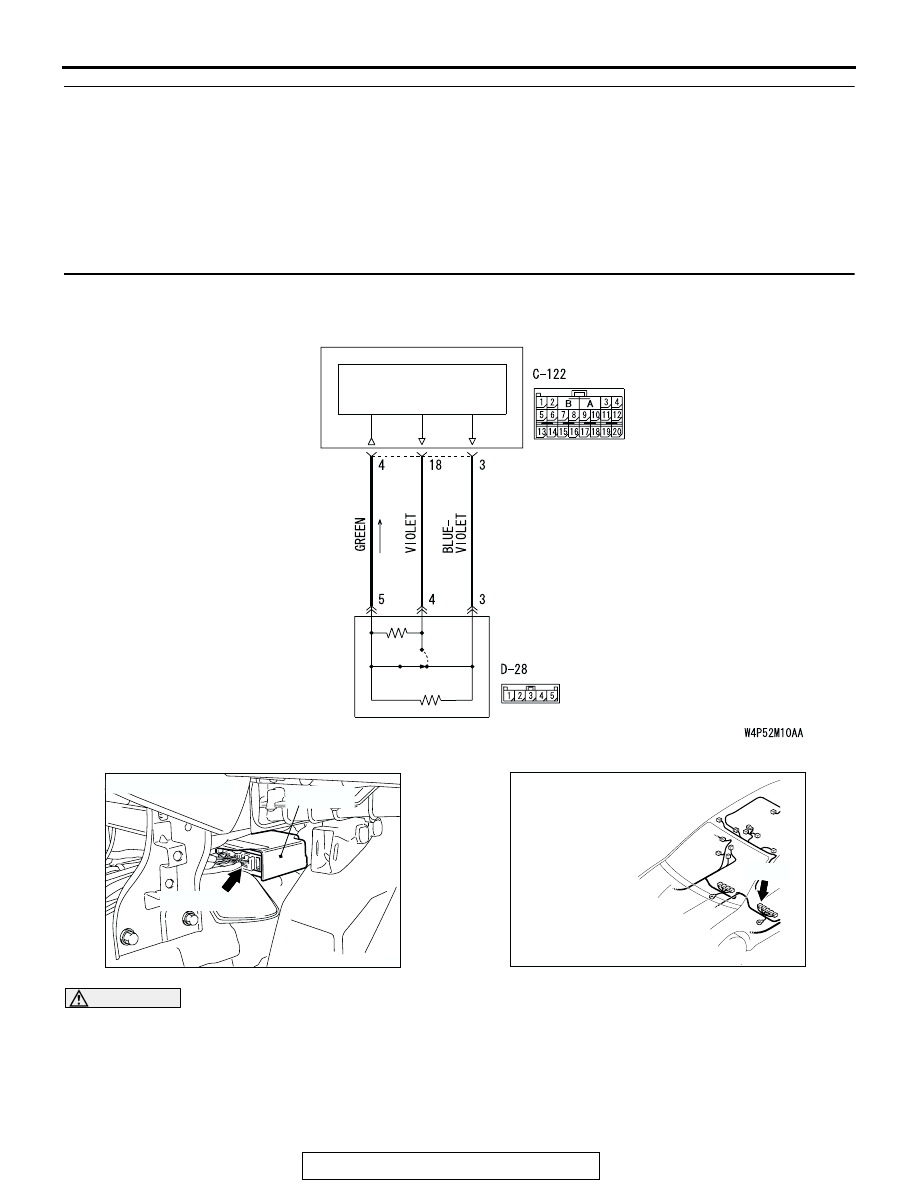

DTC B1530: Seat belt switch (LH) malfunction DTC B1531: Seat belt switch (LH) circuit open (for
Normal/Close terminal) DTC B1532: Seat belt switch (LH) circuit (ground side) shorted (for
Normal/Close terminal) DTC B1533: Seat belt switch (LH) circuit (power supply side) shorted (for
Normal/Close terminal) DTC B1534: Seat belt switch (LH) circuit open (for Normal/Open terminal) DTC
B1535: Seat belt switch (LH) circuit (ground side) shorted (for Normal/Open terminal) DTC B1536:
Seat belt switch (LH) circuit (power supply side) shorted (for Normal/Open terminal) DTC B1537: Seat
belt switch (LH) circuit open (for COM terminal) DTC B1538: Seat belt switch (LH) circuit (ground side)
shorted (for COM terminal) DTC B1539: Seat belt switch (LH) circuit (power supply side) shorted (for
COM terminal)

CAUTION

If DTC B1530, B1531, B1532, B1533, B1534,
B1535, B1536, B1537, B1538 or B1539 are set in
the combination meter, always diagnose the CAN
bus lines.

.

CIRCUIT OPERATION
The SRS-ECU determines whether the seat belt is
fastened or not according to the connection location
of the seat belt switch in the seat buckle.

.

SEAT BELT
SWITCH (DRIVER'S SIDE)
DETECTION CIRCUIT

SEAT BELT
SWITCH
(DRIVER'S SIDE)

SRS-ECU

Driver's Seat Belt Switch Circuit

AC305362

CONNECTOR: C-122

C-122 (Y)

AE

SRS-ECU

AC305264

AQ

CONNECTOR: D-28

D-28 (B)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-311

DTC SET CONDITIONS
DTC is set when the resistance between input termi-
nals of the seat belt switch in the SRS-ECU is with-
out the standard value.

Cause of trouble in each DTC is as follows.

.

TROUBLESHOOTING HINTS

• Malfunction of the seat belt switch

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991222: Probe

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

DTC

SYMPTOM

B1530

Malfunction of seat belt switch

B1531

Malfunction of the Normal/Close terminal or short circuit in its harness

B1532

Short to body ground in the Normal/Close terminal harness

B1533

Short to the power supply in the Normal/Close terminal harness

B1534

Malfunction of the Normal/Open terminal or short circuit in its harness

B1535

Short to body ground in the Normal/Open terminal harness

B1536

Short to the power supply in the Normal/Open terminal harness

B1537

Malfunction of the COM terminal or short circuit in its harness

B1538

Short to body ground in the COM terminal harness

B1539

Short to the power supply in the COM terminal harness

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-312

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.
(4) Diagnose the CAN bus line.
(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

). Then go to Step 2.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
