SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-241

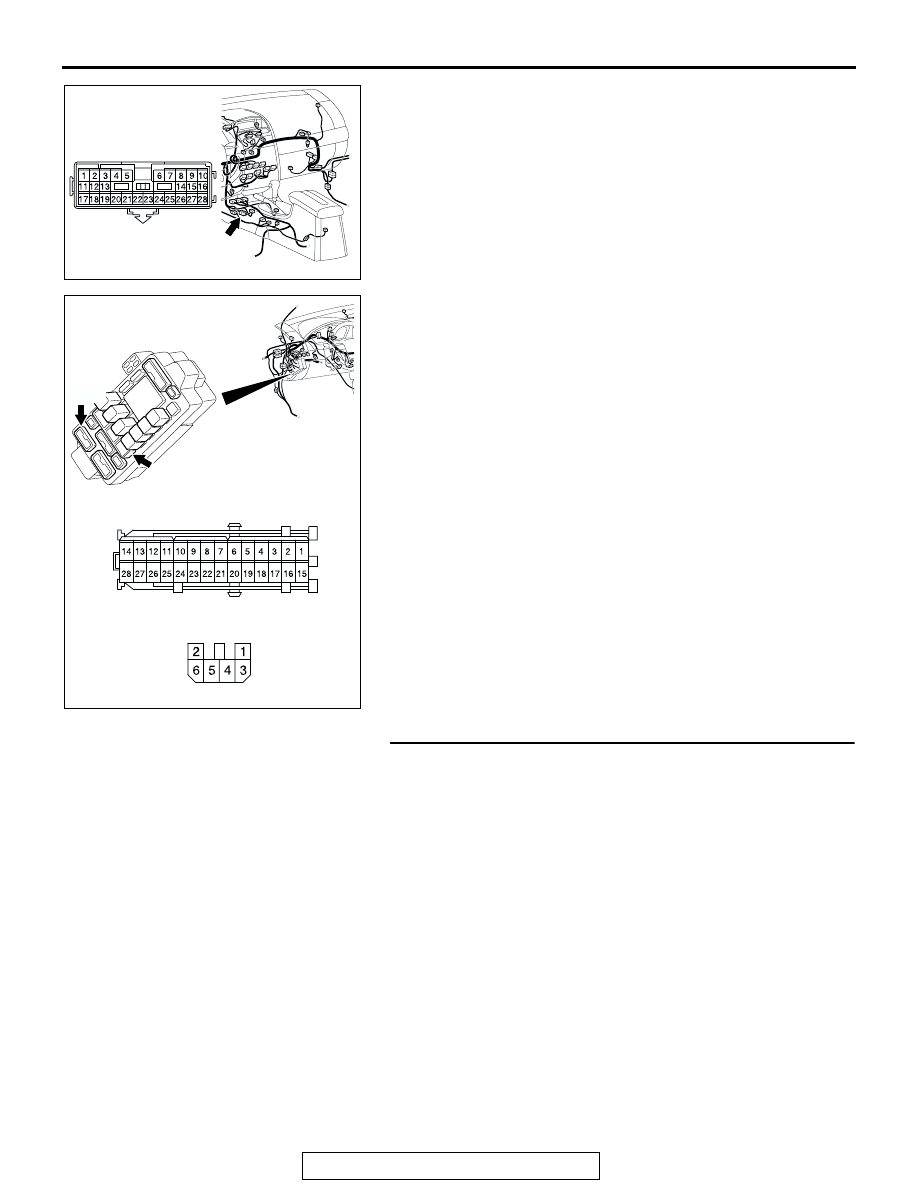

STEP 5. Check the harness for open circuit between
SRS-ECU connector C-121 (terminal No.23 <DTC B1476>
or terminal No.24 <DTC B1477>) and the ignition switch
connector C-308 (terminal No.2).

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305235AG

CONNECTOR: C-308

C-308

2
5

4

1

6

3

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-242

NOTE: After inspecting intermediate connectors C-22, C-211
and C-215, inspect the wiring harness. If intermediate connec-
tors are damaged, repair or replace them. Refer to GROUP
00E, Harness Connector Inspection

P.00E-2

. Then go to Step

10.
Q: Is the harness wire between SRS-ECU connector C-121

(terminal No.23 <DTC B1476> or terminal No.24 <DTC
B1477>) and the ignition switch connector C-308
(terminal No.2) in good condition?
YES : Go to Step 10.
NO :  Replace the harness wire between SRS-ECU

connector C-121 and the ignition switch connector
C-308. Then go to Step 10.

STEP 6. Check a burned-out fuse.
(1) Replace the fuse.
(2) Turn the ignition switch to the "ON" position, wait for at least

one minute and then turn the ignition switch to the "LOCK"
(OFF) position.

(3) Check the fuse.
Q: Is the fuse in good condition?

YES : Go to Step 10.
NO :  It is possible that the circuit using fuse No22 <B1476>

or No.23 <B1477> is shorted, go to Step 7.

AC305233 AI

CONNECTOR: C-22

C-22 (Y)

AC305416

CONNECTORS: C-211, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

C-211

HARNESS SIDE

C-211

HARNESS SIDE

C-215

AK

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-243

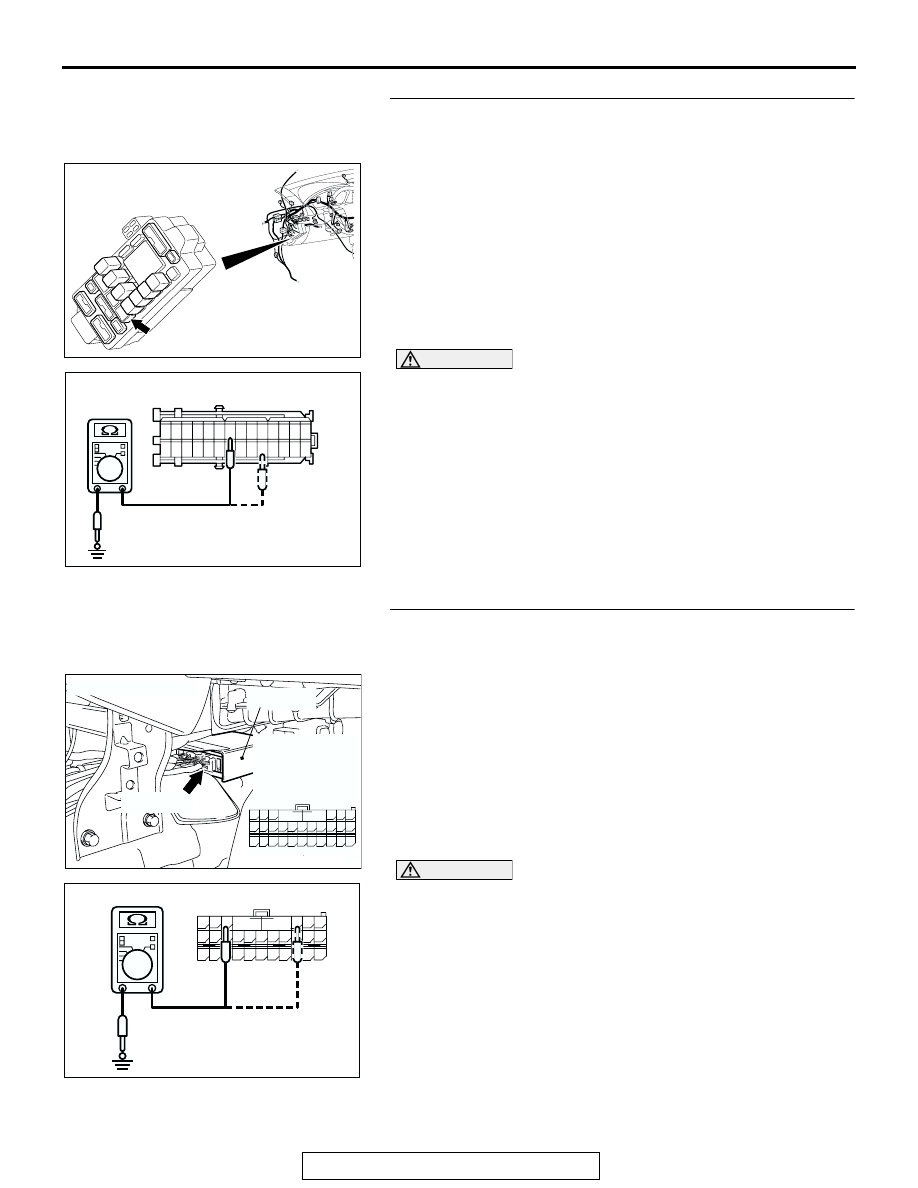

STEP 7. Check the SRS-ECU power supply circuit for short
circuit to ground. Measure the resistance at the junction
block connector C-211.

(1) Disconnect junction block connector C-211, and measure at

the wiring harness side.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(2) Check for continuity between terminal 7 <DTC B1476> or

24 <DTC B1477> and body ground.
It should be open circuit.

Q: Does continuity exist?

YES : Check the other circuit, which flows through fuse

No.22 <DTC B1476> or fuse No.23 <DTC
B1477>.Then go to Step 10.

NO :  Go to Step 8.

STEP 8. Check the power supply circuit for short circuit to
ground. Measure the resistance at the SRS-ECU connector
C-121.

(1) Disconnect SRS-ECU connector C-121, and measure at

the wiring harness side.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(2) Check for continuity between terminal 23 <DTC B1476> or

24 <DTC B1477> and body ground.

It should be open circuit.

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1476 or B1477
sets, replace the SRS-ECU. (Refer to

P.52B-365

).

Then go to Step 10.

NO :  Go to Step 9.

AC305415AN

CONNECTOR: C-211

AC308200

1 2 3 4 5 6 7 8 9 10 1112 1314

1516 1718 19 20 212223 242526 2728

C-211 HARNESS SIDE
CONNECTOR (REAR VIEW)

AB

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC308195

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

C-121 HARNESS SIDE
CONNECTOR (REAR VIEW)

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-244

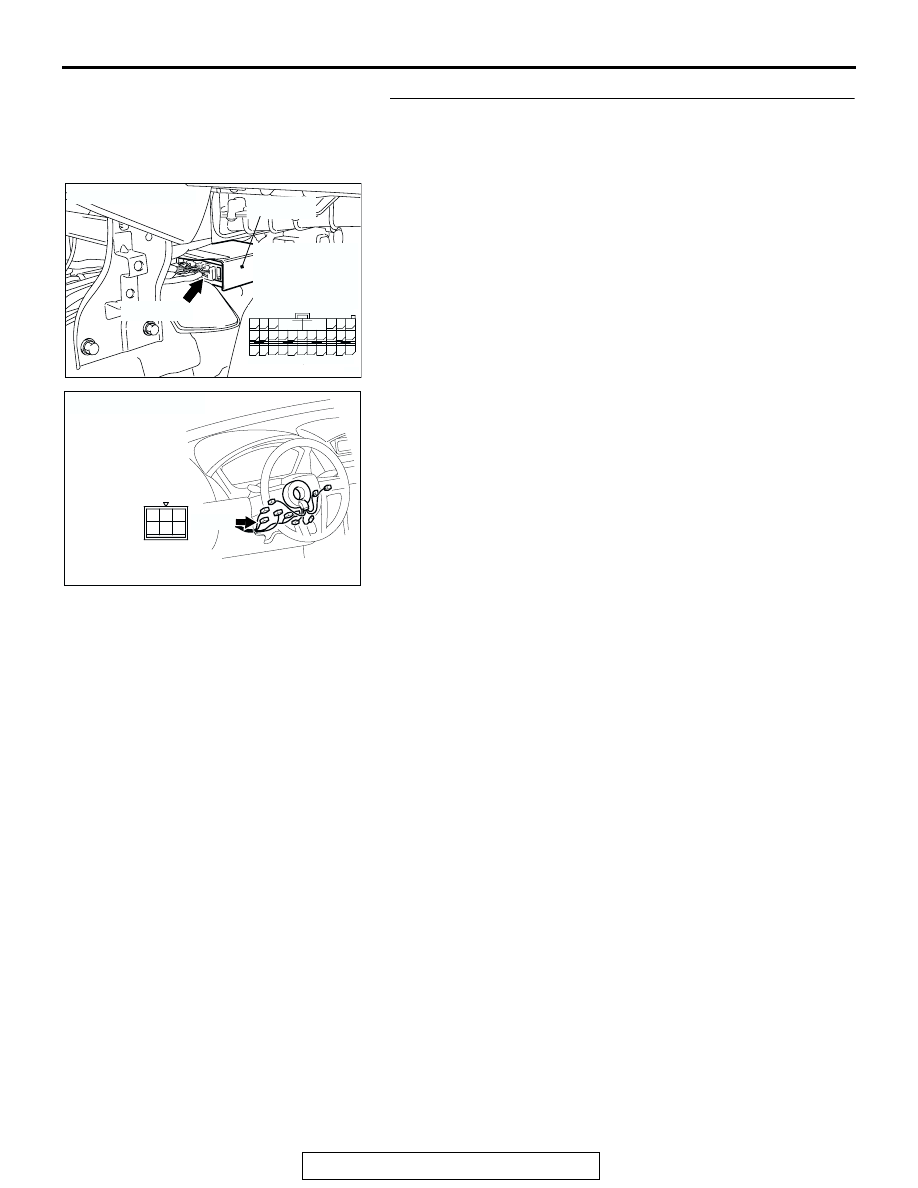

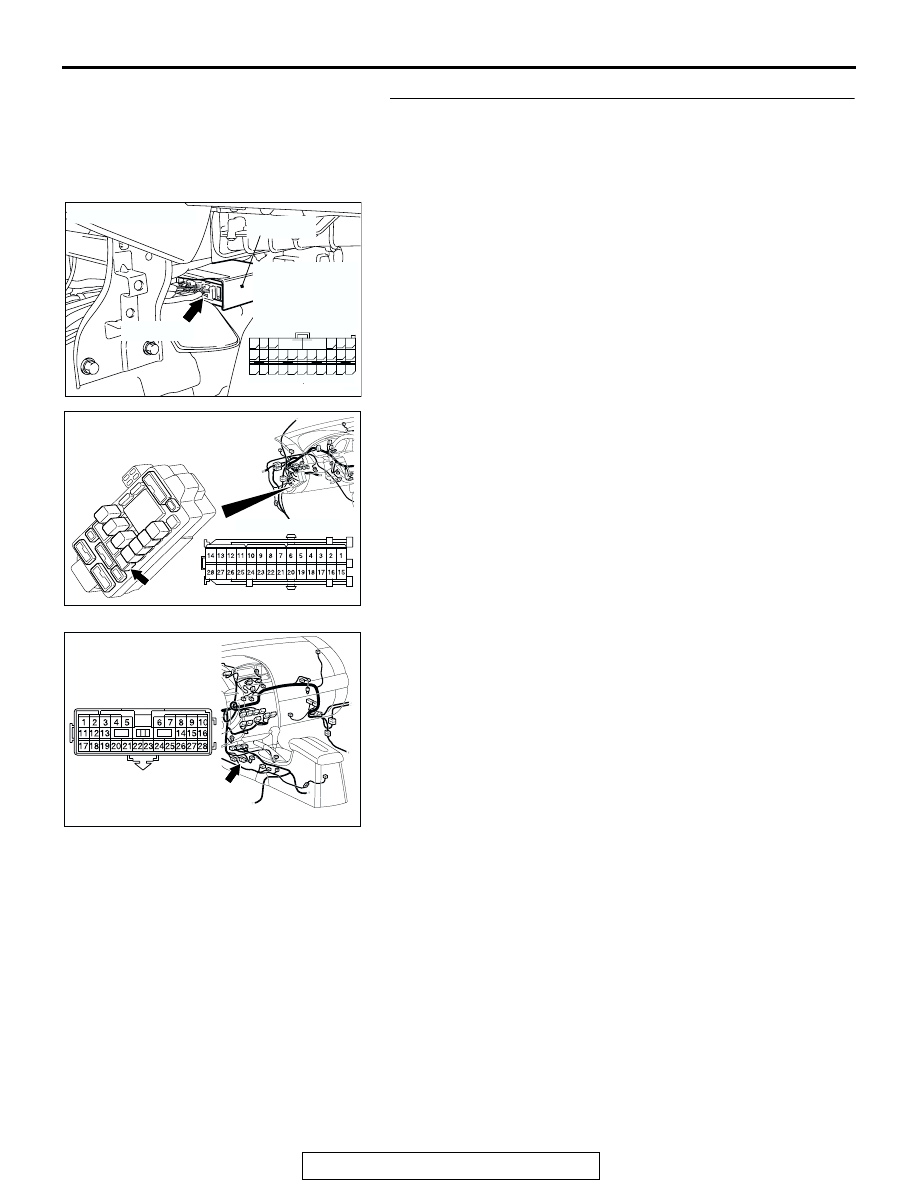

STEP 9. Check the harness for short circuit to ground
between SRS-ECU connector C-121 (terminal No.23 <DTC
B1476> or terminal No.24 <DTC B1477>) and junction
block connector C-211 (terminal No.7 <DTC B1476> or
terminal No.24 <DTC B1477> ).

NOTE: After inspecting intermediate connector C-22, inspect
the wiring harness. If intermediate connectors are damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Then go to Step 10.

Q: Is the harness wire between SRS-ECU connector C-121

(terminal No.23 <DTC B1476> or terminal No.24 <DTC
B1477>) and junction block connector C-211 (terminal
No.7 <DTC B1476> or 24 <DTC B1477>) in good
condition?
YES : Go to Step 10.
NO :  Replace the harness wire between SRS-ECU

connector C-121 and junction block connector C-211.
Then go to Step 10.

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305415AH

CONNECTOR: C-211

C-211

HARNESS SIDE

JUNCTION BLOCK

(FRONT VIEW)

AC305233 AI

CONNECTOR: C-22

C-22 (Y)
