Mitsubishi Galant (2004+). Manual - part 1585

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-233

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-234

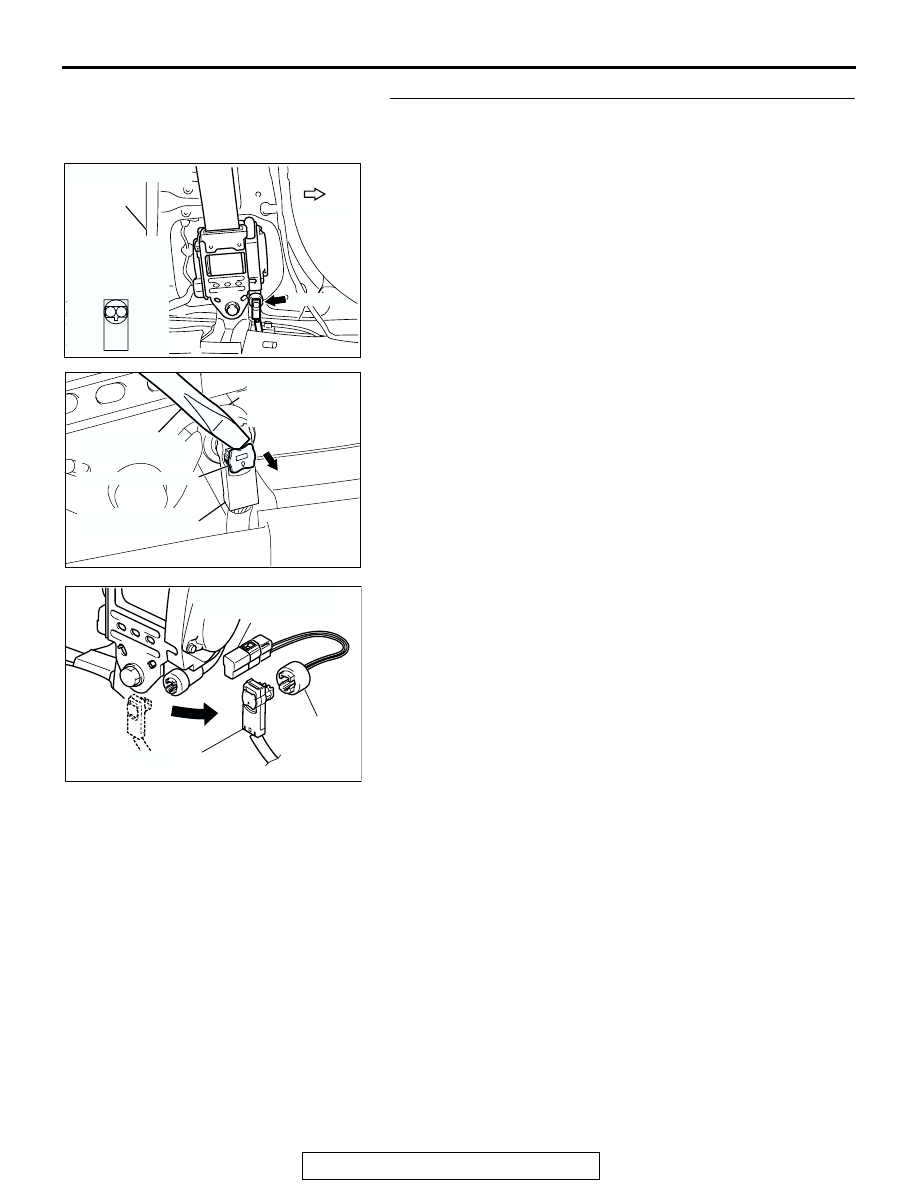

STEP 3. Check the driver's seat belt pre-tensioner. (Using
scan tool MB991958, read the diagnostic trouble code.)

(1) Disconnect the negative battery terminal.
(2) Disconnect driver's seat belt pre-tensioner connector D-21.

Use a flat-tipped screwdriver to unlock the locking button at
the harness side connector by withdrawing it toward you in
two stages, and then disconnect the connector.

(3) Connect special tool MB991865 to special tool MB991884.
(4) Connect special tool MB991884 to the D-21 harness side

connector.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1473 set?

YES : Go to Step 4.
NO :  Replace the driver's seat belt pre-tensioner. Refer to

P.52B-380

. Then go to Step 6.

AC306920AC

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC103556 AT

LOCKING BUTTON

FLAT-TIP SCREW
DRIVER

D-21 HARNESS
SIDE CONNECTOR

D-21 DRIVER'S
SEAT BELT
PRE-TENSIONER
CONNECTOR

MB991884
MB991885

AC103283AO

MB991865
(DUMMY RESISTOR : 3

Ω)

MB991884
(RESISTOR
HARNESS)

D-21  HARNESS SIDE
CONNECTOR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-235

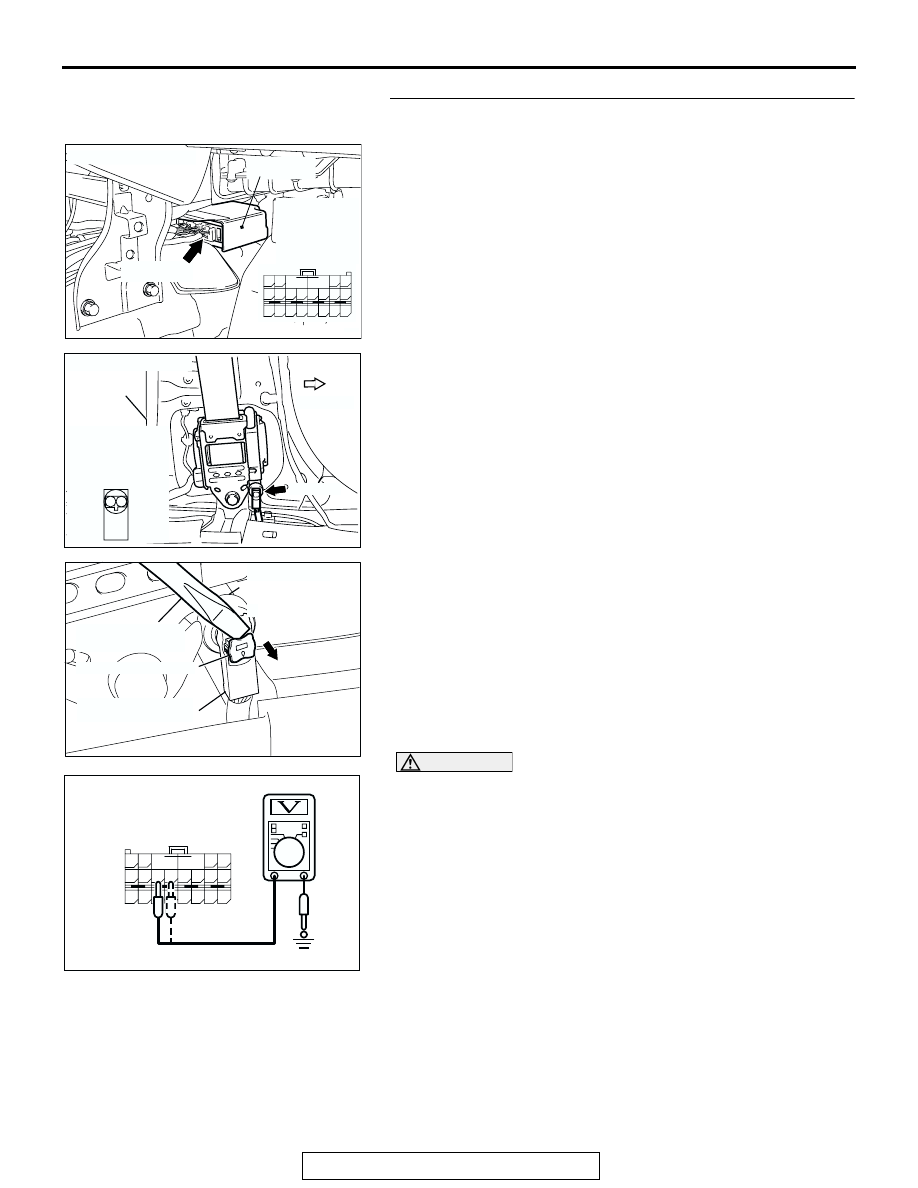

STEP 4. Check the driver's seat belt pre-tensioner circuit.
Measure the resistance at the SRS-ECU connector C-122.

(1) Disconnect SRS-ECU connector C-122.

(2) Disconnect driver's seat belt pre-tensioner connector D-21.

Use a flat-tipped screwdriver to unlock the locking button at
the harness side connector by withdrawing it toward you in
two stages, and then disconnect the connector.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(3) Check for continuity between C-122 harness side connector

terminals 7, 8 and body ground.
It should be open circuit.

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1473 sets,
replace the SRS-ECU (Refer to

P.52B-365

). Then go

to Step 6.

NO :  Go to Step 5.

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC306920AC

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC103556 AT

LOCKING BUTTON

FLAT-TIP SCREW
DRIVER

D-21 HARNESS
SIDE CONNECTOR

D-21 DRIVER'S
SEAT BELT
PRE-TENSIONER
CONNECTOR

AC308181

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AB

C-122 HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-236

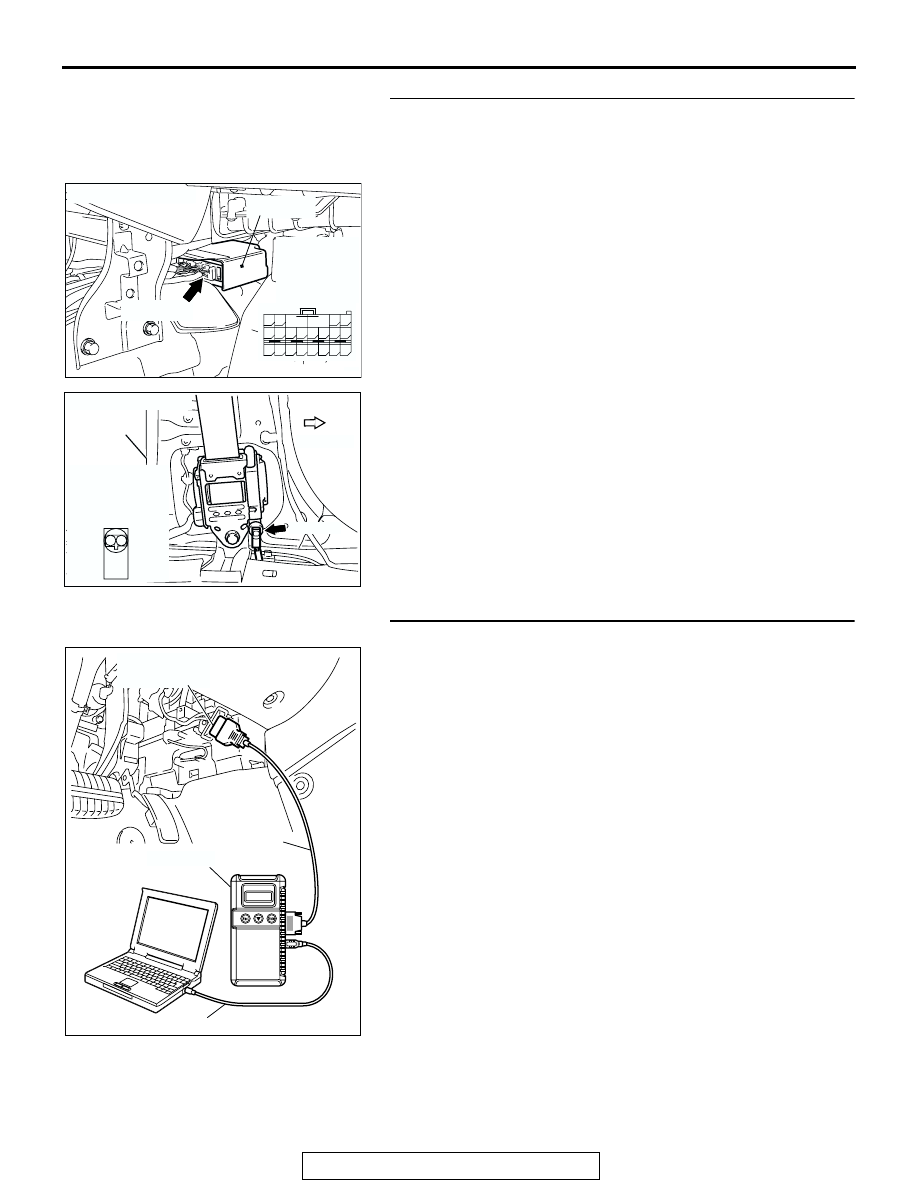

STEP 5. Check harness wires for short circuit to ground
between SRS-ECU connector C-122 (terminal No.7 and 8)
and driver's seat belt pre-tensioner connector D-21
(terminal No.1 and 2).

Q: Are the harness wires between SRS-ECU connector

C-122 (terminal No.7 and 8) and driver's seat belt
pre-tensioner connector D-21 (terminal No.1 and 2) in
good condition?
YES : Go to Step 6.
NO :  Replace the harness wires between SRS-ECU

connector C-122 and driver's seat belt pre-tensioner
connector D-26. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1473 set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC306920AC

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
