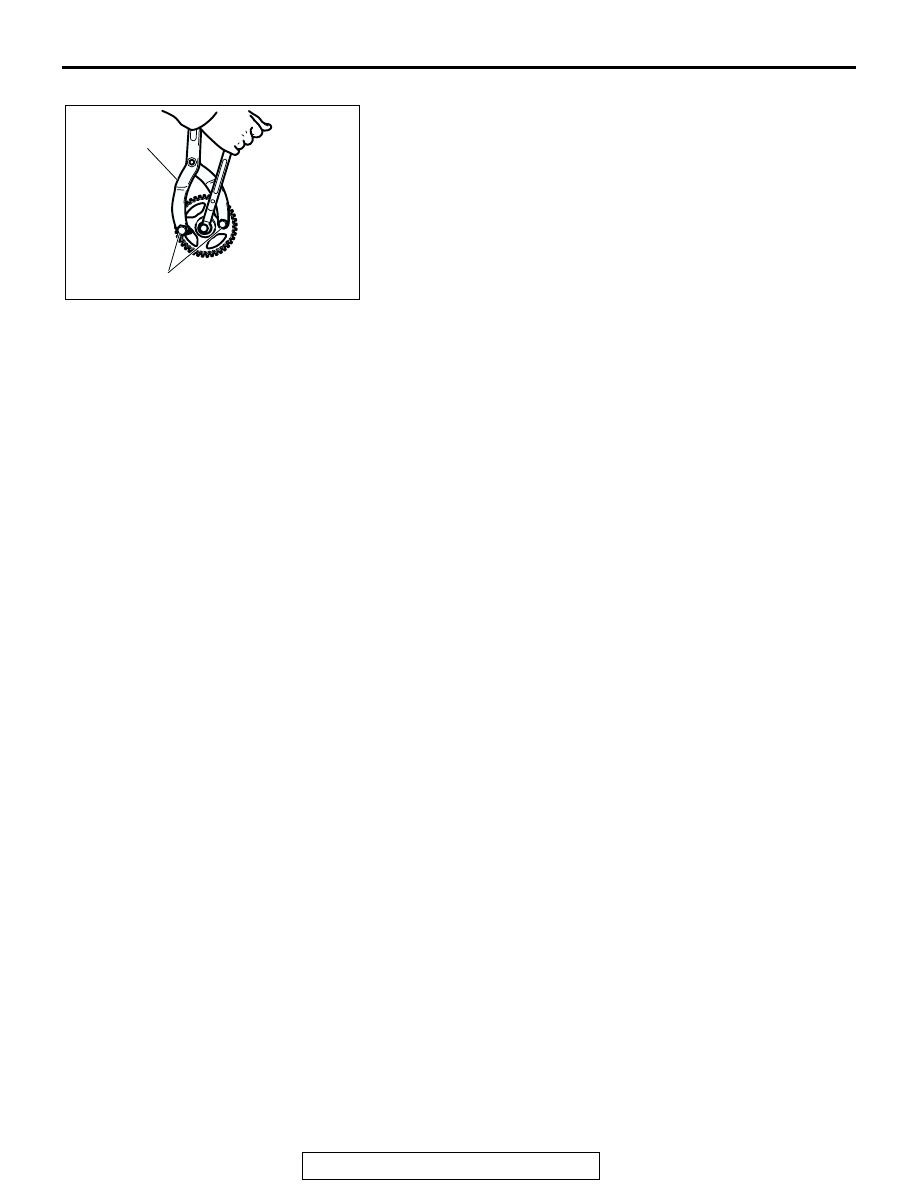

>>F<< CAMSHAFT SPROCKET INSTALLATION
1. Use special tools MD998715 and MB990767 in the same

way as during removal to install the camshaft sprocket.

2. Tighten the camshaft sprocket mounting bolt to the specified

torque.

Tightening torque: 88

± 10 N⋅m (65 ± 7 ft-lb)

ACX00301AB

MB990767

MD998715

OIL PAN AND OIL SCREEN

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-36

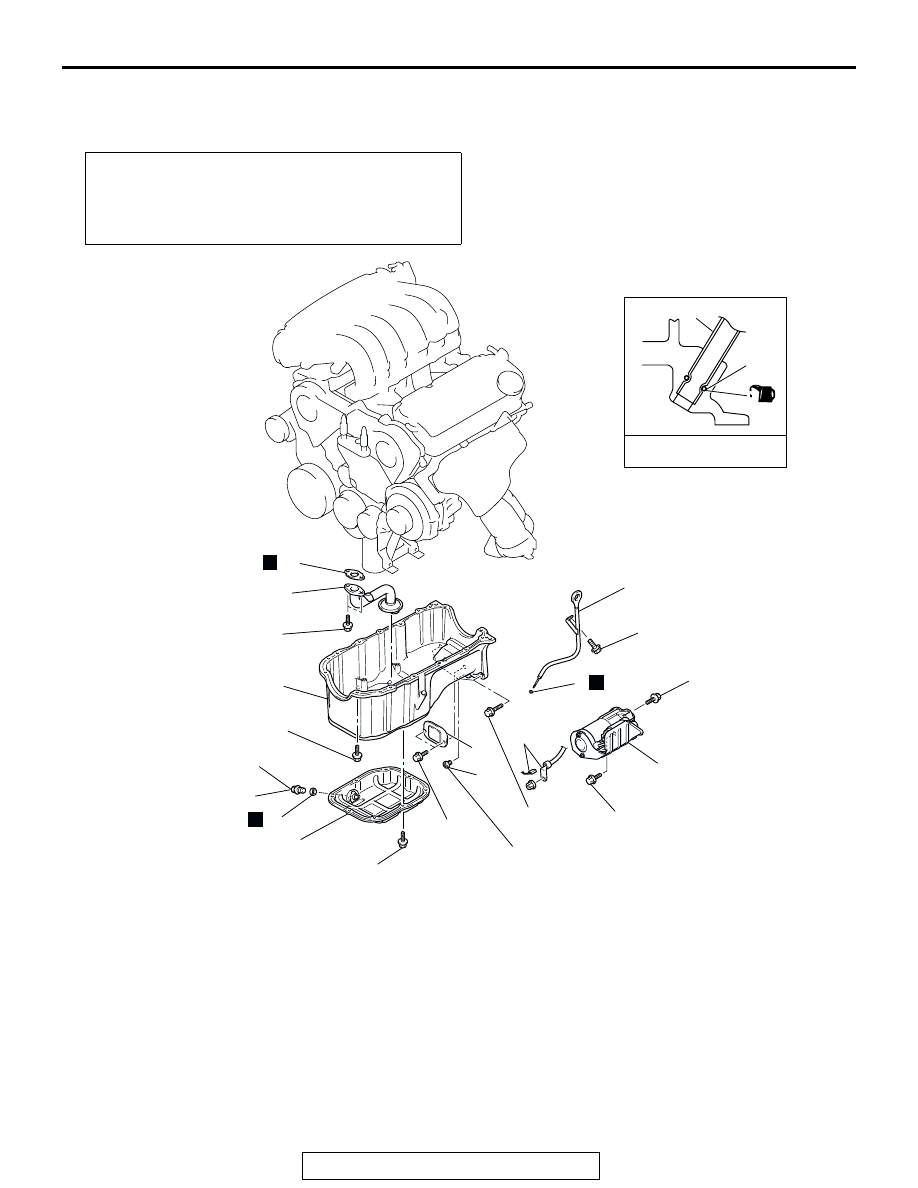

OIL PAN AND OIL SCREEN

REMOVAL AND INSTALLATION

M1112002500193

Pre-removal and Post-installation Operation
• Under Cover Removal and Installation (Refer to GROUP

51, Under Cover

P.51-11

.)

• Engine Oil Draining and Refilling (Refer to GROUP 12,

On-vehicle Service

P.12-4

.)

AC308673

1

2

3

4

5

6

7

8

9

10

11

12

11 ± 0.5 N·m
93 ± 4 in-lb

49 ± 3 N·m
36 ± 2 ft-lb

35 ± 5 N·m
26 ± 4 ft-lb

30 ± 3 N·m
23 ± 2 ft-lb

30 ± 3 N·m
23 ± 2 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

11 ± 1 N·m
97 ± 9 in-lb

39 ± 5 N·m
29 ± 3 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

8.5 ± 3.5 N·m
76 ± 31 in-lb

N

N

N

AB

6

5

ENGINE OIL

REMOVAL STEPS

1.

ENGINE OIL PAN DRAIN PLUG

2.

ENGINE OIL PAN DRAIN PLUG
GASKET

3.

STARTER CONNECTOR

4.

STARTER ASSEMBLY

5.

ENGINE OIL DIPSTICK
ASSEMBLY

6.

O-RING

<<A>>

>>B<<

7.

ENGINE LOWER OIL PAN

•

FRONT NO.1 EXHAUST PIPE
(REFER TO GROUP 15,
EXHAUST PIPE AND MAIN
MUFFLER

P.15-21

)

8.

COVER

<<B>>

9.

TORQUE CONVERTER
CONNECTING BOLTS

<<C>>

>>A<<

10. ENGINE UPPER OIL PAN
11. OIL SCREEN
12. GASKET

REMOVAL STEPS (Continued)

OIL PAN AND OIL SCREEN

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-37

REMOVAL SERVICE POINT

.

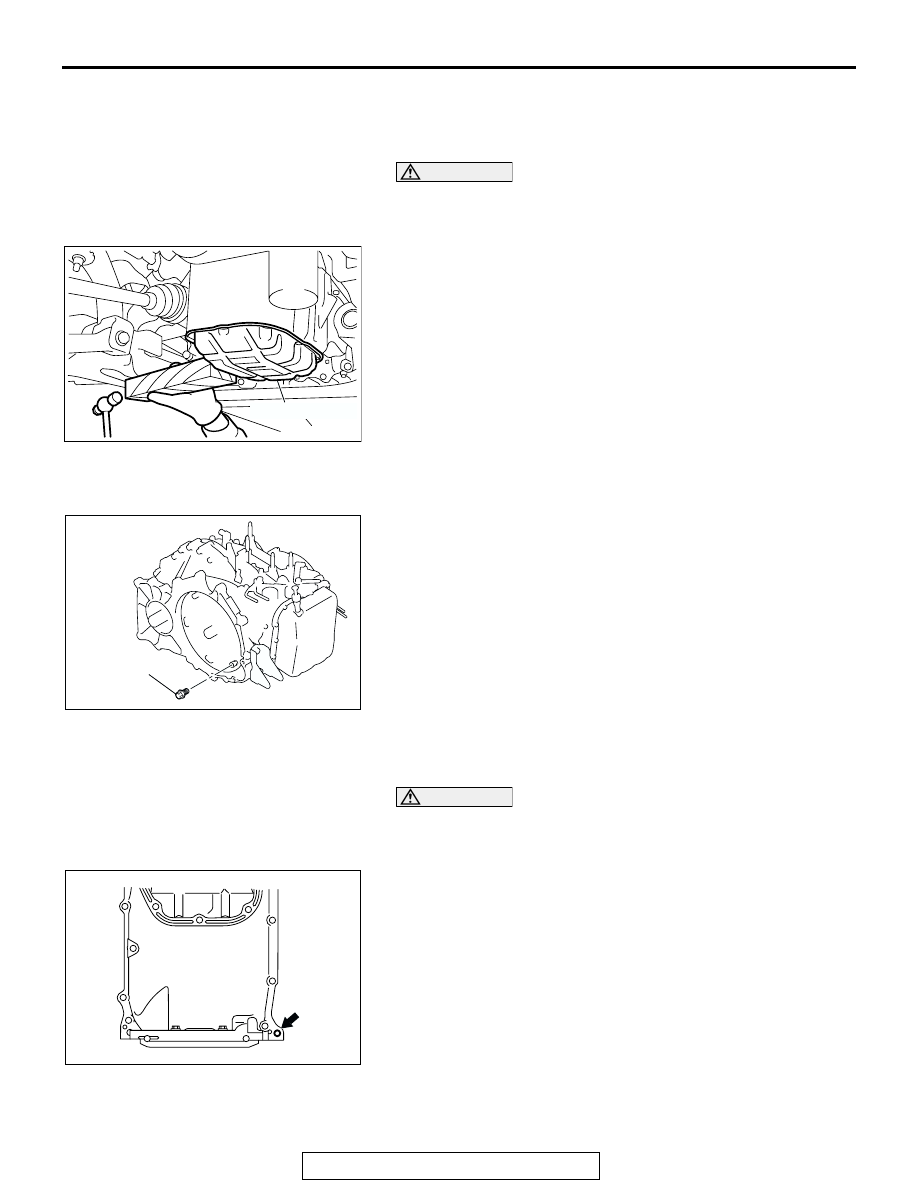

<<A>> ENGINE LOWER OIL PAN REMOVAL
1. Remove the engine lower oil pan mounting bolts.

CAUTION

Do not use oil pan remover special tool (MD998727). The
engine upper oil pan is made of aluminum and this tool will
damage it.
2. Apply a piece of wood to the lower oil pan and strike it with a

hammer to remove the engine lower oil pan.

.

<<B>> TORQUE CONVERTER CONNECTING BOLT
REMOVAL
Remove the one torque converter connecting bolt as shown.

.

<<C>> ENGINE UPPER OIL PAN REMOVAL
1. Remove the engine upper oil pan mounting bolts.

CAUTION

Do not use oil pan remover special tool (MD998727). The
engine upper oil pan is made of aluminum and this tool will
damage it.
2. Screw in the bolt (M10) into bolt hole A in the location

shown. Then lift the upper oil pan and remove it.

AC206414

LOWER OIL PAN

AB

AC206538

49 ± 3 N·m
36 ± 2 ft-lb

AB

AC206525 AB

A

OIL PAN AND OIL SCREEN

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-38

INSTALLATION SERVICE POINTS

.

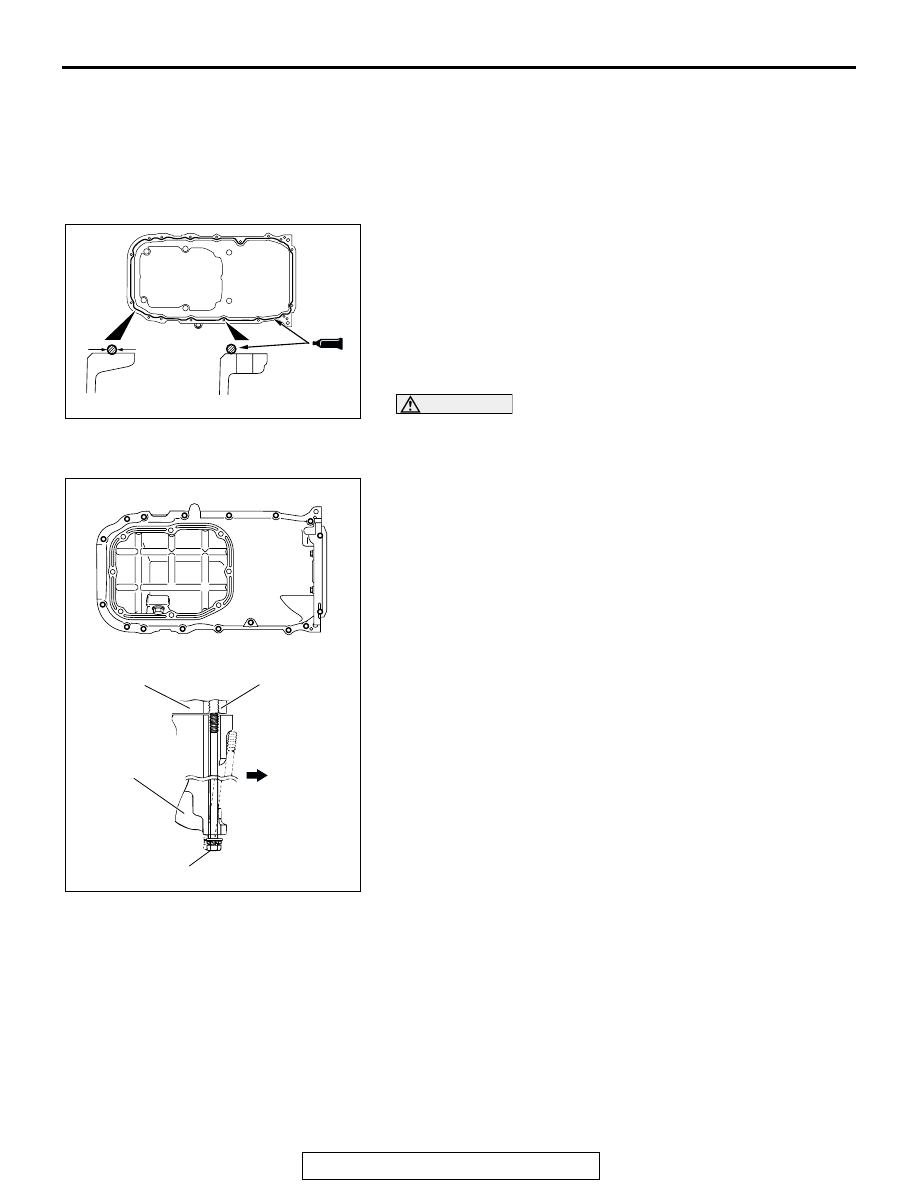

>>A<< ENGINE UPPER OIL PAN INSTALLATION
1. Remove sealant from the oil pan and cylinder block mating

surfaces.

2. Degrease the sealant-coated surface and the engine mating

surface.

3. Apply a bead of the sealant to the cylinder block mating

surface of the engine oil pan as shown.

Specified sealant: 3M

 AAD Part No.8672, 8704, 3M

AAD Part No.8679/8678 or equivalent

NOTE: The sealant should be applied in a continuous bead
approximately 4.0 mm (0.16 inch) in diameter.

4. Assemble the oil pan to the cylinder block within 15 minutes

after applying the sealant.

CAUTION

The bolt holes for bolts 13 and 14 in the illustration are cut
away on the transaxle side. Be careful not to insert these
bolts at an angle.
5. Tighten the bolts in order of the numbers shown in the

illustration.

.

AC308675

Ø 4.0 mm
(0.16 in)

GROOVE
PORTION

BOLT HOLE
PORTION

AB

AC206507

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

AB

CYLINDER BLOCK

REAR OIL SEAL CASE

OIL PAN

TRANSAXLE
SIDE

13, 14
