GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-25

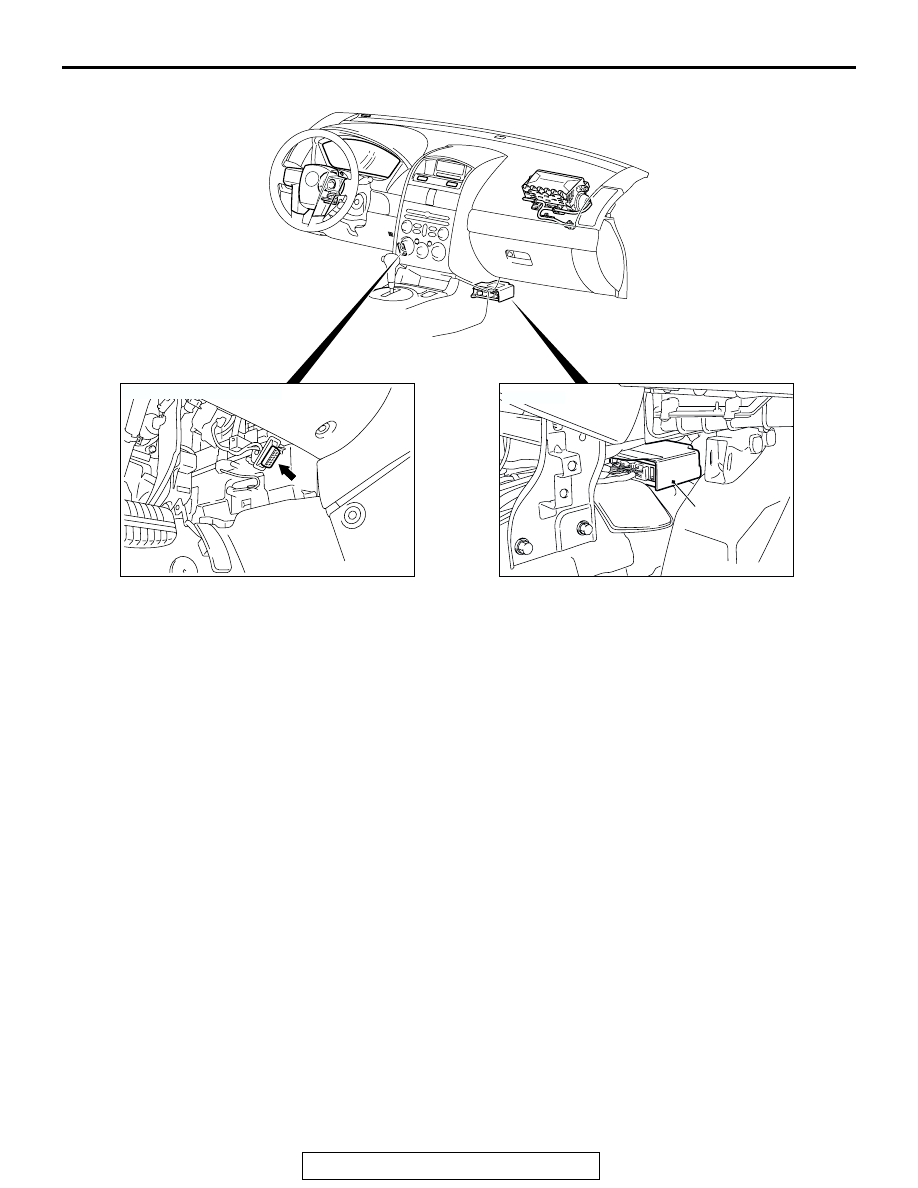

NOTE: The illustration above shows the front impact sensor (LH) and the side impact sensor (LH). The posi-
tion of the front impact sensor (RH) and the side impact sensor (RH) is symmetrical to this.

AC306318

AC307339

AC305362

AC305028

DATA LINK CONNECTOR

SRS-ECU

SRS-ECU

AB

SERVICE PRECAUTIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-26

SERVICE PRECAUTIONS

M1524000300499

DANGER

•

In order to avoid injury to yourself or others from
accidental deployment of the air bag during servic-
ing, read and carefully follow all the precautions
and procedures described in this manual.

•

After disconnecting the battery cable, wait 60 sec-
onds or more before proceeding with the following
work. The SRS system is designed to retain
enough voltage to deploy the air bag for a short
time even after the battery has been disconnected,
so serious injury may result from unintended air
bag deployment if work is done on the SRS system
immediately after the battery cables are discon-
nected.

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Do not use any electrical test equipment on or near
the SRS components, except those specified on

P.52B-347

.

•

Never Attempt to Repair the Following Compo-
nents: SRS-ECU, Clock Spring, Air Bag Module,
Front impact sensor, Side Impact Sensor, Seat Belt
with Pre-tensioner, Seat slide sensor, Front seat
assenbly. If any of these components are diag-
nosed as faulty, they should only be replaced, in
accordance with the INDIVIDUAL COMPONENT
SERVICE procedures in this manual, starting on

P.52B-353

.

•

Do not attempt to repair the wiring harness con-
nectors of the SRS. If any of the connectors are
diagnosed as faulty, replace the wiring harness. If
the wires are diagnosed as faulty, replace or repair
the wiring harness according to the following
table.

.

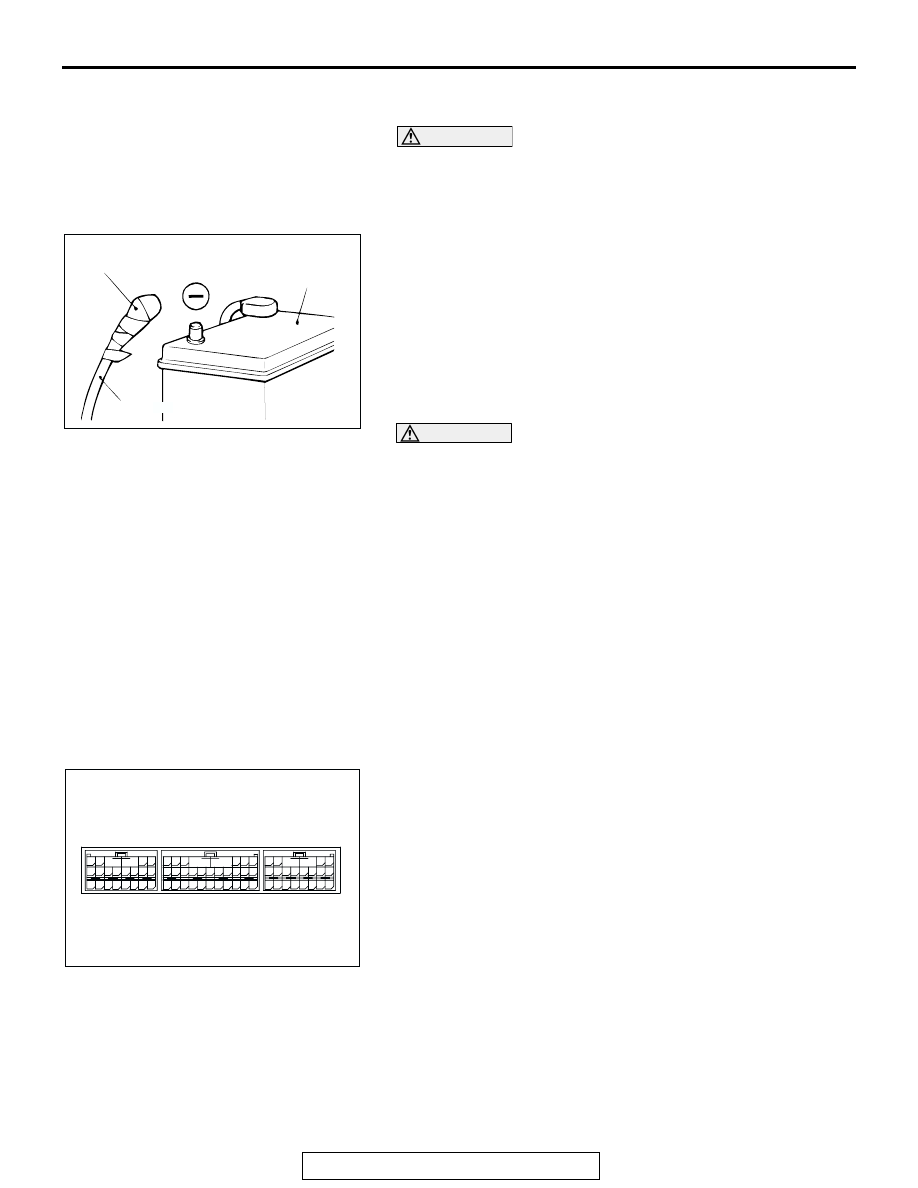

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC3001278AB

SRS-ECU CONNECTOR

SERVICE PRECAUTIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-27

SRS-ECU TERMINAL
NO.

DESTINATION OF HARNESS

CORRECTIVE ACTION

1, 2

Floor wiring harness

→ Seat slide

sensor

Correct or replace the floor wiring
harness.

3

Floor wiring harness

→ Driver’s seat

belt switch for N/C terminal

Correct or replace the floor wiring
harness.

4

Floor wiring harness

→ Driver’s seat

belt switch for COM terminal

Correct or replace the floor wiring
harness.

7, 8

Floor wiring harness

→ Seat belt

pre-tensioner (LH)

Correct or replace the floor wiring
harness.

9*, 10*

Floor wiring harness

→ Side-airbag

module (LH)

Correct or replace the floor wiring
harness.

18

Floor wiring harness

→ Driver’s seat

belt switch for N/O terminal

Correct or replace the floor wiring
harness.

19*, 20*

Floor wiring harness

→ Side impact

sensor (LH)

Correct or replace the floor wiring
harness.

21

Floor wiring harness

→ Instrument

panel wiring harness

→ Air bag off

indicator light

Correct or replace each wiring harness.

23

Floor wiring harness

→ Instrument

panel wiring harness

→ Junction block

(fuse No.22)

Correct or replace each wiring harness.

24

Floor wiring harness

→ Instrument

panel wiring harness

→ Junction block

(fuse No.23)

Correct or replace each wiring harness.

27, 28

Floor wiring harness

→ Instrument

panel wiring harness

→ Air bag module

(Front passenger's side) <1st squib
side>

Correct or replace each wiring harness.

30, 31

Floor wiring harness

→ Instrument

panel wiring harness

→ Air bag module

(Front passenger's side) <2nd squib
side>

Correct or replace each wiring harness.

32

Can line

Correct or replace can line.

33, 34

Floor wiring harness

→ Instrument

panel wiring harness

→ Clock spring →

Air bag module (Driver's side) <2nd
squib side>

Correct or replace each wiring harness.
Replace the clock spring.

36, 37

Floor wiring harness

→ Instrument

panel wiring harness

→ Clock spring →

Air bag module (Driver's side) <1st
squib side>

Correct or replace each wiring harness.
Replace the clock spring.

38, 39

Floor wiring harness

→ Instrument

panel wiring harness

→ Front wiring

harness

→ Front impact sensor (LH)

Correct or replace each wiring harness.

40

Floor wiring harness

→ Ground

Correct or replace the floor wiring
harness.

SERVICE PRECAUTIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-28

NOTE: *Vehicles with side-airbags

.

42

Floor wiring harness

→ Instrument

panel wiring harness

→ Seat belt

warning light

Correct or replace each wiring harness.

43

Can line

Correct or replace can line.

47, 48

Floor wiring harness

→ Instrument

panel wiring harness

→ Front impact

sensor (RH)

Correct or replace each wiring harness.

51

Floor wiring harness

→ Passenger’s

seat belt switch for COM terminal

Correct or replace the floor wiring
harness.

52

Floor wiring harness

→ Passenger’s

seat belt switch for N/C terminal

Correct or replace the floor wiring
harness.

57*, 58*

Floor wiring harness

→ Side-airbag

module (RH)

Correct or replace the floor wiring
harness.

59, 60

Floor wiring harness

→ Seat belt

pre-tensioner (RH)

Correct or replace the floor wiring
harness.

63*, 64*

Floor wiring harness

→ Side impact

sensor (RH)

Correct or replace the floor wiring
harness.

65

Floor wiring harness

→ Passenger’s

seat belt switch for N/O terminal

Correct or replace the floor wiring
harness.

66

Floor wiring harness

→ Occupant

classification sensor

Correct or replace the floor wiring
harness.

SRS-ECU TERMINAL
NO.

DESTINATION OF HARNESS

CORRECTIVE ACTION
