GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-5

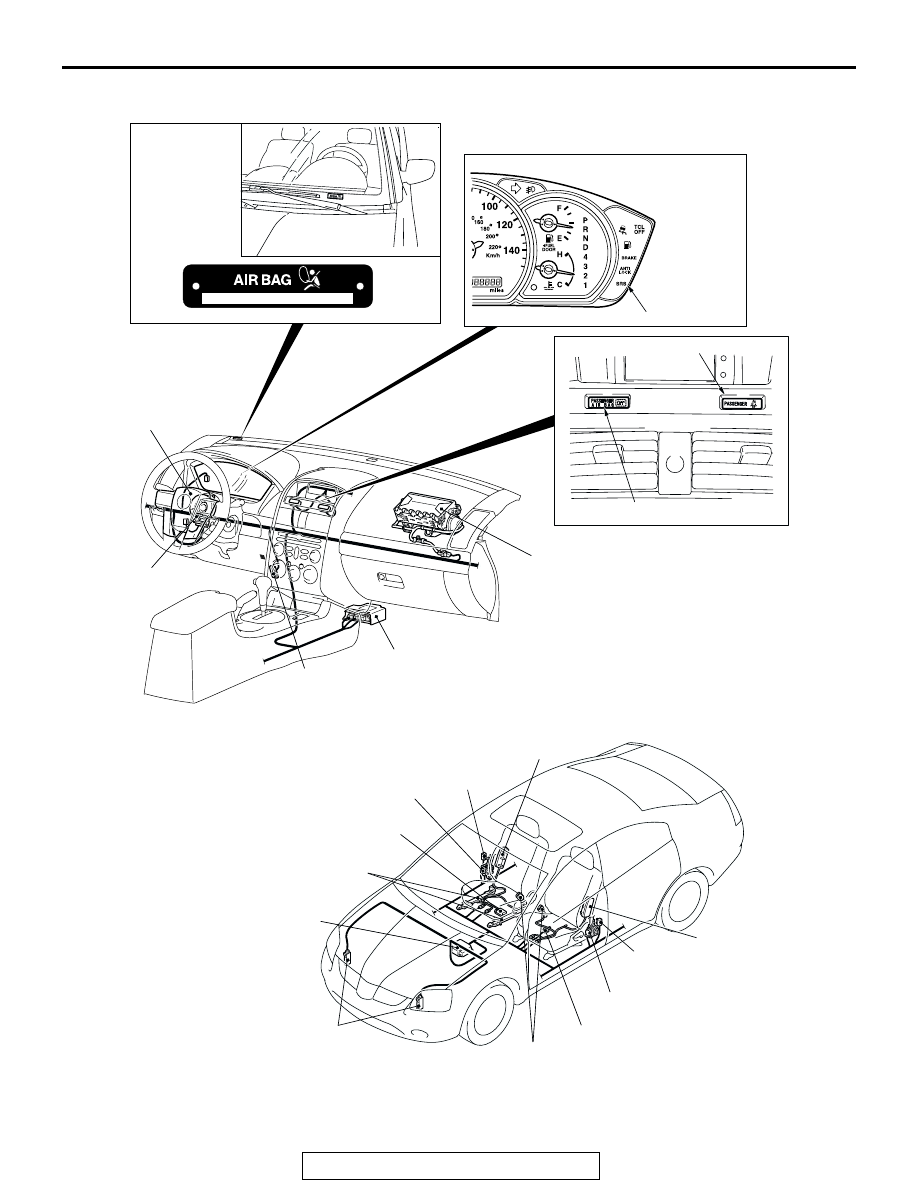

CONSTRUCTION DIAGRAM

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to
"Schematic(

P.52B-9

), "Configuration Diagrams(

P.52B-12

), " and "Circuit Diagram(

P.52B-14

)".

AC307333

AC306795

AC306796

AC205757

AC304745

AC306329

SRS WARNING LIGHT

VEHICLES
IDENTIFICATION
CODE CHART
PLATE

SIDE IMPACT
SENSOR

SIDE-AIRBAG
MODULE

SIDE-AIRBAG
MODULE

SIDE IMPACT
SENSOR

FRONT IMPACT
SENSOR

PASSENGER'S (FRONT)
AIR BAG MODULE

SRS-ECU

CLOCK
SPRING

DATA LINK CONNECTOR
(FOR SCAN TOOL)

SEAT BELT WITH
PRE-TENSIONER

DRIVER'S AIR
BAG MODULE

AB

PASSENGER'S SEAT BELT WARNING LIGHT

PASSENGER'S
AIR BAG OFF INDICATOR LIGHT

SEAT BELT WITH
PRE-TENSIONER

SEAT SLIDE
SENSOR

SEAT BELT
SWITCH

OCCUPANT
CLASSIFICATION
SENSOR

SRS-ECU

OCCUPANT
CLASSIFICATION-ECU

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-6

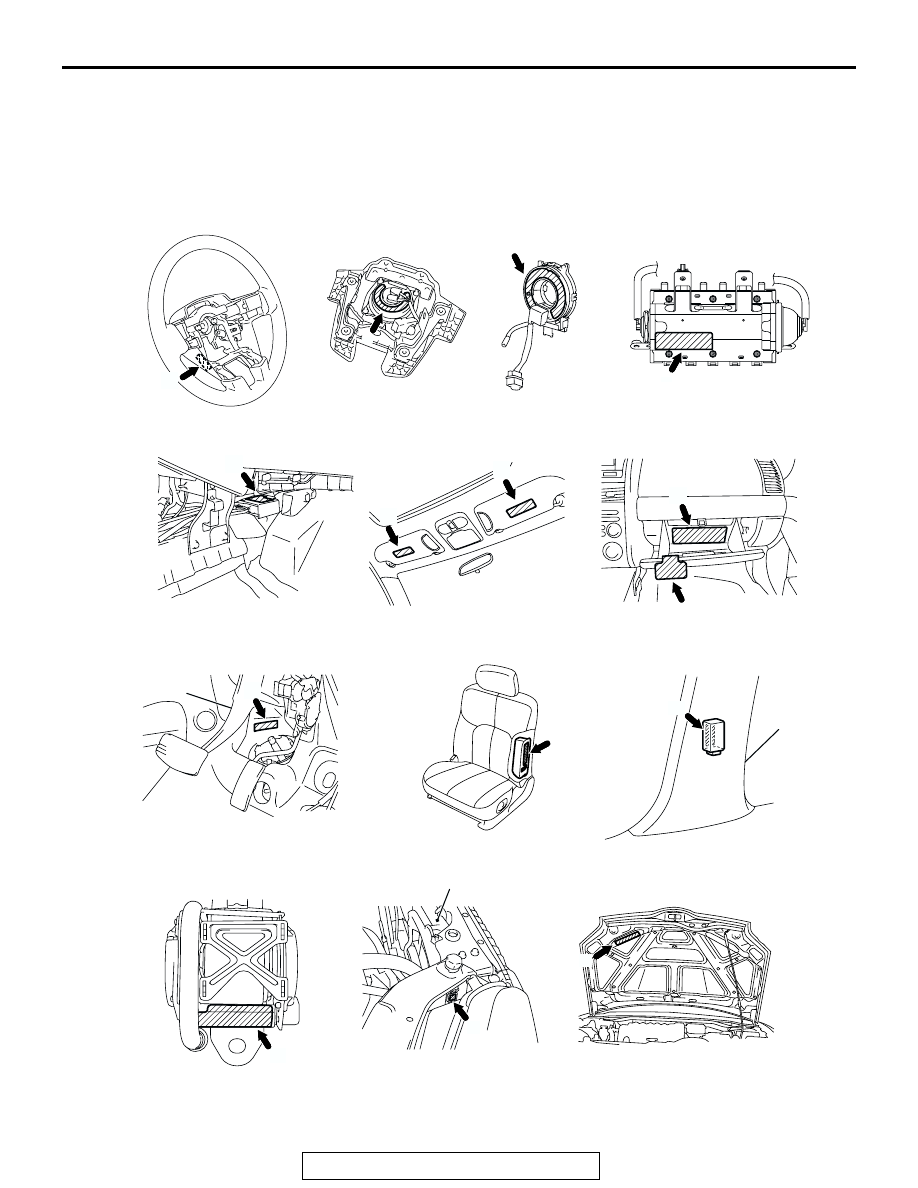

WARNING/CAUTION LABELS

A number of caution labels related to the SRS are
found in the vehicle, as shown in the following illus-
trations. Follow label instructions when servicing
SRS. If the other labels are dirty or damaged,
replace them.

AC306672

AC306338

AC306339

AC306340

AC306334

AC306335

AC306341

AC306337

AC306336

AC308167

STEERING WHEEL

DRIVER'S AIR BAG MODULE

B

CLOCK SPRING

C

SRS-ECU

SUN VISOR

GLOVE BOX

H

STEERING JOINT COVER

SIDE-AIRBAG MODULE
(DRIVER'S AND
FRONT PASSENGER'S SEAT)

SIDE IMPACT SENSORS
(RH AND LH)

J

CENTER
PILLAR

K

I

SEAT BELT WITH
PRE-TENSIONER
(DRIVER'S AND FRONT
PASSENGER'S SEATBELT)

HOOD

FRONT IMPACT SENSORS (RH AND LH)

L

M

N

AB

RADIATOR

A

E

F

F

G

BRAKE
PEDDAL

PASSENGER'S AIR BAG MODULE

D

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

LABEL CONTENTS
A

WARNING: SRS

• BEFORE REPLACING STEERING WHEEL, READ SERVICE MANUAL, CENTER

FRONT WHEELS AND ALIGN SRS CLOCK SPRING NEUTRAL MARKS. FAILURE
TO DO SO MAY RENDER SRS SYSTEM INOPERATIVE, RISKING SERIOUS
DRIVER INJURY.

• THE AIR BAG MODULE CAN NOT BE REPAIRED. DO NOT DISASSEMBLE OR

TAMPER. DO NOT PERFORM DIAGNOSIS. DO NOT TOUCH WITH ELECTRICAL
TEST EQUIPMENT OR PROBES. REFER TO SERVICE MANUAL FOR FURTHER
INSTRUCTIONS, AND FOR SPECIAL HANDLING, STORAGE AND DISPOSAL
PROCEDURES. TAMPERING OR MISHANDLING CAN RESULT IN INJURY.

B

DANGER: FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY, DO NOT DISMANTLE, INCINERATE, OR BRING
INTO CONTACT WITH ELECTRICITY STORE BELOW 200

°F(93°C). READ SERVICE

MANUAL FOR DETAIL.

C

CAUTION: SRS CLOCKSPRING
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE REPLACE ENTIRE UNIT
ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTER: ROTATE
CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3
3/4 TURNS AND ALIGN ARROWS.

D, J

WARNING   FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

• DO NOT REPAIR, DISASSEMBLE OR TAMPER.

• AVOID CONTACT WITH FLAME OR ELECTRICITY.

• DO NOT DIAGNOSIS/USE NO TEST EQPT OR PROBES.

• STORE BELOW 200°F (93°C).

• BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL

FOR IMPORTANT FURTHER DATA.

E, K

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECTIVE REFER TO SERVICE MANUAL.

F

WARNING
EVEN WITH ADVANCED AIR BAGS

• Children can be killed or seriously injured by the air bag

• The back seat is the safest place for children

• Never put a rear-facing child seat in the front

• Always use seat belts and child restraints

• See owner’s manual for more information about air bags

AC306673

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-8

G

AIR BAG SYSTEM INFORMATION
THIS VEHICLE HAS AN AIR BAG SYSTEM WHICH WILL SUPPLEMENT THE SEAT
BELT IN CERTAIN FRONTAL COLLISIONS. THE AIR BAG IS NOT A SUBSTITUTE FOR
THE SEAT BELT IN ANY TYPE OF COLLISION. THE DRIVER AND ALL OTHER
OCCUPANTS SHOULD WEAR SEAT BELTS AT ALL TIMES.
WARNING!
IF THE "SRS" WARNING LIGHT DOES NOT ILLUMINATE FOR SEVERAL SECONDS
WHEN THE IGNITION KEY IS TURNED TO "ON" OR THE ENGINE IS STARTED, OR IF
THE WARNING LIGHT STAYS ON WHILE DRIVING, TAKE THE VEHICLE TO YOUR
NEAREST AUTHORIZED DEALER IMMEDIATELY. ALSO, IF VEHICLE'S FRONT END
IS DAMAGED OR IF THE AIR BAG HAS DEPLOYED, TAKE THE VEHICLE FOR
SERVICE IMMEDIATELY.
THE AIR BAG SYSTEM MUST BE INSPECTED BY AN AUTHORIZED DEALER TEN
YEARS AFTER THE VEHICLE MANUFACTURE DATE SHOWN ON THE
CERTIFICATION LABEL LOCATED ON THE LEFT FRONT DOOR-LATCH POST OR
DOOR FRAME.
READ THE "SRS" SECTION OF YOUR OWNER'S MANUAL BEFORE DRIVING FOR
IMPORTANT INFORMATION ABOUT OPERATION AND SERVICE OF THE AIR BAG
SYSTEM.
WHEN YOU ARE GOING TO DISCARD YOUR GAS GENERATOR OR VEHICLE,
PLEASE SEE YOUR DEALER.

H

This Vehicle is Equipped with Advanced Air Bags
Even with Advanced Air Bags
Children can be killed or seriously injured by the air bag. The back seat is the safest place
for children. Always use seat belts and child restraints.
See owner’s manual for more information about air bags.
No to be removed except by owner.

I

CAUTION: SRS
FIX STRG. WHEEL AT TIRES STRAIGHT AHEAD BEFORE GEARBOX REMOVAL.
OTHERWISE, MAY DAMAGE SRS CLOCKSPRING MAKING SRS SYSTEM
INOPERATIVE, RISKING SERIOUS DRIVER INJURY.

L

DANGER: SEAT BELT PRETENSIONER
CAUTION: THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR
FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY

• DO NOT IMPACT, DISMANTLE OR INSTALL IT INTO ANOTHER VEHICLE.

• SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.

M

CAUTION:
DO NOT DISASSEMBLE OR DROP.

N

WARNING
THIS VEHICLE HAS AN AIR BAG SYSTEM.
REFER TO SERVICE MANUAL BEFORE SERVICING OR DISASSEMBLING
UNDERHOOD COMPONENTS.
READ THE "SRS" SECTION OF MANUAL FOR IMPORTANT INSTRUCTIONS.
IMPROPER SERVICE PROCEDURES CAN RESULT IN THE AIR BAG FIRING OR
BECOMING INOPERATIVE, POSSIBLY LEADING TO INJURY.

LABEL CONTENTS
