Mitsubishi Galant (2004+). Manual - part 1525





TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-41

DATA LIST REFERENCE TABLE

M1136003500026

The following items can be read by the scan tool
from the ABS/TCL-ECU input data.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the
stoplight switch check item (No.6) used only for the ABS system also appear.

ACTUATOR TEST REFERENCE TABLE

M1136003600023

The scan tool activates the following actuators for
testing.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the
FR, FL, RR or RL Wheel ABS Drive testing items (No.01 to 04) used only for the ABS system also appear.

MUT-III
SCAN TOOL
DISPLAY

ITEM
NO.

CHECK ITEM

CHECKING REQUIREMENTS NORMAL

VALUE

FR wheel
speed sensor

01

Front right wheel speed sensor Drive the vehicle

Vehicle speeds
displayed on the
speedometer
and scan tool are
identical.

FL wheel
speed sensor

02

Front left wheel speed sensor

RR wheel
speed sensor

03

Rear right wheel speed sensor

RL wheel
speed sensor

04

Rear left wheel speed sensor

Battery
voltage

05

ABS/TCL-ECU power supply
voltage

Ignition switch power supply
voltage

Battery positive
voltage

Stoplight
switch*

06

Stoplight switch

Depress the brake pedal.

ON

Release the brake pedal.

OFF

TCL mode

35

TCL system operation

When the TCL system outputs
the operation permission signal
during driving

ON

When the TCL system outputs
the operation inhibition signal
during driving

OFF

MUT-III SCAN TOOL
DISPLAY

ITEM NO.

CHECK ITEM

PARTS TO BE ACTIVATED

FR wheel ABS Drive* 01

Solenoid valve for front right wheel

Solenoid valves and pump
motors in the hydraulic unit
(simple inspection mode)

FL wheel ABS Drive* 02

Solenoid valve for front left wheel

RR wheel ABS
Drive*

03

Solenoid valve for rear right wheel

RL wheel ABS Drive* 04

Solenoid valve for rear left wheel

Engine TCL Drive

09

TCL system operation check

Outputs the engine torque
control signal (engine torque =
0) to PCM for three seconds.

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-42

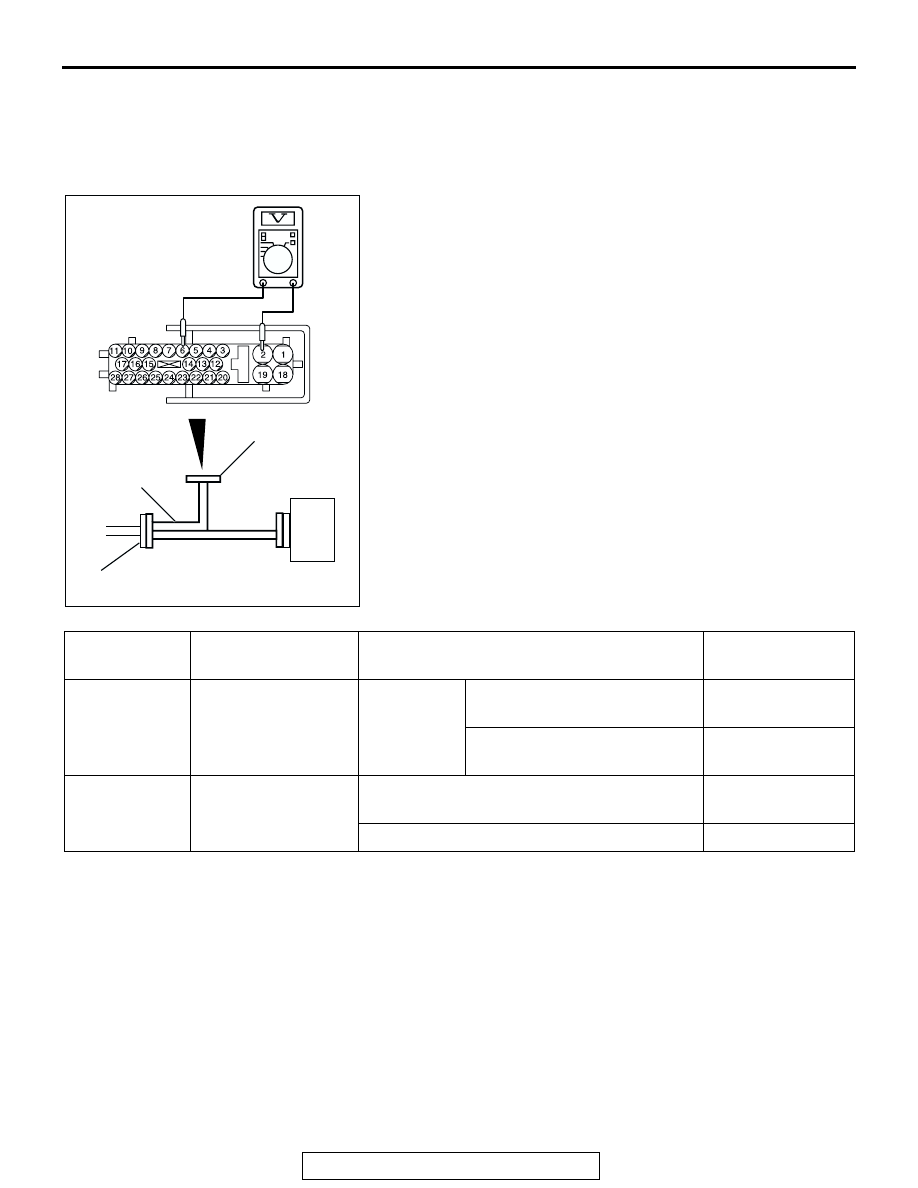

CHECK AT ABS/TCL-ECU TERMINAL VOLTAGE

M1136003800027

.

TERMINAL VOLTAGE CHECK CHART

Required Special Tool:
MB991970: ABS check harness
1. Disconnect the ABS/TCL-ECU connector A-02 and connect

special tool MB991970 between the ABS/TCL-ECU and the
body-side harness connector. Then use special tool
MB991970 to measure the voltages between terminal 2 and
each terminal.

2. The terminal layouts are shown in the illustrations below.
NOTE: Do not measure terminal voltage for approximately
three seconds after the ignition switch is turned "ON." The
ABS/TCL-ECU performs the initial check during that period.

.

AC211156AC

ABS/TCL-ECU

A-02 HARNESS
CONNECTOR

MB991970

INSPECTION
HARNESS
CONNECTOR

CONNECTOR
TERMINAL NO

SIGNAL

CHECKING REQUIREMENT

NORMAL
CONDITION

6

TCL switch

Ignition
switch: "ON"

When the TCL switch is not
pressed.

Battery positive
voltage

When the TCL switch is
pressed.

1 V or less

20

ABS/TCL-ECU power
supply

Ignition switch: "ON"

Battery positive
voltage

Ignition switch: "LOCK" (OFF)

1 V or less

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-43

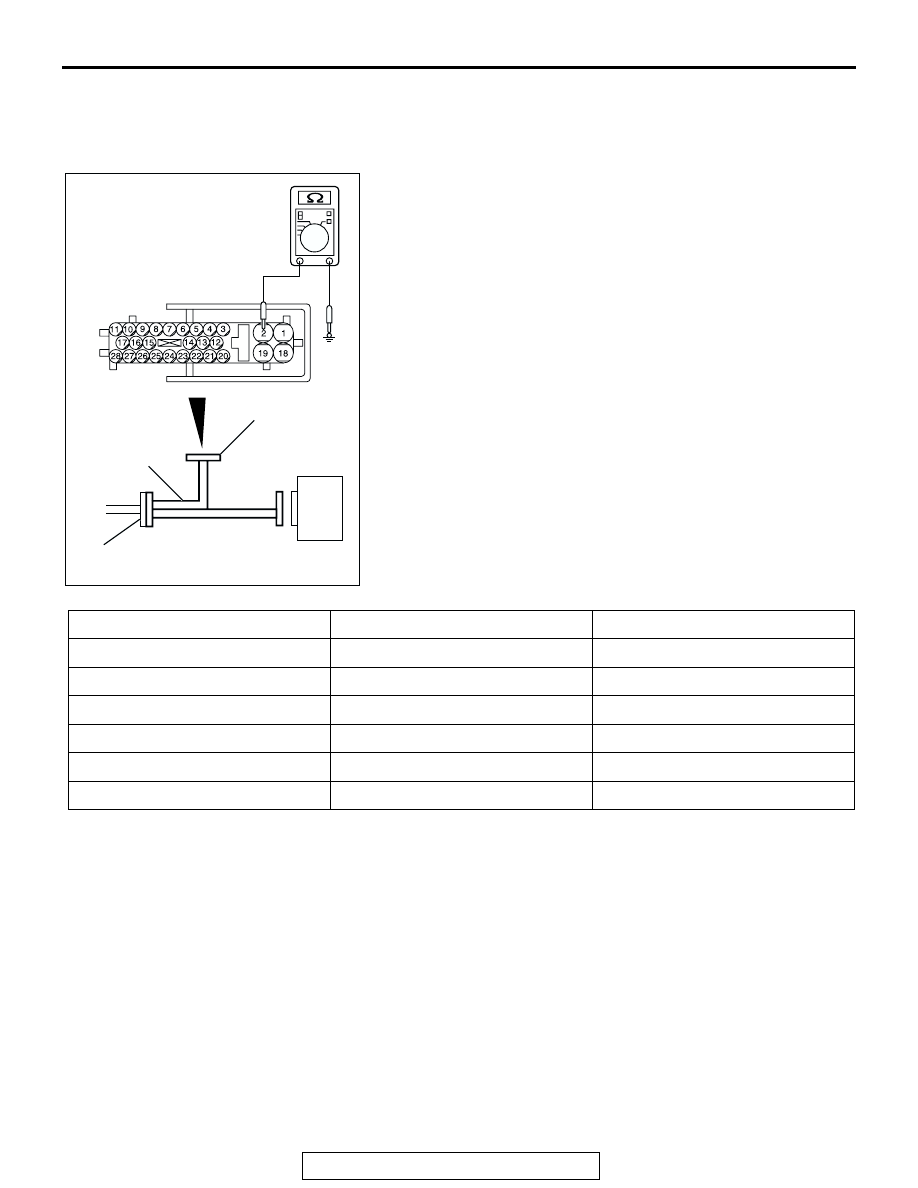

RESISTANCE AND CONTINUITY BETWEEN
HARNESS-SIDE CONNECTOR TERMINALS

Required Special Tool:
MB991970: ABS check harness
1. Disconnect the ABS/TCL-ECU connector A-02 and connect

special tool MB991970 to the A-02 body-side harness
connector. Then turn the ignition switch to the "LOCK" (OFF)
position and checking resistance and continuity.

2. Check the resistance and continuity between the terminals

indicated in the table below.

3. The terminal layout is shown in the illustration.

AC211160AD

ABS/TCL-ECU

A-02 HARNESS
CONNECTOR

MB991970

INSPECTION
HARNESS
CONNECTOR

CONNECTOR TERMINAL NO.

SIGNAL

NORMAL CONDITION

− body ground

Ground

Less than 2 ohms

− 10

Front-right wheel speed sensor

1.24

− 1.64 kΩ

11

− 17

Rear-right wheel speed sensor

1.24

− 1.64 kΩ

16

− 26

Front-left wheel speed sensor

1.24

− 1.64 kΩ

18

− body ground

Ground

Less than 2 ohms

27

− 28

Rear-left wheel speed sensor

1.24

− 1.64 kΩ

SPECIAL TOOLS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-44

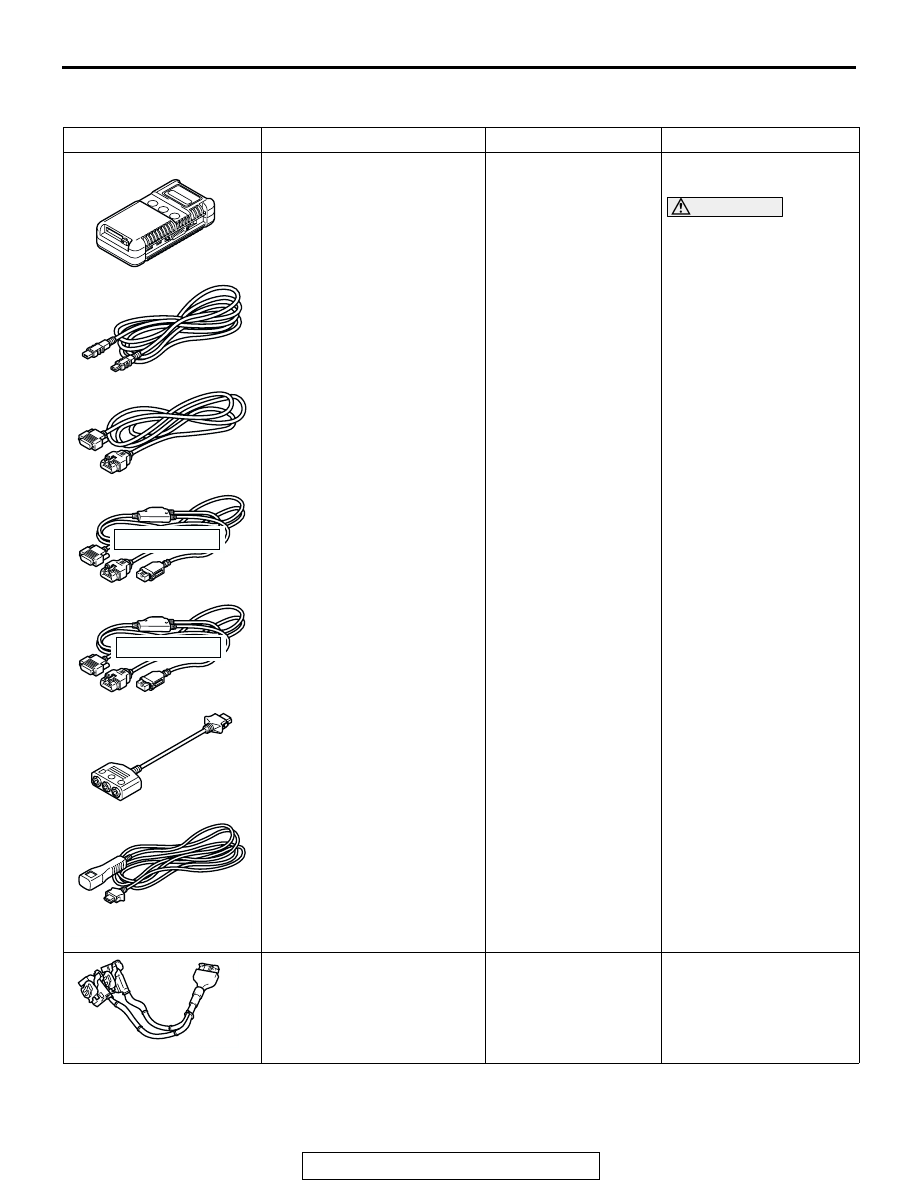

SPECIAL TOOLS

M1136000600024

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III main harness C

(for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

Checking diagnostic
trouble codes

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991970
ABS check harness

ABS/TCL-ECU terminal
voltage measurement

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MB991970
