MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-247

Past trouble

• Carry out diagnosis with  particular emphasis on

connector(s) or wiring harness in the CAN bus
lines between the A/C-ECU and the multi-center
display unit (middle grade type), and the power
supply system to the A/C-ECU. For diagnosis
procedures, refer to "How to cope with past trou-
ble" (Refer to GROUP 00, How to Use Trouble-
shooting/Inspection Service Points

P.00-6

).

NOTE: For a past trouble, you may not find it by
the MUT-III CAN bus diagnostics even if there is
any failure in CAN bus lines. In this case, refer to
GROUP 00, How to Use Troubleshooting/Inspec-
tion Service Points-How to Cope with Intermittent

Malfunction

P.00-6

.) and check the CAN bus

lines. You can narrow down the possible cause of
the trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs
(Refer to GROUP 54C, CAN bus line Diagnostics
Flow

P.54C-6

).

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

• Malfunction of A/C-ECU

• Malfunction of multi-center display unit (middle

grade type)

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness A (Vehicles with CAN

communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to diagnose the CAN bus lines.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart

P.54C-14

). On

completion, go to Step 6.

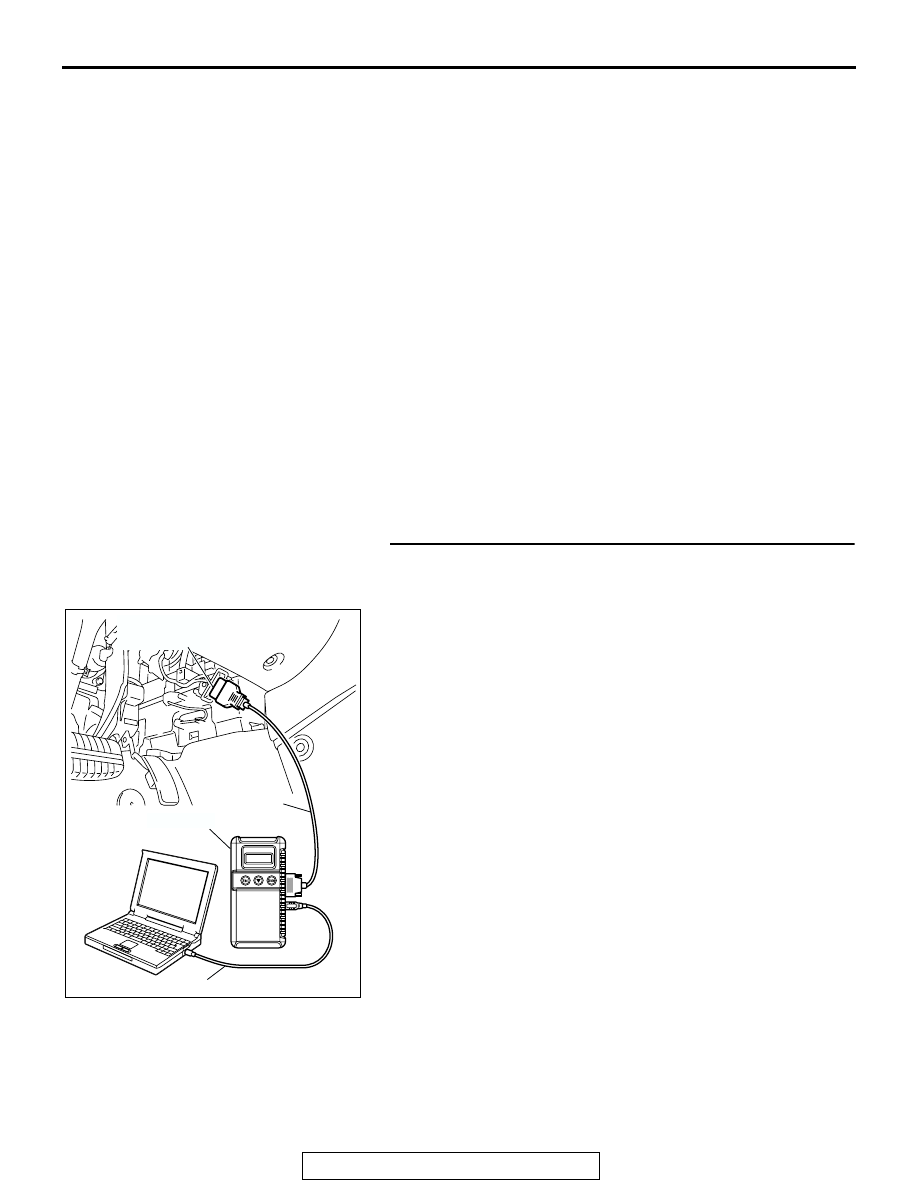

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-248

STEP 2. Using scan tool MB991958, read the A/C
diagnostic trouble code
Check if an A/C system DTC is set.
Q: Is the DTC set?

YES : Diagnose the A/C system by referring to GROUP

55A, Manual A/C Diagnosis

− Diagnostic Trouble

Code Chart <Low Type>

P.55A-10

  or Diagnostic

Trouble Code Chart <Middle Type>

P.55A-59

  or Auto

A/C Diagnostic Trouble Code Chart

P.55B-8

.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code.
Check if a DTC, which relates to CAN communication-linked
systems below, is set.
Powertrain control module

• DTC U1110: A/C-ECU time-out

ETACS-ECU

• DTC 013: A/C-ECU time-out

Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the A/C-ECU and the middle grade multi-center
display unit (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points-How to
Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace A/C-ECU and then go to step 6.

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-249

STEP 5. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the A/C-ECU and the middle grade multi-center
display unit (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points-How to
Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace the multi-center display unit (middle grade

type) and then go to step 6.

STEP 6. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : the procedure is complete.
NO :  Go to Step 1.

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-250

DTC 014: Combination Meter Time-out

CAUTION

If DTC 014 is set in the multi-center display,
always diagnose the CAN bus lines.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

CIRCUIT OPERATION
 Refer to

P.54A-238

.

.

DTC SET CONDITION
The multi-center display unit (middle grade type)
receives signals from the combination meter via CAN
bus lines. If the display unit can not receive the nec-
essary combination meter signals, DTC 014 will be
set.

.

TECHNICAL DESCRIPTION (COMMENT)

CAUTION

If the ignition switch is turned to the ON position
without starting the engine, DTC (past trouble)
011, 012 and 013 may be set to the combination
meter (incorporating meter-ECU) after three min-
utes.

Current trouble

• Connector(s) or wiring harness in the CAN bus

lines between the combination meter and the
multi-center display unit (middle grade type), the
power supply system to the display unit, the dis-
play unit itself, or the combination meter may be
defective.

Past trouble

• Carry out diagnosis with particular emphasis on

connector(s) or wiring harness in the CAN bus
lines between the combination meter and the
multi-center display unit  (middle grade type), the
power supply system to the display unit. For diag-
nosis procedures, refer to "How to cope with past
trouble" (Refer to GROUP 00, How to Use Trou-
bleshooting/Inspection Service Points

P.00-6

).

NOTE: For a past trouble, you may not find it by the
MUT-III CAN bus diagnostics even if there is any fail-
ure in CAN bus lines. In this case, refer to GROUP
00, How to Use Troubleshooting/Inspection Service
Points-How to Cope with Intermittent Malfunction

P.00-6

.) and check the CAN bus lines. You can nar-

row down the possible cause of the trouble by refer-
ring to the DTC, which is set regarding the CAN
communication-linked ECUs (Refer to GROUP 54C,
CAN bus line Diagnostics Flow

P.54C-6

).

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

• Malfunction of combination meter

• Malfunction of multi-center display unit (middle

grade type)

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness A (Vehicles with CAN

communication system)
