MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-243

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code related to the other system.
Check if a DTC, which relates to CAN communication-linked
systems below, is set.
ABS-ECU

• DTC U1100: Powertrain control module time-out (related

to Engine) <vehicles with TCL>

• DTC U1101: Powertrain control module time-out (related

to automatic transmission) <vehicles with TCL>

Combination meter

• DTC 011: Power train control module time-out (related

to Engine)

• DTC 012: Power train control module time-out (related

to A/T)

ETACS-ECU

• DTC 011: Power train control module time-out (related

to Engine)

• DTC 012: Power train control module time-out (related

to A/T)

A/C-ECU

• DTC U1100: Power train control module time-out

(related to Engine)

Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the powertrain control module and the middle-grade
multi-center display unit (Refer to GROUP 00, How to
Use Troubleshooting/Inspection Service Points-How
to Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace powertrain control module and then go to

step 6.

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-244

STEP 5. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the powertrain control module and the middle-grade
multi-center display unit (Refer to GROUP 00, How to
Use Troubleshooting/Inspection Service Points-How
to Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace multi-center display unit (middle grade type)

and then go to step 6.

STEP 6. Recheck for diagnostic trouble code.
Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : The procedure is complete.
NO :  Go to Step 1.

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-245

DTC 013: A/C-ECU Time-out

POWERTRAIN
CONTROL MODULE

JOINT
CONNECTOR (3)

WITHOUT ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING
SYSTEM (ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING
SYSTEM (ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING
SYSTEM (ABS)

WITHOUT ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING
SYSTEM (ABS)

ABS-ECU OR ABS/TCL-ECU

MULTI-CENTER
DISPLAY UNIT

COMBINATION
METER

CPU

A/C-ECU

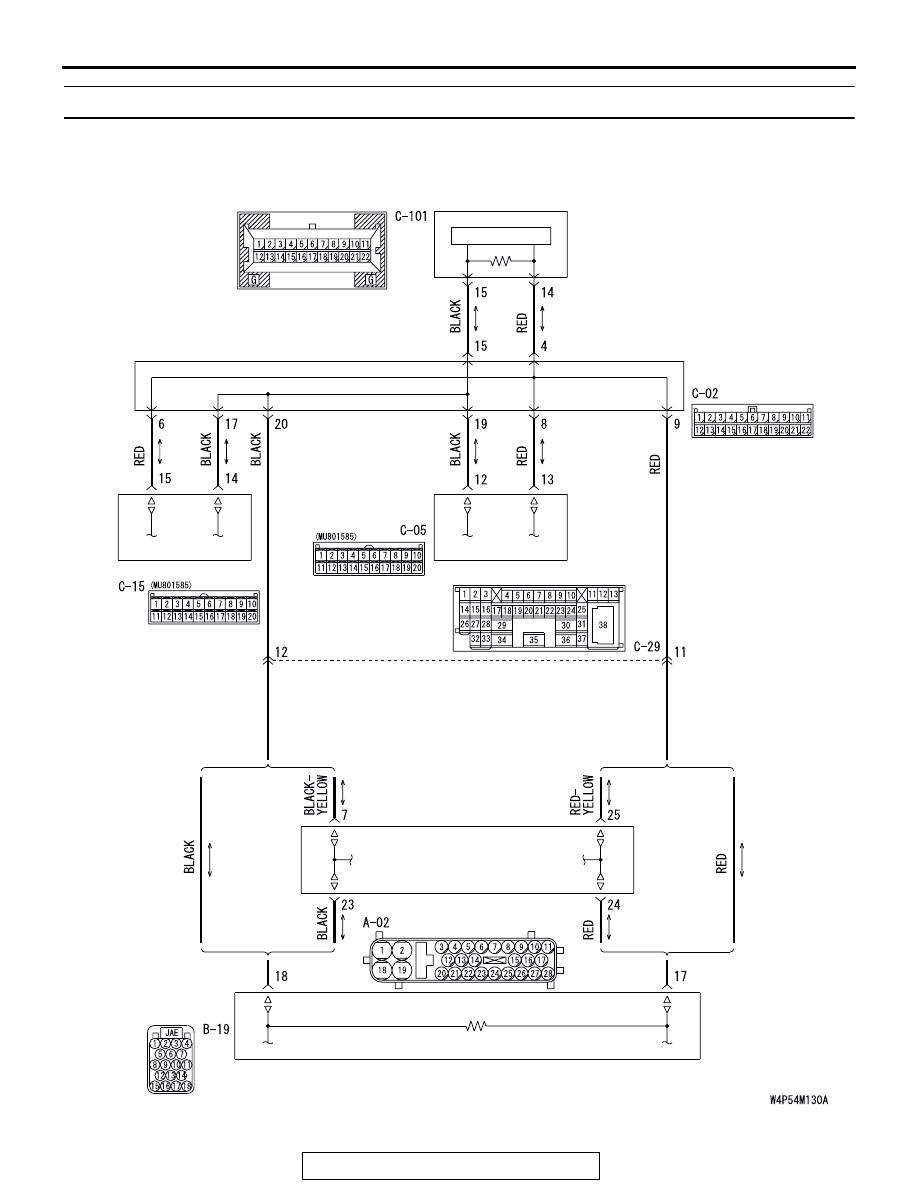

Circuit of Time-out During CAN Communication with A/C-ECU

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-246

CAUTION

If DTC 013 is set in the multi-center display,
always diagnose the CAN bus lines.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

CIRCUIT OPERATION
The multi-center display unit (middle grade type)
communicates with the A/C-ECU via CAN bus lines.

.

DTC SET CONDITION
When the multi-center display unit (middle grade
type) can not receives necessary signals from the
A/C-ECU via CAN bus lines. If the display unit can
not receives the necessary A/C-ECU signals, DTC
013 will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

CAUTION

If the ignition switch is turned to the ON position
without starting the engine, DTC (past trouble)
011, 012 and 014 may be set to the combination
meter (incorporating meter-ECU) after three min-
utes.

Current trouble

• Connector(s) or wiring harness in the CAN bus

lines between the A/C-ECU and the multi-center
display unit (middle grade type), the power sup-
ply system to the display unit, the display unit
itself, or the A/C-ECU may be defective.

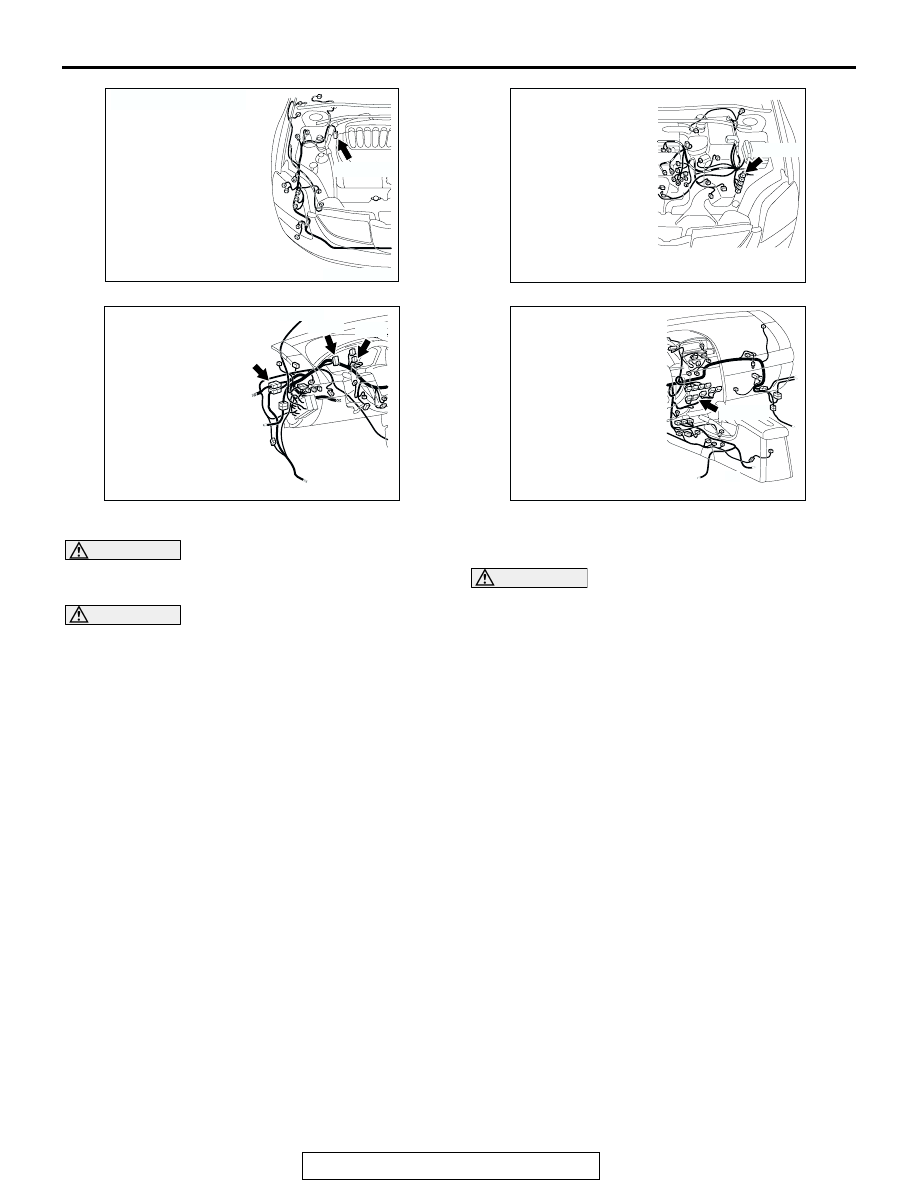

AC305206

CONNECTOR: A-02

AO

A-02 (GR)

AC305216

B-19 (B)

CONNECTOR: B-19

AD

AC305231

C-02

C-29

C-101

DD

CONNECTORS: C-02, C-29, C-101

AC305233

C-15 (B)

BI

CONNECTOR: C-15
